Practical information

508HY-comp_en_Chap07_info-pratiques_ed01-2016

Car washing machine or tunnel

READY lamp on, parking brake

READY

released:


Place the gear selector in position

N .



Switch off the engine (press the START/STOP button or

with the vehicle's key if it does not have Keyless Entry and
Starting). The parking brake is applied automatically and the

READY lamp goes off in the instrument panel.

READY



Switch on the ignition again (press the START/STOP button

or with the key in the intermediate position) without your foot
on the brake pedal. The

READY lamp remains off.

READY



Release the parking brake using the manual control on the

centre console, while keeping your foot on the brake pedal.



Switch off the ignition (press the START/STOP button without

your foot on the brake pedal, or using the key) after checking
that the parking brake remains released.

With the HYbrid4 system active,

READY lamp on, parking brake

READY

released:


Place the gear selector in position

N ( AUTO mode).



Press the brake pedal then the

ECO OFF button.

If the HDI Diesel engine was on standby, it then restarts.
If the HDi Diesel engine is running, its operation is maintained
without time limit.

Car washing machines or tunnels in which the HDi

Diesel engine must be switched off.

Car washing machines or tunnels in which the HDi

Diesel engine must not be switched off.

Some car washing machines or tunnels (where the vehicle is moved forwards on a travelling track) require that the parking brake be
"released" during the wash.
If possible on your vehicle, deactivate the automatic operation of the electric parking brake via the vehicle equipment configuration
menu.

Practical information

508HY-comp_en_Chap07_info-pratiques_ed01-2016

Snow chains

Recommendations

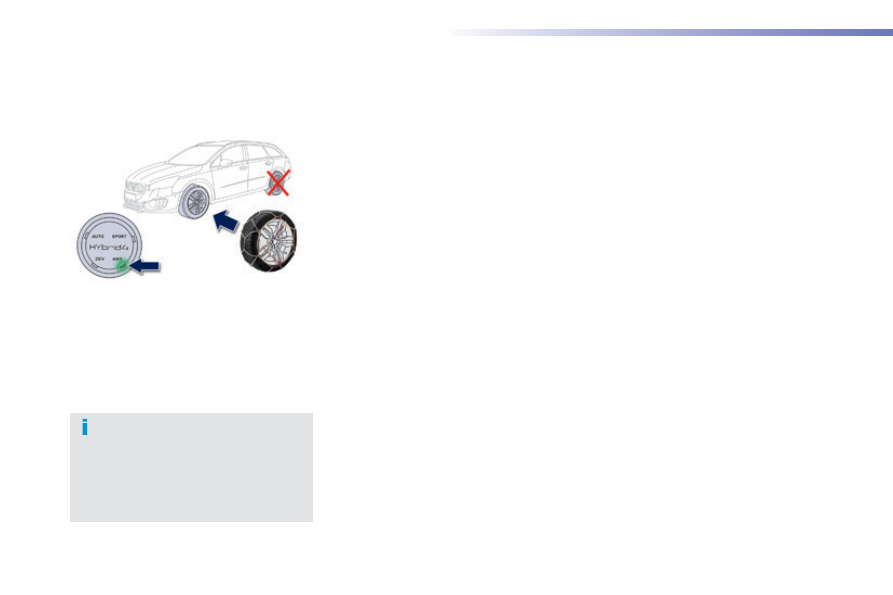

The use of snow chains is only authorised on
the front wheels.
The mode selector must be in
the

4WD position.

For information on the sizes
compatible with the tyres on your
vehicle and advice on use, refer to the
corresponding section in the handbook
for the vehicle.

In the event of a breakdown

508HY-comp_en_Chap08_en-cas-de-pannes_ed01-2016

Temporary puncture repair kit

This kit comprises a compressor and a sealant cartridge.
It allows you to carry out a

temporary repair to a tyre.

temporary repair

This makes it possible to continue to the nearest garage.

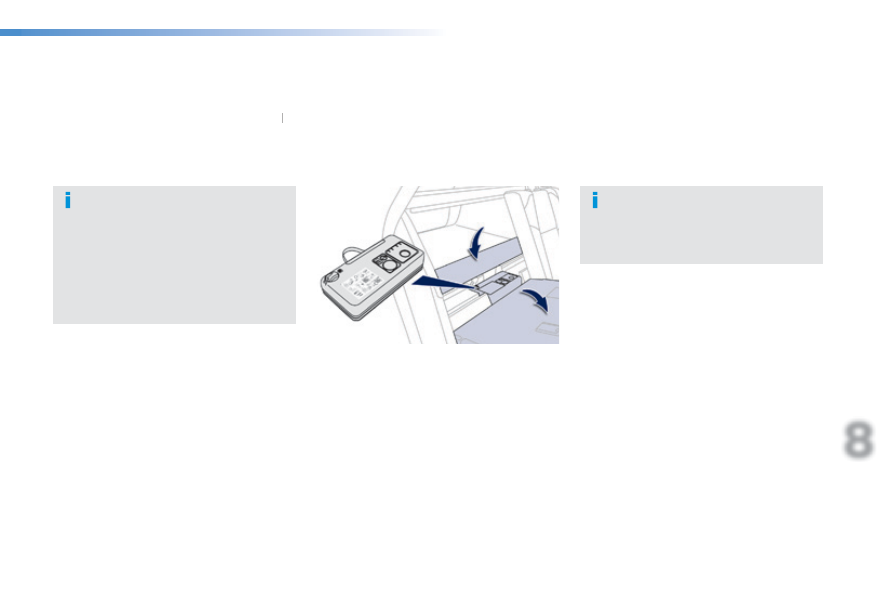

This kit is stowed in the storage well behind the
rear seats.


Fold the 2/3 part of the rear seat for access

to it.



Raise the cover of the storage well.

It can be used for repairing most
punctures on the tread or shoulder of
the tyre.
The compressor can be used to check
and adjust a tyre pressure.

For more information on the use of this
temporary puncture repair kit, refer
to the corresponding section in the
handbook for the vehicle.

Access to the kit

In the event of a breakdown

508HY-comp_en_Chap08_en-cas-de-pannes_ed01-2016

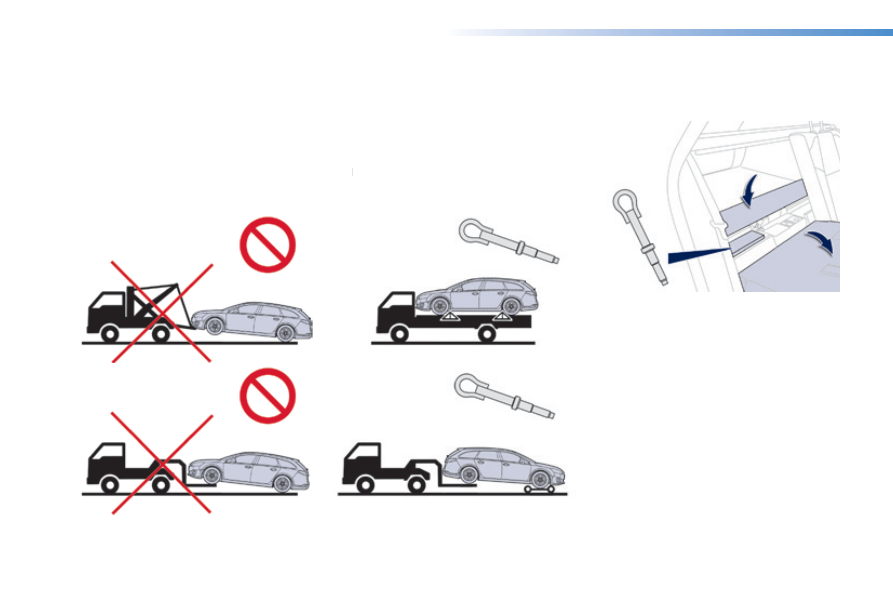

Recovery of the vehicle on a ﬂ at-bed

Never recover the vehicle by towing it with two or four wheels on the ground, as there is a risk of
damage to the transmission.
However, if necessary because access to the vehicle is difficult, the vehicle can be moved a few
dozen metres, at a speed of less than 6 mph (10 km/h).

Before doing any work, with the ignition on, press the brake pedal and place the gear selector at
position

N , then switch off the HYbrid4 system ( READY lamp off).

READY

Always call on professionals for recovery of the vehicle on a flat-bed lorry or trailer.

Use the towing eye

only to pull the vehicle out

or to lash it for recovery on a flat-bed lorry or
trailer.

The towing eye is stowed in the storage well
behind the rear seats.


Fold the 2/3 part of the rear seat for access

to it.



Raise the cover of the storage well.

Access to the tools

In the event of a breakdown

508HY-comp_en_Chap08_en-cas-de-pannes_ed01-2016

Removing / Reﬁ tting the 12 V battery

This procedure allows you to safely remove
the 12 V battery, when needed to change a left
hand headlamp bulb.

You can contact a PEUGEOT dealer or
a qualified workshop to have this done.

Before removing



Place the vehicle in a ventilated area, with

free access and preferably on level ground.



Apply the parking brake.



Place the gear selector in position

N .



If the vehicle has an alarm, leave the

bonnet open to avoid triggering the alarm.



Leave at least one window open if parking

in a secure area, otherwise lock all doors
and the boot.



If your vehicle has a motorised tailgate,

it will not be possible to open it after
disconnecting the battery.



Switch of the ignition and remove the key.



If your vehicle has Keyless Entry and

Starting, place the remote control at
least 3 metres away.



Wait around 6 minutes before

disconnecting the battery.

Removing



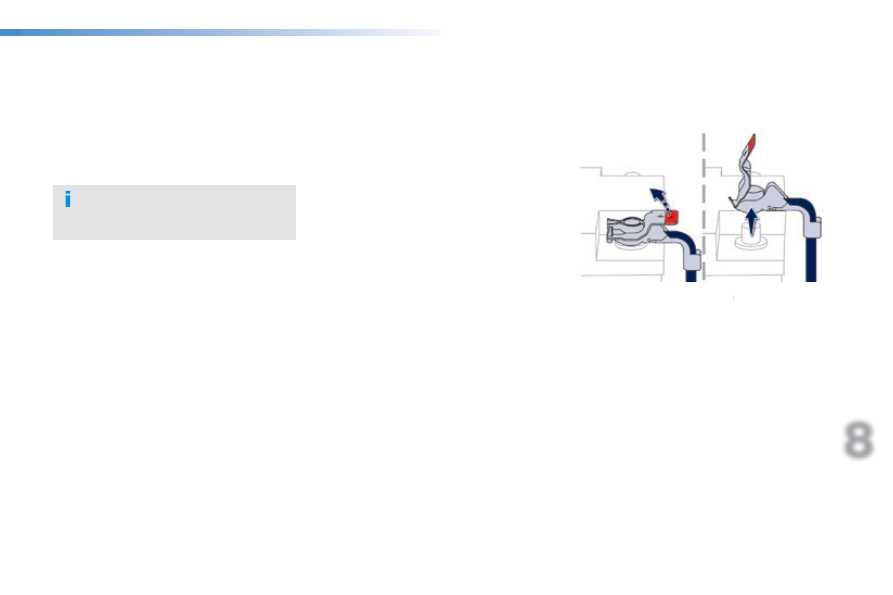

Disconnect the positive (

+ ) terminal of the

battery.

In the event of a breakdown

508HY-comp_en_Chap08_en-cas-de-pannes_ed01-2016



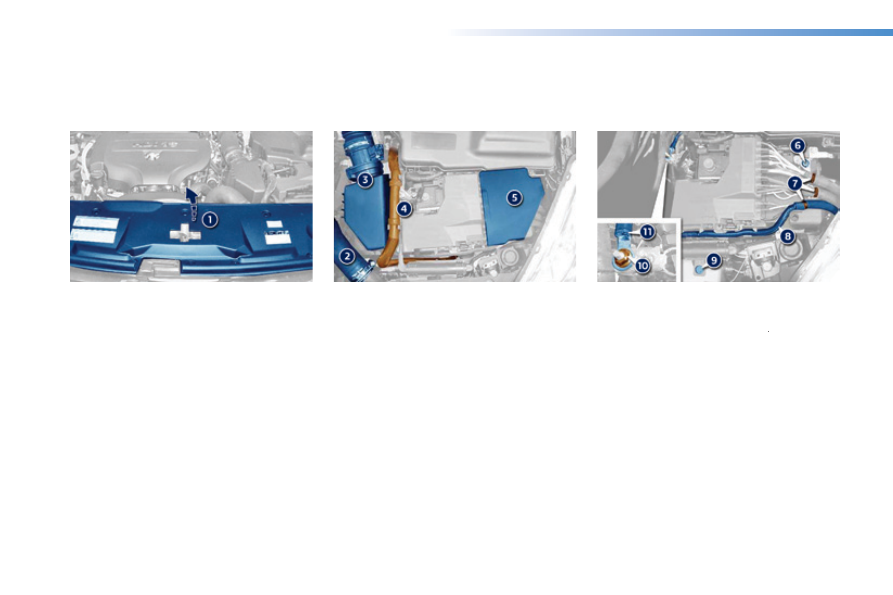

Remove the deflector

1 .



Uncouple the hose

2 .



Remove the assembly of airflow meter and

air filter

3 .



If present, move aside the coolant hose

4 .



Remove the battery cover

5 .



Slacken

6 then disconnect the negative ( - ) --

terminal of the battery.



Unclip the wiring harnesses

7 .



Unclip and move aside the wiring

harness

8 .



Remove the bolt from the maxi-fuse box

9 .



Remove the nut

10 from the positive ( + )

cable.



Move aside the wiring harness

11 .

In the event of a breakdown

508HY-comp_en_Chap08_en-cas-de-pannes_ed01-2016



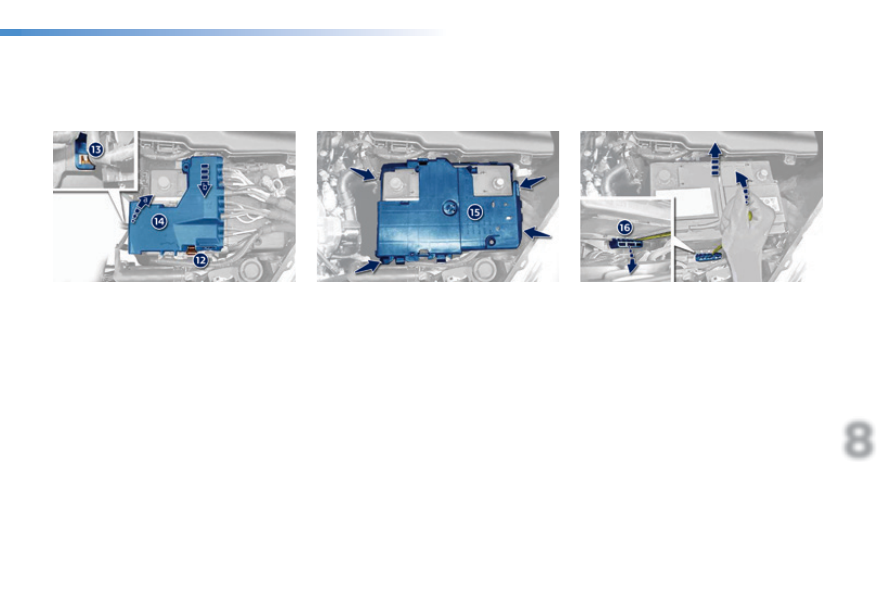

Using a screwdriver, unclip the clips

and

13 .



Turn the power shut-off unit

14 upwards.



Move the unit forwards.



Unclip the clips.



Remove the battery cover

15 .



Using a screwdriver, lever the fixing

aside and remove the battery.

In the event of a breakdown

508HY-comp_en_Chap08_en-cas-de-pannes_ed01-2016

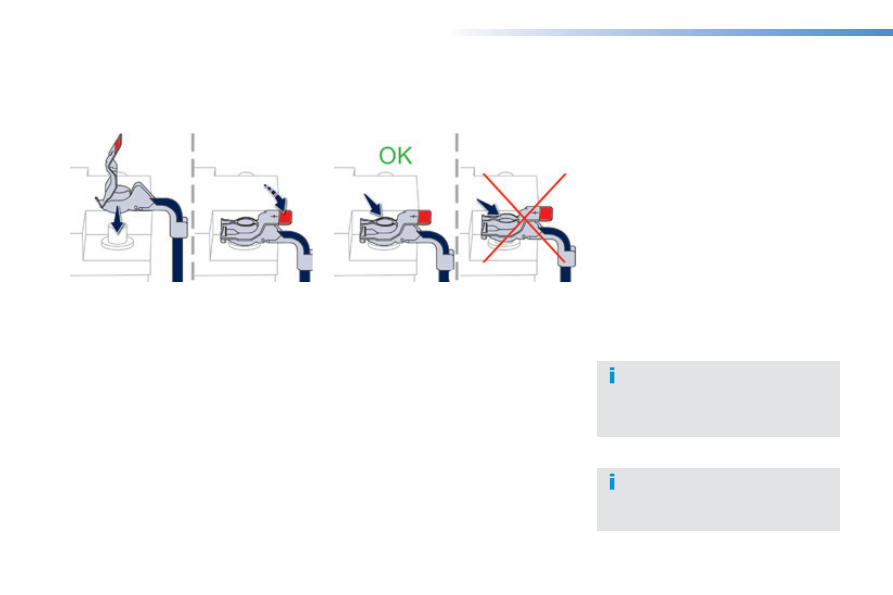

Refitting

To refit the battery, carry out the removal
operations in reverse order and connect the
positive (

+) terminal last.

After refitting



Check that the battery terminals are

secure.



Switch on the ignition, without starting the

engine.



Check that there are no error messages or

warning lamps on. If there is any problem,
contact a PEUGEOT dealer or a qualified
workshop to have the system reset.



Check the correct operation of all

openings: doors, boot and windows.



After refitting, wait for about 2 minutes.



Start the engine.



Check the correct operation of the anti-

pinch systems: electric windows and
panoramic sunroof.



Check the correct operation of the electric

parking brake by releasing and applying it
again.



Switch off the ignition.



Get out of the vehicle and check the

operation of the remote control.



Set: the time, the radio preset stations and

the audio settings.

After reconnecting the battery,
certain functions may be temporarily
unavailable: air conditioning, navigation.

In all cases, if there is a problem,
contact a PEUGEOT dealer or a
qualified workshop.

Technical data

508HY-comp_en_Chap09_caracteristiques-techniques_ed01-2016

Electric motor

Technology

Synchronous with permanent magnets

Max. power: EU standard (kW) *

Max. power speed (rpm)

2 000 to 7 500

Max. torque: EU standard (Nm)

200

Max. torque speed (rpm)

800 to 1 290

Efficiency (%)

80 to 90

High voltage battery

Ni-MH

(Nickel Metal Hydride)

Voltage (V~)

200

Energy capacity (kWh / Ah)

1.1 / 5.5

Range (miles (km))

1.2 (2) (approximately)

Electric motor and battery

* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (directive 1999/99/EC).
Range varies according to the ambient climatic conditions, the driving style and conditions, the use of vehicle systems and ageing of the battery.

Technical data

508HY-comp_en_Chap09_caracteristiques-techniques_ed01-2016

* The maximum power corresponds to the value type approved on an engine test bed, under conditions defined by European legislation (directive 1999/99/EC).

Diesel engine and gearbox

Diesel engine

2.0 litre HDi 163 hp

Gearbox

ETG6 electronic

(6-speed)

Cubic capacity (cc)

1 997

Bore x stroke (mm)

85 x 88

Max power: EU standard (kW) *

120

Max power engine speed (rpm)

3 850

Max torque: EU standard (Nm)

300

Max torque engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle filter

Yes

Engine oil capacity in litres (with filter
replacement)

5.0

Technical data

508HY-comp_en_Chap09_caracteristiques-techniques_ed01-2016

* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

Weights and towed loads (in kg)

Version

Diesel HYbrid4

Gearbox

ETG6 electronic

(6-speed)

Model code: 8U...

RHCM/P

Unladen weight

1 770

Kerb weight *

1 845

Gross vehicle weight (GVW)

2 325

Gross train weight (GTW)

on a 12% gradient

3 125

Braked trailer (within GTW limit)

on a 10% or 12% gradient

800

Braked trailer ** (with load transfer with the
GTW limit)

1 100

Unbraked trailer

750

Recommended nose weight

Technical data

508HY-comp_en_Chap09_caracteristiques-techniques_ed01-2016

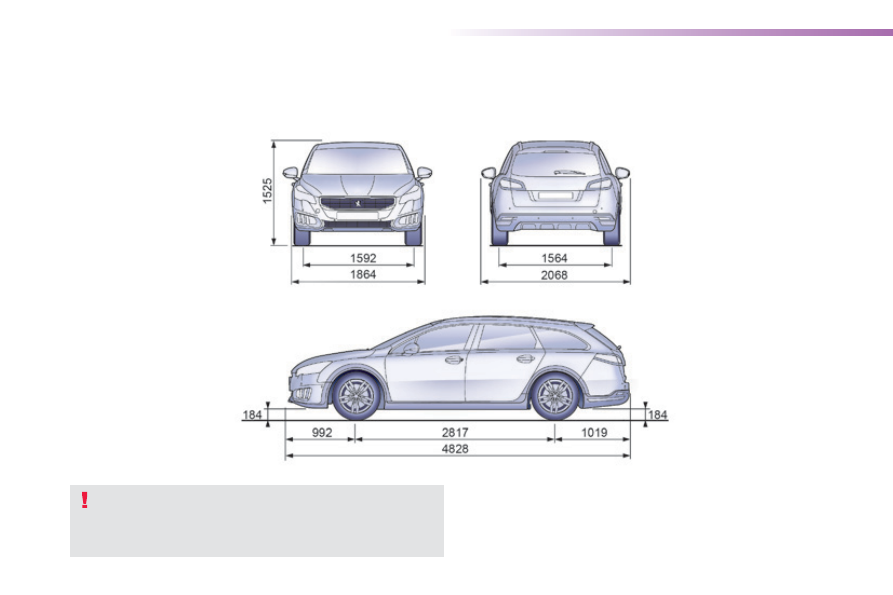

Dimensions (in mm)

These dimensions have been measured on an unladen vehicle.

Be aware of the ground clearance of your vehicle: around

184 mm in ideal conditions.

This value will vary with vehicle load, the tyre pressures, the
nature of the ground surface and the surroundings.

508HY-comp_en_Chap11c_SMEGplus-i_ed01-2016

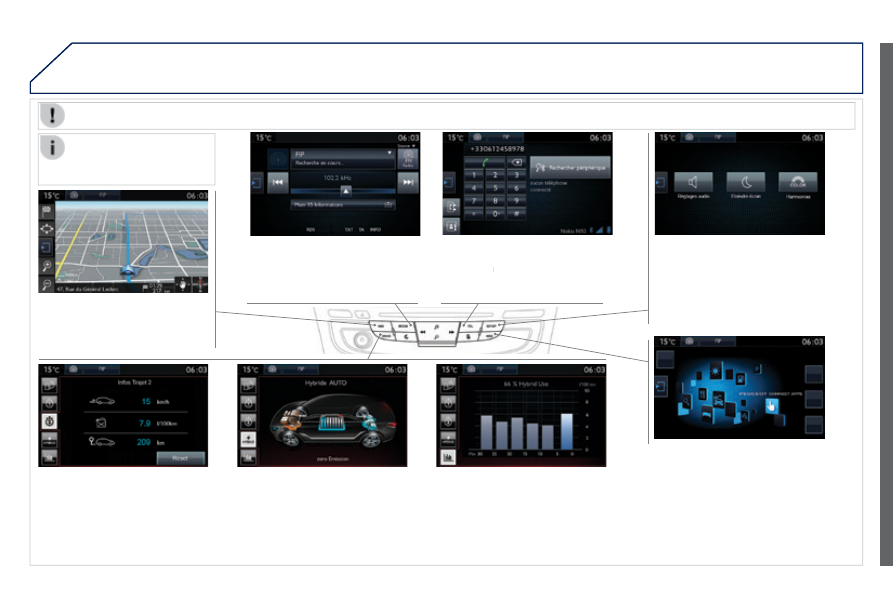

Connected services

(Depending on equipment)

Connect to an applications portal to

facilitate, make safe and personalise

journeys, using a connection key

available on subscription from

PEUGEOT dealers.

Navigation

(Depending on equipment)

Enter navigation settings and

select a destination.

AM and DAB are not

available on HYbrid4

vehicles.

Conﬁ guration

Adjust audio settings (balance,

ambience...), color scheme,

brightness of the instruments,

display (language, units, time, ...).

Driving assistance

Open the trip computer.

Activate, deactivate, adjust

settings for certain vehicle

systems.

7-INCH TOUCH SCREEN

Hybrid ﬂ ows

View information on energy

ﬂ ows.

For more information, refer to

the "HYbrid4 system" section.

Hybrid consumption

View the consumption of the

HYbrid4 system.

For more information, refer to

the "HYbrid4 system" section.

Additional to the information on the 7-inch touch screen in the 508 handbook.

Media

Select an audio source, a radio

station, display photographs.

Telephone

Connect a telephone by

Bluetooth

Bluetooth .

Frequently asked questions

508HY-comp_en_Chap13_questions_ed01-2016

Frequently asked questions

Question

Answer

Why is it not always possible for me to select

ZEV (Zero Emissions Vehicle) mode even

though the battery seems well charged?

This situation is temporary.
Certain conditions will occasionally prevent the change to

ZEV mode, even if the battery has

sufficient charge, such as, for example, very cold conditions, altitude, demisting, high demand for
heating or air conditioning, regeneration of the particle filter (FAP).

Why do I sometimes see an alert message
"

Electric mode not available: FAP

regeneration in progress" ?

This is a message which indicates that regeneration of the particle filter (FAP) is in progress. This
is a completely normal process that takes place every 240 or 300 miles (400 or 500 km) (or more
frequently in prolonged urban use), as on a conventional HDi Diesel vehicle.
In the case of a conventional HDi Diesel vehicle, this process is not generally noticed by the
driver.
On the other hand, in the case of HYbrid4 this phenomenon may be noticeable (in urban use)
as temporarily the HDi engine will not stop and this message will be displayed at intervals while
regeneration is in progress.

Why is it not possible for me to put the vehicle
into

ZEV mode, even though I had just been

running electrically in

AUTO mode?

The management of

ZEV is different from AUTO mode.

Changing to

ZEV mode is only possible with a battery charge of at least 4 bars, in order to assure

sufficient range.
In

AUTO mode, the system alone manages the conditions for changing temporarily to electric

mode, for shorter periods and with a lower state of charge of the battery.

Why is the range in

ZEV mode lower when going

uphill?

The vehicle needs more energy when going uphill than when running on the level.
So it is better to stay in

AUTO mode, which will favour operation of the HDi Diesel engine.

Why is it that the system makes me come out
of

ZEV mode; it does not return to ZEV mode

automatically when the conditions allow?

It is not intended to give preference to

ZEV running at any cost, as it is not always the most

economical mode.
So the system returns automatically to

AUTO mode.

Frequently asked questions

508HY-comp_en_Chap13_questions_ed01-2016

Reducing consumption / Fuel

Question

Answer

How can I optimise my fuel consumption?

Give preference to

AUTO mode as it selects in the best way the "driving energy source" to use in

order to reduce fuel consumption.
You should also adapt your driving style to the characteristics of hybrid vehicles to get the best
out of it, for example by taking your foot off the accelerator pedal rather than braking and by
anticipating decelerations which allows the recovery of "free" energy for charging the battery
(entering a built-up area, stop at traffic lights, stop at halt signs, ...).

Why do I not manage to reduce my fuel
consumption even though I often drive in

ZEV

(Zero Emissions Vehicle) mode?

It is not

ZEV mode but AUTO mode that is the most appropriate for reducing fuel consumption, as

it selects the best "driving energy source".

ZEV mode (100% electric running) can reduce fuel consumption in some cases. However,

recharging the traction battery has an energy cost.
This is why we recommend using

AUTO mode more often.

Why does the fuel consumption histogram
sometimes display consumption of 28 mpg
(10 litres/100 km) in town?

In traffic jams, the fuel consumption graph may temporarily display high values but, as the
distance covered is low, this has very little impact on the average fuel consumption.
In urban driving, your HYbrid4 will remain more efficient in terms of fuel consumption compared to
a conventional vehicle.

Why is my battery rarely fully charged?

A partly charged battery is normal operation (4 to 5 bars on average in

AUTO mode).

This allows some capacity to be left free for the recovery of energy when decelerating.

Why are there so many fuel alert messages
when starting to use the reserve?

To encourage you to refuel as soon as possible and to avoid loosing the possibility of all electric
running.

Frequently asked questions

508HY-comp_en_Chap13_questions_ed01-2016

Air conditioning / Heating

Question

Answer

It seems to me that the vehicle runs less on
electric when the heating or air conditioning is
operating, is that right?

The demand for heating or air conditioning may require the starting of the HDi Diesel engine until
the desired level of comfort is attained.
Normal operation of the HYbrid4 system is simply put back. The period can be longer under very
low or very high ambient temperatures.

It seems to me that when it is very hot and the
air conditioning is working, the vehicle runs on
electric for shorter periods. Is that right?

When it is hot, the periods when the HDi Diesel engine is put on standby and the vehicle runs on
electric are necessarily restricted in order to limit the difference between the temperature in the
vehicle and the level of comfort selected.
In very hot weather, it is possible to press the "

ECO OFF " button (which brings the vehicle out

ZEV mode and prevents electric running or the stopping of the engine) to give preference to

temperature control (keeps the air conditioning running).

Miscellaneous

Question

Answer

Is towing possible with my HYbrid4 vehicle?

For information on the towing ability of your HYbrid4 vehicle, refer to "Weights and towed loads" in
the "Technical data" section.
This allows a jet ski or two-wheeler on a trailer to be towed, for example.
This limit is related to maintaining adequate cooling capacity for the HDi Diesel engine as well as
the components of the HYbrid4 system that are also cooled by the engine's cooling system.

Why does engine braking seem so strong?

If the high voltage battery is not fully charged, the engine braking results mainly from the energy
recovery by the electric motor. The power of this engine braking is higher than that of an internal
combustion engine.

Content .. 24 25 26 27 ..
