Peugeot 407 (2010 year). Instruction - part 4

COMFORT

REAR VIEW MIRROR

Automatic day/night rear view
mirror

This automatically and gradually

changes between the day and night

positions. To prevent dazzling, the

glass of the mirror darkens automati-

cally depending on the intensity of the

light from behind. It clears as the light

(headlamps of following vehicles, sun-

light) decreases, ensuring maximum

visibility.

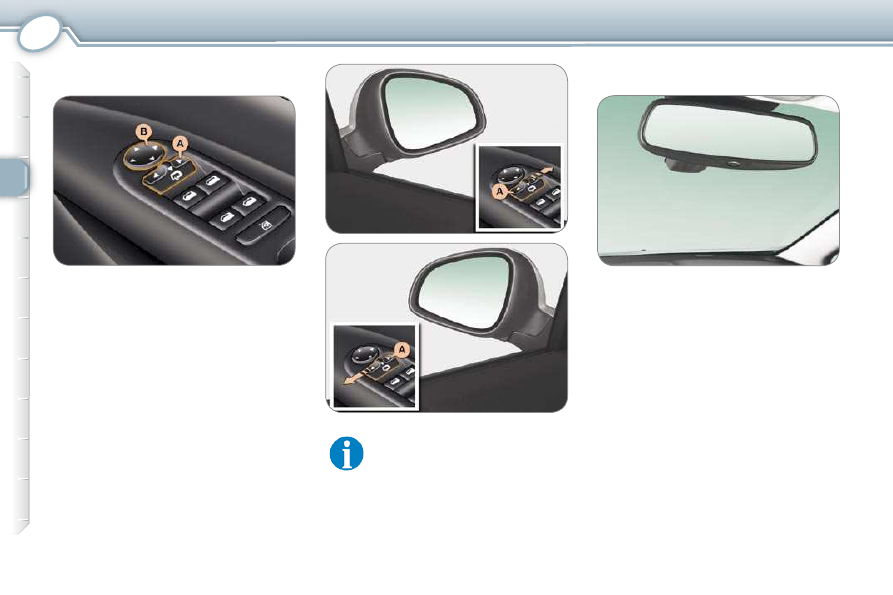

DOOR MIRRORS

Objects observed in the driver

and passenger mirrors are, in re-

ality, closer than they appear.
This must be taken into ac-

count in order to judge the distance of

vehicles approaching from behind cor-

rectly.

Folding back the mirrors
electrically

from inside:

 With the ignition on, move the

control A

to the central position

then pull it rearwards.

from outside:

 Lock the vehicle using the re-

mote control * or the key.



This function can be deactivated.

Consult a PEUGEOT dealer.

When the vehicle is parked, the door

mirrors can be folded back manually.

* According to version.

Adjustment



Move control A to the right or to

the left to select the corresponding

mirror.

 Direct control B in all four direc-

tions to adjust.

COMFORT

Special feature
To ensure maximum visibility

during manoeuvres, the mirror

lightens automatically when reverse

gear is engaged.

Manual interior mirror

The interior mirror has two positions:

- day (normal),
- night (anti-dazzle).
To change from one to the other, push

or pull the lever on the lower edge of

the mirror.

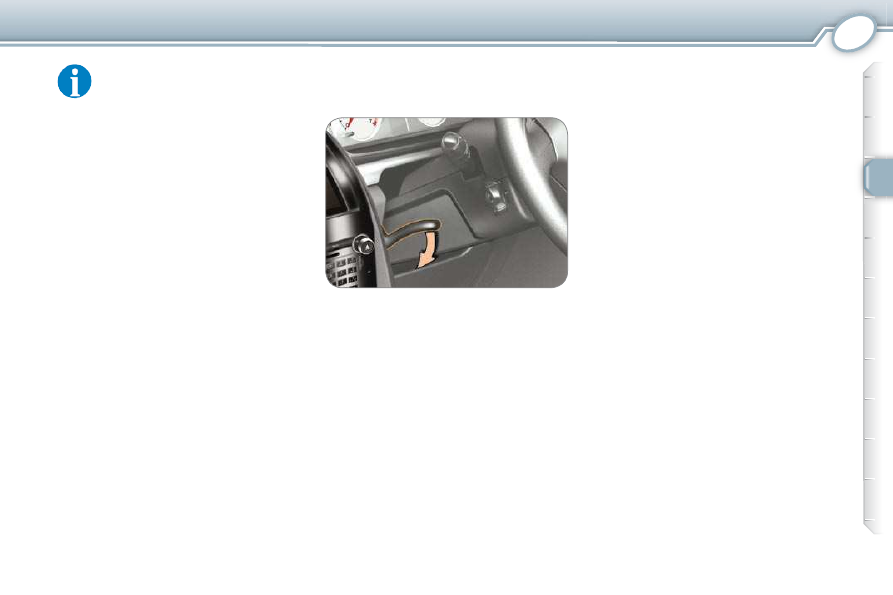

MANUAL ADJUSTMENT OF
STEERING WHEEL HEIGHT
AND REACH

When the vehicle is stationary, unlock

the steering wheel adjustmment by

pushing the lever forwards.
Adjust the height and reach of the
steering wheel then lock the adjust-

ment by pulling the lever fully back.

COMFORT

Special feature
To ensure maximum visibility

during manoeuvres, the mirror

lightens automatically when reverse

gear is engaged.

Manual interior mirror

The interior mirror has two positions:

- day (normal),
- night (anti-dazzle).
To change from one to the other, push

or pull the lever on the lower edge of

the mirror.

MANUAL ADJUSTMENT OF
STEERING WHEEL HEIGHT
AND REACH

When the vehicle is stationary, unlock

the steering wheel adjustmment by

pushing the lever forwards.
Adjust the height and reach of the
steering wheel then lock the adjust-

ment by pulling the lever fully back.

COMFORT

FRONT SEATS

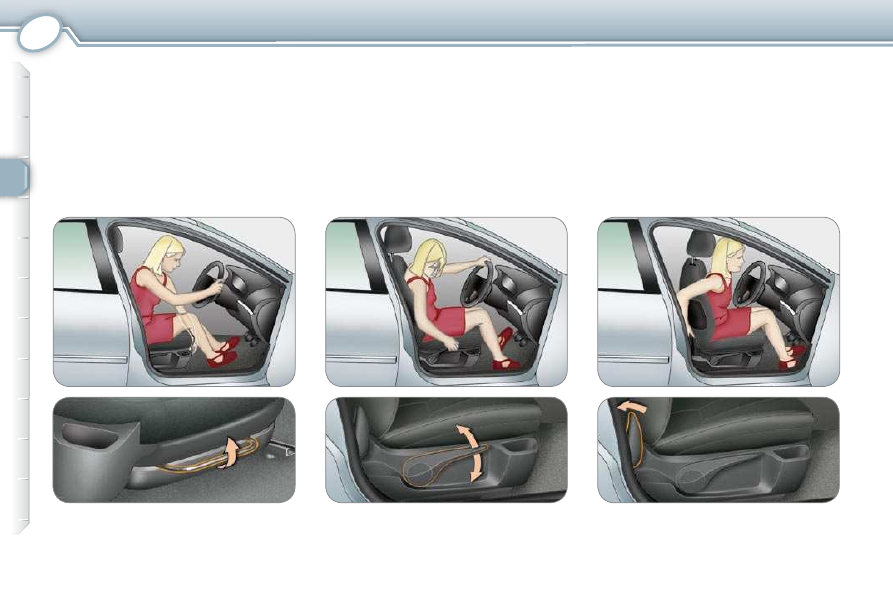

Manual mode

Longitudinal adjustment

Lift the control bar and slide the seat

forwards or backwards.

Driver's seat cushion height and
angle adjustment
Pump up or down to the required

position.

Seat back angle adjustment
Operate the lever for your comfort.

COMFORT

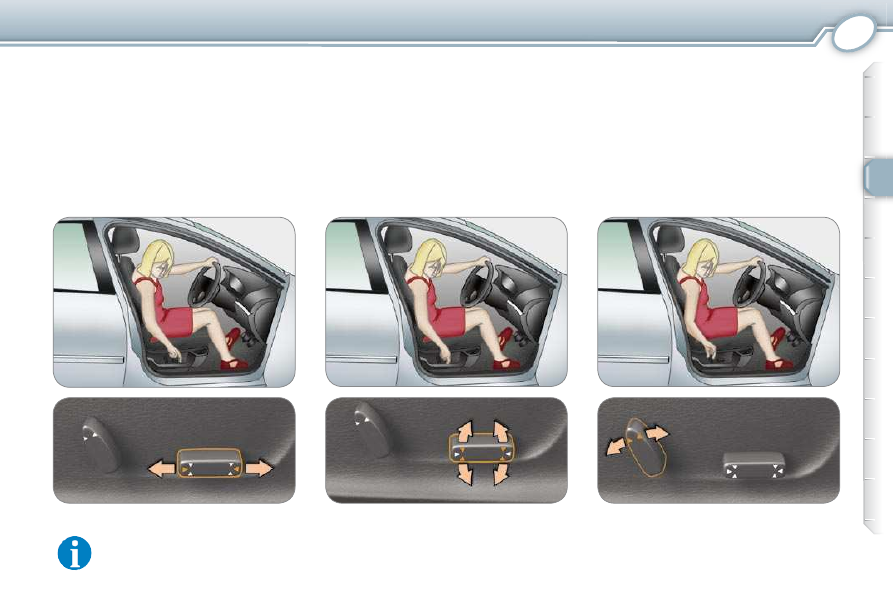

Electric mode

Longitudinal adjustment

Push the control forwards or back-

wards to slide the seat.

Driver's seat cushion height and
angle adjustment

Height:

tilt the rear of the control up

or down.
Tilt:

tilt the front of the control up or

down.

Seat back angle adjustment

Tilt the control forwards or backwards

for your comfort.

The electrical functions of the driver's seat are deactivated one minute after the ignition is switched off.

To reactivate them, open the door or switch on the ignition.

COMFORT

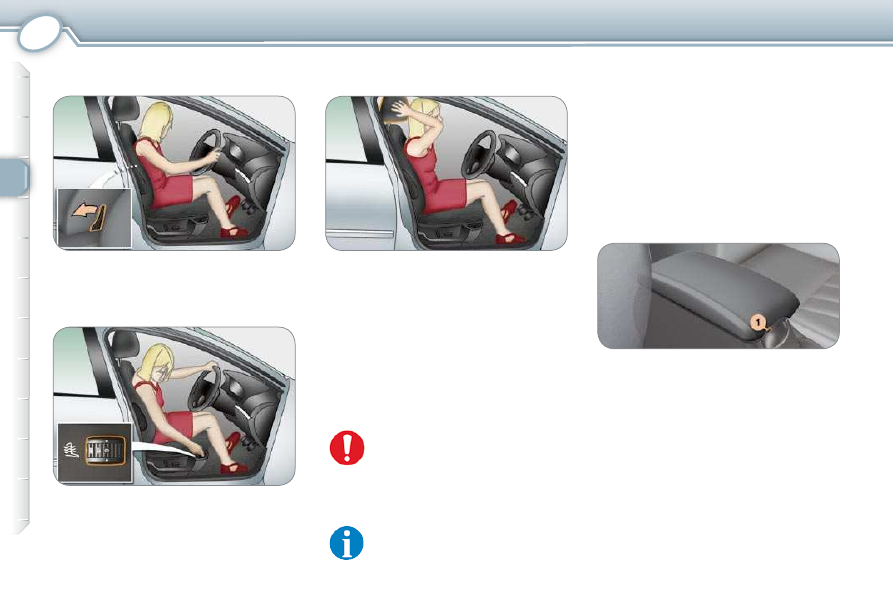

Head restraint height and angle
adjustment

Front seat active head restraint
This system prevents "whiplash".

In the event of a rear impact, the action

of the body on the seat back moves

the head restraint forwards and up-

wards preventing the head from being

thrown back.

Front armrest

Driver's seat lumbar adjustment

Heated seats adjustment

: Off.

: Low.

: Medium.

: High.

The adjustment is correct when

the top of the head restraint is

aligned with the top of the head

of the occupant of the seat.

Never drive with the head re-
straints removed and stored in

the vehicle. This is dangerous

and they may be thrown in the

event of sharp braking. They must be

in place and adjusted correctly.

To change the position of the armrest:
 Lift the handle 1

The armrest folds forwards and up-

wards.

To return to the initial position, push

the armrest backwards and press it to

engage.

Operate the lever to obtain the correct

position.

To raise or lower the head restraint,

pull it forwards then slide it.
To tilt the head restraint, tilt the lower

part forwards or backwards.
To remove the head restraint, move it

almost to the highest position, lift the

tab using a coin and pull it forwards

and upwards at the same time.

To reﬁ t the head restraint, engage the

stalks in the holes keeping in line with

the seat back.

With the engine running, turn the dial.

The temperature of the seat is regu-

lated automatically.

COMFORT

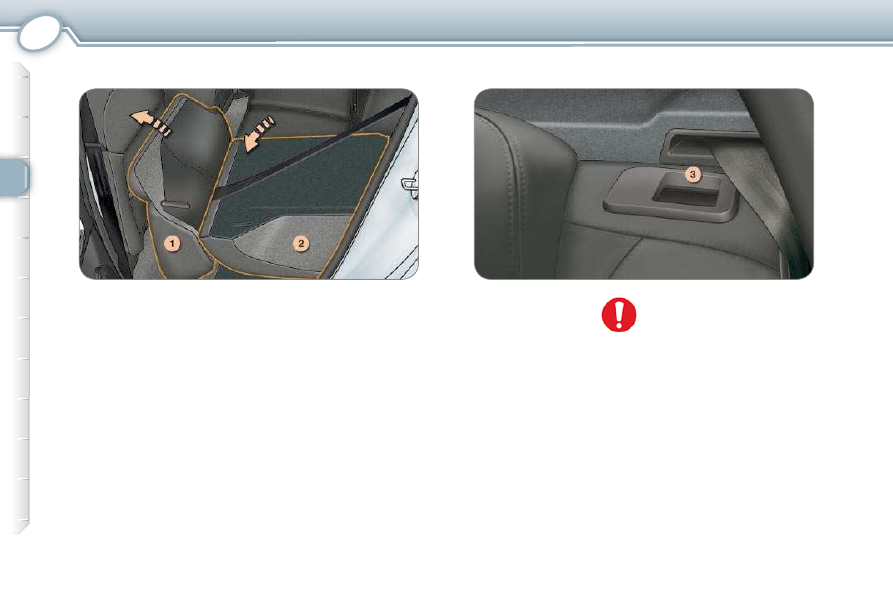

REAR SEATS (SALOON)

Note: the seat cushion 1 can be re-
moved with care to increase the vol-

ume of the load space.

Squeeze the seat cushion ﬁ xings to

detach them from their fastenings.

When repositioning:


fold up the seat back 2 and lock it

(the red marker of control 3 should

no longer be visible),



fold up the seat 1 ,



reﬁ t the head restraints if they were

removed.

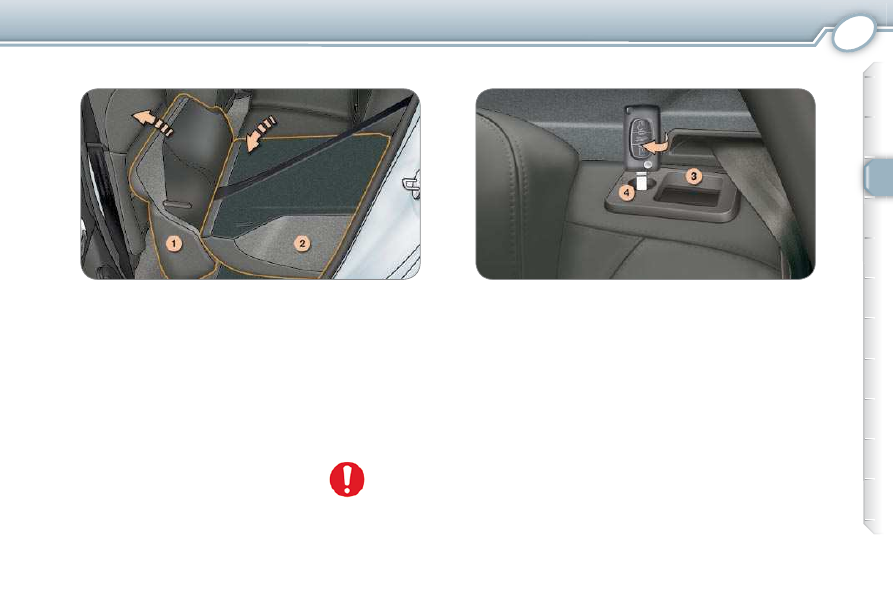

Locking/unlocking the access
to the boot via the rear seats

Your vehicle's boot can be isolated

from the passenger compartment.
The red indicator on the control 3

should no longer be visible. If it is,

push the seat fully.

Insert the ignition key in the lock 4 .

Take care not to trap the seat

belt and to position the tongue

of each strap correctly in its

respective clasp before folding

down the seat back. This will enable

you to reposition the seat backs with

their seat belts and clasps ready to ac-

commodate your rear passengers.

To fold down the rear left seat or the

rear right seat, always start with the

seat cushion, never with the seat back

(risk of damage):


move the front seat(s) forward if

necessary,



place the head restraints in the low

position or remove them if necessary,

Check that the seat belt strap is posi-

tioned correctly at the side of the seat

back,
Ensure that the outer seat belt tongues

are engaged in their claps (the centre

seat belt must not be fastened),
 lift the front of the seat cushion 1 ,
 tilt the seat cushion 1 against the

front seat(s),



pull control 3 forwards to unlock

the seat back 2 ,

 fold down the seat back 2

COMFORT

REAR SEATS (407SW)

Note: the seat cushion 1 can be re-
moved with care to increase the volume

of the load space.

Squeeze the seat cushion ﬁ xings to

detach them from their fastenings.

When repositioning:


fold up the seat back 2 and lock it

(the red marker of control 3 should

no longer be visible),



fold up the seat 1 ,



reﬁ t the head restraints if they were

removed.

Take care not to trap the seat

belt and to position the tongue

of each strap correctly in its

respective clasp before folding

down the seat back. This will enable

you to reposition the seat backs with

their seat belts and clasps ready to ac-

commodate your rear passengers.

To fold down the rear left seat or the

rear right seat, always start with the

seat cushion, never with the seat back

(risk of damage):


move the front seat(s) forward if

necessary,



place the head restraints in the low

position or remove them if necessary,

Check that the seat belt strap is posi-

tioned correctly at the side of the seat

back,
Ensure that the outer seat belt tongues

are fastened in their clasp (the centre

seat belt must not be fastened),
 lift the front of the seat cushion 1 ,
 tilt the seat cushion 1 against the

front seat(s),



pull control 3 forwards to unlock

the seat back 2 ,

 fold down the seat back 2

COMFORT

CHILD SEAT IN THE FRONT

GENERAL POINTS RELATING
TO CHILD SEATS

* The rules for carrying children are

speciﬁ c to each country. Refer to the

current legislation in your country.

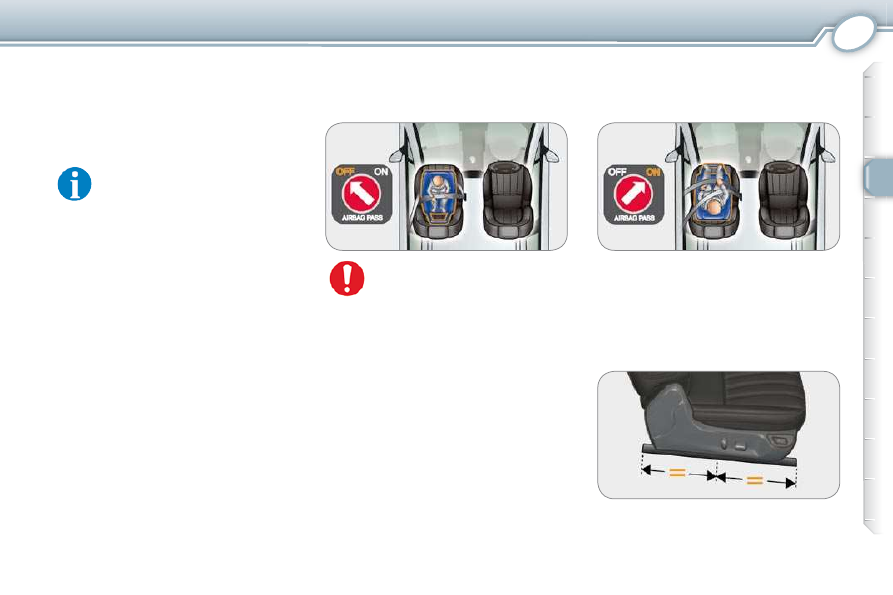

When a "rearwards-facing"

child seat is installed on the
front passenger seat , it is

essential that the passenger

airbag is deactivated. Otherwise, the

child would risk being seriously in-
jured or killed if the airbag were to

inﬂ ate .

"Rearwards-facing"

Although one of PEUGEOT's main cri-

teria when designing your vehicle, the

safety of your children also depends

on you.

For maximum safety, please

observe the following recom-
mendations:

- in accordance with European reg-

ulations,   all  children  under  the
age  of  12  or  less  than  one  and
a  half  metres  tall  must  travel  in
approved  child  seats  suited  to
their weight

, on seats ﬁ tted with a

seat belt or ISOFIX mountings * ,

statistically,  the  safest  seats  in
your  vehicle  for  carrying  chil-
dren are the rear seats,

a  child  weighing  less  than  9  kg
must  travel  in  the  "rearwards-
facing" position both in the front
and in the rear.

PEUGEOT recommends that chil-
dren should travel in the rear seats of

your vehicle:
-

"rearwards-facing"

up to the age

of 2,

"forwards-facing" over the age

of 2.

Intermediate longitudinal

position

When a "forwards-facing" child seat

is installed on the front passenger
seat

, adjust the vehicle's seat to the

intermediate longitudinal position with

the seat back upright and leave the

passenger airbag activated.

"Forwards-facing"

COMFORT

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"RÖMER Baby-

Safe Plus"

Installed in the

rearwards-facing

position.

"KIDDY Life"

The use of the

restraining cushion is

compulsory for carrying

young children

(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age of

6 years

(approximately 22 kg),

the booster is used on

its own.

"RÖMER KIDFIX"

Can be ﬁ tted to the vehicle's ISOFIX mountings.

The child is restrained by the seat belt.

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are

secured using a three point seat belt :

Passenger airbag OFF

COMFORT

LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT

In accordance with European regulations, this table indicates the options for the installation of child seats secured using the

seat belt and universally approved (a) depending on the weight of the child and the seat in the vehicle:

Weight of the child/ indicative age

Seat

Below 13 kg

(groups 0 (b) and

0+)

Up to approx 1 year

9 to 18 kg

(group 1)

De 1 to 3 years

approx

15 to 25 kg

(group 2)

De 3 to 6 years

22 to 36 kg

(group 3)

De 6 to 10 years

approx

Front passenger

seat (c)

- ﬁ xed

height adjustable

U(R)

Outer rear seats

Centre rear seat

: Universal child seat: child seat which can be installed in all vehicles using the seat belt.

: Group 0: from birth to 10 kg.

: Consult the current legislation in your country before installing your child on this seat.

: seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and/or

"forwards facing".

U (R) : identical to U

, but the vehicle seat must be adjusted to the highest position.

: seat which is not suitable for the installation of a child seat.

COMFORT

These are two rings located between

the seat back and the seat cushion.

"ISOFIX" MOUNTINGS

These seats are ﬁ tted with ISOFIX

mountings.

The incorrect installation of a

child seat in a vehicle compro-

mises the child's protection in

the event of a collision.

407 SALOON

407SW

This ISOFIX mounting system guaran-

tees reliable, safe and fast ﬁ tting of the

child seat in your vehicle.
The ISOFIX child seats

are ﬁ tted with

two locks which are secured easily on

these lower rings A

COMFORT

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

ISOFIX RÖMER Duo Plus

(size category B1 )

Group 1: from 9 to 18 kg

Installed in the forwards facing position, on the rear seats only.

Secured without the top strap.

Three child seat body angles: sitting, reclining and lying positions.

Adjust the vehicle's front seat so that the child's feet do not touch the seat back.

This child seat can also be used on seats which are not ﬁ tted with ISOFIX mountings. In this case, it is essential that

it is secured to the vehicle's seat by means of the three point seat belt.

Follow the instructions for ﬁ tting the child seat indicated in the seat manufacturer's installation guide.

COMFORT

ADVICE ON CHILD
SEATS

Children under the age of 10 must not

travel in the "forwards-facing" position

on the front passenger seat, unless

the rear seats are already occupied by

other children, cannot be used or are

absent.

Deactivate the passenger airbag when

a "rearwards-facing" child seat is in-

stalled on the front seat.
Otherwise, the child would risk being

seriously injured or killed if the airbag

were to inﬂ ate.

Installing a booster seat
The chest part of the seat belt must

be positioned on the child's shoulder

without touching the neck.

Ensure that the lap part of the seat

belt passes correctly over the child's

thighs.
PEUGEOT recommends the use of

a booster seat which has a back, ﬁ t-

ted with a seat belt guide at shoulder

level.

As a safety precaution, do not leave:
-

a child or children alone and unsu-

pervised in a vehicle,

a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

- the keys within reach of children

inside the vehicle.

To prevent accidental opening of the

doors and rear windows, use the

"Child lock".

Take care not to open the rear win-

dows by more than one third.

To protect young children from the

rays of the sun, ﬁ t side blinds on the

rear windows.

The incorrect installation of a child seat

in a vehicle compromises the child's

protection in the event of an accident.

Remember to fasten the seat belts or

the child seat harnesses keeping the

slack relative to the child's body to a

minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is

tightened correctly on the child seat

and that it secures the child seat ﬁ rmly

on the seat of your vehicle.

For optimum installation of the "for-

wards-facing" child seat, ensure that

the back of the child seat is in contact

with the back of the vehicle's seat and

that the head restraint does not cause

any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-

curely to prevent it from being thrown

around the vehicle in the event of sharp

braking.

ACCESS

Using the key

 Lock the vehicle (the direction indi-

cators come on for approximately
two seconds).



Turning the key again within ﬁ ve

seconds  deadlocks  the  vehicle
(the  direction  indicators  come  on
for approximately two seconds).

REMOTE CONTROL KEY

The key allows you, from the driver's
side, to lock or unlock the doors, the

boot and the fuel ﬁ ller ﬂ ap and fold

and  unfold  the  door  mirrors  and  in-
dependently  it  allows  you  to  open  or
close the glove box, lock or unlock the
access  to  the  boot  via  the  rear  seats
(407 Saloon)  and  switch  on  the  igni-
tion.
The  remote  control  has  the  same
functions as the key as well as partial
opening  of  the  boot  (Saloon)  or  the
rear screen (407SW).
It is part of the key and is used for re-
mote locking and unlocking.
If one of the doors or the boot is open,
the central locking does not work.

Unlocking and partial opening of
the boot (saloon) or rear screen
(407SW)

 Press and hold button D .
This action also unlocks the doors.

Unfolding/folding the key

To unfold or fold the key, press button A .

Locking

      Press button  B .
The  direction  indicators  come  on  for
approximately  two  seconds  and  the
door mirrors fold.
Press  and  hold  button   B   to  close  the
windows and sunroof automatically in
addition to locking.

Unlocking

 Press button C .
The direction indicators ﬂ ash rapidly

and the door mirrors unfold.
The "Folding of the door mirrors" func-
tion can be deactivated by a PEUGEOT
dealer.

Permanent locking of the boot
(saloon)

Deadlocking

This renders the external and internal
door controls inoperative.
  Do  not  operate  the  deadlocking
function  if  there  is  anyone  inside
the vehicle.

Note:  if  the  vehicle  is  locked
and  unlocking  is  activated
inadvertently  without  a  door
being  opened  within  the  next

30 seconds, the vehicle will lock au-
tomatically.

This function can be acti-
vated or deactivated via the

"personalisation - conﬁ gu-

ration" menu and "Deﬁ ne

the vehicle parameters" on
the multifunction screen.

 Press button D on the remote

control key.

This will unlock the boot only.

ACCESS

Using the remote control

 Pressing button B locks the vehicle

(the direction indicators come on
for approximately two seconds).



A second press within ﬁ ve seconds

deadlocks the vehicle (the direction
indicators come on for approximately
two seconds).

LOCKING/UNLOCKING FROM
THE INSIDE

MANUAL LOCKING
(EMERGENCY MODE)

Automatic central locking of
the doors

The  doors  can  lock  automatically
while  driving  (speed  above  6  mph
[10 km/h]).
Press  and  hold  the  button  to  activate
or deactivate this function.

Key in ignition

A  buzzer  sounds  on  opening  the  dri-
ver's  door,  if  the  key  has  been  left  in
the ignition.

LOCATING YOUR VEHICLE

To locate your vehicle, if you have
locked or deadlocked it, in a car park:
 press button B on the remote con-

trol, the courtesy lamps come on

and the direction indicators ﬂ ash

for a few seconds.

  Note:   driving  with  the  doors
locked  may  make  access  to
the passenger compartment by
the  emergency  services  more

difﬁ cult in an emergency.

If  the  vehicle  is  deadlocked,
the button is not active. In this
case,  use  the  key  or  the  re-
mote control to unlock.

 Press the button.
This allows the doors and the boot to
be locked or unlocked.

Driver's door

Insert the key in the lock to lock or unlock
the door.
Passenger doors

To  lock,  insert  the  key  in  the  control
located  on  the  edge  of  the  door  then
turn to the right.

Content .. 2 3 4 5 ..
