190

To clear a destination; from steps 1 to 3, select "Choose from last destinations".
A long press on one of the destinations displays a list of actions from which you can select:
Delete entry

Delete list

Repeat steps 5 to 7 for the "Street"

and "House number" functions.

Turn the dial and select OK.

Press the dial to conﬁ rm.

Select the "Save to address book" function to record th

ord the address

entered in a directory ﬁ le. Press the dial to conﬁ rm the selection.

Peugeot Connect Navigationallows up to 500 contact ﬁ les to be

Peugeot Connect Navigationallows up to 500 contact ﬁ les to be
recorded.

To speed up the process, the post code can be entered

tered directly after

selecting the "Postal code" function.
Use the virtual keypad to enter the letters and digits.

Then select "Start route guidance"

and the press the dial to conﬁ rm.

During guidance, pressing the end
of the lighting stalk repeats the last
guidance instruction.

You can zoom in/zoom out on the map using the dial.

It is possible to scroll the map or select its orientation via the short-

cut menu of the FULL SCREEN MAP. Press the dial then select

cut menu of the FULL SCREEN MAP. Press the dial then select
"Map settings".

Select the route type:

"Fast route", "Short route" or "Optimized route" and press the dial to

conﬁ rm.

It is also possible to select a destination via "Choose from address

book" or "Choose from last destinations".

CHOOSE FROM LAST DESTINATIONS

CHOOSE FROM ADDRESS BOOK

START ROUTE GUIDANCE

NAVIGATION - GUIDANCE

191

04 NAVIGATION - GUIDANCE

ROUTE OPTIONS

Select the "Route dynamics" function.
This function gives access to the

"Trafﬁ c independent" or "Semi-

dynamic" options.

Select the "Avoidance criteria"
function. This function provides
access to the AVOID options

(motorways, toll roads, ferries).

Turn the dial and select the
"Recalculate" function to take into
account the route options selected.

Press the dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Route type" function and

press the dial to conﬁ rm. This function
allows you to change the route type.

Select the "Route options" function

and press the dial to conﬁ rm.

RECALCULATE

AVOIDANCE CRITERIA

ROUTE DYNAMICS

ROUTE TYPE

ROUTE OPTIONS

NAVIGATION MENU

The route selected by the Peugeot Connect Navigation audio/telephone depends directly on the route

options.
Changing these options may change the route completely.

192

ADDING A STOPOVER

Enter a new address, for example.

Once the new address has been

entered, select OK and press the dial

to conﬁ rm.

Select "Recalculate" and press the

dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select
the "Navigation" Menu function and

press the dial to conﬁ rm.

Select the "Add stopover" function

(5 stopovers maximum) and press the

dial to conﬁ rm.

Select the "Stopovers" function and

press the dial to conﬁ rm.

ADDRESS INPUT

ADD STOPOVER

STOPOVERS

"NAVIGATION" MENU

RECALCULATE

The stopover must be completed or deleted in order for the guidance

The stopover must be completed or deleted in order for the guidance
to continue to the next destination. Otherwise, the Peug

Peugeot Connect

Navigation will always return you to the previous stopov

topover.

Stopovers can be added to the route once the destination has been selected.

NAVIGATION - GUIDANCE

193

04 NAVIGATION - GUIDANCE

SEARCHING FOR POINTS OF INTEREST

(POI)

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and

press the dial to conﬁ rm.

Select the "POI nearby" function to
search for POIs around the vehicle.

Select the "POI search" function and

press the dial to conﬁ rm.

NAVIGATION MENU

POI SEARCH

POI NEARBY

Select the "POI in city" function to
search for POIs in the city required.
Select the country then enter the

name of the city using the virtual
keypad.

Select the "POI near route" function to
search for POIs near the route.

Select the "POI in country" function
to search for POIs in the country
required.

Select the "POI near destination"
function to search for POIs near the
point of arrival of the route.

POI NEAR DESTINATION

POI NEAR ROUTE

POI IN COUNTRY

POI IN CITY

A list of cities present in the country selected can be acc

be accessed via

the LIST button on the virtual keypad.

The points of interest (POI) indicate all of the service locations in the vicinity (hotels, various
businesses, airports...).

194

04 NAVIGATION - GUIDANCE

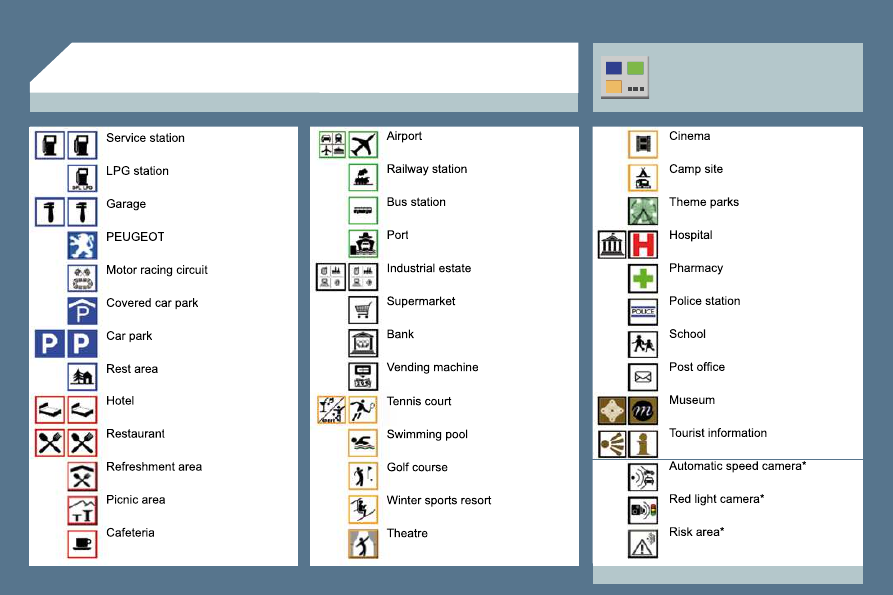

LIST OF PRINCIPAL POINTS OF INTEREST (POI)

* According to availability in the country.

This icon appears when several POIs are grouped
together in the same area. Zooming in on this icon
shows details of the POIs.

195

NAVIGATION SETTINGS

Select "Set parameters for risk areas"
to gain access to the "Display on

map", "Visual alert" and "Sound alert"
functions.

Select the "POI categories on Map"
function to select the POIs to be

displayed on the map by default.

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Settings" function and

press the dial to conﬁ rm.

POI CATEGORIES ON MAP

SETTINGS

SET PARAMETERS FOR RISK AREAS

NAVIGATION MENU

NAVIGATION - GUIDANCE

Select the "Navi volume" function and

turn the dial to set the volume of each

voice synthesiser (trafﬁ c information,

alert messages…).

NAVI VOLUME

The volume of the Risk Areas POIs alert can only be adjusted
during this type of alert.

UPDATING THE RISK AREAS POIs

This requires an SDHC (High Capacity) compatible reader.

Download the update ﬁ le from the Internet (www.peugeot.fr or

www.peugeot.co.uk).

Open this ﬁ le and copy the extracted documents to the DATABASE

folder on the SD card, replacing the existing ﬁ les.

196

05 TRAFFIC INFORMATION

CONFIGURE THE FILTERING AND

DISPLAY OF TMC MESSAGES

Then select the radius of the ﬁ lter in

miles (km) required in accordance
with the route, press the dial to

conﬁ rm.

When all of the messages on the
route are selected, the addition of a

geographical ﬁ lter is recommended

(within a radius of 3 miles (5 km) for

example) to reduce the number of

messages displayed on the map.

The geographical ﬁ lter follows the

movement of the vehicle.

The ﬁ lters are independent and their results are cumulative.

We recommend a ﬁ lter on the route and a ﬁ lter around the vehicle of:

- 2 miles (3 km) or 3 miles (5 km) for a region with heavy trafﬁ c,

- 6 miles (10 km) for a region with normal trafﬁ c,

- 30 miles (50 km) for long journeys (motorway).

Press the TRAFFIC button again or

select the Trafﬁ c Menu function and

press the dial to conﬁ rm.

Press the TRAFFIC button.

TMC (Trafﬁ c Message Channel) messages contain information on trafﬁ c and weather conditions,
received in real time and transmitted to the driver in the form of audible announcements and
symbols on the navigation map.
The navigation system can then suggest an alternative route to avoid a trafﬁ c problem.

Select the "Geo. Filter" function and

press the dial to conﬁ rm.

MESSAGES ON ROUTE

The list of TMC messages appears under the Trafﬁ c Menu sorted in

order of proximity.

ONLY WARNINGS ON ROUTE

TRAFFIC MENU

Select the ﬁ lter of your choice:

ALL WARNING MESSAGES

ALL MESSAGES

The messages appear on the map
and on the list.
To exit, press ESC.

GEO. FILTER

197

TRAFFIC INFORMATION

PRINCIPAL TMC SYMBOLS

Red and yellow triangle: trafﬁ c information, par example:

Black and blue triangle: general information, for example:

With the current audio source
displayed on the screen, press the
dial.

The shortcut menu for the source appears and gives access to:

Select Trafﬁ c Announcements (TA)

and press the dial to conﬁ rm and go
to the associated settings.

The TA (Trafﬁ c Announcement) function gives priority to TA alert

messages. To operate, this function needs good reception of a radio

station transmitting this type of message. When a trafﬁ c report is

transmitted, the current audio source (Radio, CD, Jukebox, ...) is

interrupted automatically to play the TA message. Normal playback

of the audio source resumes at the end of the transmission of the

message.

RECEIVING TA MESSAGES

198

SELECTING A STATION

When the current radio station is
displayed on the screen, press the
dial.

The radio source short-cuts menu appears and provides access to

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function required and press

the dial to conﬁ rm to gain access to
the corresponding settings.

RDS, if displayed, allows you to continue listening to the same

station by automatic retuning to alternative frequencies. However, in

certain conditions, coverage of an RDS station may not be assured

throughout the entire country as radio stations do not cover 100 % of

throughout the entire country as radio stations do not cover 100 % of
the territory. This explains the loss of reception of the sta

the station during

a journey.

The external environment (hill, building, tunnel, underground car park...) may interfere with the
reception, including in RDS following mode. This phenomenon is a normal result of the way in which
radio waves are transmitted and does not in any way indicate a failure of the audio equipment.

RDS - REGIONAL MODE

Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning

the dial and press to conﬁ rm.

While listening to the radio, press one of the
buttons to select the previous or next station on
the list.

Press one of the buttons on the numeric keypad for more than 2

Press one of the buttons on the numeric keypad for more than 2
seconds to store the current station.

Press the button on the numeric keypad to recall the stored radio

Press the button on the numeric keypad to recall the stored radio
station.

RDS

RADIOTEXT

REGIONAL PROG.

RADIO

A long press of one of the buttons starts the

automatic search for a station with a lower or
higher frequency.

199

07 MUSIC MEDIA PLAYERS

CD, MP3/WMA CD

INFORMATION AND ADVICE

In order to be able to play a recorded CDR or CDRW, w

RW, when

recording it is preferable to select the ISO 9660 level 1, 2 or Joliet

recording it is preferable to select the ISO 9660 level 1, 2 or Joliet
standard.

If the disc is recorded in another format it may not be played

If the disc is recorded in another format it may not be played
correctly.

It is recommended that the same recording standard is always used

for an individual disc, with as low a speed as possible (4x maximum)

for optimum sound quality.

In the particular case of a multi-session CD, the Joliet standard is

recommended.

The Peugeot Connect Navigation will only play audio ﬁ les with the

extension ".mp3" with a speed of between 8 Kbps and 320 Kbps and

the extension ".wma" with a speed of between 5 Kbps and 384 Kbps.

It also supports the VBR (Variable Bit Rate) mode.

No other type of ﬁ le (.mp4, .m3u...) can be played.

The MP3 format, an abbreviation of MPEG 1, 2 & 2.5 Audio Layer 3

and the WMA format, an abbreviation of Windows Media Audio and

the property of Microsoft, are audio compression standards which

permit the recording of several tens of music ﬁ les on a single disc.

It is advisable to restrict ﬁ le names to 20 characters, without using

special characters (e.g.: " " ? ; ù) to avoid any play or display

problems.

200

SELECTING/PLAYING MUSIC

CD, MP3/WMA CD

Press and hold one of the buttons for fast forward or rew

or rewind play.

The playing and displaying of an MP3/WMA compilation may

depend on the recording programme and/or the settings used. We

recommend the ISO 9660 ﬁ le standard.

Press the MUSIC button.

Select the "Select music" function and

press the dial to conﬁ rm.

Press the up or down button to select
the next/previous folder.

Select the music source required:
CD, MP3/WMA CD. Press the dial to

conﬁ rm. Play begins.

SELECT MUSIC

Press the MUSIC button again or
select the "Music" Menu function and

press the dial to conﬁ rm.

Press one of the buttons to select a

music track.

"MUSIC" MENU

The list of tracks or MP3/WMA ﬁ les appears under "Music" Menu.

MUSIC MEDIA PLAYERS

201

07 MUSIC MEDIA PLAYERS

Connect the portable equipment (MP3/

WMA player…) to the audio sockets

(white and red, RCA type) in the glove

box using a JACK/RCA audio cable.

Press the MUSIC button then press
it again or select the Music Menu

function and press the dial to conﬁ rm.

Select the AUX music source and

press the dial to conﬁ rm. Play begins

automatically.

Select the "External device" function
and press the dial to activate it.

EXTERNAL DEVICE

The display and management of the controls is on the portable

equipment.

USING THE EXTERNAL INPUT (AUX)

AUDIO JACK-RCA CABLE NOT SUPPLIED

MUSIC MENU

202

telephone used. Check the telephone manual and with your network provider for details of the
services available to you. A list of mobile telephones with the best level of compatibility is available
from the dealer network.

BLUETOOTH TELEPHONE

CONNECTING A TELEPHONE

For reasons of safety and because they require prolong

rolonged attention

on the part of the driver, the operations for pairing the B

the Bluetooth

mobile telephone to the hands-free system of the Peugeot Connect

Navigation must be carried out with the vehicle stationary. The

ignition must be on.

Activate the telephone's Bluetooth function.
The last telephone connected is reconnected

automatically.

Enter the authentication code on the
telephone. The code to be entered is
displayed on the screen.

To change the telephone connected,
press the PHONE button, then select
Phone Menu and press the dial to

conﬁ rm.

Once the telephone has been connected, Peugeot Con

t Connect

Navigation can synchronise the address book and the c

the call list. This

synchronisation may take a few minutes * .

Select "Connect phone". Select the

telephone and press to conﬁ rm.

The list of telephones connected previously (4 maximum) appears

on the multifunction screen. Select the telephone required for a new

on the multifunction screen. Select the telephone required for a new
connection.

Press the PHONE button.

For a ﬁ rst connection, select
"Search phone" and press the dial to

conﬁ rm. Then select the name of the
telephone.

SEARCH PHONE

CONNECT PHONE

203

Press the end of the steering mounted control to accept the call or
end the call in progress.

Select the "Yes" tab to accept or "No"

to refuse and conﬁ rm by pressing the
dial.

RECEIVING A CALL

MAKING A CALL

An incoming call is announced by a ring and a superimposed display

on the multifunction screen.

YES

To hang up, press the PHONE button
or press the dial and select "End call"

then conﬁ rm by pressing the dial.

END CALL

Press the PHONE button.

Select "Dial number", then dial the

telephone number using the virtual
keypad.

Select the "Phone" Menu function and

press the dial to conﬁ rm.

The list of the last 20 calls made and received in the vehicle appears

under "Phone" Menu. You can select a number and press the dial to

make the call.

It is also possible to select a number from the address book. You can

select "Dial from address book". The Peugeot Connect Navigation

can record up to 4 000 entries.

Press the end of the steering mounted control for more than two

Press the end of the steering mounted control for more than two
seconds to gain access to the address book.

"PHONE" MENU

DIAL NUMBER

To delete a number, press the PHONE button then press and hold on

a call number to display a list of actions including:
Delete entry
Delete list

BLUETOOTH TELEPHONE

204

09 CONFIGURATION

SETTING THE DATE AND TIME

The SETUP function gives access to the following options: System language, Date & Time, Display
(Brightness, Colour, Map colour), Vehicle, Units, System.

Set the parameters one by one using

the direction arrows and conﬁ rm by

means of the dial.

Select the "Date format" function and

press the dial to conﬁ rm.

Select the "Set date & time" function

and press the dial to conﬁ rm.

Conﬁ rm the format required using the dial.

Pressing the SET UP button for more than 2 seconds gives access to:

These settings must be re-entered if the battery has been

These settings must be re-entered if the battery has been
disconnected.

Press the SET UP button.

Conﬁ rm the format required using
the dial.

Select the "Time format" function and

press the dial to conﬁ rm.

SET DATE & TIME

Select the "Date & Time" function and

press the dial to conﬁ rm.

DESCRIPTION OF THE UNIT

GPS COVERAGE

DEMO MODE

DATE & TIME

205

TRIP COMPUTER/VEHICLE PARAMETERS

TRIP COMPUTER

Press the MAIN button or press

the MODE button several times in

succession until the trip computer is
displayed.

- The "vehicle" tab:
The range, the current fuel

consumption and the distance

remaining.

- The "1" (trip 1) tab with :
The average speed, the average

fuel consumption and the distance
travelled calculated over route "1".

- The "2" (trip 2) tab with the same

functions for a second route.

Range: displays the distance which can travelled with the remaining

displays the distance which can travelled with the remaining

fuel detected in the tank, basd on the average consumption over the

last few miles (kilometres).

This displayed value may vary signiﬁ cantly following a change in the

This displayed value may vary signiﬁ cantly following a change in the
vehicle speed or the relief of the route.

When the range falls below 20 miles (30 km), dashes are displayed.

After ﬁ lling with at least 10 litres of fuel, the range is recalculated and

is displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in p

ly in place of the

digits, contact a PEUGEOT dealer.

Current fuel consumption: only calculated and display

displayed above

20 mph (30 km/h).

Average fuel consumption: this is the average fuel consumption

this is the average fuel consumption

since the last trip computer zero reset.

Distance travelled: calculated since the last trip computer zero

calculated since the last trip computer zero

reset.

Distance remaining to the destination: calculated wit

ed with reference

to the ﬁ nal destination, entered by the user. If guidance is activated,

the navigation system calculates it as a current value.

Average speed: this is the average speed calculated s

ated since the last

trip computer zero reset (ignition on).

Each press of the button at the end of the wiper stalk di

talk displays the

different trip computer information in succession, according to the

different trip computer information in succession, according to the
screen.

A FEW DEFINITIONS

Content .. 12 13 14 15 ..
