FAMILIARISATION

Sunroof (Saloon)

This roof improves the ventilation and
light in the passenger compartment.

 70

 68

 103

 102

Tyre under-inflation detection

This system checks the pressure of the
tyres while driving and warns you if a
malfunction occurs.

Rear screen (SW)

This rear screen provides remarkable
accessibility and makes the loading
of objects easier without opening the
boot.

Visual and audible front and
rear parking sensors

This system warns you if an obstacle
is detected in front of or behind the
vehicle in forward or reverse gear.

FAMILIARISATION

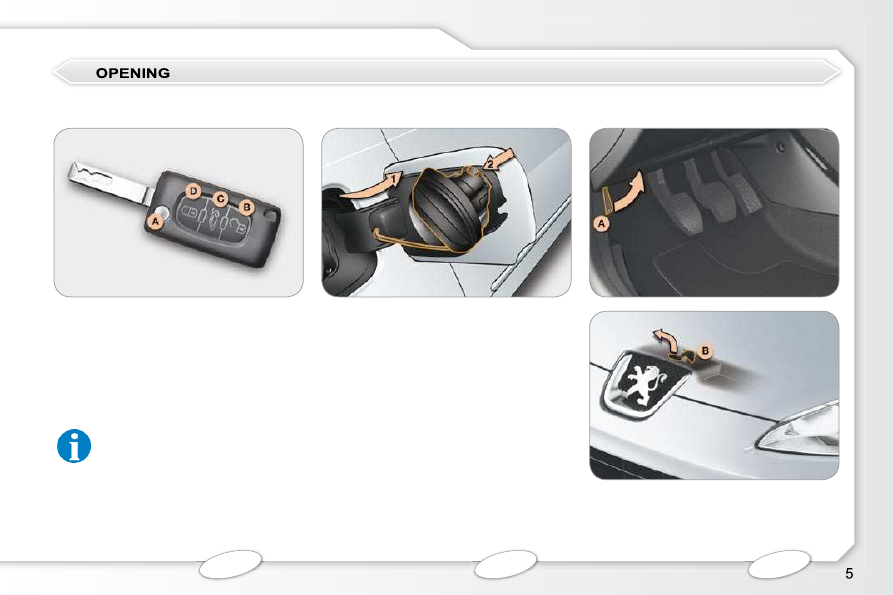

Remote control key

A. Unfolding/folding the key.
B. Unlocking the vehicle

(brief press).

C. Unlocking and partial opening of the

boot (saloon) or of the rear screen
(SW)

(long press).

Also...
D. Normal locking

(a single press)

deadlocking of the vehicle

(two presses in succession).

Fuel tank

Opening the fuel ﬁ ller ﬂ ap.

Opening and hooking the fuel ﬁ ller

cap.

Tank capacity: approximately 67 litres.

A. Interior release lever
B. Exterior safety catch.

 61

 72

 106

Bonnet

FAMILIARISATION

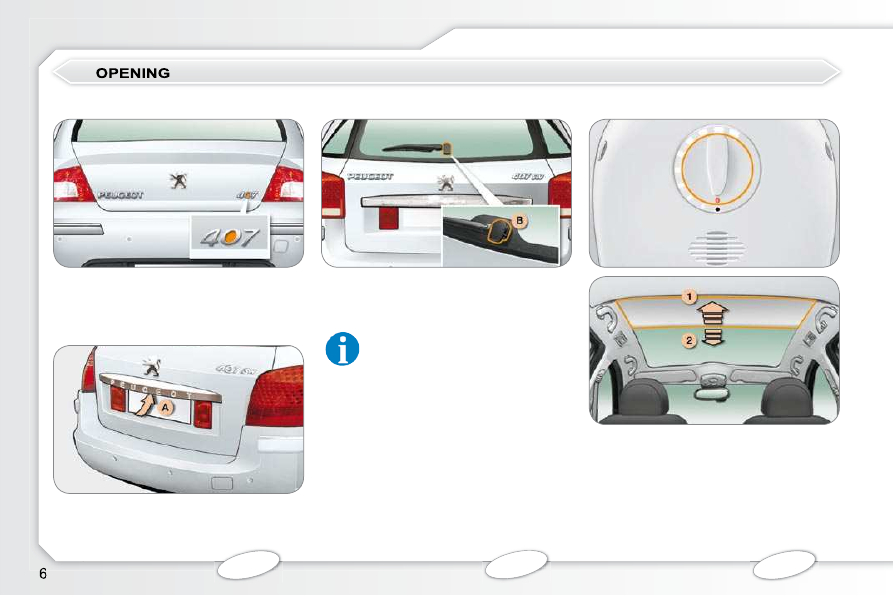

 Press the button and raise the boot

lid.

 68

With the rear screen closed, to open the
boot , pull the handle A then raise the
tailgate.

Boot (SW)

Rear screen (SW)

Panoramic sunroof (SW)

 71

1. Opening the blind.
2. Closing the blind.

Boot (Saloon)

With the tailgate closed, to open the
rear screen , pull the handle B then
raise the rear screen.

  The  tailgate  and  the  rear
screen  cannot  both  be  open
at the same time.

FAMILIARISATION

Digital air conditioning

This automatic air conditioning system
ensures comfort and adequate circulation
of air in the passenger compartment.

Cruise control/Speed limiter

The cruise control system automatically
maintains the speed of the vehicle at the
value programmed by the driver, without
any action on the accelerator pedal.
The speed limiter system prevents the
vehicle from exceeding the programmed
speed.

Audio and communication
systems

These systems beneﬁ t from the lat-

est technology: MP3 compatible audio

equipment, Bluetooth hands-free tele-

phone, colour screen, audio system,
auxiliary sockets.

4 or 6-speed automatic gearbox

This system provides driving in auto-

adaptive mode together with a choice
of modes to suit the dynamic driving
conditions.

 36

 98

 137

 95

INTERIOR

FAMILIARISATION

INSTRUMENTS AND CONTROLS

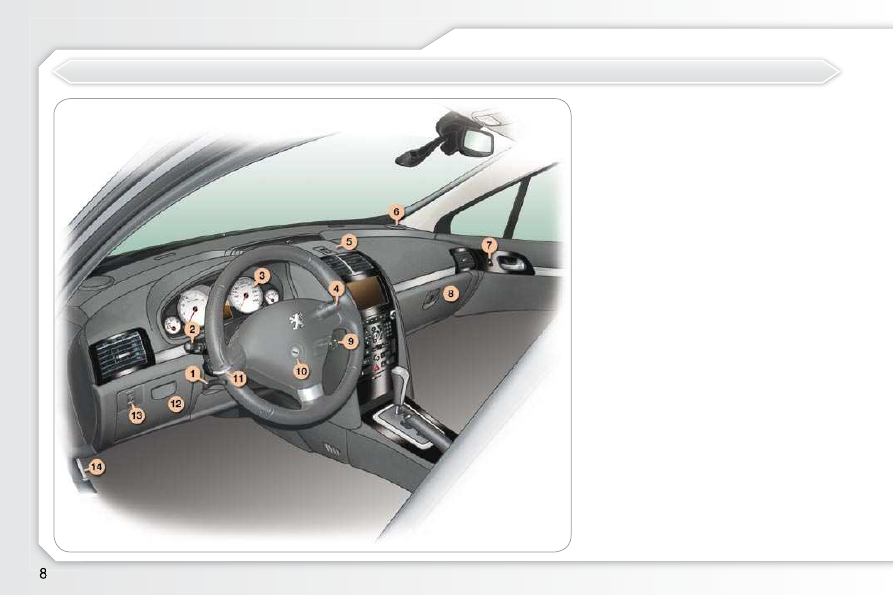

1. Steering wheel height and reach

adjustment.

2. Lighting/Direction indicator control

stalk.

3. Instrument panel.

Wiper/Wash-wipe/Trip computer

control stalk.

5. Air diffuser vent grille.

6. Speakers (tweeters).

Passenger-operated electric

window control.

8. Cooled glove box.

9. Audio equipment steering mounted

controls.

10. Steering lock and ignition.

11. Cruise control/speed limiter

controls.

12. Storage compartment

(driver's side).

Fusebox.

13. Headlamp height adjustment.

14. Bonnet release.

FAMILIARISATION

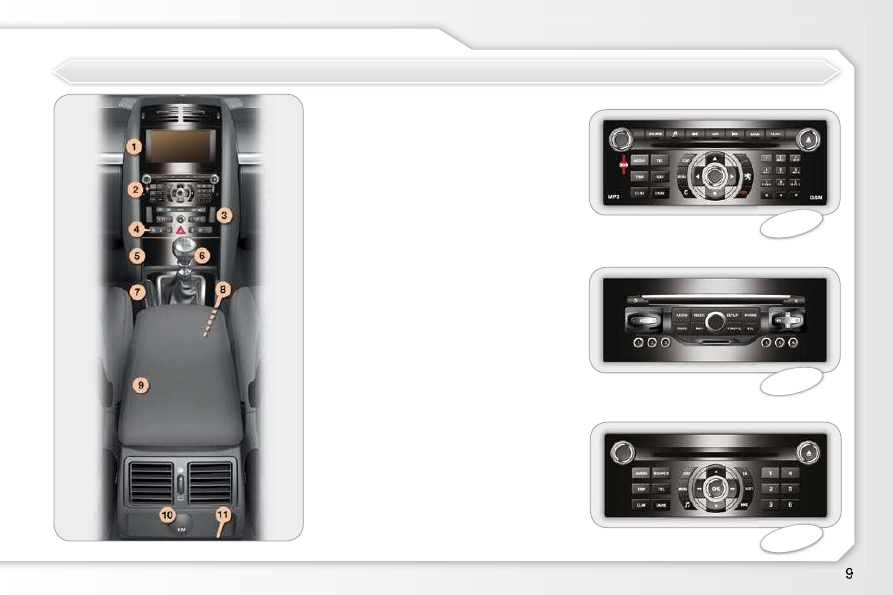

INSTRUMENTS AND CONTROLS

1. Multifunction screen.

2. Audio and telematics system.

3. Automatic air conditioning controls.

4. Deactivation of the audible parking

sensors.

Central locking from the inside.

Alarm control.

Hazard warning lamps.

SPORT suspension control.

Deactivation of the ESP system.

Child lock.

5. Ashtray/Front cigar lighter

(100 W max).

6. Gear lever.

7. Parking brake.

8. Retractable cup holder.

9. Armrest with storage compartment

and USB port.

10. 12 volt accessories socket

(100 W max).

11. Rear ashtray.

 139

 213

Peugeot Connect Media

Peugeot Connect Navigation

 184

Peugeot Connect Sound

FAMILIARISATION

 50

Forwards-backwards

Height and angle of the driver's seat
cushion

Seat back angle

Front seat adjustments

FAMILIARISATION

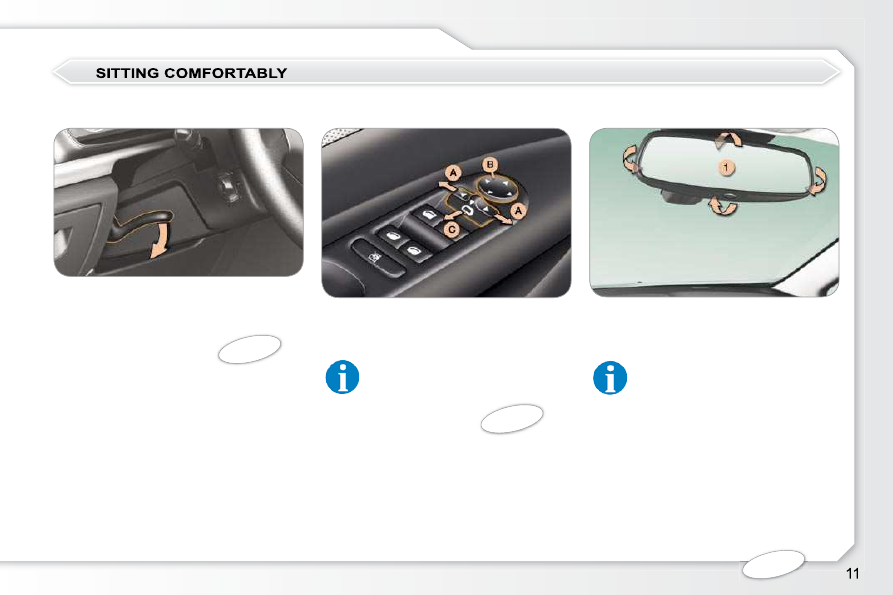

1. Mirror adjustment.

When stationary, unlock the steering
wheel adjustment by pushing the control
forwards then lock by pulling the control
fully.

 48

Door mirror adjustment

A. Selection of the mirror.
B. Adjustment of the position of the mirror.

  Also...
To  ensure  optimum  visibility
when  manoeuvring,  the  mirror

lightens automatically when re-

verse gear is engaged.

Steering wheel adjustment

Automatic day/night rear view
mirror adjustment

 49

Also...
C. Folding/Unfolding.

FAMILIARISATION

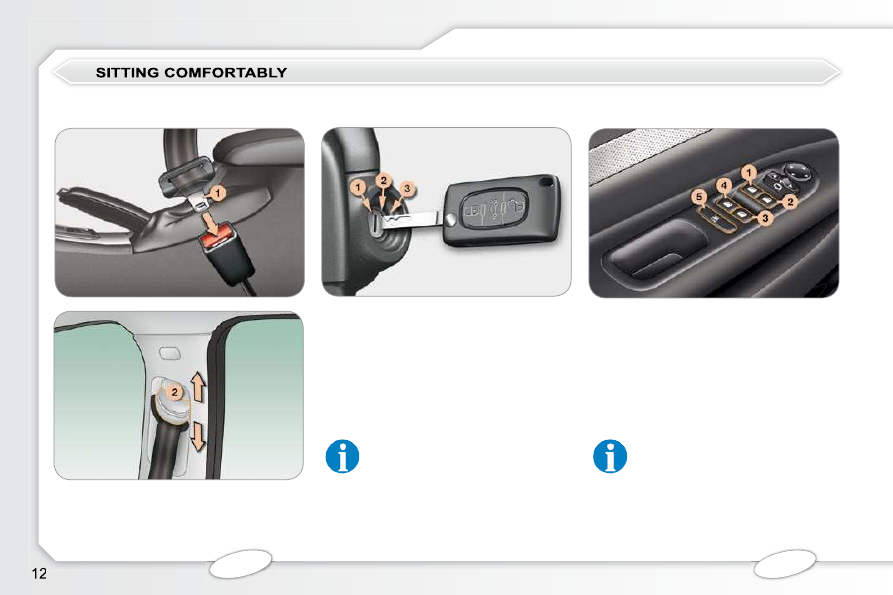

Front seat belt

1. Fastening.
2. Height adjustment.

   1.    Stop  position.
  2.    Ignition  position.
  3.    Starting  position.

 67

Electric window controls

  1.  Driver's electric window switch.
  2.  Passenger electric window switch.
  3.  Rear right electric window switch.
  4.  Rear left electric window switch.

Ignition switch

 88

Also...
5. Deactivation of the electric

window switches located in
the rear (child safety).

A heavy object (key fob...), at-

tached  to  the  key  and  weighing
down  on  its  shaft  in  the  ignition
switch, could cause a malfunction.

FAMILIARISATION

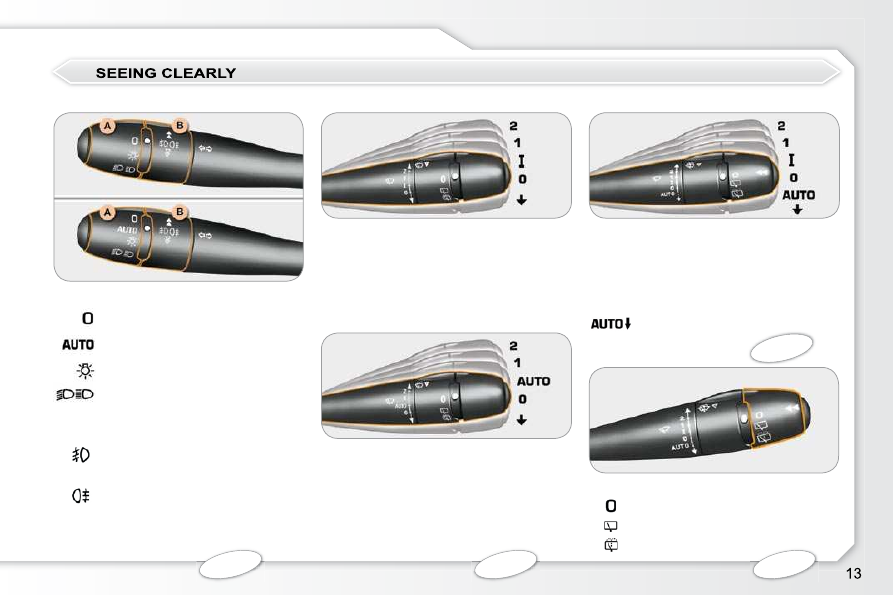

Lighting

Ring B

Windscreen wipers with intermittent
wipe

  2   Fast wipe.
  1   Normal wipe.
  I

Intermittent wipe.

0 Park.
 Single wipe.

Wipers

Rear wiper (SW)

Front foglamps (turn once).

Rear foglamps (turn twice).

Park.

Intermittent wipe.

Wash-wipe.

 74

 77

 78

Automatic rain sensitive windscreen
wipers

  2   Fast wipe.
  1   Normal wipe.
  AUTO  Automatic wipe.
  0   Park.
     Single wipe.

Ring A

Lighting off

Automatic illumination of head-

lamps

Sidelamps

Dipped/main beam headlamps

Windscreen wipers with intermittent
and automatic wipe

  2   Fast wipe.
  1   Normal wipe.
  I

Intermittent wipe.

0 Park.

 77

Automatic wipe then single wipe.

FAMILIARISATION

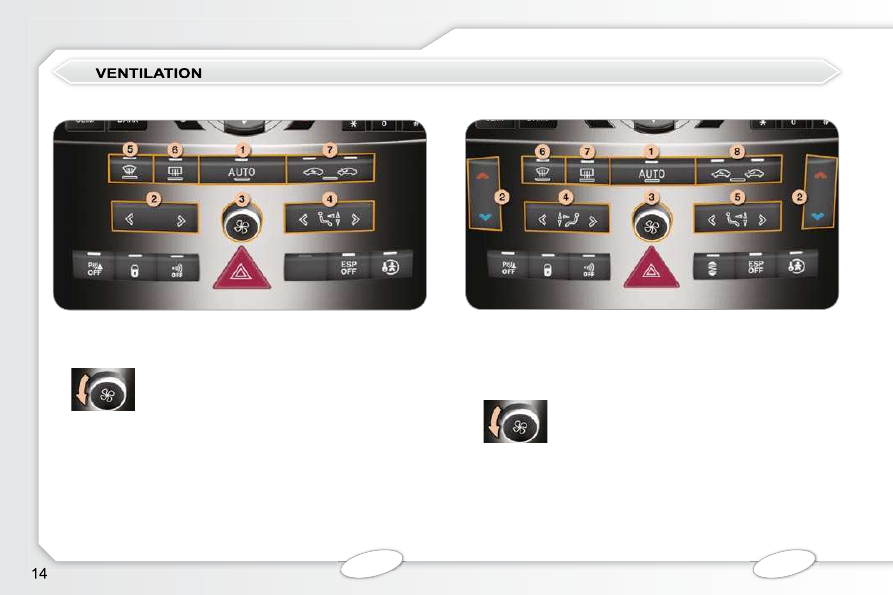

Digital air conditioning (mono-zone)

   1.   Automatic programme (comfort).
  2.   Temperature adjustment.
  3.

Air ﬂ ow adjustment.

 36

Digital air conditioning (dual-zone)

1. Driver and passenger automatic programme (comfort).
2. Driver's side temperature adjustment.

Passenger's side temperature adjustment.

Air ﬂ ow adjustment.

 40

Ventilation off.

  4.   Air distribution adjustment.
  5.   Front visibility control.
  6.   Rear screen demisting.
  7.   Intake of exterior air.

Recirculation of interior air.

Ventilation off.

  4.   Driver's air distribution adjustment.
  5.   Passenger's air distribution adjustment.
  6.   Front visibility control.
  7.   Rear screen demisting.
  8.   Intake of exterior air.

Recirculation of interior air.

FAMILIARISATION

Instrument panel

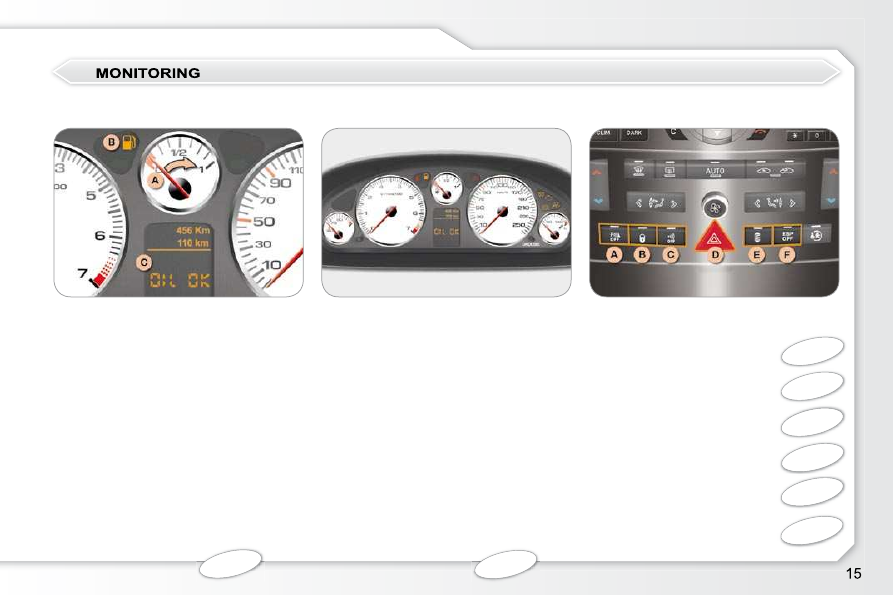

A. When the ignition is on, the fuel

gauge needle should rise.

When the engine is running, its as-

sociated low level warning lamp
should switch off.

C. When the ignition is on, the oil level

indicator should display "OIL OK"
for a few seconds.

If the levels are not correct, top up the
level which is low.

Lighting of the indicator lamp indicates
the status of the corresponding function.

When the ignition is on, the orange and
red warning lamps come on.
When the engine is running, these
warning lamps should switch off.
If any warning lamp remains on, refer to
the page concerned.

 18

 20

 104

A. Audible front/rear parking

sensors off.

B. Central locking.

C. Alarm interior volumetric

protection off.

D. Hazard warning lamps.

Selection of the electroni-

cally controlled suspension.

Electronic stability pro-

gramme ESP off.

 62

 65

 86

 97

 86

Warning lamps

Switch panel

FAMILIARISATION

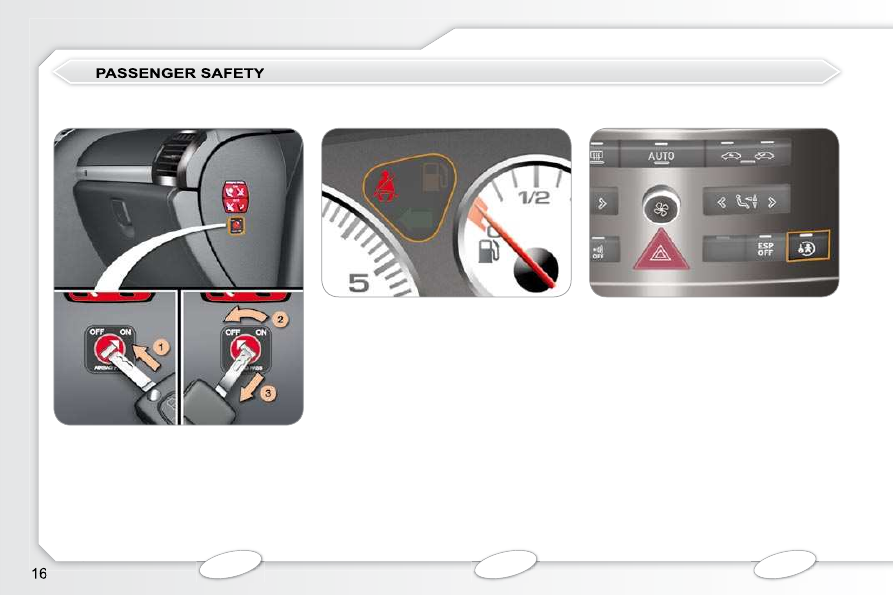

   1.   Insertion the key.
  2.   Select the  "OFF"  position
  3.   Removal the key keeping the switch

in the new position.

This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.

A message appears on the multifunc-

tion screen.
You are advised to check that the child
lock is activated each time you switch
on the ignition.

When  the   ignition  is  switched  on ,  if
a front occupant has not fastened their
seat belt and if the vehicle speed is  be-
low 12 mph (20 km/h) , you are warned
by  the   seat  belt  warning  lamp   which
comes on.
The warning lamp switches off when the
seat belt(s) concerned is(are) fastened.
If  the  vehicle  speed  is   above  12  mph
(20 km/h) , you are warned by the  seat
belt  warning  lamp

which ﬂ ashes, an

audible signal and a message on the
multifunction screen identifying the seat
belt(s) left unfastened.

Detection of front seat belt
fastening

 91

 88

 64

Front passenger's airbag

Electric child lock

FAMILIARISATION

This  enables  the  vehicle  to  maintain
a  constant  speed  programmed  by  the
driver.

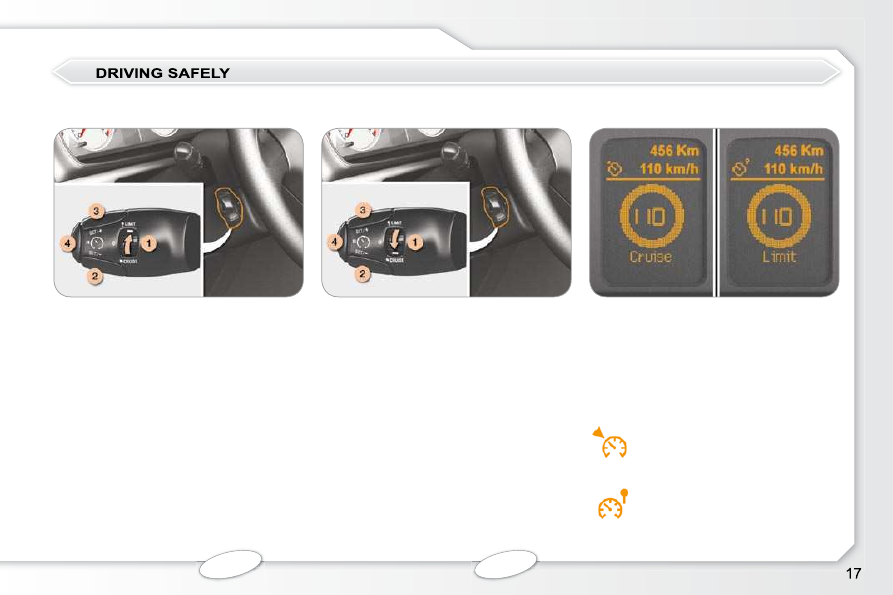

   1.   Cruise control mode Selection/Off.
  2.   Decrease the programmed value.
  3.   Increase the programmed value.
  4.   Cruise control On/Off.
In order to be programmed or activated,
the vehicle speed must be above 25 mph

(40 km/h), with at least fourth gear en-

gaged on the manual gearbox.

The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

This prevents the vehicle from exceeding

the speed programmed by the driver (mini-

mum speed 20 mph (30 km/h)).
   1.   Speed limiter mode Selection/Off.
  2.   Decrease the programmed value.
  3.   Increase the programmed value.
  4.   Speed limiter On/Off.
The settings must be adjusted with the
engine running.

Speed limiter

Cruise control

 98

 100

Cruise control

Instrument panel screen

Speed limiter

1. Coolant temperature gauge.

2. Lighting on indicators:

dipped beam headlamps.

main beam headlamps.

front foglamps.

rear foglamps.

3. Rev counter dial.

4. Warning lamps:

seat belts not fastened in
the front.

fuel level.

left direction indicator.

5. Fuel level gauge.

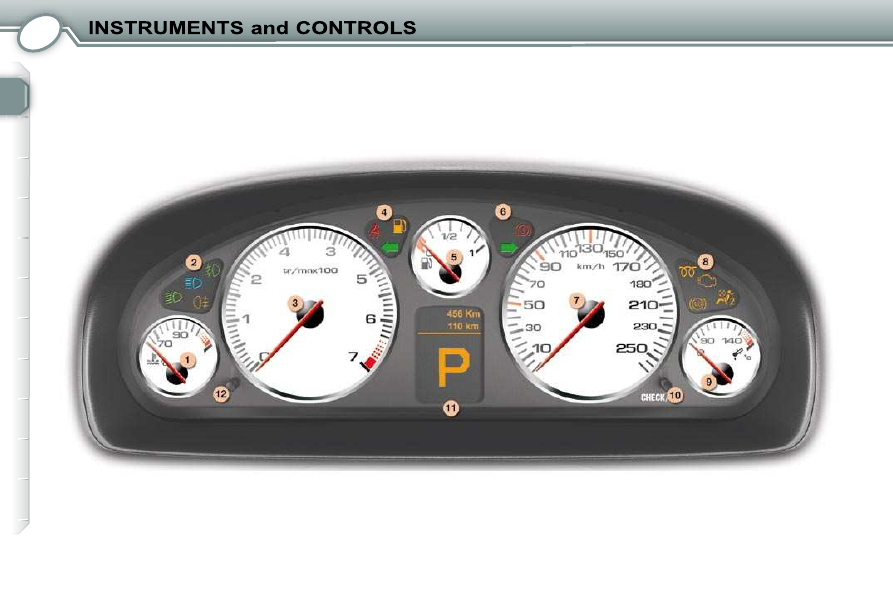

PETROL-DIESEL MANUAL AND AUTOMATIC
GEARBOX INSTRUMENT PANELS

10. CHECK and trip recorder zero

reset and service display button.

11. Instrument panel screen:

Total distance recorder.

Trip recorder.

Automatic gearbox lever position
indicator.

Cruise control/speed limiter
reference value.

Service indicator.

Navigation instructions

CHECK (vehicle autotest).

Trip computer information
displays.

Warning and status displays.

12. Instrument panel lighting rheostat.

6. Warning lamps:

parking brake applied or brake

ﬂ uid level or electronic brake force

distribution fault.

right direction indicator.

7. Speedometer.

8. Warning lamps:

emission control system.

anti-lock braking system (ABS).

passenger's airbag deactivated.

pre-heat (Diesel engine starting).

9. Engine oil temperature gauge.
