YOUR 406 AT A GLANCE
Pages
Seats
111 - 122
Steering wheel controls
124 - 126
Instrument dials
127 - 134
Heating, air conditioning
54 - 59
Mirrors
142 - 143
Pages
Checks
26 - 33
Changing a bulb
37 - 40
Access
103 - 110
Fuel filler flap
110
Changing a wheel
34 - 36
Each model may only be fitted with some of the equipment shown, according to its specification and the
technical requirements in the country of first registration of the vehicle.
17-02-2003
2
YOUR 406 AT A GLANCE
17-02-2003
3
YOUR 406 AT A GLANCE

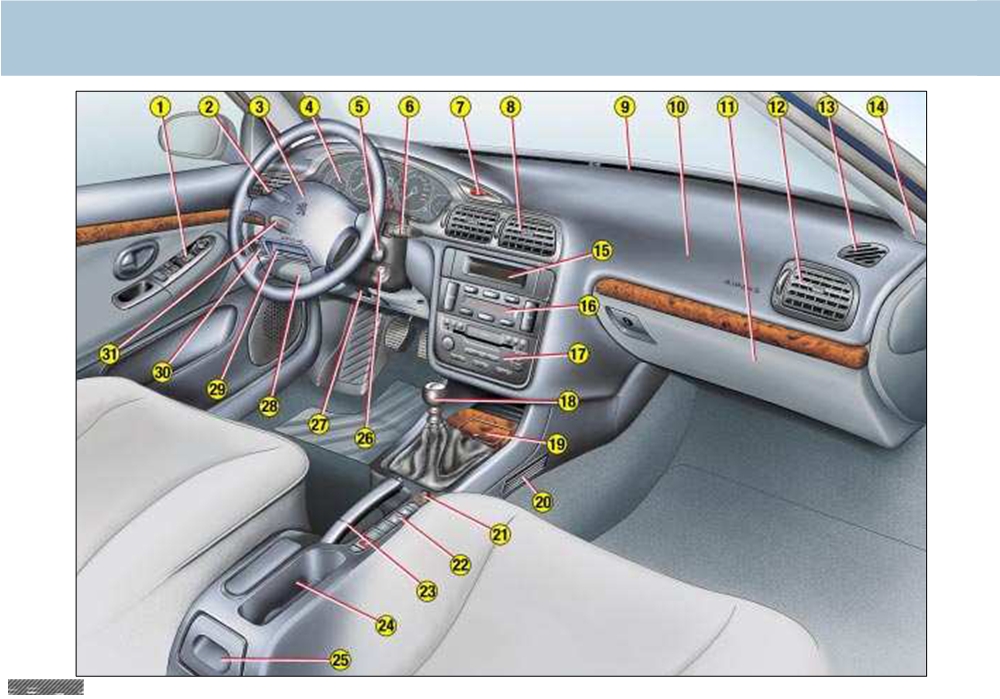

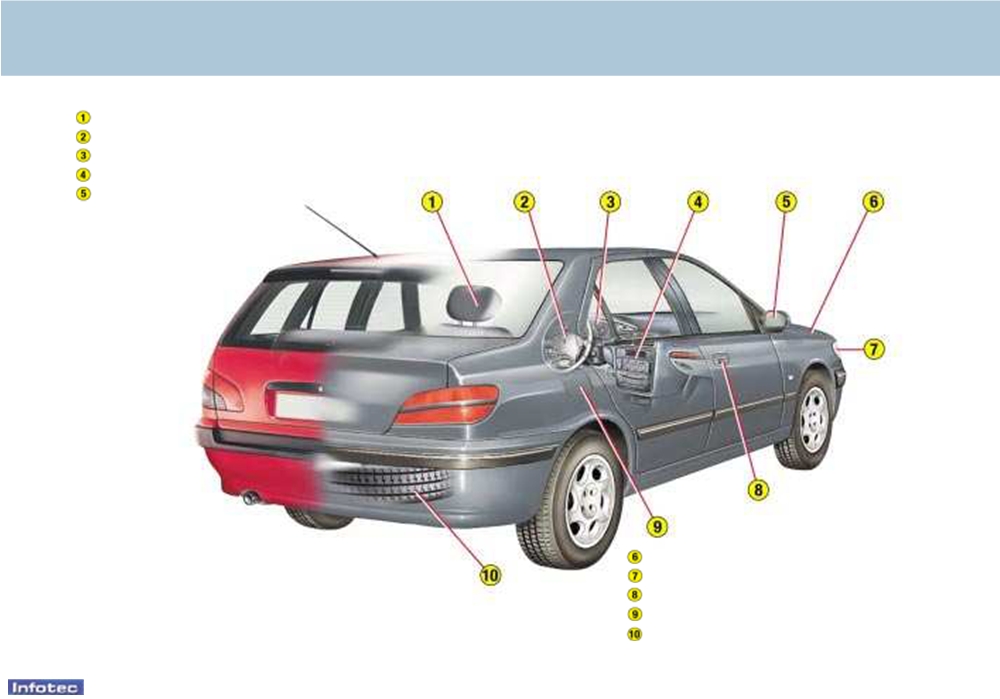

1 - Electric mirror controls.
9 - Windscreen demisting
22 - Heated seat switches.
vents.
Window controls.
Coin storage.
Rear window locking control.
Passenger air bag
10 - Passenger air bag.
disarming switch.
2 - Lights and direction
11 - Glove box.
indicators stalk.
23 - Handbrake.
Arming/disarming of
12 - Side adjustable heating/
automatic switching on of
ventilation vent and air flow
lights.
24 - Cup-holder.
regulation.
3 -
Driver's air bag.
13 - Window demisting vent.
25 - Rear ashtray.
Horn.
14 - Speaker (tweeter) location.
26 - Steering lock and ignition.
4 -
Instrument dials.
15 - Multifunction display.
27 - Steering wheel adjustment.
5 -
Radio remote control stalk.
16 - Heating/ventilation controls.
28 - Fuse box.
6 -
Windscreen wash-wipe
stalk.
17 - Radio.
29 - Electronic Stability
Trip computer stalk.
18 - Gear lever.
Programme (ASR/ESP)
switch.
7 -
Hazard warning lights
19 - Front ashtray.
switch.
30 - Headlamp height
20 - Rear footwell heating vent.
adjustment.
8 -
Central adjustable heating/
ventilation vents and air flow
regulation.
21 - Lighter.
31 - Cruise control.
17-02-2003
4
YOUR 406 AT A GLANCE

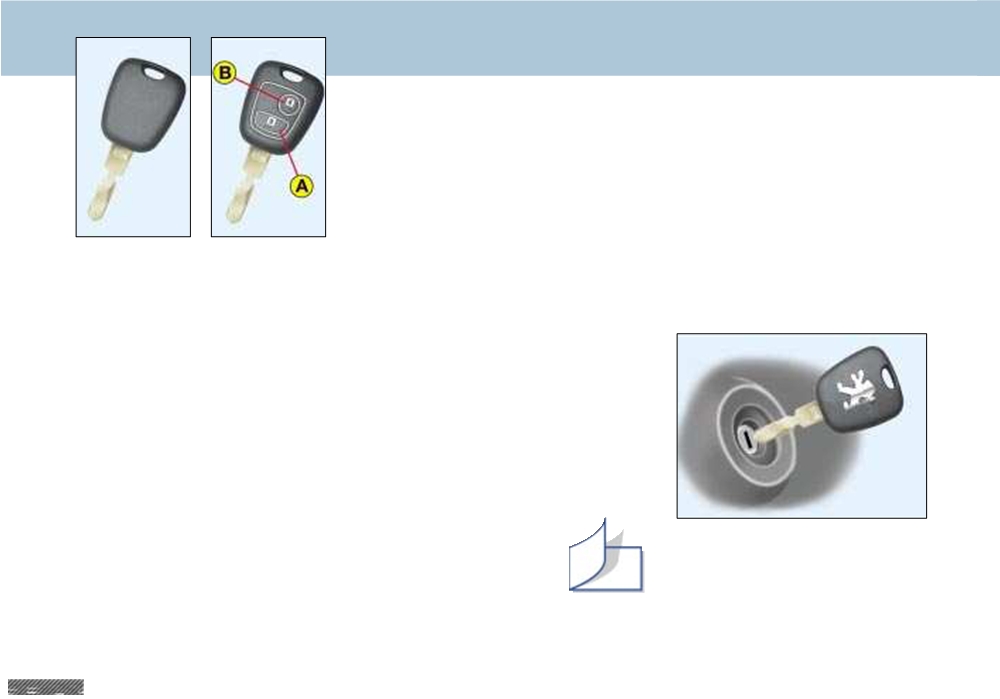

The remote control
STARTING
Locking
STOP position:
Pressing button A locks the vehicle.
The ignition is off.
This is confirmed by the fixed
1st notch, Accessories position:
lighting of the direction indicators
The ignition is off but the acces-
for approximately two seconds.
sories can be used.
2nd notch, Running position:
Key without
Key with
Unlocking
The ignition is on.
remote control
remote control
Pressing button B unlocks the
Starting position:
THE KEYS
vehicle.
Operates the starter.
This is confirmed by the rapid
Key without remote control Key
flashing of the direction indicators.
with remote control. The keys
allow you to switch on the ignition
and to independently operate the
locks on the front doors, the glove
box and the passenger air bag
disarming switch.
Central locking
From the driver's door, the keys
allow you to lock and unlock the
doors and the boot.
If one of the front doors is open,
the central locking does not work.
103
The remote control performs
the same functions at a dis-
tance.
17-02-2003
5
YOUR 406 AT A GLANCE

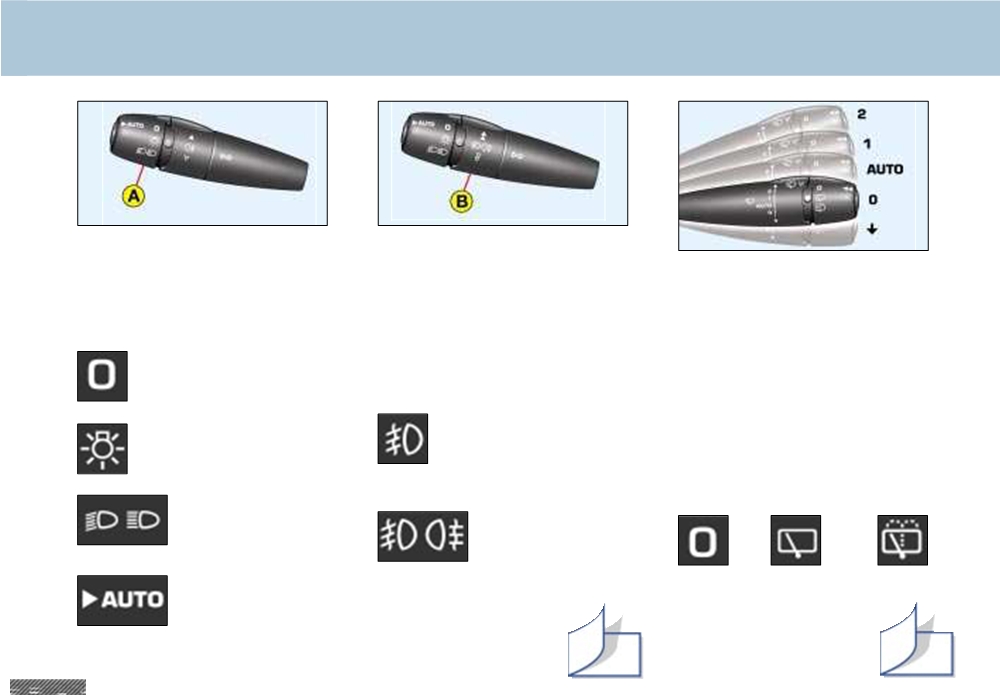

STEERING WHEEL
Front/rear fog lamps (ring B)
STALKS
Rotate the ring forwards to switch
WINDSCREEN WIPERS
LIGHTING
on and rearwards to switch off.
The on/off status is displayed by
Front
Front and rear lights (ring A)
the indicator light on the instru-
2 Rapid wipe
ment panel.
(heavy rain)
1
Normal wipe
(moderate rain)
Lights off.
AUTO Automatic wipe
0 Off
Front fog lamps
Single wipe
(1st rotation of the ring
Wash/wipe: pull the stalk towards
Side lights.
forwards).
you.
Rear
Intermittent
Wash/
Dipped/main beam
Off
wipe
wipe
headlamps.
Front fog lamps
and rear fog lamp
(2nd rotation of the
ring forwards).
Automatic wipe
Automatic illumina-
In the AUTO position, the
tion of headlamps.
windscreen wiper ope-
rates automatically and
adapts its speed to the
intensity of the rainfall
124
126
17-02-2003
6
YOUR 406 AT A GLANCE

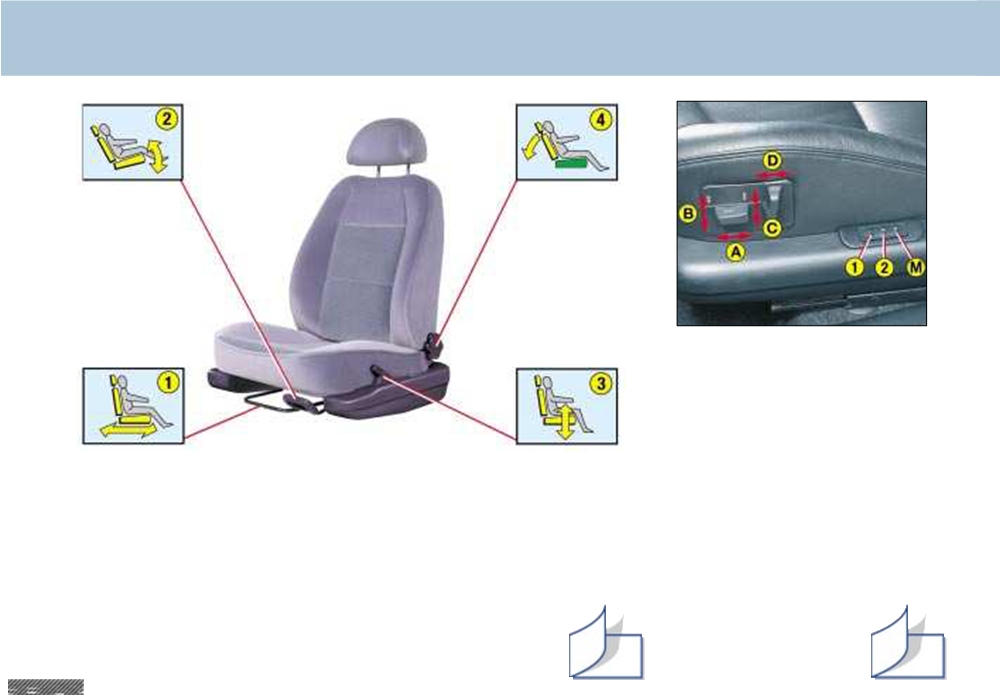

Electric front seats
A -
Forwards/backwards adjust-
ment.
B -
Seat cushion angle adjust-
ment.
C -
Seat height adjustment.
D -
Seat back angle adjustment.
M - Memorises the settings.
THE SEATS
Switch on the ignition and
Manual front seats
adjust the seat and mirrors.
Press button "M" together
1 - Forwards/backwards adjustment.
with button "1" , for the first
2 - Seat cushion angle adjustment.
driving position, or "M" and
"2" , for the second driving
3 - Seat height adjustment.
position.
4 - Seat back angle adjustment.
1 -
Recalls first memo-
rised position.
2 -
Recalls second mem-
orised position.
111
112
17-02-2003
8
YOUR 406 AT A GLANCE
Passenger air bag precautions
SIDE AIR BAGS
Side air bags are incorporated
For a vehicle fitted with a disar-
into the backs of the front seats,
ming switch:
on the door side.
They are triggered individually,
- disarm the air
on whichever side the collision
bag if you
occurs.
install a rear-
facing child
FRONT AIR BAGS
seat.
Disarming the passenger
- arm the air
air bag
bag for an
adult passen-

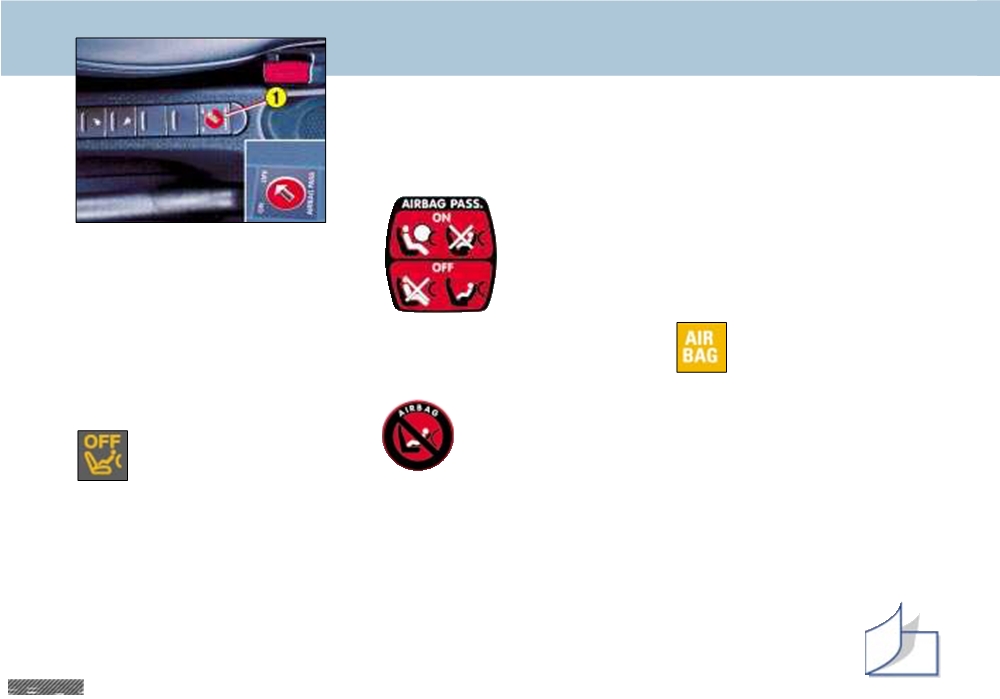

☞ Insert the ignition key in switch
ger.
1 and turn it:
- to the "ON" position, the pas-
Operating check
senger air bag is armed,
For a vehicle not fitted with a dis-
- to the "OFF " position, the pas-
arming switch:
senger air bag is disarmed.
This is by means of the warning
- do not install rear-
light on the instrument panel.
facing child seats
Operating check
It comes on for 6 seconds when
on the front pas-
senger seat.
the ignition is switched on.
If the warning light:
This lights for six sec-
onds when the ignition is
- does not come on when the
switched on.
Never place your feet or any
ignition is switched on or,
object on the fascia.
With the ignition on (2nd notch),
- does not go out after six se-
illumination of this warning light
conds,
accompanied by an audible signal
contact a PEUGEOT dealer.
and the message "Passenger air
bag disarmed" on the multifunc-
tion display indicates that the pas-
senger air bag is disarmed
(switch in the "OFF" position).
The warning light remains on
throughout the disarming process.
149
17-02-2003
9
YOUR 406 AT A GLANCE

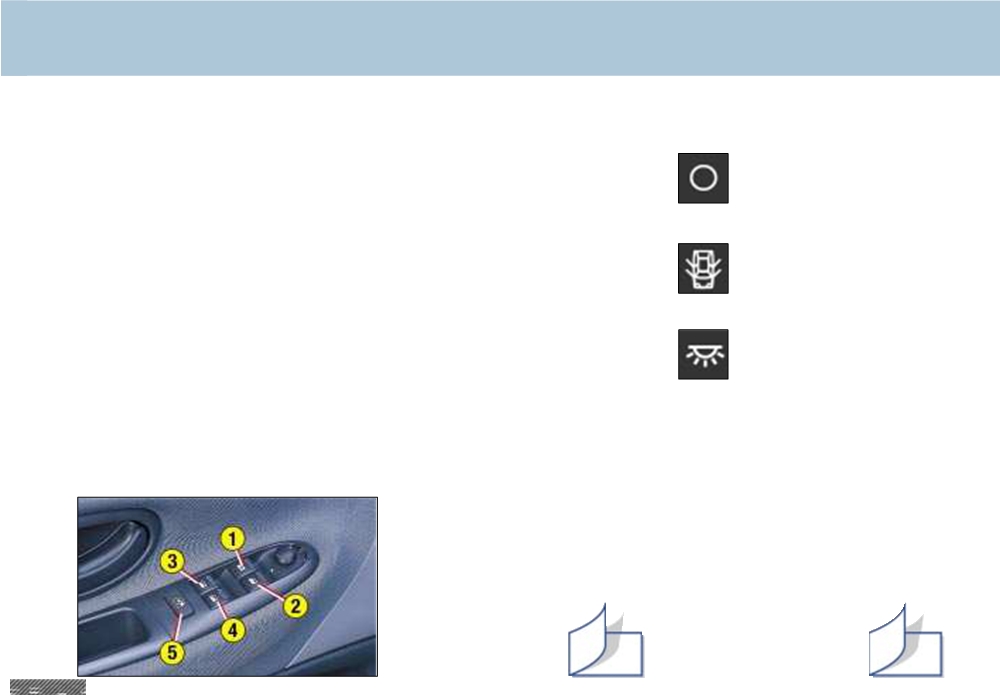

ELECTRIC WINDOWS
COURTESY LIGHT
1 -
Driver's electric window.
Manual operation: press or pull
the switch gently. The window
Off.
2 -
Passenger's electric
stops as soon as the switch is
window.
released.
3 -
Rear left electric window.
Automatic operation:
press or
pull the switch fully. One touch
Lights when one of
completely opens or closes the
4 -
Rear right electric window.
the doors is opened.
window.
5 -
Disarming the rear window
Safety auto-reverse: when the
switches.
window on the driver's side rises
For the safety of your chil-
and meets an obstacle, it stops
dren, press switch 5 to pre-
and lowers again.
Permanently lit, with
vent operation of the rear
the key in the acces-
windows irrespective of their
sories position or with
position.
the ignition on.
The 1st press activates the
switch and the
2nd deacti-
vates it.
141
145
17-02-2003
7
YOUR 406 AT A GLANCE

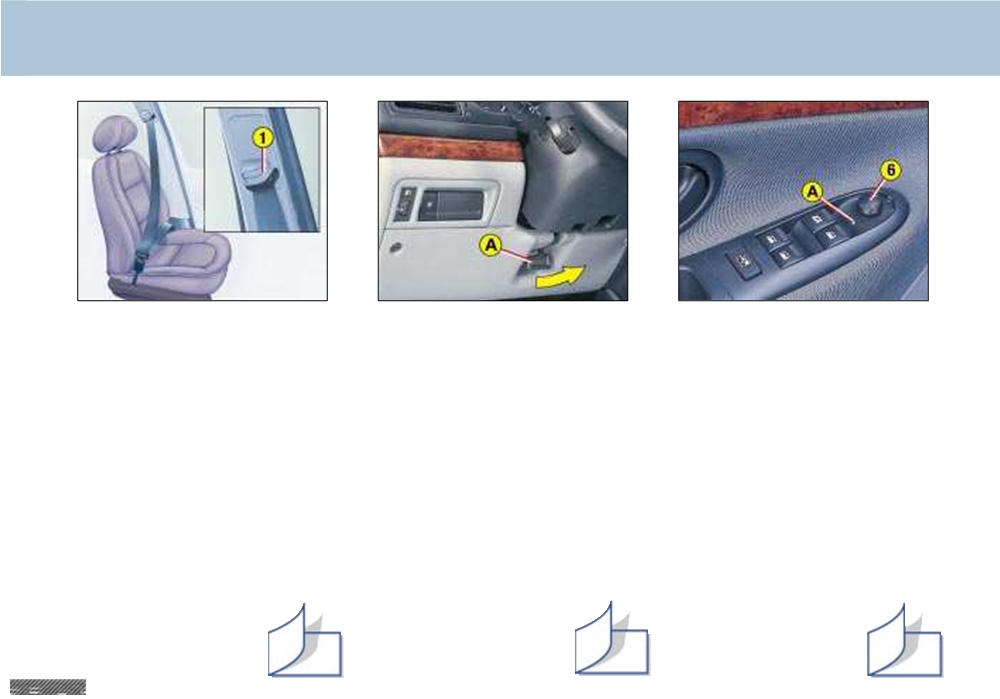

SEAT BELTS
STEERING WHEEL
ELECTRIC MIRRORS
HEIGHT AND DEPTH
Front seat belt height
Turn knob 6 to the right or left to
ADJUSTMENT
adjustment
select the corresponding mirror.
☞ Pull handle A to unlock the
Pinch control 1 and slide it.
Then move the knob in all four
steering wheel.
directions to adjust.
To lock the seat belts
Adjust the height and depth of
the steering wheel then lock it
Pull the strap, then insert the end
by pushing handle A in fully.
Fold-back electric mirrors
into the buckle.
With the ignition switched on,
turn knob 6 to position A.
123
144
142
17-02-2003
14
YOUR 406 AT A GLANCE

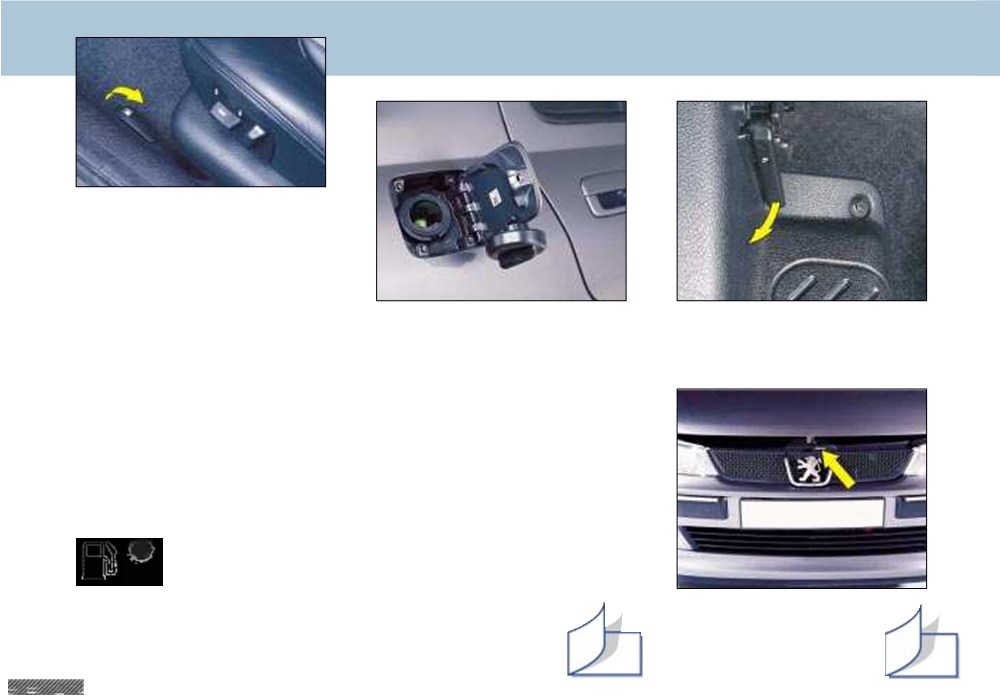

FUEL FILLER FLAP
To open: firmly pull the handle
on the floor to the outside of the
driver's seat.
To close: from outside the vehi-
cle, push back the flap and check
that it is secured correctly.
OPENING THE BONNET
Inside the vehicle: Pull the handle.
Filling with fuel
Switch off the engine.
A filler cap hook is provided.
A label on the inside of the flap shows which fuels are permitted and
which are not.
The capacity of the tank is approximately 15.4 gallons (70 litres).
Low fuel level warning light
From the time this light comes on, you have enough fuel
remaining to drive for approximately 30 miles (50
km).
Outside the vehicle:
Raise the catch and open
the bonnet.
110
110
17-02-2003
12
YOUR 406 AT A GLANCE

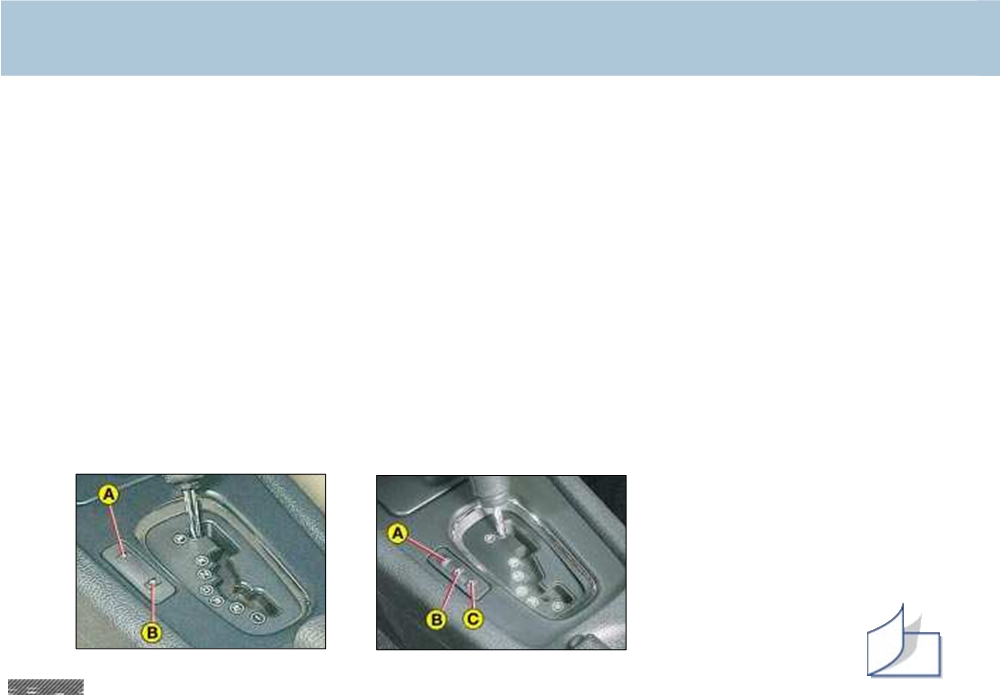

THE AUTOMATIC AUTOADAPTIVE GEARBOX
Moving Off
To move off from position P:
☞ It is essential to press the brake pedal to exit position P
(shift lock).
☞ Select the required function (R, D, 3, 2 or 1), then gradually release the pressure on the brake pedal; the vehi-
cle will move off immediately.
You can also move off from position N:
☞ Release the handbrake, with your foot on the brake.
☞ Select the required function (R, D, 3, 2 or 1) then gradually release the pressure on the brake pedal; the vehi-
cle will move off immediately.
The four speed automatic gearbox provides the comfort of integral automatic regulation
, enhanced by a sport
programme (switch A) and a snow programme (switch B).
Gear selection gate
☞ Move the lever in the gate to select one of the functions.
Once it has been selected, the indicator light for that function illuminates on the instrument panel display.
Park (parking): for parking the vehicle and starting the engine, with the handbrake on or off.
Reverse: for reversing . Select this function with the vehicle stationary and the engine at idle.
Neutral: for starting the engine and for parking , with the handbrake on.
Drive: for driving in auto-adaptive mode
(automatic changing of the four gears).
3: for urban driving or driving on winding roads
, (automatic changing of the first three gears only).
2: for driving on mountain roads or for towing a trailer
(automatic changing of the first two gears only).
1: for tackling steep gradients
(selection of first gear only).
Special feature of the gearbox
(1.8 litre,
2 litre petrol and
2 litre turbo diesel HDI)
Selection of first gear is by pressing
switch C with the gear lever in posi-
tion 2.
To change out of first gear, press
switch C again or operate the lever.
V6 engine
1.8 litre, 2 litre petrol and 2 litre
148
turbo diesel HDI engines
17-02-2003
13
YOUR 406 AT A GLANCE

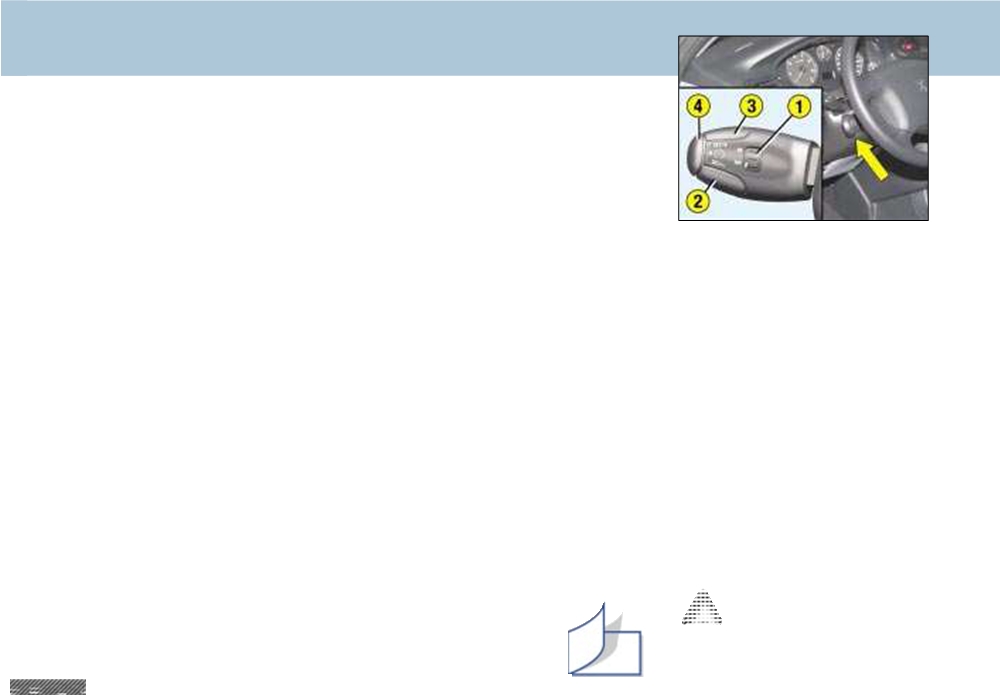

CRUISE CONTROL
Cruise control enables the vehicle to maintain a steady speed pro-
grammed by the driver, regardless of the road characteristics and without
the driver having to touch the accelerator or brake pedals.
In order for it to be memorised, the vehicle speed must be greater than
25 mph (40 km/h) or 37 mph (60 km/h), depending on the engine, with at
least 4th gear engaged (2nd gear for automatic gearboxes).
Changing a memorised speed
Operation
To m em orise a speed higher
☞ Place switch 1 in the ON position.
than the previous one:
A speed can now be memorised.
☞ press button 3;
☞ Place switch 1 in the OFF position to de-activate the system.
☞ release it when you have
reached the required speed.
Memorising a speed
To memorise a speed lower than
the previous one:
As soon as you reach the chosen speed, press button 2 or 3. This
☞ press button 2;
memorises the speed, which will be maintained automatically.
☞ release it when you have
Note: It is possible to accelerate momentarily without disarming the
reached the required speed.
cruise control.
Cancelling the cruise control
☞ place switch 1 in the OFF posi-
Cancelling the memorised speed
tion or switch off the ignition.
If you wish to cancel the memorised speed:
☞ Press button 4 or the brake or clutch pedal.
Recalling the memorised speed
Do not use cruise control
After cancelling, press button 4. Your vehicle will return to the
on slippery roads or in
last memorised speed.
heavy traffic.
151
17-02-2003
10
YOUR 406 AT A GLANCE

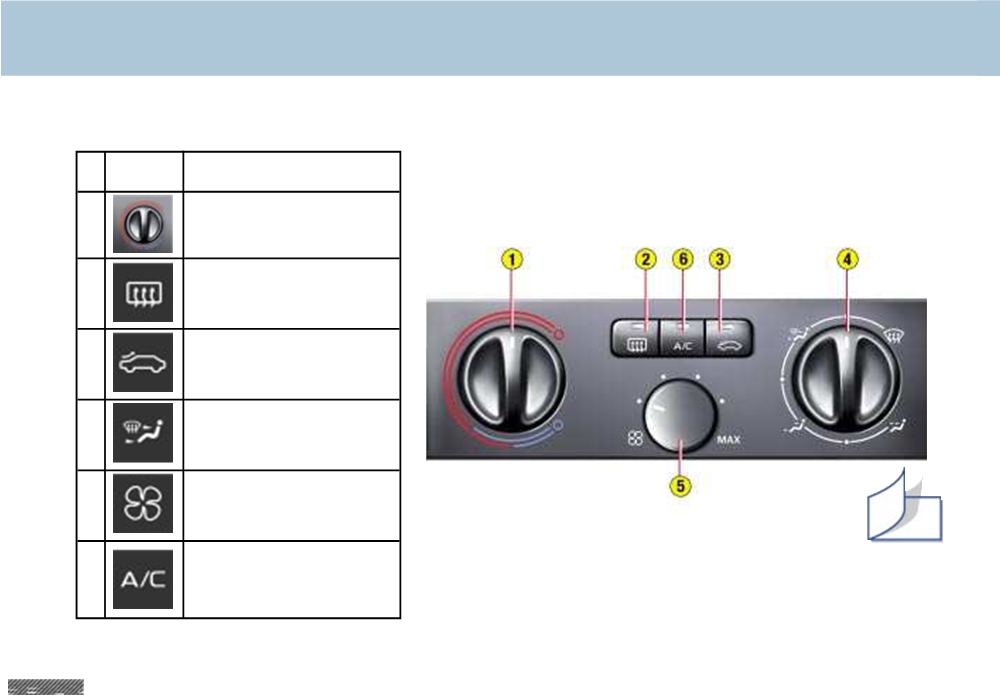

AIR CONDITIONING
N°
Symbol
Function
1
Temperature
adjustment
2
Demisting the
rearscreen
3
Air intake
control
4
Setting the air
distribution
5
Air flow
adjustment
56
6
Air conditioning
control
17-02-2003
11
YOUR 406 AT A GLANCE

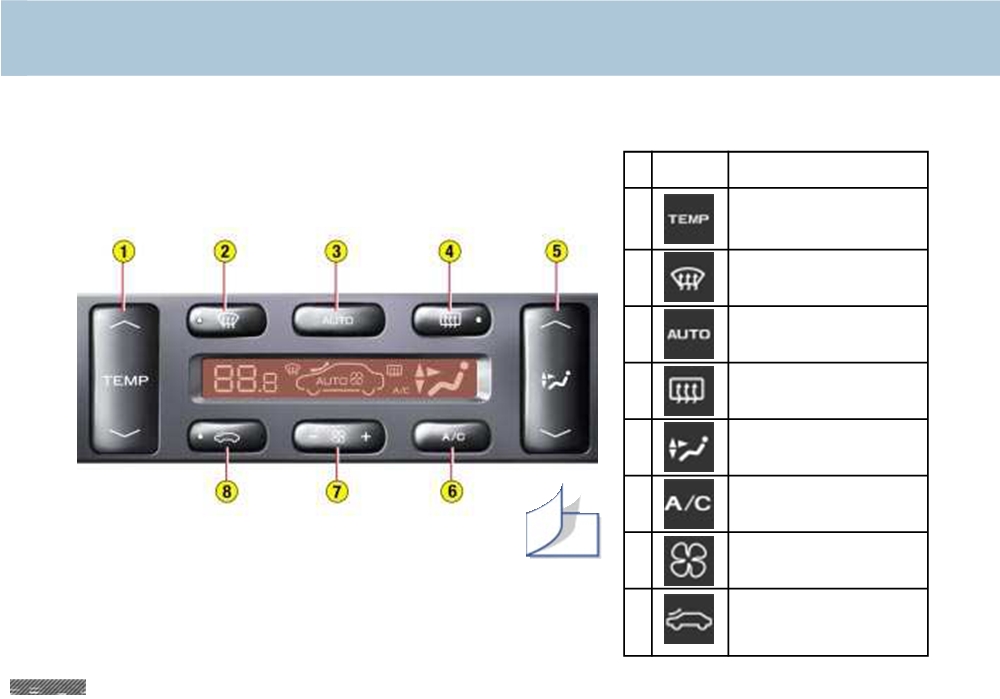

AUTOMATIC AIR CONDITIONING
N°
Symbol
Function
1
Temperature
adjustment
2
Automatic visibility
programme
3
Automatic comfort
programme
4
Demisting the rear
screen
5
Setting the air
distribution
6
Air conditioning
control
58
7
Air flow
adjustment
8
Air intake
control
17-02-2003
18
MAINTENANCE OF YOUR 406
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
• For petrol engines: every 20,000 miles (30 000 km) or every two years.
• For direct injection diesel engines: every 12,000 miles (20 000 km) or every two years.
The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the
oil between oil changes is normal.
It is for this reason that the PEUGEOT network invites you to an intermediate visit between regular services.
The date of this service is not shown by the service indicator. It is to be carried out at least every 10,000 miles
(15000 km) for petrol engines and every 6,000 miles (10 000 km) for direct injection diesel engines. A PEUGEOT dealer
will carry out a quick check, and will top up the levels if necessary (oil, coolant, screenwash up to 2 litres).
If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every
2,000 miles (3 000 km) or 3,000 miles (5 000 km), depending on the conditions of use.
The extended service intervals have been made possible by technical modifications to the vehicles and lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.
17-02-2003
19
MAINTENANCE OF YOUR 406
SPECIAL FEATURES
Some of your vehicle's vital components have specific servicing schedules.
The air bags and the pretensioning seat belts
must be checked every 10 years by a PEUGEOT dealer.
The brake fluid must be replaced every 36/40,000 miles (60 000 km) or every 2 years.
The passenger compartment filte r must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular
services).
Replacement of the timing belt: consult your PEUGEOT dealer.
Arduous conditions of use
If the vehicle is used in certain particularly arduous conditions:
• Continuous door-to-door use.
• Town use (e.g. taxi).
• Repeated short journeys, with the engine cold in low temperatures.
or for long stays in the following conditions:
• Hot countries with temperatures often above 30 °C.
• Cold countries with temperatures often below minus 15 °C.
• Countries with a dusty atmosphere.
• Countries whose lubricants or fuels do not conform to our recommendations,
it is necessary to follow an "Arduous conditions" servicing schedule, which includes special operations and shorter ser-
vice intervals:
• Every 12,000 miles (20 000 km) or every year for petrol engine vehicles.
• Every 9,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.
17-02-2003
|
|
|
