Peugeot 406 C Dag (2004 year). Instruction - part 2
112
YOUR 406 COUPE IN DETAIL
SERVICE INDICATOR
The distance remaining before the
The service is overdue.
This is a visual reminder of when the
next service is less than 500 miles
next service is due. This service is to
(1,000 km).
Each time the ignition is switched on
and for 5 seconds, the symbol and
be carried out according to the man-
ufacturer's servicing schedule.
the excess distance flash.
Operation
Example:
400 miles
(900 km)
As soon as the ignition is switched
remain before the next service is
Example: the service is overdue by
on and for 5 seconds, the spanner
due.
300 miles/km. The service should be
symbolising ''service operation'' is lit.
carried out very shortly.
The trip recorder display shows the
When switching on the ignition and
distance remaining (in round figures)
for 5 seconds, the display shows:
When the ignition is switched on and
before the next service.
for 5 seconds, the display shows:
Example:
4,800 miles/km remain
before the next service is due. When
the ignition comes on and for 5 sec-
onds the display indicates:
5 seconds after the ignition is
switched on, the total distance
recorder resumes normal operation
5 seconds after the ignition is
and the symbol remains lit. The
switched on, the total distance
display shows the total or trip
recorder resumes normal operation
distances.
and the symbol remains lit.
5 seconds after the ignition is
switched on, the total distance
This indicates that a service should
recorder resumes normal operation
be carried out shortly. The display
and the display shows the total or trip
shows the total or trip distances.
distances.
Note: the service spanner lights if
the two-year interval has been
exceeded (see "PEUGEOT Servic-
ing" section).
02-02-2004
113
YOUR 406 COUPE IN DETAIL
Resetting the service indicator
Your PEUGEOT dealer carries out
this operation after each service.
The reset procedure is as follows:
- Switch off the ignition.
- Press and hold button 1.
- Switch on the ignition.
The display begins a
10 second
countdown.
- Keep button 1 pressed for 10 sec-
onds.
The display shows
[=0] and the
service symbol disappears.
02-02-2004
20
MAINTENANCE OF YOUR 406 COUPE
SERVICE LEVELS
Each vehicle has its own servicing cycle, based upon the engine type.
The servicing cycle consists of alternating 2 types of service A and C, intermediate visits, and a few additional operations
depending on your vehicle; these correspond to key stages in the life of your 406.
Level B service is designed for less recent vehicles.
When the first service is carried out and at each subsequent service, your dealer will advise you of the type and
content of the next service due.
THE MAINTENANCE CYCLE FOR YOUR 406 COUPE PETROL ENGINE
2 litre 16V and 2.2 litre 16V Petrol Engine: Service every 20,000 miles (30 000 km) or 2 years
MILES (KM)
20,000 (30 000)
40,000 (60 000)
60,000 (90 000)
1st service at 6,000 miles
(10 000 km) or 6 months*.
This is necessary
in order to benefit
from the warranty.
80,000 (120 000)
100,000 (150 000)
120,000 (180 000)
140,000 (210 000)
160,000 (240 000)
These fixed operations are carried out with synthetic based oil; Fuel Economy
oil or synthetic oil may also be used.
Intermediate visit.
* Whichever comes first.
02-02-2004
21
MAINTENANCE OF YOUR 406 COUPE
THE MAINTENANCE CYCLE FOR YOUR 406 COUPE PETROL ENGINE
V6 24V Petrol injection Engine
: Service every 20,000 miles (30,000 km) or 2 years
MILES (KM)
20,000 (30,000)
40,000 (60,000)
60,000 (90,000)
1st service at 6,000 miles
(10 000 km) or 6 months*.
This is necessary
in order to benefit
from the warranty.
+ replacement of air filter
+ replacement of fuel filter
80,000 (120,000)
100,000 (150,000)
120,000 (180,000)
140,000 (210,000)
160,000 (240,000)
+ replacement of air filter
+ replacement of fuel filter
These fixed operations are carried out with synthetic based oil; Fuel Economy oil
or
synthetic oil may also be used.
Intermediate visit.
* Whichever comes first.
02-02-2004
22
MAINTENANCE OF YOUR 406 COUPE
THE MAINTENANCE CYCLE FOR YOUR 406 COUPE TURBO DIESEL HDI ENGINE
2.2 litre 16V Turbo Diesel HDI engine: service every 12,000 miles (20,000 km) or 2 years
MILES (KM)
12,000 (20,000)
24,000 (40,000)
36,000 (60,000)
48,000 (80,000)
60,000 (100,000)
1st service at 6,000 miles
(10,000 km) or 6 months*.
This is necessary in order to
benefit from the warranty
72,000 (120,000)
84,000 (140,000)
96,000 (160,000)
108,000 (180,000)
120,000 (200,000)
132,000 (220,000)
144,000 (240,000)
+ maintenance of particulate
+ maintenance of particulate
emission filter
emission filter
These fixed operations are carried out with synthetic oil.
Warning: only use 5W40 oil .
Intermediate visit.
* Whichever comes first.
02-02-2004
23
MAINTENANCE OF YOUR 406 COUPE
AAND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
Level
Operations
Description of operation
1st service
A
C
Intermediate
- Engine oil
DRAIN/REFILL
- Bleed fuel filter (diesel)
- Oil filter
- Petrol filter (according to engine)
REPLACE
- Diesel filter or element (according to engine)
- Air filter element
- Spark plugs (petrol)
- Engine oil (check + top-up)
- Manual gearbox oil (check + top-up)
- Battery (check + top-up) if cap is removable
LEVEL
- Screen wash (check + top-up)
- Coolant (check + top-up)
- Brake fluid (check + top-up)
- Power steering fluid (check + top up according to specification)
- Operation of lights and indicators.
- Condition of glass, headlamp and light lenses and mirrors.
- Horn
- Windscreen washer jets
- Condition of wiper blades
- Condition and tension of the ancillary drive belts
- Handbrake
- Condition of hydraulic circuits (hoses and covers)
CHECK
- Condition of rubber boots and gaiters
- Brake pads
o
- Play in hubs, link rods, ball joints, flexible mountings
- Shock absorbers
- Rear drum brake lining wear
- Condition and pressure of tyres (including spare wheel)
- Emission control check as per current legislation (petrol)
- Smoke opacity (diesel)
- Passenger compartment filter (according to specification)
o
- Visual check of the whole vehicle
SERVICE*
- Courtesy vehicle
ROAD TEST
: All driving conditions.
o: Arduous conditions.
* According to destination.
02-02-2004
24

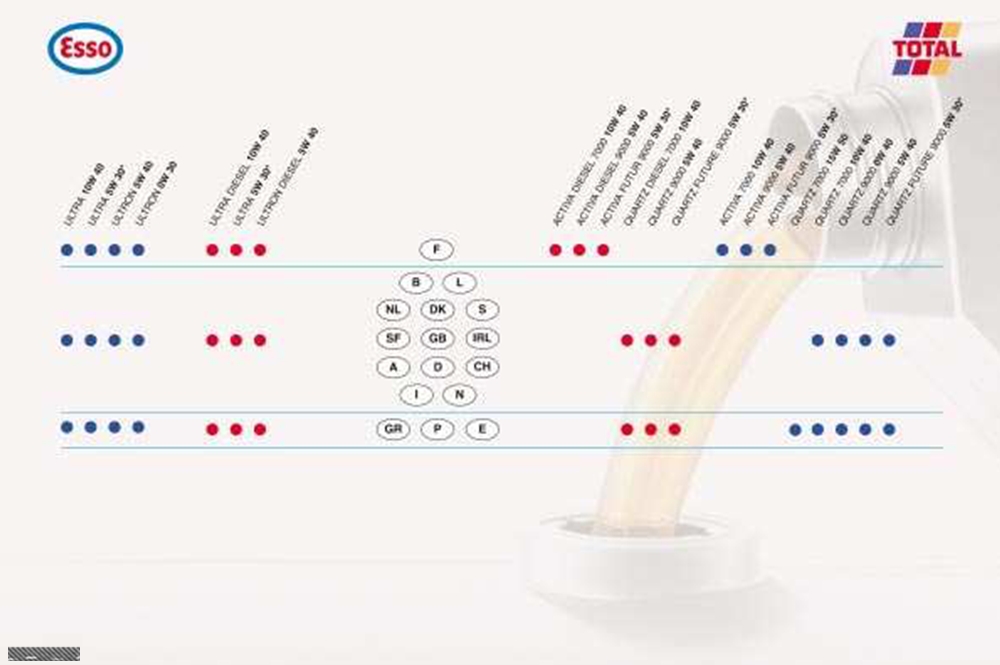

TRADE NAMES OF RECOMMENDED LUBRICANTS IN EUROPE(*)
P E T R O L
D I E S E L
D I E S E L
P E T R O L
(1) Minimum quality standard: Petrol engines ACEA A3 and API SH/SJ; Diesel engines: ACEA B3 and API CF/CD
ACEA = Association des Constructeurs Européens Automobiles (Association of European Automobile Manufacturers) -
API = American Petroleum Institute.
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Conditions" servicing
schedule to be followed, which involves shorter intervals between services.
Use only 5W40 synthetic oil for the HDI Turbo Diesel engines with particulate emissions filter.
* Fuel Economy Oil cannot be used for the 2.2 litre 16V petrol engine and the HDI Turbo Diesel engines with particulate
emissions filter.
02-02-2004
25
MAINTENANCE OF YOUR 406 COUPE
Recommendations for
approved lubricants
The oils which appear in the table oppo-
site are suitable for most purposes.
The diagram opposite states the opti-
mum range of viscosity depending on the
temperatures at which the oils are to be
used.
It is also possible to use synthetic oils of
"superior quality".
In the absence of semi-synthetic or syn-
thetic oils, oils of ACEA A1/A2 and API
SH/SJ/SL quality (for petrol engines), or
ACEA B1/B2 and API CD/CF quality (for
diesel engines) may be used by following
the 'Arduous Conditions' servicing
schedule, which specifies shorter service
ONLY
ONLY
intervals.
Manual Gearbox
ESSO GEAR OIL BV
TOTAL TRANSMISSION BV
75W-80 PR 9736.41
75W-80 PR 9730.A2
Do not hesitate to ask for advice from a
ONLY
PEUGEOT dealer to maintain driving
Automatic Gearbox
PR 9736.22
pleasure and to minimise the mainte-
ESSO ATF 4HP20-AL4
nance cost of your vehicle.
Power steering
ESSO ATF D
TOTAL FLUIDE AT42
For countries outside Europe, please
PR 9730.94
PR 9730.A3
contact a local PEUGEOT dealer.
Other recommended products
Power steering
FLUIDE DA PR 9730.A1*
Brake circuit
PEUGEOT DOT4
Cooling circuit
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ONLY Protection to minus 35 degrees Celsius
* Only for extremely cold countries.
02-02-2004
105
YOUR 406 COUPE IN DETAIL
17 - Low coolant level warning light.
18 - Coolant temperature indicator.
19 - Trip recorder zero reset button.
20 - Handbrake and low brake fluid
level warning light.
21 - Seat belt not fastened warning
light (according to version).
22 - Air bags warning light.
23 - ABS warning light.
24 - Engine diagnostics warning
light*.
25 - Battery charge warning light.
26 - Diesel engine preheating indica-
tor light.
27 - Passenger air bag disarming

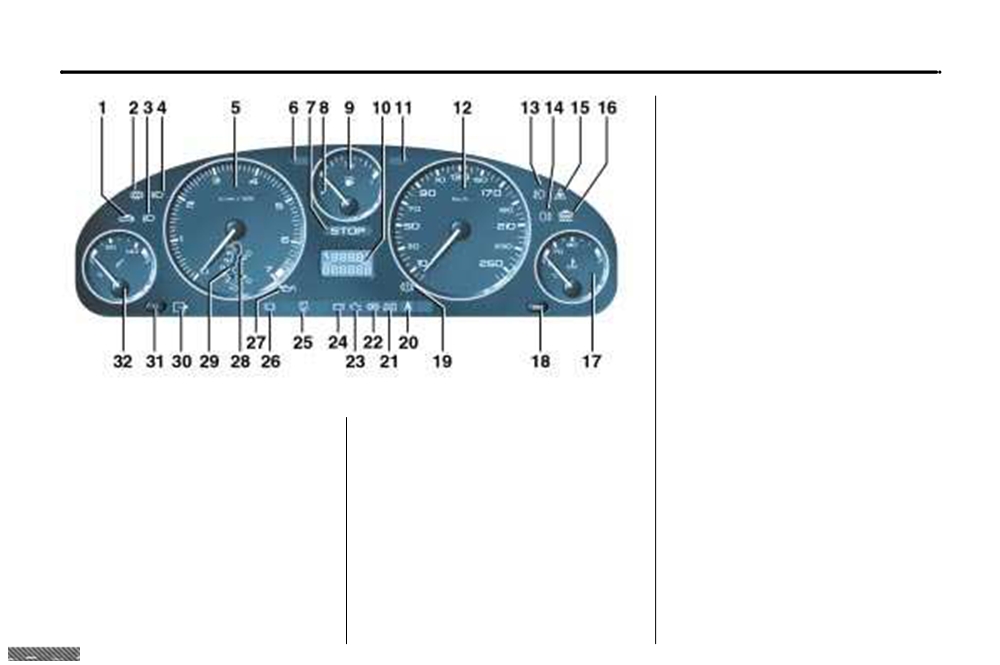

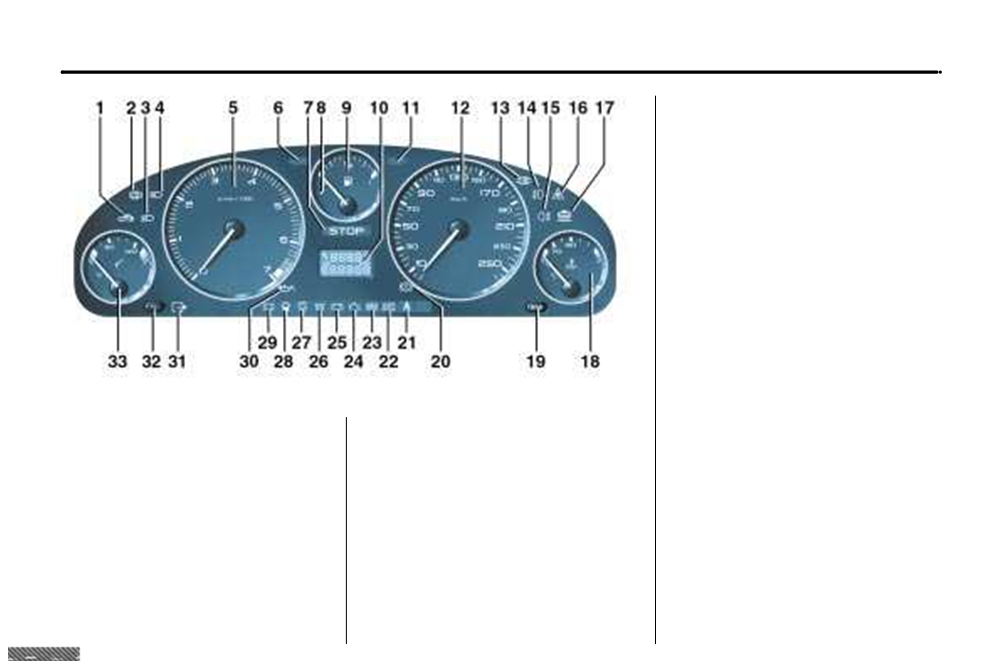

INSTRUMENT PANEL DIALS: PETROL / DIESEL
warning light.
1 - Fuel filler cap warning light.
10 - Service indicator, oil level indica-
28 - Water in diesel filter warning
tor and total distance recorder.
2 - Door open warning light.
light.
11 - Right-hand direction indicator.
3 - Dipped beam headlamps
29 - Front brake pad wear warning
indicator light.
12 - Speedometer.
light.
4 - Main beam headlamps
13 - Clogging of the particulate
30 - Engine oil pressure warning
indicator light.
emission filter warning light
light.
(Diesel).
5 - Rev. counter.
31 - Electronic immobiliser warning
14 - Front fog lamps indicator light.
6 - Left-hand direction indicator.
light.
15 - Rear fog lamp indicator light.
7 - Central STOP warning light.
32 - Lighting rheostat.
16 - Dynamic stability control
8 - Low fuel level warning light.
33 - Engine oil temperature indicator.
(ASR/ESP) warning light
9 - Fuel gauge.
(according to version).
* According to engine.
02-02-2004
106
YOUR 406 COUPE IN DETAIL
17 - Coolant temperature indicator.
18 - Trip recorder zero reset button.
19 - Handbrake and low brake fluid
level warning light.
20 - Seat belt not fastened warning
light (according to version).
21 - Air bags warning light.
22 - ABS warning light.
23 - Engine diagnostics warning
light*.
24 - Battery charge warning light.
25 - Passenger air bag disarming
warning light.
INSTRUMENT PANEL DIALS: AUTOMATIC GEARBOX
26 - Front brake pad wear warning
1 - Fuel filler cap warning light.
10 - Service indicator, oil level indi-
light.
2 - Door open warning light.
cator and total distance
27 - Engine oil pressure warning
3 - Dipped beam headlamps indi-
recorder.
light.
cator light.
11 - Right-hand direction indicator.
28 - Operating programmes.
4 - Main beam headlamps indicator
12 - Speedometer.
29 - Gear lever position indicator.
light.
13 - Front fog lamps indicator light.
30 - Electronic immobiliser warning
5 - Rev. counter.
14 - Rear fog lamp indicator light.
light.
6 - Left-hand direction indicator.
7 - Central STOP warning light.
15 - Dynamic Stability Control
31 - Lighting rheostat.
(ASR/ESP) warning light.
32 - Engine oil temperature indicator.
8 - Low fuel level warning light.
9 - Fuel gauge.
16 - Low coolant level warning light.
* According to engine.
02-02-2004
107
YOUR 406 COUPE IN DETAIL
WARNING LIGHTS AND INDICATORS
Low coolant
level warning
A permanently lit warning light, or flashing with the engine running, is an
light
indication of a malfunction in the relevant unit. Some warning lights may
be linked to buzzers and a message on the multi-function display. Do not
ignore this warning: contact a PEUGEOT dealer as quickly as possible.
Stop immediately.
If the Central (STOP) warning light comes on when you are driving, stop
Allow the engine to cool before top-
your vehicle immediately where it is safe to do so.
ping up.
The cooling system is pressurised.
In the event of a breakdown and to
prevent the risk of scalding, turn the
cap to the first notch to allow the
pressure to drop.
Central
(STOP) warning light
Once the pressure has dropped,
Linked to the "engine oil pressure", ''the low brake fluid level'', ''the
remove the cap and top up the level.
coolant temperature gauge'' and ''electronic brake force distribution
Contact a PEUGEOT dealer.
system fault'' warning lights. It comes on each time the ignition is
switched on.
Stop immediately if it flashes with the engine running.
Contact a PEUGEOT dealer.
Engine oil pressure warning light
Linked to the central (STOP) warning light.
Fuel filler cap warning
Stop immediately if it comes on with the engine running.
light
It indicates either:
This comes on if the fuel
- insufficient oil pressure,
cap is not correctly screwed
- lack of oil in the lubrication circuit. Top up the oil level.
on or is missing.
Contact a PEUGEOT dealer as soon as possible.
02-02-2004
108
YOUR 406 COUPE IN DETAIL
ASR/ESP Electronic
Handbrake, low brake fluid level and electronic brake force
Stability
Programme
distribution warning light.
indicator light
This comes on each time the ignition is switched on.
This comes on for a few
It indicates either:
seconds each time the ignition is
switched on.
- that the handbrake is on or has not been released correctly,
and when coupled with the central (STOP) warning light:
If the indicator light stays on or
comes on while the engine is run-
- an excessive drop in the brake fluid level (if the light remains on even with the
ning: contact a PEUGEOT dealer.
handbrake released),
- lit at the same time as the ABS warning light, it indicates a malfunction of the
When the engine is running and the
electronic brake force distribution system.
vehicle is moving, it flashes if the
system is activated.
Stop immediately.
It is lit continuously when it is dis-
Contact a PEUGEOT dealer.
armed.
Clogging of the particu-
Anti-lock braking system (ABS) warning light
late emission filter warn-
ing light (diesel engine)
This comes on for 3 seconds each time the ignition is switched on.
Display of this warning light
If it comes on at over 8 m.p.h. (12 km/h), it indicates a malfunction of the
is accompanied by an audible signal.
ABS.
The flashing of this light while the
However, the vehicle retains conventional servo-assisted braking.
engine is running is caused either by
Contact a PEUGEOT dealer.
the particulate emission filter being
overloaded or by the engine running
too long at idle
(white smoke from
the exhaust). There is a risk of the fil-
ter clogging if the same conditions of
operation are maintained.
Front brake pad wear warning light
As soon as possible, drive for at
For your safety, have the pads replaced as soon as this light comes on.
least three minutes at a speed
exceeding
37 m.p.h.
(60 km/h),
where driving conditions allow this.
If the light comes on, contact a
PEUGEOT dealer as soon as possible.
02-02-2004
109
YOUR 406 COUPE IN DETAIL
Battery charge warning light
Passenger air bag
disarming warning
This comes on each time the ignition is switched on.
light
If it comes on with the engine running it can indicate:
Illumination of this warning
- faulty operation of the charging circuit,
light is accompanied by an audible
- loose battery or starter terminals,
signal and a message on the multi-
function display.
- a cut or slack alternator belt,
- an alternator fault.
If the passenger air bag is disarmed,
the indicator light comes on when
Contact a PEUGEOT dealer.
the ignition is switched on and
remains on.
In all cases, if the warning light flash-
Engine diagnostics warning light*
es, contact a PEUGEOT dealer.
This comes on each time the ignition is switched on.
If it is lit continuously with the engine runnning, this indicates a fault in
the emission control system.
If it flashes with the engine running, this indicates a malfunction in the injection
or ignition system. There is a risk of damage to the catalytic converter (petrol
engine only).
Air bag warning light
Contact a PEUGEOT dealer as soon as possible.
The warning light comes on
for 6 seconds when the igni-
tion is switched on.
Pre-heating indicator light (Diesel engine)
Illumination of this warning light, with
If the engine is warm enough, the light will not come on and you can
the engine running, is accompanied
start the engine without waiting.
by an audible signal and a message
on the multi-function display indicat-
If the light comes on, wait until it goes out before trying the starter.
ing the cause of the front, side or cur-
tain air bag fault.
Contact a PEUGEOT dealer.
Water in diesel filter warning light
(according to destination)
Contact a PEUGEOT dealer as soon as possible.
There is a risk of damage to the injection system.
* According to engine.
02-02-2004
110
YOUR 406 COUPE IN DETAIL
Seat belt not fastened
warning light*
With the engine running, the
indicator light comes on
when the driver's seat belt is
not fastened.
Door open warning
light
Coolant temperature
When the engine is running,
the warning light indicates
indicator
that a door has not been
When the needle is in zone A, the
closed properly or that the
temperature is correct.
boot is open.
When the needle is in zone B, the
temperature is too high. The central
Electronic immobiliser
(STOP) warning light flashes.
warning light
You must stop immediately.
This indicates a malfunction
of the electronic immobiliser.
Contact a PEUGEOT dealer.
Contact a PEUGEOT dealer.
Low fuel level
warning light.
When this warning
light comes on, you
have enough fuel remaining to drive
approximately
30 miles
(50 km) .
The tank capacity is approximately
70 litres (15.4 gallons).
* According to destination.
02-02-2004
110
YOUR 406 COUPE IN DETAIL
Seat belt not fastened
warning light*
With the engine running, the
indicator light comes on
when the driver's seat belt is
not fastened.
Door open warning
light
Coolant temperature
When the engine is running,
the warning light indicates
indicator
that a door has not been
When the needle is in zone A, the
closed properly or that the
temperature is correct.
boot is open.
When the needle is in zone B, the
temperature is too high. The central
Electronic immobiliser
(STOP) warning light flashes.
warning light
You must stop immediately.
This indicates a malfunction
of the electronic immobiliser.
Contact a PEUGEOT dealer.
Contact a PEUGEOT dealer.
Low fuel level
warning light.
When this warning
light comes on, you
have enough fuel remaining to drive
approximately
30 miles
(50 km) .
The tank capacity is approximately
70 litres (15.4 gallons).
* According to destination.
02-02-2004
111
YOUR 406 COUPE IN DETAIL
Lighting
Instrument panel display
rheostat
After switching on the ignition, three functions are shown in succession:
- engine oil level indicator,
With the lights on, press the button to
- service indicator,
vary the intensity of the lighting of the
- total distance recorder.
instruments and controls. When the
lighting reaches the minimum
(or
maximum) setting, release the but-
ton then press it again to increase (or
Engine oil level
reduce) the brightness.
When the ignition is switched on, the engine oil level indicator is displayed for
As soon as the lighting is of the
approximately five seconds, then the service indicator is displayed for five sec-
required brightness, release the
onds.
button.
Maximum
Use the dipstick to confirm the level on the indicator; a surplus of
oil can cause damage to the engine.
Contact a PEUGEOT dealer as soon as possible.
Minimum
Trip recorder
Check the level with the dipstick and top it up. The indication is
zero reset button
only correct if the vehicle has been on stable, level ground, with
the engine stopped, for 10 minutes.
With the ignition on,
press the button until
the zeros appear.
No oil
It is essential to top up the oil to the correct level, otherwise
there is a risk the engine will be damaged
02-02-2004
114
YOUR 406 COUPE IN DETAIL

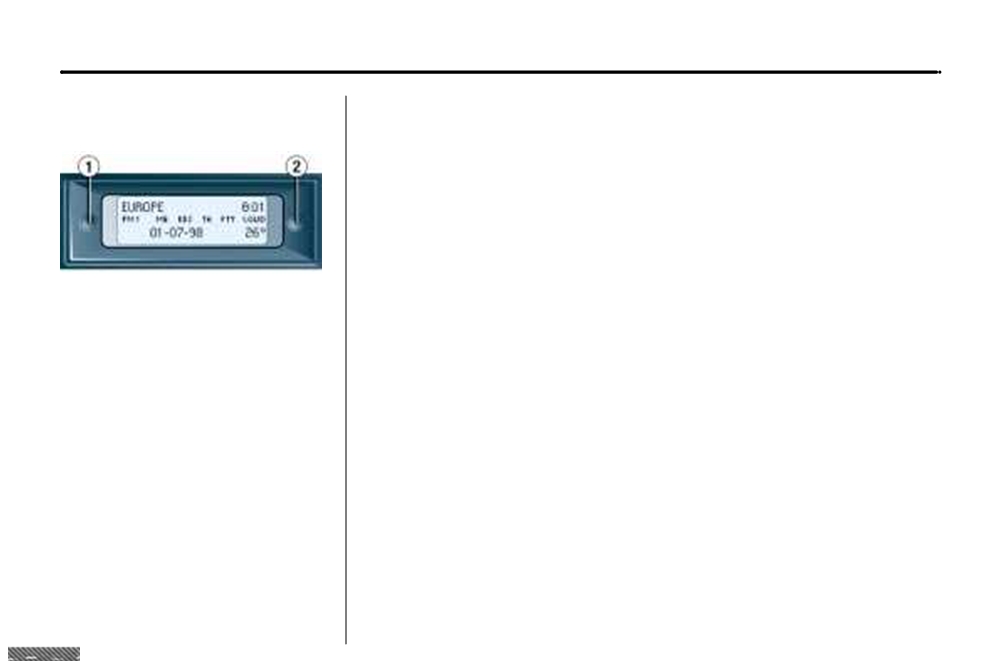

Display B
This enables the following information to be displayed:
- the time,
- the date,
- the outside temperature (the °C symbol flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The display shows you whether a door, the boot or the
bonnet is open and if the fuel filler cap is missing.
- the warning messages (e.g. ''battery low'') or information messages (e.g. "top
up fuel tank''), displayed temporarily, can be cleared by pressing button 1
or 2,
- the trip computer.
Setting the parameters
Press button 1 for two seconds to access the settings. The information flashes
to show it is ready to be modified.
Then, individual presses on button 1 allow you to scroll through the various data
in the following sequence:
- language in which the information is displayed,
- unit of distance (kms or miles),
- unit of temperature (Celsius or Fahrenheit),
- time format (12 then 24 hour mode)
- hour,
- minutes,
- year,
- month,
- day.
Pressing button 2 allows you to change the information selected. Maintain the
pressure for rapid scrolling.
After ten seconds without action, the display returns to the main screen and the
modified data are recorded.
02-02-2004
