Peugeot 406 Break (2003 year). Instruction - part 4
73
YOUR 406 IN DETAIL
Adjusting the bass
When "BASS" is displayed, press button H or I to vary the setting.
- "BASS -9" for a minimum bass setting,
- "BASS 0" for a normal setting,
- "BASS +9" for a maximum bass setting.
Adjusting the treble
When "TREB" is displayed, press button H or I to vary the setting.
- "TREB -9" for a minimum treble setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low.
Press button H or I to switch the function on or off.
Adjusting the front/rear sound distribution (Fader)
When "FAD" is displayed, press button H or I.
Button H increases the volume in the front.
Button I increases the volume in the rear.
Adjusting the right/left sound distribution (Balance)
When "BAL" is displayed, press button H or I.
Button H increases the volume on the right-hand side.
Button I increases the volume on the left-hand side.
Automatic Volume Correction (CAV)
This function enables the volume to be adjusted automatically according to the level of noise produced by the speed of the vehicle.
Press buttons H or I to switch the function on or off.
17-02-2003
74
YOUR 406 IN DETAIL
RADIO
Notes on radio reception
Your radio is subject to phenomena which do not affect domestic radio sets. Both MW/LW and FM reception are subject to
various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the signals and
the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter.
Selecting radio mode
Press button B.
Selecting a waveband
Briefly press button B to select the FM1, FM2, FMast and AM wavebands.
Automatic station search
Briefly press button K or M to search for the station immediately above or below.
By continuing to press the button in the direction selected, you will obtain
continuous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released.
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.
Searching for a station occurs first in "LO" sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX" sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX" sensitivity, press button K or M twice.
17-02-2003
75
YOUR 406 IN DETAIL
Manual station search
Press the "MAN" button.
Briefly press button K or M to increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released.
Pressing the "MAN" button again returns you to automatic station search.
Manual storing of stations in the memory
Select the station required.
Press one of the buttons 1 to 6 for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.
Automatic storing of FM stations in the memory (autostore)
Press button B for more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FMast waveband.
- If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory
For each waveband, briefly press buttons 1 to 6 to recall the corresponding stored station.
The list of the 6 stations stored in the memory on the waveband is displayed each time one of the buttons 1 to 6 is pressed.
17-02-2003
76
YOUR 406 IN DETAIL

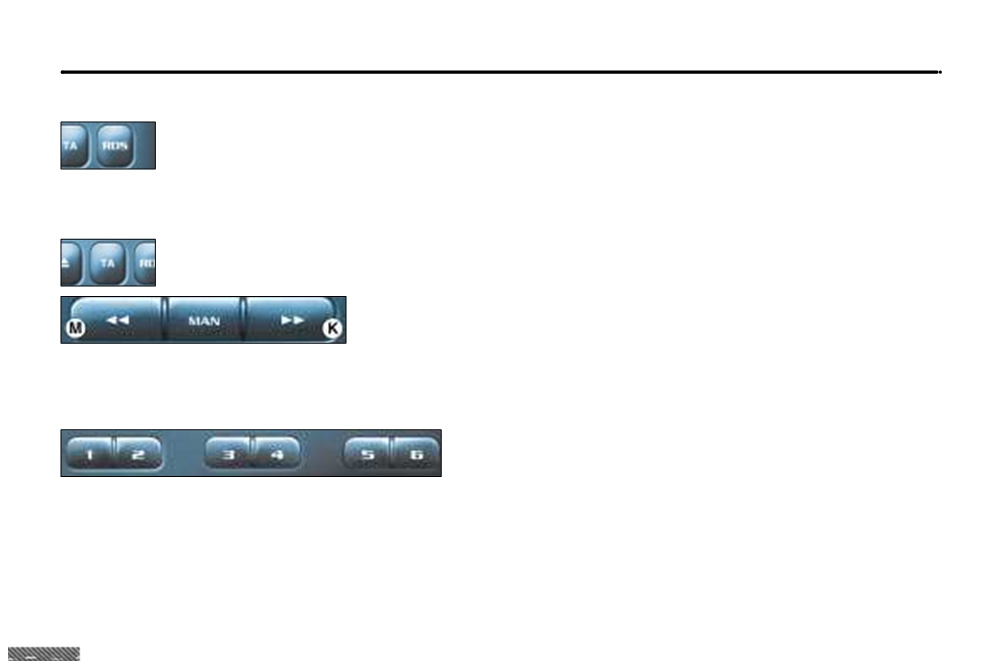

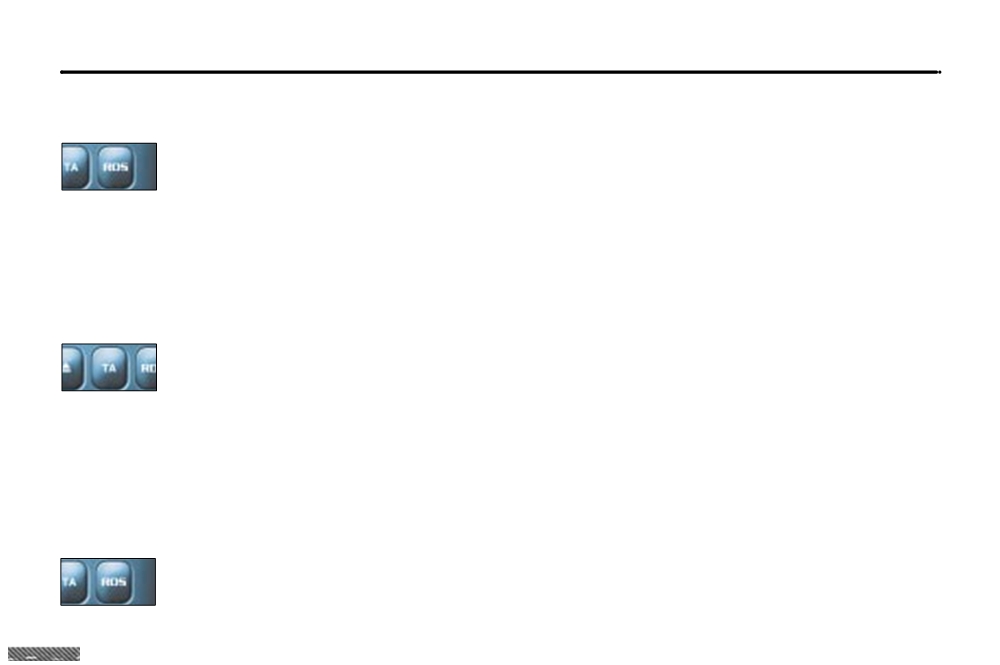

RDS

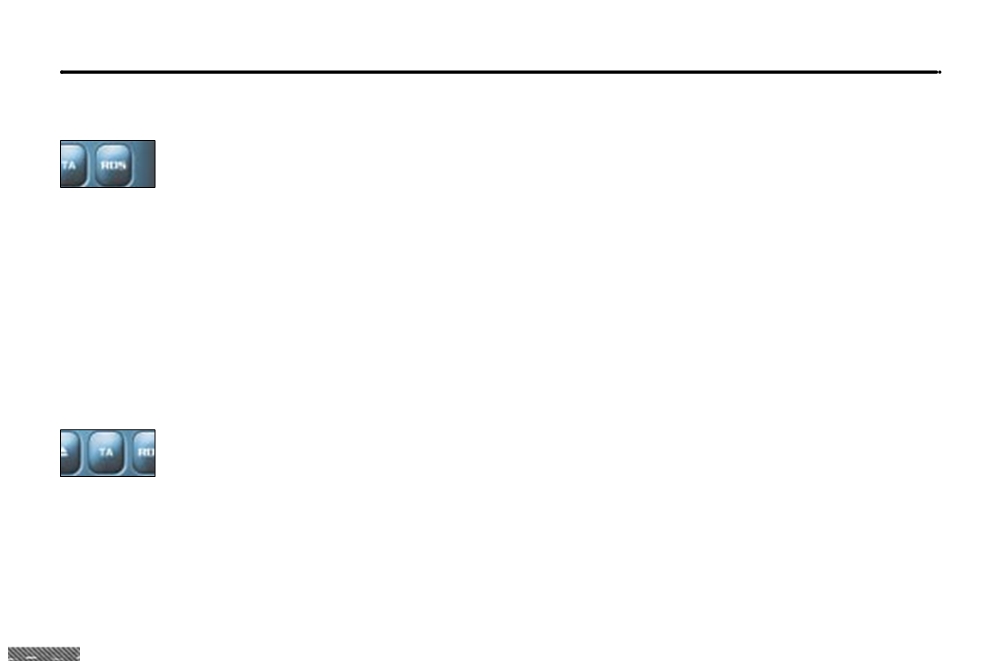

Using the RDS (Radio Data System) function on FM
Radio Data System allows you to continue listening to the same station, whatever frequency it is using for the
region you are going through.
Briefly press the "RDS" button to switch the function on or off.
The display will show:
- "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best
reception and which is transmitting the same programme.
Traffic information programme
Press the "TA" button to switch the function on or off.
The display will show:
- "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source is in use (radio, cassette or CD changer).
If you wish to interrupt a message, press the "TA" button; this switches the function off.
Note: the volume of traffic information announcements is independent of the volume of normal radio listening.
You can adjust it using the volum e button. The setting will be stored and will be used when the next m essages
are broadcast.
17-02-2003
77
YOUR 406 IN DETAIL

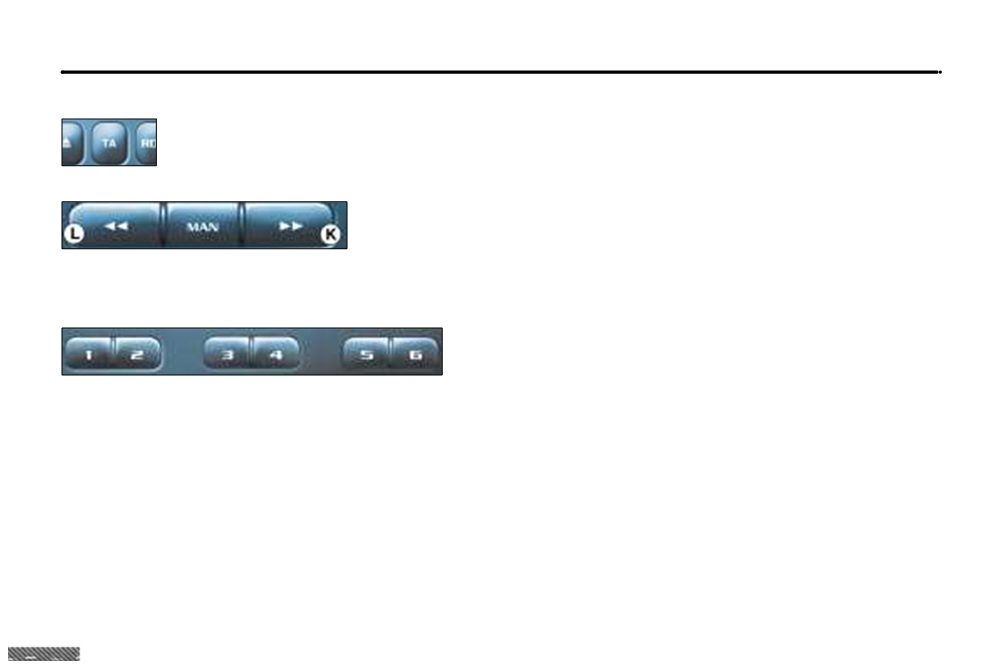

Regional following mode
When they are part of a network, certain stations broadcast regional programmes in the various areas they
serve. With regional following mode you can keep listening to the same programme.
Press the "RDS" button for more than two seconds to switch the function on or off.
PTY function
This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock
etc.).
With FM selected, press the "TA" button for two seconds to switch this function on or off.
To search for a PTY programme:
- select the PTY function,
- briefly press button K or M to scroll down the list of the various types of pro-
grammes offered.
- when the programme of your choice is displayed, keep one of the buttons K or M pressed for two seconds to carry out an
automatic search (after an automatic search the PTY function is switched off).
In PTY mode, the different types of programmes can be stored in the
memory. To do this, press the preselection buttons 1 to 6 for more
than two seconds. To recall the type of programme stored in the
memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It allows the broadcast of traffic information, by a station that is
part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTY function.
17-02-2003
78
YOUR 406 IN DETAIL

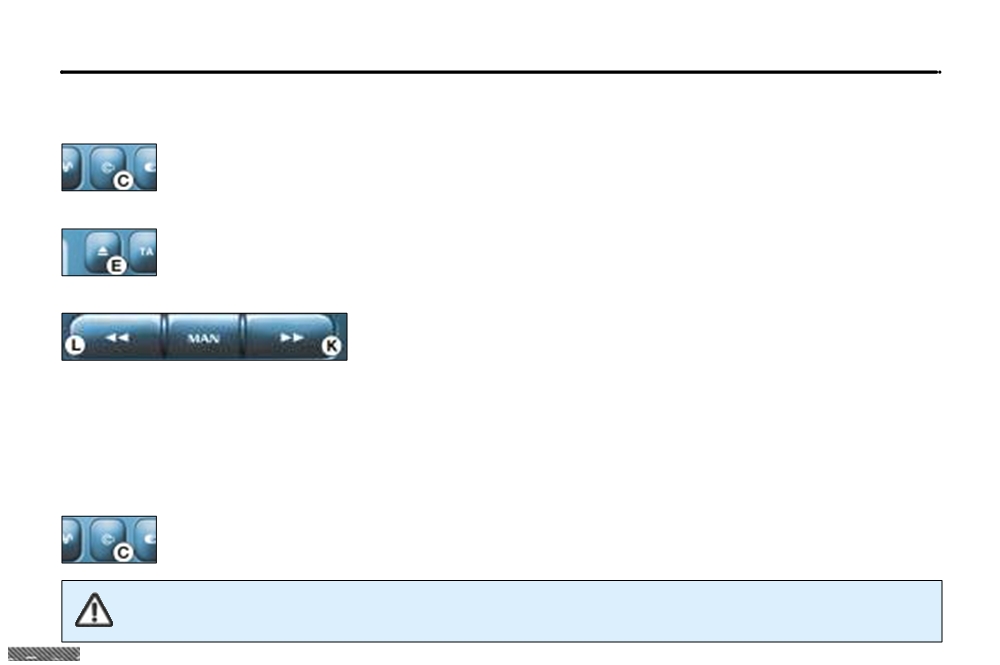

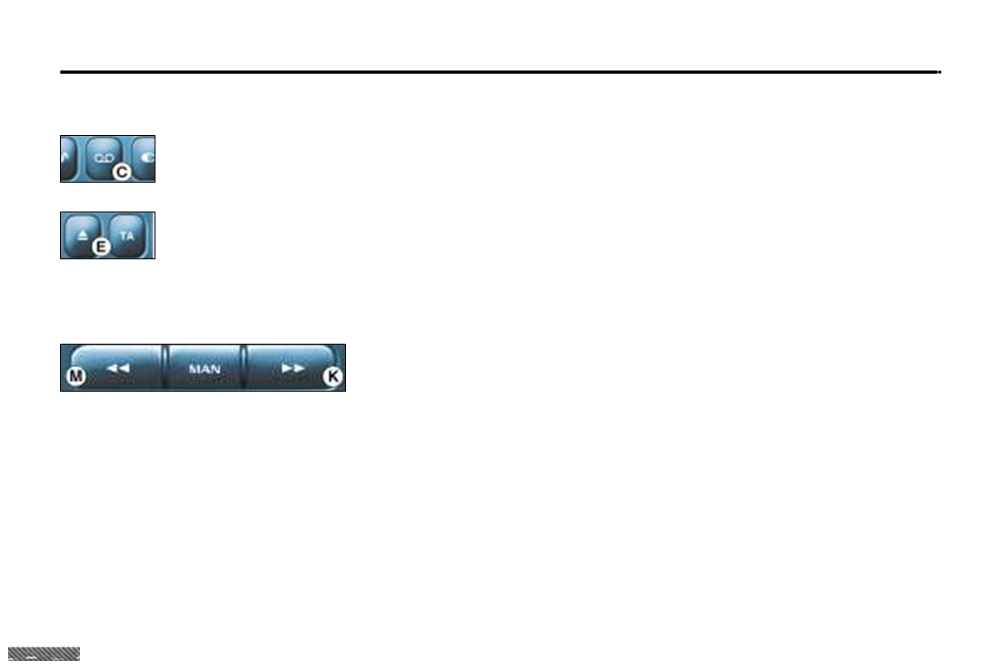

CASSETTE
Selecting cassette mode
When a cassette is inserted, the cassette player will start automatically.
If a cassette is already inserted, press button C.
Ejecting the cassette
Press button E to eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a
side. To manually reverse the direction of play, press button C.
Selecting a track on a cassette (blank search)
Press button K to select the following track.
Press button M to return to the start of the current track or to select the previous track.
Fast forward/rewind
Press and hold button K or M to fast forward or rewind the cassette. At the end of the fast forward/rewind, the set plays the
current side.
Noise reduction (Dolby B NR system)
Press button C for more than two seconds to switch the function on or off.
Dolby noise reduction manufactured under licence from Dolby Laboratories Licensing Corporation
"Dolby" and the double D symbol are trade marks of Dolby Laboratories Licensing Corporation.
Recommendations for the use of cassettes
- Use good quality cassettes.
- Avoid using cassettes of a duration of more than 90 minutes.
- Never expose the cassettes to heat or direct sunlight.
- If necessary, tighten the tape before inserting the cassette into the player.
- Clean the play heads regularly using a damp-type cleaning cassette.
17-02-2003
79
YOUR 406 IN DETAIL

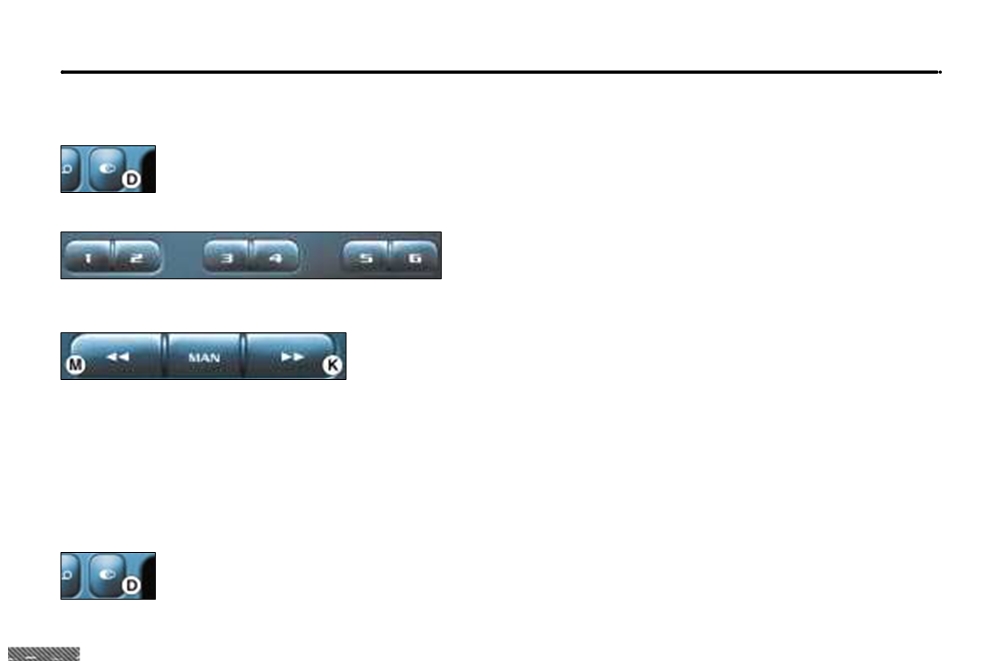

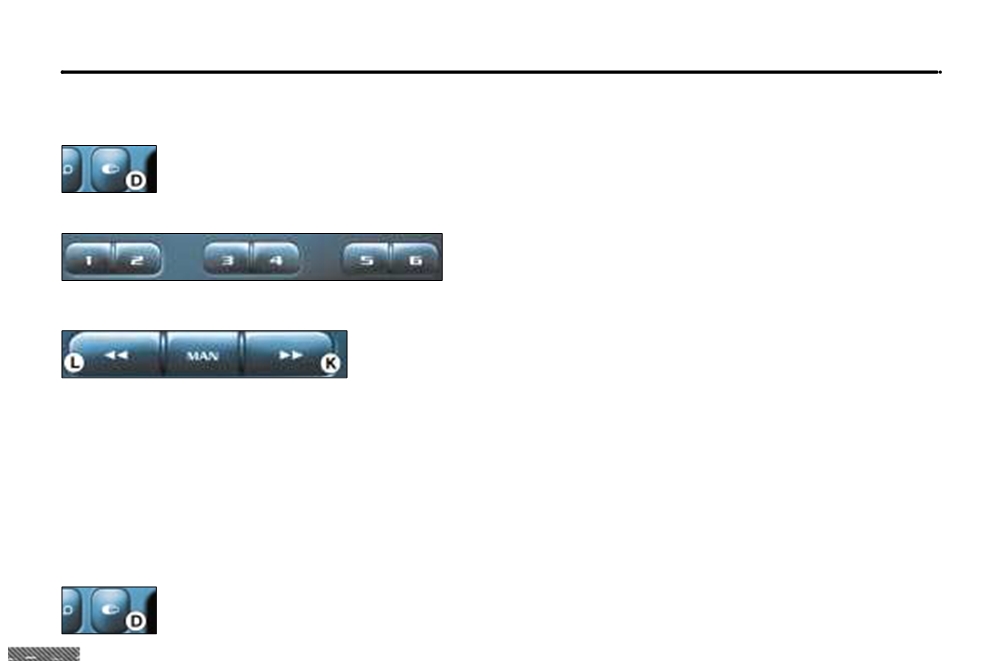

CD CHANGER
Selecting CD changer mode
Press button D.
Selecting a disc
Press one of the buttons 1 to 6 to select the corresponding disc.
Selecting a track
Press button K to select the following track.
Press button M to return to the start of the current track or to select the previous
track.
Accelerated play
Press and hold button K or M for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Shuffle
When the CD changer is selected, keep button D pressed for two seconds. The tracks will be played in
random sequence. Pressing button D again for two seconds returns you to normal play.
17-02-2003
80
YOUR 406 IN DETAIL
AUDIO RD3
Movement
Function
1 - Press (behind)
Increase volume
2 - Press (behind)
Decrease volume
1 + 2 - Simultaneous
Cutting off the sound (mute); restoring the sound
press
by pressing any button
3 - Press
Automatic search of higher frequencies (radio)
Selection of next track (CD)
4 - Press
Automatic search of lower frequencies (radio)
Selection of previous track (CD)
5 - Press the end
Source selection (radio/CD/CD changer)
6 - Rotation
Selection of higher frequency station stored in
(anti-clockwise)
memory (radio) - Selection of next CD (CD changer)
7 - Rotation
Selection of lower frequency station stored in
(anti-clockwise)
memory (radio) - Selection of previous CD
(CD changer)
17-02-2003
81
YOUR 406 IN DETAIL
Button
Function
A
ON/VOL
Radio on/off. Adjustment of volume.
B
Radio selection. Selection of FM1, FM2, FMast and AM wavebands.
Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
C
Source selection: CD.
Press for more than 2 seconds: shuffle.
D
Source selection: CD changer.
Press for more than 2 seconds: shuffle.
E
▲
Ejection of the CD.
F
TA
Traffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
G
RDS
RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
H
▲
Increase bass/treble setting.
I
▼
Decrease bass/treble setting.
J
AUDIO
Setting of bass, treble, loudness, sound distribution and
automatic volume correction.
K
kk
Automatic search of higher frequency.
Selection of next CD track.
L
jj
Automatic search of lower frequency.
Selection of previous CD track.
M
MAN
Manual/automatic operation of buttons K and L.
1 to 6
Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
Selection of a CD in the CD changer.
17-02-2003
82
YOUR 406 IN DETAIL

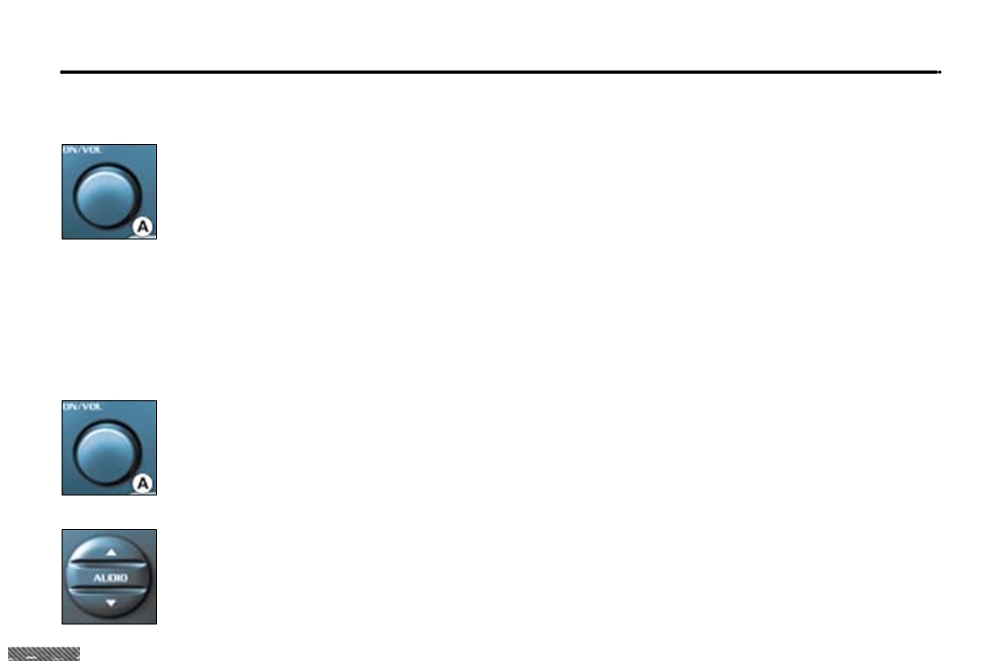

GENERAL FUNCTIONS
On/off
With the ignition key in the ACCESSORIES or IGNITION position, press button A to switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
ANTI-THEFT SYSTEM
The audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle.
The anti-theft system is automatic and requires no action on your part.
VOLUME SETTING
Adjusting the volume
Turn button A to increase or decrease the volume of the set.
Note:
If you have a telephone fitted with a "mute" signal output connected to the set, the set will automatically change
to "mute" when the telephone is used.
AUDIO SETTINGS
Press the "AUDIO" button several times to access the bass (BASS), treble (TREB), loudness (LOUD), fader
(FAD) , balance (BAL) and the automatic volume correction (CAV) .
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing the
"AUDIO" button after configuration of the automatic volume correction.
Note: the bass and treble settings are specific to each source. It is possible to set them differently for radio,
CD, or CD changer.
17-02-2003
83
YOUR 406 IN DETAIL

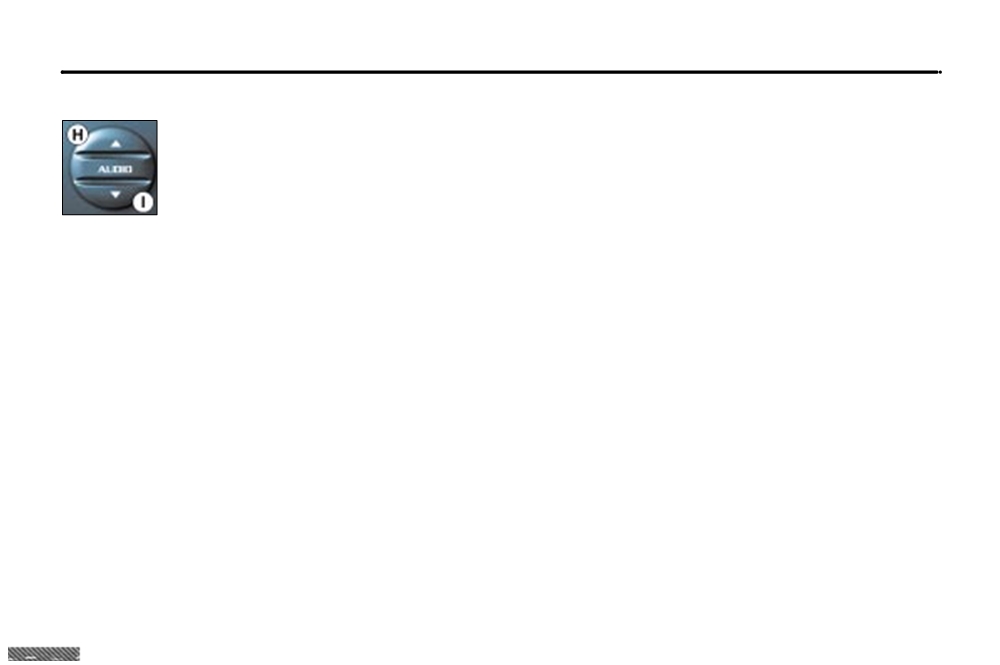

Adjusting the bass
When "BASS" is displayed, press button H or I to vary the setting.
- "BASS -9" for a minimum bass setting,
- "BASS 0" for a normal setting,
- "BASS +9" for a maximum bass setting.
Adjusting the treble
When "TREB " is displayed, press button H or I to vary the setting.
- "TREB -9" for a minimum treble setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low.
Press button H or I to switch the function on or off.
Adjusting the front/rear sound distribution (Fader)
When "FAD" is displayed, press button H or I to vary the setting.
Button H increases the volume at the front.
Button I increases the volume at the rear.
Adjusting the right/left sound distribution (Balance)
When "BAL" is displayed, press button H or I to vary the setting.
Button H increases the volume on the right-hand side.
Button I increases the volume on the left-hand side.
Automatic volume correction "CAV"
This function enables the volume to be automatically adapted depending on the level of noise produced by the speed of the vehicle.
Press buttons H or I to switch the function on or off.
17-02-2003
84
YOUR 406 IN DETAIL
RADIO
Notes on radio reception
Car radio receivers are subject to phenomena which do not affect domestic radio sets. Both MW/LW and FM reception are
subject to various forms of interference. This is no reflection on the quality of the equipment, but is due to the nature of the
signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing under high voltage power lines or bridges, or in tunnels.
On FM, interference may be the result of increasing distance from the transmitter, deflection of the signals by obstacles
(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter.
Selecting radio mode
Press button B.
Selecting a waveband
Briefly press button B to select the FM1, FM2, FMast and AM wavebands.
Automatic station search
Briefly press button K or L to search for the station immediately above or below.
By continuing to press the button in the direction selected, you will obtain
continuous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released.
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.
Searching for a station occurs first in "LO" sensitivity (selection of the most powerful transmitters) during scanning of the
waveband, then in "DX" sensitivity (selection of the weakest and most distant transmitters).
To make a direct search in "DX" sensitivity, press button K or L twice.
17-02-2003
85
YOUR 406 IN DETAIL
Manual station search
Press the "MAN" button.
Briefly press button K or L to increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released.
Pressing the "MAN" button again returns you to automatic station search.
Manual storing of stations in the memory
Select the station required.
Press one of the buttons 1 to 6 for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.
Automatic storing of FM stations in the memory (autostore)
Press button B for more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FM3 waveband.
- If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory
For each waveband, briefly press buttons 1 to 6 to recall the corresponding station.
17-02-2003
86
YOUR 406 IN DETAIL
RDS
Using the RDS (Radio Data System) function on FM
Radio Data System allows you to continue listening to the same station, whatever frequency it is using for
the region you are going through.
Briefly press the "RDS" button to switch the function on or off.
The display will show:
- "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best recep-
tion and which is transmitting the same programme.
Traffic information programme
Press the "TA" button to switch the function on or off.
The display will show:
- "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, CD or CD changer).
If you wish to interrupt a message, press the "TA" button; this switches the function off.
Note: the volume of traffic information announcements is independent of the volume of normal radio listening. You
can adjust it using the volume button. The setting will be stored and will be used when the next messages are broad-
cast.
Regional following mode
When they are part of a network, certain stations broadcast regional programmes in the various areas they
serve.
With regional following mode you can keep listening to the same programme.
Press the "RDS" button for more than two seconds to switch the function on or off.
17-02-2003
87
YOUR 406 IN DETAIL
PTY function
This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock
etc.).
With FM selected, press the "TA" button for two seconds to switch this function on or off.
To search for a PTY programme:
- select the PTY function,
- briefly press button K or L to scroll down the list of the various types of pro-
grammes offered.
- when the programme of your choice is displayed, keep button K or L pressed for two seconds to carry out an automatic
search (after an automatic search the PTY function is switched off).
In PTY mode the different types of programmes can be stored in the
memory. To do this, press the preselection buttons 1 to 6 for more
than two seconds. To recall the type of programme stored in the
memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information by a station, which
is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTY function.
17-02-2003
88
YOUR 406 IN DETAIL
COMPACT DISC
Selecting CD player mode
After inserting a disc, with the printed surface upwards, the player starts automatically.
If a disc is already inserted, press button C.
Ejecting a disc
Press button E to eject the disc from the player.
Selecting a track
Press button K to select the next track.
Press button L to return to the start of the current track or to select the previous
track.
Accelerated play
Press the "MAN" button.
Press and hold button K or L for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Buttons K or L resume the "track selection" function when the "MAN" button is pressed again.
Shuffle (RDM)
When the CD player is selected, keep button C pressed for two seconds. The tracks will be played in ran-
dom sequence. Pressing button C again for two seconds returns you to normal play.
The use of copied compact discs may cause malfunctions.
17-02-2003
89
YOUR 406 IN DETAIL
CD CHANGER
Selecting CD changer mode
Press button D.
Selecting a disc
Press buttons 1 to 6 to select the corresponding disc.
Selecting a track
Press button K to select the next track.
Press button L to return to the start of the current track or to select the previous
track.
Accelerated play
Press the "MAN" button.
Press and hold button K or L for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Buttons K or L resume the "track selection" function when the "MAN" button is pressed again.
Shuffle (RDM)
When the CD changer is selected, keep button D pressed for two seconds. The tracks will be played in random
sequence. Pressing button D again for two seconds returns you to normal play.
17-02-2003
