Peugeot 307 CC (2007.5). Instruction

111

PRACTICAL INFORMATION

ECONOMY MODE FUNCTION

After the engine has stopped, certain

functions (windscreen wiper, elec-

tric windows, courtesy lights, audio

equipment, telephone, dipped head-

lamps, etc.) can only be used for a

combined duration of approximately

thirty minutes, to prevent discharging

the battery.
Once the thirty minutes are over, a

switching to economy mode mes-

sage appears on the multifunction

display and the active functions are

put on standby.
These functions are reactivated
automatically next time the vehicle is
driven.
In order to resume the use of these

functions immediately, the engine

must be started and left to run for a

few minutes.

The time available to you will then

be double the duration for which the

engine is left running. However, this

period will always be between i ve

and thirty minutes.

LOAD REDUCTION
FUNCTION

When driving, certain functions (air

conditioning, heated rear screen,

heating system for passenger com-

partment of diesel vehicles, etc.) may

be switched off temporarily, depend-

ing on the level of battery charge.
Reactivation of these functions is

automatic, once the battery charge is

sufi cient.

Note: at the risk of discharging the

battery, the functions that have been

switched off may be reactivated

manually.

The batteries contain harmful

substances such as sulphuric

acid and lead. They must be

disposed of in accordance with

regulations and must never be

discarded with household waste.
Take used remote control and

vehicle batteries to an approved

collection point.

Note:

if the telephone is be-

ing used when economy mode

starts, it will still be possible to

i nish the call.

A l at battery prevents the

engine from starting.

111

PRACTICAL INFORMATION

ECONOMY MODE FUNCTION

After the engine has stopped, certain

functions (windscreen wiper, elec-

tric windows, courtesy lights, audio

equipment, telephone, dipped head-

lamps, etc.) can only be used for a

combined duration of approximately

thirty minutes, to prevent discharging

the battery.
Once the thirty minutes are over, a

switching to economy mode mes-

sage appears on the multifunction

display and the active functions are

put on standby.
These functions are reactivated
automatically next time the vehicle is
driven.
In order to resume the use of these

functions immediately, the engine

must be started and left to run for a

few minutes.

The time available to you will then

be double the duration for which the

engine is left running. However, this

period will always be between i ve

and thirty minutes.

LOAD REDUCTION
FUNCTION

When driving, certain functions (air

conditioning, heated rear screen,

heating system for passenger com-

partment of diesel vehicles, etc.) may

be switched off temporarily, depend-

ing on the level of battery charge.
Reactivation of these functions is

automatic, once the battery charge is

sufi cient.

Note: at the risk of discharging the

battery, the functions that have been

switched off may be reactivated

manually.

The batteries contain harmful

substances such as sulphuric

acid and lead. They must be

disposed of in accordance with

regulations and must never be

discarded with household waste.
Take used remote control and

vehicle batteries to an approved

collection point.

Note:

if the telephone is be-

ing used when economy mode

starts, it will still be possible to

i nish the call.

A l at battery prevents the

engine from starting.

112

PRACTICAL INFORMATION

Without lifting
(4 wheels on the ground)

You must always use a towbar.

The removable towing eye is inside

the spare wheel.

From the rear:


Unclip the top of the cover using

a coin,



Screw in the towing eye as far as

it will go.

Special features of the
automatic gearbox

When towing with four wheels on the

ground, the following rules must be

obeyed:

- lever in position N ,

- tow the vehicle at less than 30 mph

(50 km/h) over a maximum dis-
tance of 30 miles (50 km).

do not add oil to the gearbox.

TOWING YOUR VEHICLE

Lifting (2 wheels only
on the ground)

It is preferable to raise the vehicle

with a professional lifting device.

From the front:


Unclip the cover, by pressing the

bottom part,



Screw in the towing eye as far as

it will go.

When towing with the engine

switched off, there is no braking

or steering assistance.

113

PRACTICAL INFORMATION

Driving advice

   Distribution of loads:
Distribute  the  load  in  the  trailer  so
that  the  heaviest  items  are  as  close

as possible to the axle and the nose

weight approaches the maximum

permitted without exceeding it.

Cooling:
towing a trailer on a slope increases

the temperature of the coolant.

As the fan is electrically controlled,

its cooling capacity is not dependent

on the engine speed.

To lower the engine speed, reduce

your speed.

The maximum towing load on a long

slope depends on the gradient and

the outside temperature.

In all cases, pay attention to the cool-

ant temperature.

If the warning light comes on, stop

the vehicle and switch off the engine

as soon as possible.

Tyres:
check the tyre pressures of the

towing vehicle and of the trailer,

observing the recommended pres-

sures.

Braking:

towing increases the braking distance.

Lights:
check the electrical signalling on the
trailer.

Sidewind:
take into acount the increased sensi-

tivity to side wind.

TOWING A TRAILER,
CARAVAN, BOAT, ETC.

We recommend the use of original

PEUGEOT towbars that have been

tested and approved from the design

stage of your vehicle and that the i t-

ting of the towbar is entrusted to a

PEUGEOT dealer.
Your vehicle is primarily designed

for transporting people and luggage

but it may also be used for towing a

trailer.
Driving with a trailer subjects the tow-

ing vehicle to more signii cant stress

and its driver must be particularly

careful.
Air density decreases with altitude,

thus reducing engine performance.

Above 1 000 metres, the maximum

towing load must be reduced by 10 %

and so on for every 1 000 metres of
altitude.
The rear parking assistance function

will be disarmed automatically when

a towbar is i tted.

114

PRACTICAL INFORMATION

BOOT LUGGAGE CARRIER *

A  boot  luggage  carrier  is  available
from your PEUGEOT dealer.
When  it  is  used,  take  care  not  to

conceal the third brake light.
Follow the manufacturer’s recom-

mendations.

* Available as an accessory.

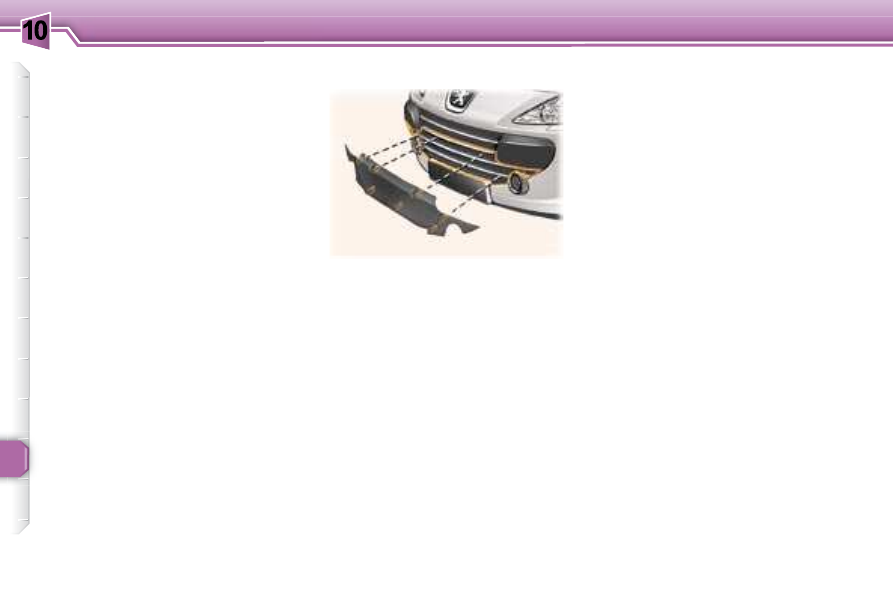

VERY COLD CLIMATE SCREEN *

* According to country.

The very cold climate screen is in-

stalled on the lower part of the front

bumper to prevent the accumulation

of snow at the radiator cooling fan.
When the snow has cleared (tem-
perature above 10 °C), remove the
very cold climate screen.

FITTING



Offer up the very cold climate

screen facing the front bumper .



Put it in place by pressing at each

clip .

REMOVAL



Insert a screwdriver into the hole

located near each of the clips.



Use the screwdriver as a lever to

unclip each clip in turn.

115

PRACTICAL INFORMATION

ACCESSORIES FOR YOUR
307 CC

A wide range of accessories recom-

mended by PEUGEOT and original

parts are offered by the Network.

They all benei t from PEUGEOT’s

recommendation.
These accessories and parts, having

been tested and approved for reli-

ability and safety, are all adapted to

your PEUGEOT vehicle.

The product range offered by PEUGEOT

Accessories is structured around 5 catego-

ries: PROTECTION - TOURING - IN-CAR

TECHNOLOGY - STYLING - UNIVERSAL,

it is dedicated to:

"Touring":

i xed coat hook on head

restraint, mats, boot tray,

anti-swirl net .
For leisure pursuits: boot

luggage

carrier

child

seats and booster cushions, audio/

telephone console, CD storage.

Trailer towbar which must be i tted by

the PEUGEOT Network.

"Universal":

windscreen wash l uid, in-

terior and exterior cleaning

and maintenance products.

"Protection":

anti-theft alarm, stolen

vehicle tracking system,

window engraving, lock-

ing wheel nuts, i rst aid kit,

warning triangle, high vis-

ibility safety jacket, snow

chains.

"In-Car Technology":

audio systems, audio/tele-

phone, amplii ers, hands-free

kits, satellite navigation sys-

tems, speakers, CD changer,

DVD player, connection kit

for MP3 player or portable

CD player, rear parking as-

sistance.

"Styling":

alloy wheels

, sports ex-

haust, seat covers compat-

ible with side air bags.

Note
To prevent the mat from becoming

caught under the pedals:

- ensure that the mat is positioned

and secured correctly,

never i t one mat on top of another.

The i tting of electrical equipment

or accessories which are not rec-

ommended by PEUGEOT may
result in a failure of your vehicle’s
electronic system.
Please note this specii c warning.

You are advised to contact a rep-

resentative of the Marque to be

shown the range of recommend-

ed equipment and accessories.

Depending on the country in

which the vehicle is sold, it is

compulsory to have a high vis-

ibility safety jacket, a warning

triangle and a set of spare bulbs

available in the vehicle.

116

TECHNICAL DATA

ENGINES AND GEARBOXES

MODELS:
Model codes: 3B...

NFUC

RFJC

RFJF

PETROL ENGINES

1.6 litre 16V

110 bhp

2 litre 16V

143 bhp

Cubic capacity (cm

)

1 587

1 997

Bore x stroke (mm)

78.5 x 82

85 x 88

EU standard max power (kW/bhp)

80/110

103/143

Max torque engine speed (rpm)

5 800

6 000

EU standard max torque (Nm)

147

200

Max torque engine speed (rpm)

4 000

Fuel

Unleaded

Catalytic converter

Yes

GEARBOX

Manual

(5 speed)

Manual

(5 speed)

Automatic

(4 speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement)

3.25

Gearbox - Final drive

1.9

117

TECHNICAL DATA

ENGINES AND GEARBOXES

MODELS:
Model codes: 3B...

RHRH

DIESEL ENGINES

2 litre Turbo HDI 16V 136 bhp

Cubic capacity (cm

)

1 997

Bore x stroke (mm)

85 x 88

EU standard max power (kW)

100

Max power engine speed (rpm)

4 000

EU standard max torque (Nm)

320

Max torque engine speed (rpm)

2 000

Fuel

Diesel

Catalytic converter

Yes

Particle emission i lter

Yes

GEARBOX

Manual

(6 speed)

OIL CAPACITIES (in litres)

Engine (with cartridge replacement)

5.25

Gearbox - Final drive

2.4

118

TECHNICAL DATA

The consumption values presented here correspond to the values communicated at the time of printing. These consumption

values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style

of driving, trafi c conditions, weather conditions, the vehicle load, the maintenance of the vehicle and the use of the

accessories.

CONSUMPTION

In accordance with EC Directive 80/1268 (as amended)

Engine

Gearbox

Model

codes 3B...

Urban driving

mpg

(litres/100 km)

Inter-urban

mpg

(litres/100 km)

Mixed mpg

(litres/100 km)

Emission

of CO

weight

(g/km)

1.6 litre 16V

Manual

NFUC

10.2

6.2

7.6

178

2 litre 16V 143 bhp

Manual

RFJC

11.3

6.2

8.1

192

2 litre 16V 143 bhp

Automatic

RFJF

12.2

6.3

8.4

199

2 litre Turbo HDI 16V

Manual

RHRH

7.7

5.1

159

119

TECHNICAL DATA

WEIGHTS AND TOWING LOADS (in kg)

* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by an equal

amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Petrol engines

1,6 litre 16V

2 litre 16V 143 ch

Gearbox

Manual

Automatic

Model codes: 3B...

NFUC

RFJC

RFJF

• Kerb weight

1 528

1 543

1 573

• Payload

322

337

327

• Gross vehicle weight (GVW)

1 850

1 880

1 900

• Gross train weight (GTW)

on a 12 % gradient

2 900

3 200

on a 8 % gradient

2 900

3 200

• Braked trailer (within GTW)

on a 12 % gradient

1 050

1 320

1 300

on a 8 % gradient

1 050

1 320

1 300

• Braked trailer * (with load transfer within

GTW)

1 200

1 320

1 300

• Unbraked trailer

750

• Recommended nose weight

The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned

must be reduced by 10 % for each additional 1 000 metres of altitude.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High exterior temperatures may result in a reduction of the performance of the vehicle in order to protect the engine; if the

exterior temperature is above 37 °C, limit the towed weight.

120

TECHNICAL DATA

WEIGHTS AND TOWING LOADS (in kg)

* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by an equal

amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

Diesel engines

2 litre Turbo HDI 16V

Gearbox

Manual

Model codes: 3B…

RHRH

• Kerb weight

1 653

• Payload

297

• Gross vehicle weight (GVW)

1 950

• Gross train weight (GTW)

on a 12 % gradient

3 450

on a 8 % gradient

3 450

• Braked trailer (within GTW)

on a 12 % gradient

1 500

on a 8 % gradient

1 500

• Braked trailer * (with load transfer within

GTW)

1 500

• Unbraked trailer

750

• Recommended nose weight

The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned

must be reduced by 10 % for each additional 1 000 metres of altitude.

The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High exterior temperatures may result in a reduction of the performance of the vehicle in order to protect the engine; if the

exterior temperature is above 37 °C, limit the towed weight.

122

TECHNICAL DATA

THE IDENTIFICATION FEATURES OF YOUR 307 CC

D. Tyres and paint colour

reference.

The label D

on the driver’s door pillar,

near the hinges, indicates:

- the wheel and tyre sizes,

- the brands of tyres * approved by

the manufacturer,

- the tyre pressures,

- the paint colour reference * .

A. Manufacturer’s plate.

B. Serial number on the

bodywork.

C. Serial number on the fascia.

The tyre pressure must be

checked when the tyre is cold,

at least once a month.

Low tyre pressures increase fuel

consumption.

E. Fuel consumption * in the

corner of the windscreen.

123

SOURCE

MODE

BAND

ESC

abc

jkl

tuv

def

mno

wxyz

ghi

pqrs

MENU

LIST

PTY

DARK

The INFOTEC internet site provides additional animated
information on the RT4. It can be consulted at the following
address:
http://public.infotec.peugeot.com
Simple registration permits access and free consultation of
the handbook.

The RT4 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact your PEUGEOT

dealer for coniguration of the system.

For safety reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the RT4 audio/telephone may
switch off after a few minutes.

RT4

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE

JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)

CONTENTS

01 First steps

pg. 124

02 General menu

pg. 125

03 GPS

pg. 126

04 Trafic information

pg. 134

05 Audio

pg. 136

06 Telephone

pg. 142

07 Control short-cuts

pg. 145

08 Coniguration

pg. 147

09 Display low charts

pg. 148

Frequently asked questions pg. 163

124

SOURCE

MODE

BAND

ESC

abc

jkl

tuv

def

mno

wxyz

ghi

pqrs

MENU

LIST

PTY

DARK

Ejection of the CD.

Selection of the source: radio, Jukebox, CD, CD changer

and auxiliary (AUX, if activated on the Coniguration menu).

Long press: CD copy to hard disc.

Long press on the SOS button: emergency call.

Selection of the display on the screen from the modes:
TRIP, TEL, NAV and AUDIO.

Modiication of the screen display.

Long press: reinitialisation of the RT4 GPS audio/telephone.

On/Off and Volume adjustment.

Selection of the wavebands FM1, FM2, FMast, AM.

TA (Trafic Announcement) function on/off.

Long press: access to the PTY (radio Programme TYpes)
mode.

Access to the "PEUGEOT" services menu.

10. Cancellation of the current operation.

Long press: return to the current application.

11. Automatic search for a lower/higher frequency.

Selection of the previous/next CD, MP3 or Jukebox track.

12. Displaying of the general menu.

13. Keypad for entering descriptions by successive presses.

14. Selection of the previous/next CD. Selection of the previous/

next MP3/Jukebox directory.

15. Audio option adjustments: front/rear, left/right balance,

loudness, sound ambiences.

16.

Selection and conirmation.

17. SIM card slot.

18. Displaying of the list of local radio stations, of the tracks

on the CD or of the MP3/Jukebox directories. Long press:
updating of the local radio stations.

FIRST STEPS

Peugeot 307 CC (2007.5). Instruction - part 9
