Peugeot 307 CC (2007.5). Instruction - part 5

ACCESS

Pressing button A

permits:

- locking of the vehicle,
-

unlocking of the vehicle (and in

particular the boot) if you place

the key in the switch.

The red indicator light on the button

comes on when the vehicle is locked

and is switched off when the vehicle

is unlocked.
Note: if the vehicle is locked or

deadlocked from the outside, the red

indicator light l ashes and button A is

inoperative. In this case, use the key

or the remote control to unlock.

Automatic central locking
of the doors

The doors lock automatically when

driving [speed greater than 6 mph

(10 km/h)].
Above 6 mph (10 km/h), a brief press

on button A momentarily unlocks the
doors.
You can activate or disarm this func-
tion.

Activation

Press and hold button A .
Activation of the function is accom-

panied by a message on the multi-

function display.

Disarming

Press and hold button A .
Disarming of the function is accom-

panied by a message on the multi-

function display.

Notes

If one of the doors is open, the au-

tomatic central locking and locking
from the inside do not function.
If the boot is open, the automatic

central locking of the doors is active.

  Driver’s door
  Insert  the  key  in  the  lock  to  lock  or
unlock the door.

Passenger’s door
- to lock, insert the key in the lock

(located on the edge of the door)
then turn an eighth of a turn to the
left.

- to unlock, use the interior door

opening control (see corresponding

section).

Boot
The boot is locked, contact a PEUGEOT

dealer.

MANUAL LOCKING/
UNLOCKING
(EMERGENCY MODE)

Locking/Unlocking from the
inside

ACCESS

Vehicle locked/deadlocked
 Press button D on the remote

control to unlock and partially

open the boot.

This action will also unlock the

doors.

To protect the boot against theft,

button E can be disarmed. Turn the
lock F

a quarter turn to the right using

the key.
The boot can only be opened using

the remote control.

Opening the boot

"Boot open" warning
If the tailgate is not properly closed:
-

with the engine running

, you

are warned by a diagram and a

message on the multifunction

display for a few seconds,

when the vehicle is moving

(speed above 6 mph (10 km/h)),

the service warning light comes

on. It is accompanied by an

audible signal, a diagram and a

message on the multifunction

display for a few seconds.

Closing the boot
 Use the interior grab handles to

close the boot.



Press the centre of the boot with

both hands until it locks.

BOOT

Permanent locking

Automatic locking
The boot locks automatically when

driving above 6 mph (10 km/h).

It unlocks either:

- manually by pressing the interior

central locking/unlocking button,

- automatically when one of the

doors is opened.

For this to take place, the key must

be  in  the  ignition  and  button  E
must  not  have  been  disarmed  by
means of the lock F.

Following automatic locking, if

the key is removed from the ig-

nition before a door is opened or

before the interior central lock-

ing/unlocking button is pressed,

the boot remains locked and

cannot be opened by pressing

button  E .
  In all cases, the boot can still
be unlocked by pressing but-
ton D on the remote control.

Vehicle unlocked
 Press button D on the remote

control to partially open the boot,

or press button E on the boot.

Note : if you have unlocked the vehicle

using the key, pressing the remote

control deactivates the alarm.

ACCESS

Pressing button A

permits:

- locking of the vehicle,
-

unlocking of the vehicle (and in

particular the boot) if you place

the key in the switch.

The red indicator light on the button

comes on when the vehicle is locked

and is switched off when the vehicle

is unlocked.
Note: if the vehicle is locked or

deadlocked from the outside, the red

indicator light l ashes and button A is

inoperative. In this case, use the key

or the remote control to unlock.

Automatic central locking
of the doors

The doors lock automatically when

driving [speed greater than 6 mph

(10 km/h)].
Above 6 mph (10 km/h), a brief press

on button A momentarily unlocks the
doors.
You can activate or disarm this func-
tion.

Activation

Press and hold button A .
Activation of the function is accom-

panied by a message on the multi-

function display.

Disarming

Press and hold button A .
Disarming of the function is accom-

panied by a message on the multi-

function display.

Notes

If one of the doors is open, the au-

tomatic central locking and locking
from the inside do not function.
If the boot is open, the automatic

central locking of the doors is active.

  Driver’s door
  Insert  the  key  in  the  lock  to  lock  or
unlock the door.

Passenger’s door
- to lock, insert the key in the lock

(located on the edge of the door)
then turn an eighth of a turn to the
left.

- to unlock, use the interior door

opening control (see corresponding

section).

Boot
The boot is locked, contact a PEUGEOT

dealer.

MANUAL LOCKING/
UNLOCKING
(EMERGENCY MODE)

Locking/Unlocking from the
inside

ACCESS

The engine must be switched off

when i lling with fuel.


Open the fuel i ller l ap.

 Insert the key then turn it to the

left.



Remove the cap and hang it on

the hook located on the inside of

the l ap.

A label afi xed to the inside of the fuel

i ller l ap indicates which type of fuel

to use.
When you i ll your tank, do not

continue after the third cut-off of the

pump. This could cause your vehicle

to malfunction.
  The capacity of the tank is approx-
imately 60 litres.
   

After i lling the tank, lock the cap

and close the fuel i ller l ap.

Low fuel level

When the minimum
fuel level in the tank is

reached, this warning

light comes on on the

instrument panel.

You can still drive approximately
30 miles (50 km).

Operating fault
With the ignition on, if the fuel gauge

needle remains in or returns to the

rest position (below zero), this in-

dicates a malfunction of the fuel
gauge.
Contact a PEUGEOT dealer.

FILLING WITH FUEL

VISIBILITY

Front and rear lights (Ring A)

Place ring A

in the required position.

Dipped/Main beam change
Pull the stalk towards you.

Lights off

Side lights

Dipped/Main beam

headlamps

Front fog lamps (1st for-

wards turn of the ring)

The front fog lamps operate with the

side lights and dipped headlamps.

Front fog lamps and

rear fog lamp (2nd

forwards turn of the

ring)

Note:

to switch off the rear fog lamp

and the front fog lamps, turn the ring

twice backwards.

Front fog lamps and rear fog
lamp (ring B)

Turn ring B

forwards to switch on and

backwards to switch off. The status is

coni rmed by the light on the instru-

ment panel.

Lights on buzzer
With the ignition off and the automat-

ic switching on of the lights deactivat-

ed, when the driver’s door is opened,

a buzzer sounds to warn you that you

have left your lights on.

The rear fog lamp will be deacti-

vated automatically when towing.

In good or rainy weather, both

day and night, the front fog

lamps and the rear fog lamp are

dazzling and are prohibited.

Do not forget to switch them off

when they are no longer needed.

Automatic switching

on of the lights

VISIBILITY

Automatic switching on of the
lights

Side lights and dipped beam head-

lamps switch on automatically if the

light is poor, or during operation of

the windscreen wipers. They switch

off as soon as the light becomes

bright enough or the windscreen wip-

ers stop.
Note:

in foggy weather or in snow,

the brightness sensor can detect suf-

i cient light. As a consequence, the

lights will not come on automatically.

Manual "Follow-me-home"
lighting
When the automatic switching on of
the lights function is deactivated

, the

side lights and dipped headlamps re-

main on for the duration selected for the

automatic "follow-me-home" lighting.

If the vehicle is not i tted with the

automatic switching on of the lights
function

, when you leave your vehi-

cle, the side lights and dipped head-

lamps remain on for thirty seconds.

Direction indicators

(l ashers)

Left:

downwards.

Right:

upwards.

Note: if you forget to cancel the di-

rection indicator, the volume of the

audible signal will increase, if you

are driving at a speed greater than

50 mph (80 km/h).

Automatic "Follow-me-home"
lighting
With the ignition off, when you leave

your vehicle with the automatic

switching on of the lights function
activated

, the side lights and dipped

headlamps remain on for the select-

ed duration.

Activation:


switch off the engine,



"l ash" the headlamps,

 get out of the vehicle and lock it.

Deactivation:


"l ash" the headlamps again,

 get out of the vehicle and lock it.

To deactivate or activate

this function, go to the mul-

tifunction display coni gura-

tion menu.
The duration of the timed

period must also be set (15, 30,

60 seconds), via the multifunction

display coni guration menu.

Cancelling:


"l ash" the headlamps,

 get out of the vehicle and lock it.

Activation
 Turn ring A to the "AUTO"

posi-

tion. The automatic lighting is

accompanied by a message on

the multifunction display.

Deactivation
 Turn ring A

to a position other

than "AUTO"

. Switching off is

accompanied by a message on

the multifunction display.

If the brightness sensor does not
function correctly, the lights come

on accompanied by the service

warning light, an audible signal and

a message on the multifunction dis-

play.
Contact a PEUGEOT dealer.

Do not cover the brightness sen-

sor, coupled with the rain sensor,

located in the centre of the wind-

screen, behind the interior mir-

ror. It is used for the automatic

switching on of the lights.

VISIBILITY

Automatic switching on of the
lights

Side lights and dipped beam head-

lamps switch on automatically if the

light is poor, or during operation of

the windscreen wipers. They switch

off as soon as the light becomes

bright enough or the windscreen wip-

ers stop.
Note:

in foggy weather or in snow,

the brightness sensor can detect suf-

i cient light. As a consequence, the

lights will not come on automatically.

Manual "Follow-me-home"
lighting
When the automatic switching on of
the lights function is deactivated

, the

side lights and dipped headlamps re-

main on for the duration selected for the

automatic "follow-me-home" lighting.

If the vehicle is not i tted with the

automatic switching on of the lights
function

, when you leave your vehi-

cle, the side lights and dipped head-

lamps remain on for thirty seconds.

Direction indicators

(l ashers)

Left:

downwards.

Right:

upwards.

Note: if you forget to cancel the di-

rection indicator, the volume of the

audible signal will increase, if you

are driving at a speed greater than

50 mph (80 km/h).

Automatic "Follow-me-home"
lighting
With the ignition off, when you leave

your vehicle with the automatic

switching on of the lights function
activated

, the side lights and dipped

headlamps remain on for the select-

ed duration.

Activation:


switch off the engine,



"l ash" the headlamps,

 get out of the vehicle and lock it.

Deactivation:


"l ash" the headlamps again,

 get out of the vehicle and lock it.

To deactivate or activate

this function, go to the mul-

tifunction display coni gura-

tion menu.
The duration of the timed

period must also be set (15, 30,

60 seconds), via the multifunction

display coni guration menu.

Cancelling:


"l ash" the headlamps,

 get out of the vehicle and lock it.

Activation
 Turn ring A to the "AUTO"

posi-

tion. The automatic lighting is

accompanied by a message on

the multifunction display.

Deactivation
 Turn ring A

to a position other

than "AUTO"

. Switching off is

accompanied by a message on

the multifunction display.

If the brightness sensor does not
function correctly, the lights come

on accompanied by the service

warning light, an audible signal and

a message on the multifunction dis-

play.
Contact a PEUGEOT dealer.

Do not cover the brightness sen-

sor, coupled with the rain sensor,

located in the centre of the wind-

screen, behind the interior mir-

ror. It is used for the automatic

switching on of the lights.

VISIBILITY

For vehicles i tted with halogen

bulbs, depending on the load in your

vehicle, adjusting the beam of your

headlamps is recommended.
0.

1 or 2 people in the front seats.

3 people.

4 people.

-. Intermediate setting.
2.

4 people + maximum

authorised loads.

-. Intermediate setting.
3.

Driver + maximum

authorised loads.

Initial setting is position 0.

On vehicles with xenon bulbs:
when stationary

, the system auto-

matically corrects the height of the

beam, whatever the load of the vehi-

cle. The driver is then assured of hav-

ing optimum lighting and not causing

a nuisance to other road users.

In cases of malfunction

the service warning light

comes on on the instrument

panel, accompanied by an

audible signal and a mes-

sage on the multifunction display.

The system places your headlamps

to the low position.
Do not touch the xenon bulbs.
Contact a PEUGEOT dealer.

Daytime lights *

On vehicles which are equipped with

daytime lights, the dipped headlamps

come on when the vehicle is started.

This warning light comes

on on the instrument panel.

THE HEADLAMPS

AUTOMATIC HEADLAMP
ADJUSTMENT

The instruments and controls

(instrument panel, multifunction

display, air conditioning control

panel, ...) are only lit on switch-

ing to the automatic switching on

of the lights mode or when the

lights are switched on manually.

* According to country.

VISIBILITY

Special position of the front
windscreen wiper
In the minute following switching off

of the ignition, any action on the stalk

positions the wipers in the centre of

the windscreen.

This action enables you to position

the wiper blades for winter parking,

cleaning or replacement (See section

"Practical information - Changing a

wiper blade").

To park the wipers after this has been

done, switch on the ignition and operate

the stalk.

Windscreen and headlamp wash
Pull the windscreen wiper stalk to-

wards you. The windscreen wash

then the windscreen wipers operate

for a i xed period.

The headlamp wash is also activated,

if the headlamps are on.

Fast wipe (heavy rain).

Normal wipe (moderate rain).

Intermittent wipe.

0 Off.


Single wipe (press downwards).

In the I

ntermittent position, the wiping

speed is in proportion to the vehicle

speed.

Fast wipe (heavy rain).

Normal wipe (moderate rain).

Intermittent wipe.

Off.

AUTO 

Automatic or single wipe

(press downwards).

In the I

ntermittent position, the wiping

speed is in proportion to the speed of

the vehicle.
In AUTO

mode, the wiping speed is

in proportion to the intensity of the

rainfall. The i rst press of the stalk

downwards activates the automatic

wipe.

Subsequent presses trigger a single

wipe.

  WINDSCREEN WIPER STALK
   Front windscreen wiper with
intermittent wipe

Front windscreen wiper with
automatic wipe

VISIBILITY

Automatic windscreen
wipers

In AUTO

mode, the windscreen wipers

operate automatically and adapt their

speed to the intensity of the rainfall .

Activation
Activation of the function is accom-

panied by a message on the multi-

function display.

Deactivation
Deactivation of the function is ac-

companied by a message on the

multifunction display.

The function is deactivated when the

windscreen wipers stalk is moved to

position I , 1 or 2 .
In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in in-

termittent mode.
Contact a PEUGEOT dealer to have
the system checked.

In this position, the courtesy

light comes on automati-

cally:

- when the vehicle is unlocked,

- when the key is removed from

the ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

COURTESY LIGHTS

1. Front courtesy light

The

automatic

windscreen

wipers function must be reac-
tivated if the ignition has been
switched  off  for  more  than
one  minute,  by  pressing  the
stalk downwards.

Do not cover the rain sensor lo-

cated on the windscreen behind

the interior mirror.
When using an automatic car

wash, switch off the ignition.

In winter, it is advisable to wait

for the windscreen to completely

clear of ice before operating the

automatic wipe.

VISIBILITY

Automatic windscreen
wipers

In AUTO

mode, the windscreen wipers

operate automatically and adapt their

speed to the intensity of the rainfall .

Activation
Activation of the function is accom-

panied by a message on the multi-

function display.

Deactivation
Deactivation of the function is ac-

companied by a message on the

multifunction display.

The function is deactivated when the

windscreen wipers stalk is moved to

position I , 1 or 2 .
In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in in-

termittent mode.
Contact a PEUGEOT dealer to have
the system checked.

In this position, the courtesy

light comes on automati-

cally:

- when the vehicle is unlocked,

- when the key is removed from

the ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

COURTESY LIGHTS

1. Front courtesy light

The

automatic

windscreen

wipers function must be reac-
tivated if the ignition has been
switched  off  for  more  than
one  minute,  by  pressing  the
stalk downwards.

Do not cover the rain sensor lo-

cated on the windscreen behind

the interior mirror.
When using an automatic car

wash, switch off the ignition.

In winter, it is advisable to wait

for the windscreen to completely

clear of ice before operating the

automatic wipe.

VISIBILITY

Automatic windscreen
wipers

In AUTO

mode, the windscreen wipers

operate automatically and adapt their

speed to the intensity of the rainfall .

Activation
Activation of the function is accom-

panied by a message on the multi-

function display.

Deactivation
Deactivation of the function is ac-

companied by a message on the

multifunction display.

The function is deactivated when the

windscreen wipers stalk is moved to

position I , 1 or 2 .
In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in in-

termittent mode.
Contact a PEUGEOT dealer to have
the system checked.

In this position, the courtesy

light comes on automati-

cally:

- when the vehicle is unlocked,

- when the key is removed from

the ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

COURTESY LIGHTS

1. Front courtesy light

The

automatic

windscreen

wipers function must be reac-
tivated if the ignition has been
switched  off  for  more  than
one  minute,  by  pressing  the
stalk downwards.

Do not cover the rain sensor lo-

cated on the windscreen behind

the interior mirror.
When using an automatic car

wash, switch off the ignition.

In winter, it is advisable to wait

for the windscreen to completely

clear of ice before operating the

automatic wipe.

VISIBILITY

2. Map reading lights

Permanently off.

Permanently on.

Different lighting times are available:

- with the ignition off or on, ap-

proximately 10 minutes,

- in economy mode, approximately

30 seconds,

- when the engine is running, no

limit.

With the ignition on, press

the corresponding switch.

Permanently on when the

ignition is on (function not
available in economy mode).

3. Rear courtesy light

In this position, the courtesy

light comes on automati-

cally:

- when the vehicle is unlocked,

- when the key is removed from

the ignition,

- when a door is opened,

- when the vehicle location func-

tion is used.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

Permanently off.

Note: the front courtesy light (in the

"permanently on" position) forces the

switching on of the rear courtesy light

if the switch is in the central position.

To switch off the rear courtesy light,

place the switch in the "permanently

off" position.

LAYOUT

LAYOUT

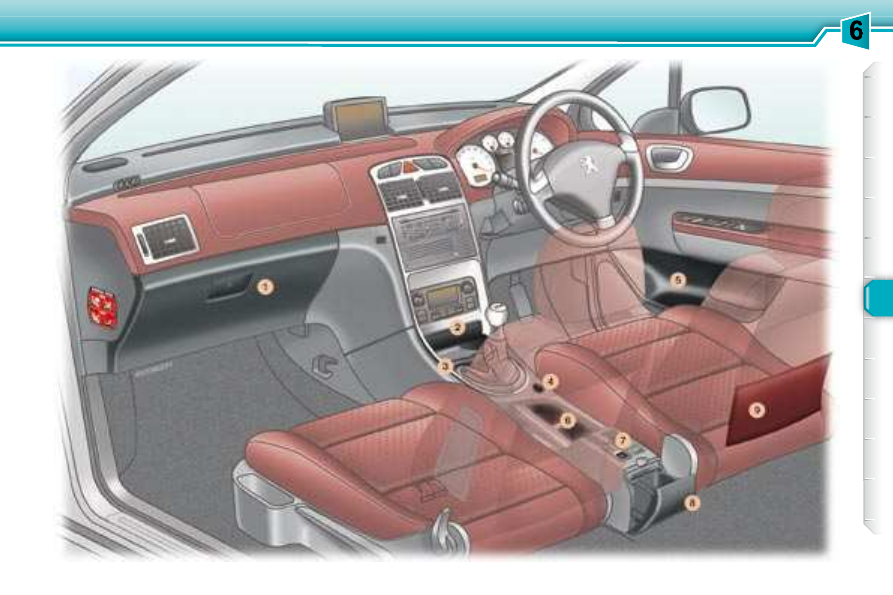

INTERIOR LAYOUT

When i tting the mat for the i rst time,

use only the i xings supplied in the

wallet attached.
When removing the mat on the

driver’s side:

- push the seat as far back as

possible,

- unscrew the i xings fully,

- remove the i xings, then the mat.

* With colour screen only.

FITTING/REMOVING THE MAT

When rei tting, position the mat

correctly and replace the i xings

by pressing them in.
Ensure that the mat is secured
correctly.
To prevent the mat from becoming

caught under the pedals:

- only use mats which are suited

to the i xings already present

in the vehicle. It is imperative

that these i xings are used.

- never i t one mat on top of another.

1. Glove box with cooling facility

This is i tted with a lock.

To open the glove box, lift the

handle.
The glove box lights when the lid is

opened.
It  has  a  ventilation  nozzle  that
can  be  closed   A

, distributing the

same cooled air as the vents of the

passenger compartment.
It contains three sockets * B for

connecting video equipment.

It has a i rst aid kit (according to

country, it may be located in the

boot) and storage compartments for

a pen, the vehicle handbook, a pair

of spectacles, tokens, etc.

2. Front ashtray
Pull the lid to open the ashtray.

To empty it after opening, press the

tab and remove the ashtray.
  3.    Storage
  4.    12 volt socket (100 W max)
This  is  a  lighter  type  socket,  i tted

with a cap.

It is supplied with current from the

running position.
  5.    Door tray
  6.    Storage/Can holder
  7.    Coin storage
  8.    Waste container
To empty this, open it fully (past the

point of resistance) then pull on the

receptacle to remove it.

To rei t it, lock it in place on the

cover.
This  container  must  not  be  used  as
an ashtray.
  9.    Front seat back pockets

LAYOUT

INTERIOR LAYOUT

When i tting the mat for the i rst time,

use only the i xings supplied in the

wallet attached.
When removing the mat on the

driver’s side:

- push the seat as far back as

possible,

- unscrew the i xings fully,

- remove the i xings, then the mat.

* With colour screen only.

FITTING/REMOVING THE MAT

When rei tting, position the mat

correctly and replace the i xings

by pressing them in.
Ensure that the mat is secured
correctly.
To prevent the mat from becoming

caught under the pedals:

- only use mats which are suited

to the i xings already present

in the vehicle. It is imperative

that these i xings are used.

- never i t one mat on top of another.

1. Glove box with cooling facility

This is i tted with a lock.

To open the glove box, lift the

handle.
The glove box lights when the lid is

opened.
It  has  a  ventilation  nozzle  that
can  be  closed   A

, distributing the

same cooled air as the vents of the

passenger compartment.
It contains three sockets * B for

connecting video equipment.

It has a i rst aid kit (according to

country, it may be located in the

boot) and storage compartments for

a pen, the vehicle handbook, a pair

of spectacles, tokens, etc.

2. Front ashtray
Pull the lid to open the ashtray.

To empty it after opening, press the

tab and remove the ashtray.
  3.    Storage
  4.    12 volt socket (100 W max)
This  is  a  lighter  type  socket,  i tted

with a cap.

It is supplied with current from the

running position.
  5.    Door tray
  6.    Storage/Can holder
  7.    Coin storage
  8.    Waste container
To empty this, open it fully (past the

point of resistance) then pull on the

receptacle to remove it.

To rei t it, lock it in place on the

cover.
This  container  must  not  be  used  as
an ashtray.
  9.    Front seat back pockets

Content .. 3 4 5 6 ..
