Peugeot 307 Break Dag (2007 year). Instruction - part 4

In certain cases of particu-

larly arduous use (towing the

maximum load on a steep

gradient in high tempera-

tures), switching off the air condition-

ing permits the recovery of engine

power and therefore an increase in

the towing capacity.

In order for the air conditioning to be

fully effective, the windows must be

closed.

The air conditioning system does not

contain chlorine and does not present

any danger to the ozone layer.

Operate the air conditioning for 5 to

10 minutes, once or twice a month, to

keep it in good working order.

The water produced by the air con-

ditioning condensation is discharged

through an opening provided for this

purpose. Therefore, a puddle of wa-

ter may form underneath the vehicle

when stationary.

In order to ensure that the air

conditioning system operates cor-

rectly, regular checks are also

recommended.

If the system does not produce

cold air, do not use it and contact a

PEUGEOT dealer.

Electric exterior mirrors

Adjustment


Slide switch

A to the right or to the

left to select the corresponding

mirror.



Move knob

B in all four directions

to adjust.



Return switch

A to the centre

position.

Folding

- from inside:



with the ignition on, pull switch

rearwards.

- from outside:



lock the vehicle using the remote

control or the key.

Note: if the mirrors are folded using

switch

A, they will not unfold when

the vehicle is unlocked using the

remote control or the key. Switch

must be pulled again.

Unfolding

- from inside:



with the ignition on, pull switch

rearwards.

- from outside:



unlock the vehicle using the

remote control or the key.

The folding and unfolding of

the exterior mirrors can be

deactivated by a PEUGEOT

dealer.

MIRRORS

Move the lever in all four directions

to adjust.

When the vehicle is parked, the ex-

terior mirrors can be folded back

manually.

The exterior mirror on the

driver’s side is convex (out-

er edge deﬁned by a dotted

line) in order to eliminate the

"blind spot".

As a result, objects observed in the

driver’s and passenger’s mirrors are

in reality closer than they appear.

This must be taken into account

to correctly judge the distance of

vehicles approaching from behind.

Manual exterior mirrors

This automatically and gradually

changes between the day and night

positions. To prevent dazzling, the

glass of the mirror darkens auto-

matically depending on the intensity

of the light from behind. It clears as

the light (headlamps of following ve-

hicles, sunlight) decreases, ensuring

maximum visibility.

Manual interior mirror

The interior mirror has two positions:
- day (normal),

- night (anti-dazzle).

To change from one to the other,

push or pull the lever on the lower

edge of the mirror.

Operation

Switch on the ignition and press

switch

- Indicator light

2 lit (switch pressed):

automatic operation.

- Indicator light

2 off: automatic

system off. The mirror remains at

its most clear.

Special feature

To ensure maximum visibility during

manoeuvres, the mirror clears

automatically when reverse gear is

engaged.

When the vehicle is stationary, un-

lock the steering wheel by pulling

handle

Adjust the height and depth of the

steering wheel.

Lock it by pushing handle

A down

fully.

Automatic day/night interior

mirror

STEERING WHEEL HEIGHT

AND DEPTH ADJUSTMENT

This automatically and gradually

changes between the day and night

positions. To prevent dazzling, the

glass of the mirror darkens auto-

matically depending on the intensity

of the light from behind. It clears as

the light (headlamps of following ve-

hicles, sunlight) decreases, ensuring

maximum visibility.

Manual interior mirror

The interior mirror has two positions:
- day (normal),

- night (anti-dazzle).

To change from one to the other,

push or pull the lever on the lower

edge of the mirror.

Operation

Switch on the ignition and press

switch

- Indicator light

2 lit (switch pressed):

automatic operation.

- Indicator light

2 off: automatic

system off. The mirror remains at

its most clear.

Special feature

To ensure maximum visibility during

manoeuvres, the mirror clears

automatically when reverse gear is

engaged.

When the vehicle is stationary, un-

lock the steering wheel by pulling

handle

Adjust the height and depth of the

steering wheel.

Lock it by pushing handle

A down

fully.

Automatic day/night interior

mirror

STEERING WHEEL HEIGHT

AND DEPTH ADJUSTMENT

FRONT SEATS

1. Forwards-backwards

adjustment

Lift the control and slide the seat

forwards or backwards.

2. Driver’s or passenger’s seat

height adjustment

Pull the handle upwards or push it

downwards as many times as neces-

sary to obtain the required position.

3. Seat back angle adjustment

Push the handle towards the rear.

4. Access to rear seats (3 door)

Pull the handle to fold the seat back

and move the seat forwards. On

repositioning, the seat returns to its

initial position.

Note: it is also possible to use

control

3. Then adjust the angle.

No person or object must

prevent the seat slide from

returning to its initial posi-

tion; return to this position is

necessary for the seat to lock in

place.

5. Head restraint height and

angle adjustment

To raise the head restraint, pull it

upwards.

To remove the head restraint, press

the lug

A and pull the head restraint

upwards.

To put the head restraint back in po-

sition, locate the stems of the head

restraint in the holes, taking care to

keep them in line with the seat back.

To lower the head restraint, press the

lug

A and the head restraint at the

same time.

The head restraint has a frame with

a notch which prevents the head re-

straint from lowering; this is a safety

device which provides protection in

the event of an impact.

To tilt the head restraint, tilt the lower

part forwards or rearwards.

8. Heated seats switch

Never drive with the head

restraints removed; they

must be in place and correctly

adjusted.

REAR HEAD RESTRAINTS

These have a high position for when

they are in use and a low position for

when they are stored.

The head restraints can also be

removed.

To remove them, pull upwards as far

as the stop then press the lug.

6. Armrests

These can be folded down and are

removable.

To remove them, press the button

located between the armrest and the

side of the seat and pull it.

7. Storage drawers

There is a storage drawer under each

front seat.

- To open it, lift it and pull.

- To take it out, open it to its full extent,

press the ends of the slides and lift it,

then remove it completely.

- To put it back in place, with it

fully closed, press on the top of the

drawer to secure it.

Under the front passenger seat, the

layout of the ﬂoor allows for storage

of a ﬁrst aid kit and a warning triangle

(small version).

The adjustment is correct when

the upper edge of the head

restraint is level with the top of

the head.

Do not place heavy objects

in the drawers.

With the engine running, press the

switch. The temperature is controlled

automatically.

Pressing the switch again stops

operation.

Note: the command for activation

of heating of the seat(s) remains

memorised for two minutes after the

ignition has been switched off.

To fold down the rear left seat (2/3 part)

or the right seat (1/3 part),

always start

with the seat, never with the seat

back (risk of damage):

- move the front seat(s) forward if

necessary,

- lift the front of the seat cushion

- tilt the seat cushion

1 against the

front seat(s),

- check that the seat belt is correctly

positioned on the side of the seat

back,

- pull control

2 forwards to unlock the

seat back

- place the head restraints in the low

position,

- fold down the seat back

Note: the seat cushion 1 can be

removed to increase the volume of

the load space.

Squeeze the seat cushion ﬁxings to

detach them from their fastenings.

When repositioning:

- fold up the seat back and lock it

(the red marker of control

2 should

no longer be visible),

- fold up the seat.

Take care not to trap the seat belts

and to position the stalks correctly.

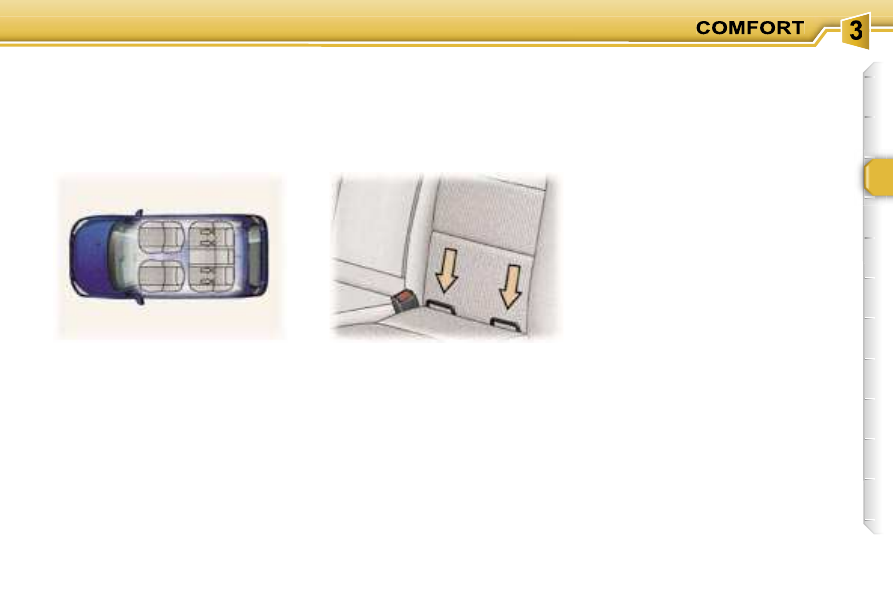

REAR SEATS (SALOON)

Removing the seat cushion

(position against the front seats):

Take hold of the seat cushion

1 at the

bottom to remove it from its ﬁxings

and pull upwards.

- pull control

2 forwards to release

the seat back

- place the head restraints in the low

position,

- tilt the seat back

Note: the seat cushion 1 can be

removed to increase the volume of

the load space.

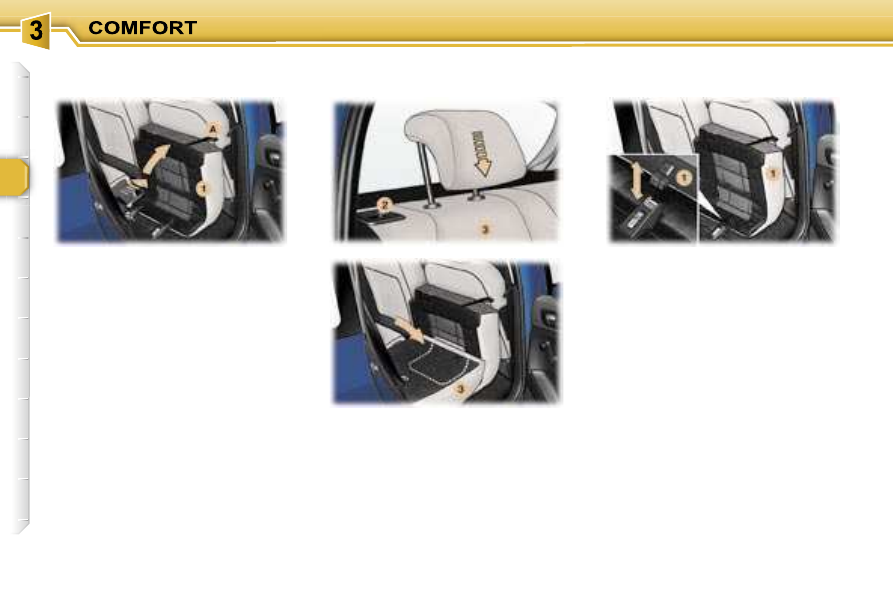

Folding the seats:

To fold the rear left seat (2/3 section)

or the rear right seat (1/3 section),

al-

ways start with the seat cushion,

never with the seat back (risk of

damage):

- move the front seat(s) forward if

necessary,

- pull the handle

A located between

the seat cushion

1 and the seat

back

3 forwards, then pull it up-

wards to lift the seat cushion and

tilt it against the front seat(s),

- check that the seat belt is posi-

tioned correctly on the side of the

seat back,

REAR SEATS (ESTATE)

Refitting the seat cushion

(position against the front seats):

- ﬁt the seat cushion

1 in its ﬁxings,

- to lock it, press on the top of the

seat cushion

Putting the seats back in

position:

- fold the seat back and lock it (the

red indicator on control

2 should no

longer be visible),

- fold the seat cushion.

Take care not to trap the seat belts

and to position the stalks correctly.

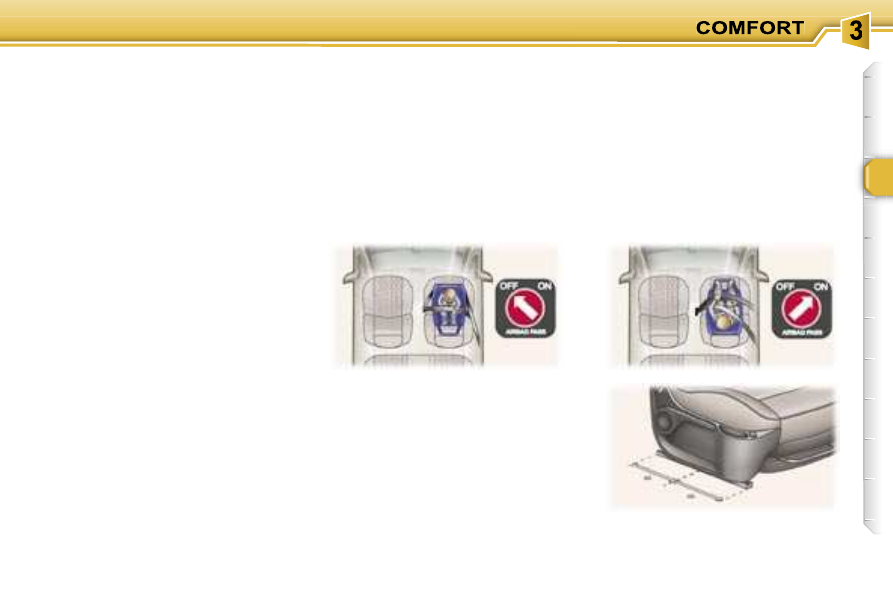

"Forwards-facing"

When a "forwards-facing" child seat

is installed on the

front passenger

seat, adjust the vehicle’s seat to the

intermediate longitudinal position

with the seat back upright and leave

the passenger air bag armed**.

INSTALLING A CHILD SEAT

USING A THREE POINT SEAT

BELT

GENERAL POINTS RELATING

TO CHILD SEATS

Although one of PEUGEOT’s main

criteria when designing your vehicle,

the safety of your children also de-

pends on you.

For maximum safety, please follow

these precautions:

- in accordance with Directive 2003/

20,

all children under the age of

12 or less than one metre ﬁfty

tall must travel in approved child

seats suited to their weight,

on seats ﬁtted with a seat belt or

ISOFIX mountings*.

statistically, the safest seats in

your vehicle for the transpor-

tation of children are the rear

seats,

a child weighing less than 9 kg

must travel in the "rearwards-

facing" position both in the front

and in the rear.

PEUGEOT recommends that chil-

dren should travel in the

rear seats

of your vehicle:

"rearwards-facing" up to the age

of 2,

"forwards-facing" over the age

of 2.

* The rules for transporting children

are speciﬁc to each country. Con-

sult the current legislation in your

country.

** According to model.

Intermediate longitudinal

position

"Rearwards-facing"

When a "rearwards-facing" child seat

is installed on the

front passenger

seat, it is essential that the passen-

ger air bag** is disarmed. Otherwise,

the child would risk being seri-

ously injured or killed if the air bag

were to inﬂate.

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are

secured using a

three point seat belt:

** According to version.

Passenger air bag OFF**

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"BRITAX

Babysure"

(E11 0344117)

Installed in

the rear-facing

position.

"RÖMER

Baby-Safe plus"

(E1 03301146)

Installed in

the rear-facing

position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

(E1 03301135)

For the safety of young children (from

9 to 18 kg), PEUGEOT recommends

use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start"

(E1 03301108).

"KLIPPAN Optima"

(E17 030007)

From the age

of 6 years

(approximately

22 kg), the booster

is used on its own.

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are

secured using a

three point seat belt:

** According to version.

Passenger air bag OFF**

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"BRITAX

Babysure"

(E11 0344117)

Installed in

the rear-facing

position.

"RÖMER

Baby-Safe plus"

(E1 03301146)

Installed in

the rear-facing

position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

(E1 03301135)

For the safety of young children (from

9 to 18 kg), PEUGEOT recommends

use of the restraining cushion.

Groups 2 and 3: from 15 to 36 kg

"RECARO Start"

(E1 03301108).

"KLIPPAN Optima"

(E17 030007)

From the age

of 6 years

(approximately

22 kg), the booster

is used on its own.

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT

In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats

secured using the seat belt and universally approved (a) depending on the weight of the child and the seat in the vehicle:

Seat

Weight of the child/indicative age

Below 13 kg

(groups 0 (b) and 0+)

Up to 1 year approx

9 to 18 kg

(group 1)

1 to 3 years approx

15 to 25 kg

(group 2)

3 to 6 years approx

22 to 36 kg

(group 3)

6 to 10 years approx

Front passenger

seat (c)

- ﬁxed

- height adjustable (R)

U (R)

Rear side seats

Rear centre seat

(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.

(b) Group 0: from birth to 10 kg.

U: seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and/or

"forwards facing".

U (R): identical to U, but the vehicle seat must be adjusted to the highest position.

ADVICE ON CHILD

SEATS

Children under the age of 10 must not

travel in the "forward facing" position

on the front passenger seat, unless

the rear seats are already occupied

by other children, cannot be used or

are absent.

Disarm the passenger air bag* when

a "rear facing" child seat is installed

on the front seat. Otherwise, the child

would risk being seriously injured or

killed if the air bag were to inﬂate.

* According to version.

Installing a booster seat

The chest part of the seat belt must

be positioned on the child’s shoulder

without touching the neck.

Ensure that the lap part of the seat

belt passes correctly over the child’s

thighs.

PEUGEOT recommends the use of

a booster seat which has a back, ﬁt-

ted with a seat belt guide at shoulder

level.

As a safety precaution, do not leave:

- one or more children alone and

unsupervised in a vehicle,

- a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

- the keys within reach of children

inside the vehicle.

To prevent accidental opening of the

doors, use the "Child lock"*.

Take care not to open the rear

windows by more than one third*.

To protect young children from the

rays of the sun, ﬁt side blinds on the

rear windows.

The incorrect installation of a child

seat in a vehicle compromises the

child’s protection in the event of an

accident.

Remember to fasten the seat belts

or the child seat harnesses

keeping

the slack in relation to the child’s

body

to a minimum, even for short

journeys.

For optimum installation of the

"forward facing" child seat, ensure

that the back of the child seat is in

contact with the back of the vehicle’s

seat and that the head restraint does

not cause any discomfort.

If the head restraint has to be

removed, ensure that it is stored or

attached securely to prevent it from

being thrown around the vehicle in

the event of sharp braking.

These are two rings located between

the seat back and the seat cushion.

The

ISOFIX child seats are ﬁtted

with two locks which are secured

easily on these rings.

"ISOFIX" MOUNTINGS

These seats* are ﬁtted with ISOFIX

mountings.

This ISOFIX mounting system

guarantees reliable, safe and fast

ﬁtting of the child seat in your

vehicle.

* According to version.

These child seats can also be used on seats which are not ﬁtted with ISOFIX mountings. In this case, it is essential

that they are secured to the vehicle’s seat by means of the three point seat belt.

Follow the instructions for ﬁtting the child seat indicated in the seat manufacturer’s installation guide.

ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

ISOFIX KIDDY

ISOFIX RÖMER Duo Plus

Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position.

Installed in the forwards facing position. Installed in the forwards facing position

only.

The body of the child seat must be in

contact with the back of the vehicle’s

front seat.

It is essential that the vehicle’s front

seat is adjusted to the intermediate

longitudinal position.

Secured without the top strap.

Three child seat body angles: sitting,

reclining and lying positions.

Adjust the vehicle’s front seat so that

the child’s feet do not touch the seat

back.

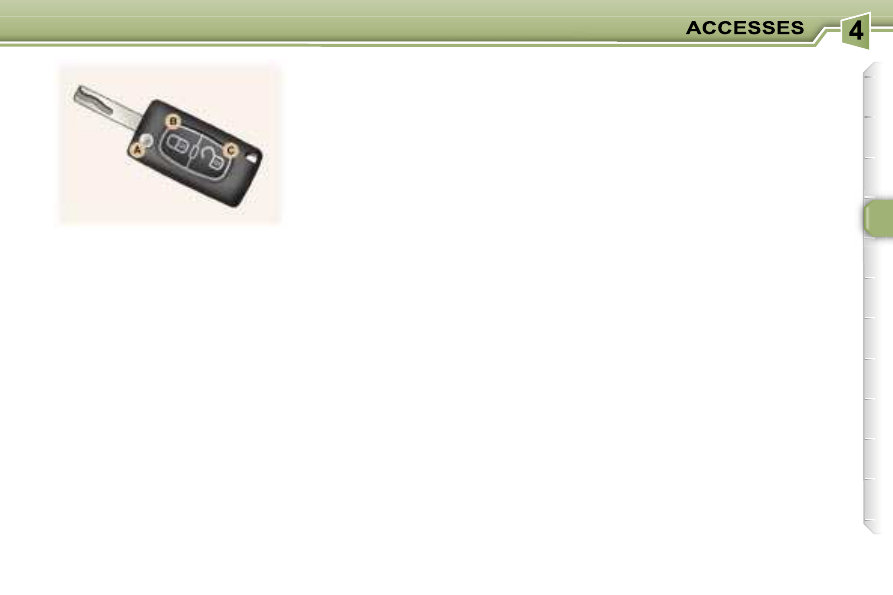

THE REMOTE CONTROL KEY

The remote control permits locking,

deadlocking, unlocking and locating

of the vehicle, as well as folding and

unfolding of the exterior mirrors.

The key allows you to switch on the

ignition and mechanically and inde-

pendently operate the lock on the

glove box, the fuel ﬁller cap, the pas-

senger air bag disarming switch and

the child lock.

From the driver’s door, the key al-

lows you to electrically control the

locking, deadlocking and unlocking

of the doors and boot, as well as the

folding and unfolding of the exterior

mirrors.

If one of the doors or the boot is open,

the central locking will not work.

Using the key


Turn the key in the lock on the

driver's door to lock the vehicle.

This action is conﬁrmed by ﬁxed

lighting of the direction indicators for

approximately two seconds.

At the same time, the exterior mirrors

fold back.

Unfolding/Folding the key

To unfold or fold the key, ﬁrst press

button

Locking

Using the remote control


Press button B to lock the vehi-

cle.



Press button B for more than

2 seconds to activate the auto-

matic closing of the windows and

sunroof in addition to locking.

Each action is conﬁrmed by ﬁxed

lighting of the direction indicators for

approximately two seconds.

At the same time, the exterior mirrors

fold back.

Deadlocking

This renders the exterior and inte-

rior door controls inoperative.

rior

It also disarms the interior central

locking button.

Unlocking



Press button

C to unlock the vehi-

cle.

This is conﬁrmed by rapid ﬂashing of

the direction indicators for approxi-

mately two seconds.

At the same time, the exterior mirrors

unfold.

Using the remote control


Press button B to lock the vehicle

press button B for more than

2 seconds to activate the auto-

matic closing of the windows and

sunroof in addition to locking.



Press the button again within

ﬁve seconds to deadlock the vehi-

cle.

Each action is conﬁrmed by ﬁxed

lighting of the direction indicators for

approximately two seconds.

Content .. 2 3 4 5 ..
