Peugeot 306 Break Dag (2002 year). Instruction - part 1

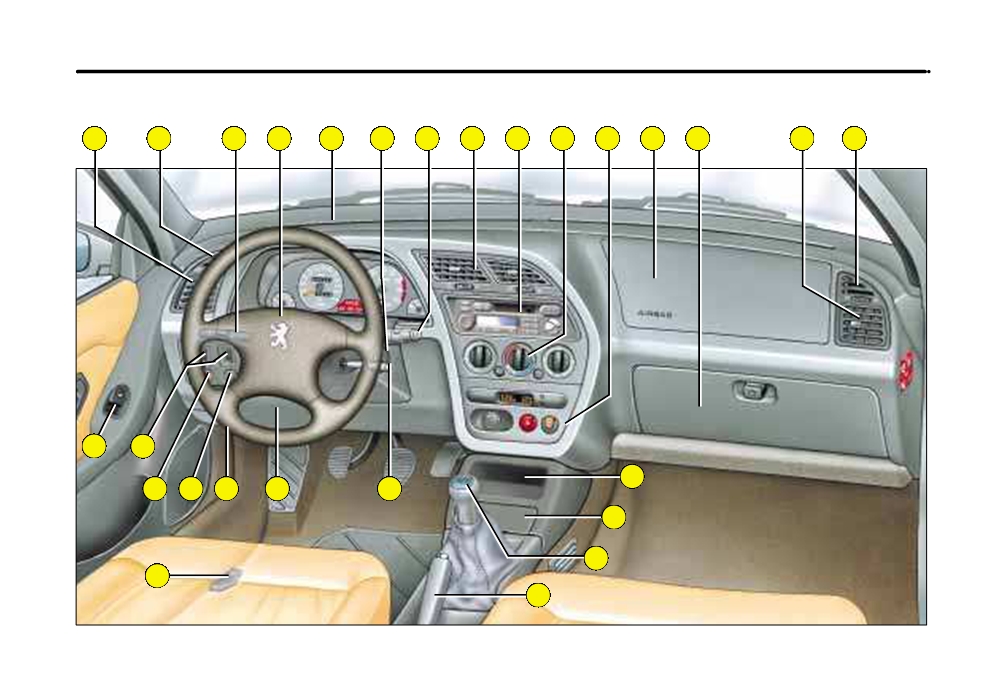

YO U R 306 AT A G LA N C E

YO U R 306 AT A G LA N C E

1 - Adjustable side vent.

10 - Heating/Ventilation,

18 - Audio remote control*.

Air conditioning controls*.

2 - Side window demisting vents.

19 - Fuse box.

11 - Controls:

Lighter

Hazard warning lights

3 - Lighting control, fog lamps*

Rear screen and mirrors

and horn.

demisting.

20 - Bonnet opening control.

12 - Passenger airbag*.

4 - Steering wheel with airbag*.

21 - Fuel filler flap control*.

5 - Windscreen demisting vents.

13 - Glove box

22 - Passenger airbag

disarming switch*.

6 - Steering lock and ignition.

14 - Storage compartment.

23 - Control for locking the rear

windows.

7 - Windscreen wash-wipe

15 - Ashtray.

24 - Headlamp height adjust-

control.

ment

- Instrument dials lighting

rheostat

16 - Gear lever.

8 - Adjustable central vents.

25 - Controls for:

Electric mirrors*

17 - Handbrake.

9 - Audio equipment*.

Electric windows*

* According to specification.

YO U R 306 AT A G LA N C E

If the passenger airbag is not

armed, one of the warning lights

remains on.

Always contact your PEUGEOT

dealer if the warning light flashes.

Passenger airbag precautions

For a vehicle fitted with a disarm-

ing switch:

- disarm the

airbag if you

install a rear-

wards-facing

child seat.

- arm

the

airbag when

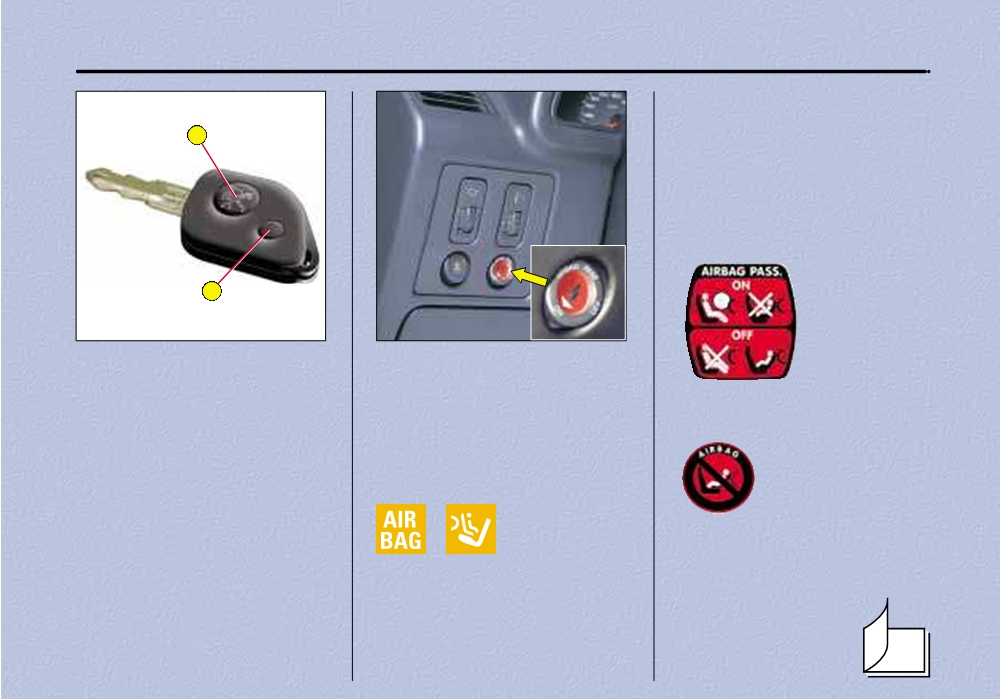

KEYS

FRONT AIRBAGS

an adult is in

Using the key in the driver’s door

Disarming the passenger airbag

the seat.

lock will lock or unlock the doors

Insert the ignition key in switch 1

For a vehicle not fitted with a dis-

and boot or tailgate.

and turn it:

arming switch:

- to the “ON” position, the pas-

- do not install rear-wards-facing

senger airbag is armed

child seats on the

- to the “OFF” position, the pas-

front

passenger

senger airbag is not armed.

seat.

Never place your

THE REMOTE CONTROL

feet or any object on

the fascia.

A single press on button A locks

the doors and boot or tailgate.

A single press on button B unlocks

Operational Check

the vehicle.

This is by means of the warning light

on the instrument panel.

If the passenger airbag is armed

or if your vehicle is not fitted with a

passenger airbag, the warning

light comes on for 6 seconds when

108

** According to model.

the ignition is switched on.

YO U R 306 AT A G LA N C E

Steering lock

Before starting, unlock the steer-

ing if necessary, by gently turning

the steering wheel at the same

time as you turn the key.

It is advisable to press the clutch

pedal while operating the starter

to make starting easier.

Starting a petrol engine

Do not press the accelerator.

Operate the starter, without

STARTING

releasing the key, until the engine

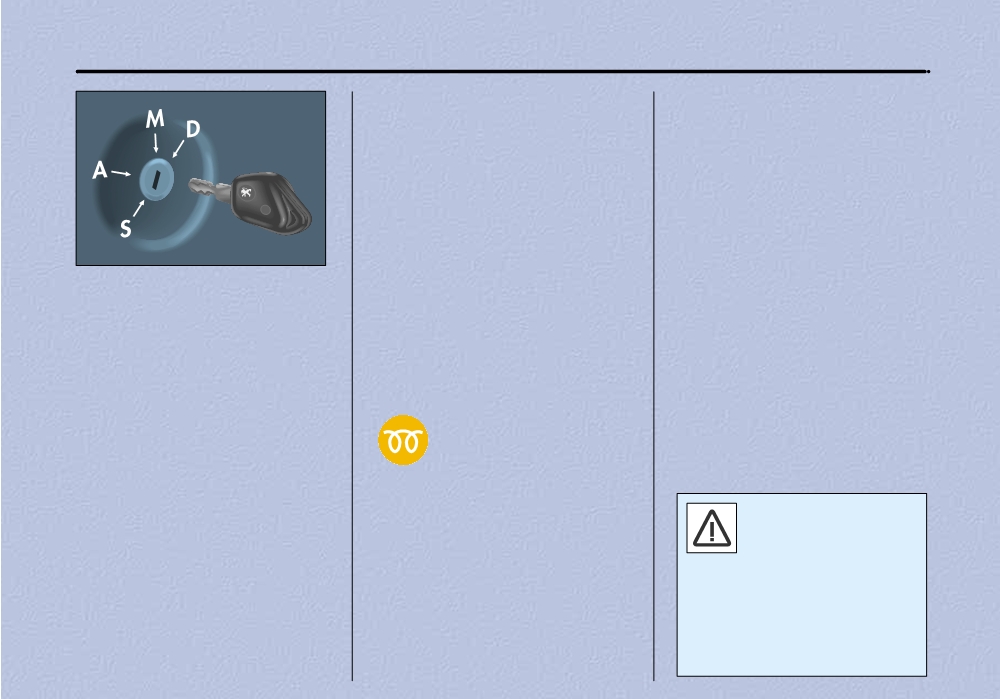

The 4 positions of the key in the

turns.

ignition:

“S” for STOP The ignition is off.

“A” for Accessories The ignition

is off but the accessories can be

Starting a diesel engine

used.

“M” for Running The ignition is

Do not press the accel-

on.

erator.

“D’’ for Starting

Operates the

Turn the key to position

starter.

‘‘M’’.

If the engine is warm enough, the

pre-heat light does not come on

Never race a cold

and you can start immediately.

engine.

If the pre-heat light comes on,

Never run the engine

wait for it to go out before ope-

in a confined space.

rating the starter.

HDI engine special feature

Do not make any modifications

to the steering lock.

If the engine stalls, it is necessary

to return the key to position ‘‘S’’

before restarting.

YO U R 306 AT A G LA N C E

Additional key

You can store up to 5 keys in the

memory.

If you require an additional key or

wish to change a faulty key, you

must visit a PEUGEOT dealer

with the confidential card and all

the keys in your possession.

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control

system a few moments after the

Confidential card

ignition has been switched off and

therefore prevents starting of the

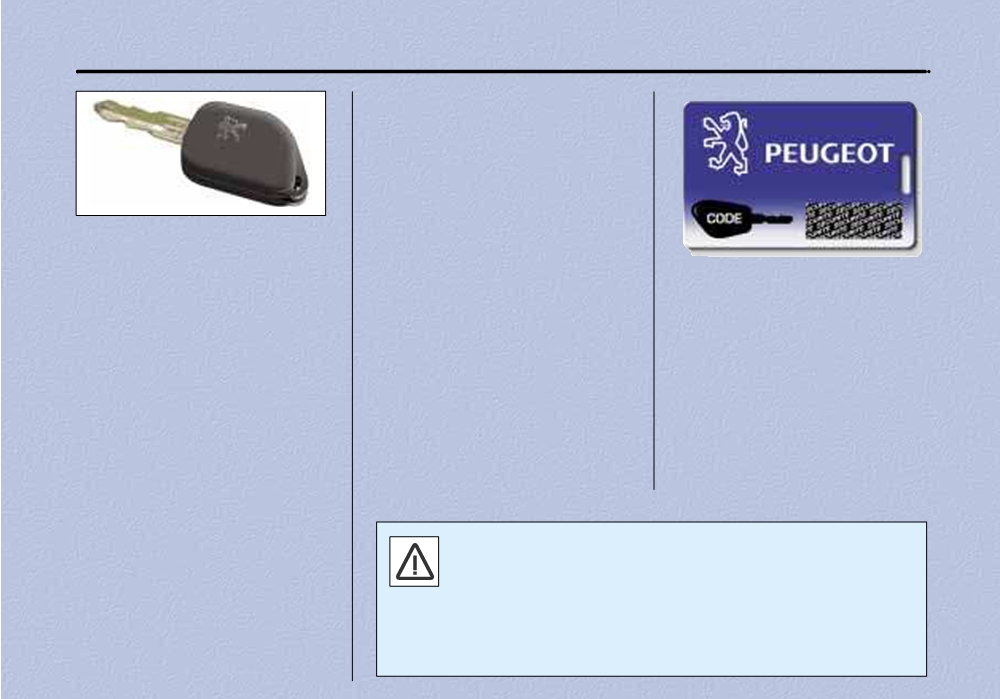

This contains the identification

vehicle by anyone who has not

combination which is required if

got the key.

any work is carried out on the

system by a PEUGEOT dealer.

This combination is concealed by

Operation

a strip which must not be removed

Each key has an electronic chip

unless required.

which has a special code.

Keep your card in a safe place,

When the ignition is switched on

never in your vehicle.

the key code is recognised and

starting is possible.

If the key does not have a code or

has a different code from that

stored in the system memory, the

vehicle will not start.

When buying a second hand car:

Ensure that you are given the confidential card.

It is advisable to have the key codes memorised by a

PEUGEOT dealer to ensure that the keys in your possession

are the only ones which can start the vehicle.

Do not make any modifications to the PEUGEOT electronic engine

immobiliser system.

YO U R 306 AT A G LA N C E

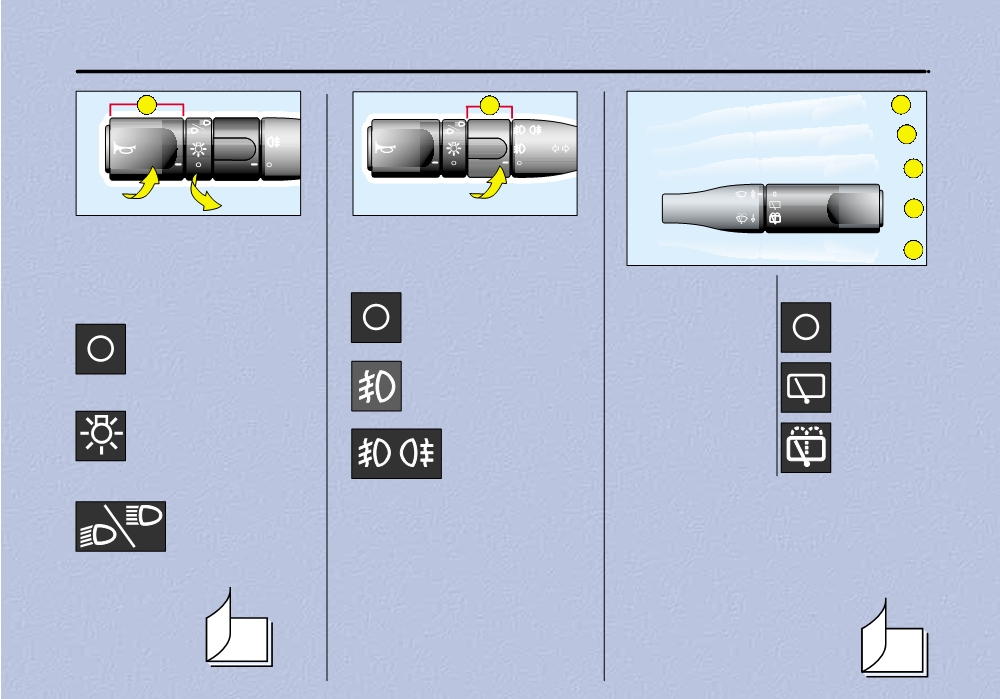

STEERING WHEEL

STALKS

Front/rear fog lamps (ring B)

LIGHTING

Front lights (ring A)

Front

Rear

windscreen

Fog lamp off.

wipers

3Rapid wipe

Stop

Lights off.

2Normal wipe

1 Intermittent

automatic wipe

Intermittent

Front fog lamps on.

0Stop

wipe

4Single wipe

Wash-wipe: pull

Side lights on.

the stalk towards

Front and rear

Wash-wipe

you.

fog lamps on.

Automatic wipe

Dipped/main

The system automatically adjusts the

beam

head-

wiper timing to the intensity of the rainfall.

lamps on.

After switching off the ignition or starting

in position 1, it is necessary to re-set this

function. This is possible in two ways:

- change from 1 to 0 then

return to

(displayed by

one wipe),

- change from 1 to 2 then

return to 1 (displayed by two

wipes).

YO U R 306 AT A G LA N C E

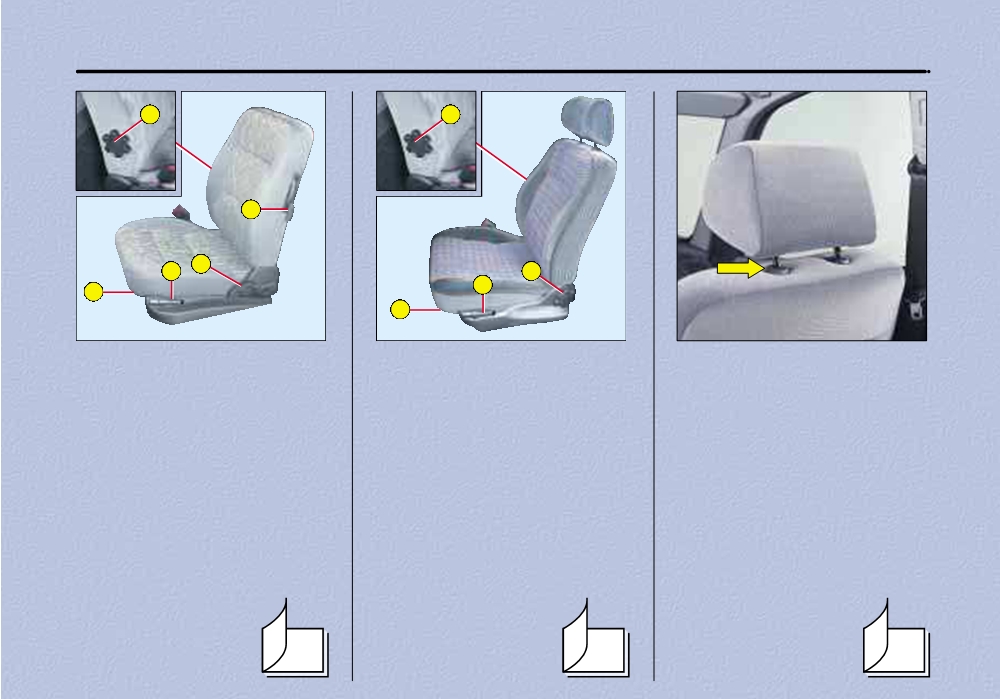

ADJUSTING THE FRONT

HEAD RESTRAINTS

SEATS (3-door)

SEATS (4/5-door and estate)

- Height adjustment: slide them.

Forwards-backwards adjust-

- Adjusting the angle: tilt them.

ment.

Seat back angle adjustment.

To remove the head restraint, posi-

tion it at maximum height and

Drivers seat height adjustment:

press the tab.

pull the telescopic handle and

pivot it.

Lumbar adjustment.

Access to rear seats.

YO U R 306 AT A G LA N C E

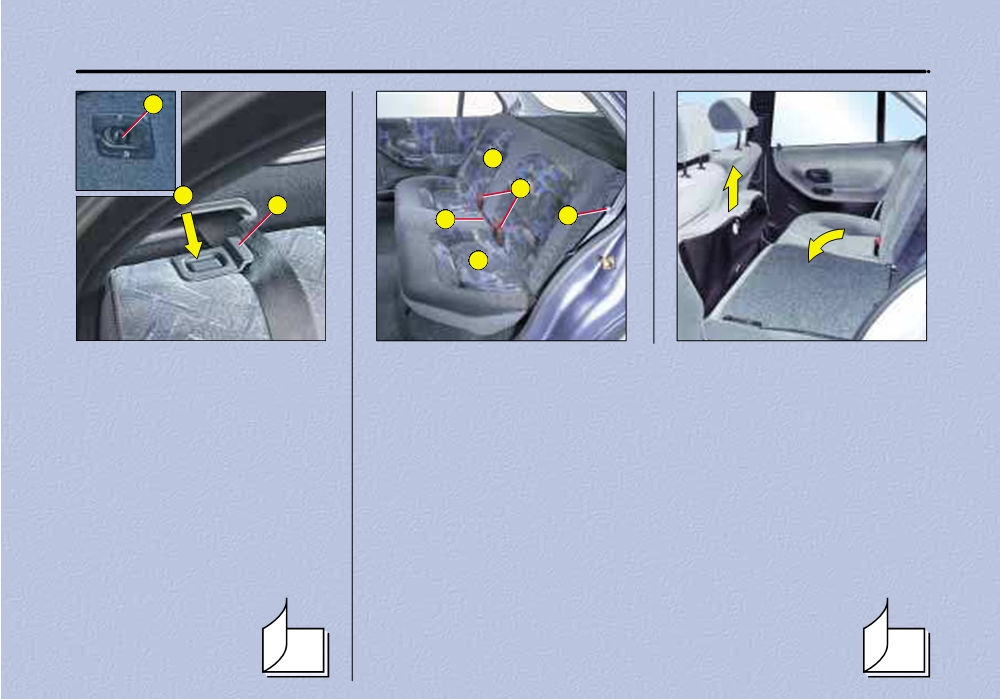

FOLDING REAR SEAT BACK

FOLDING REAR SEATS (all models)

To fold the seat back:

To fold the rear seats:

from inside the boot, release

insert the seat belt stalks in the hooks A.

control 1

pull the strap 1.

position the seat belt under the

tilt the seat cushion 2 against the front seats.

strap guide B

position the seat belt under the lever 3 (5-door and estate) or on the top

unlock the seat back by press-

of the seat back (3-door).

ing button A

unlock the seat back using the controls on the side 3 (5-door and estate)

tilt the seat back

or on the seat back 4 (3-door).

tilt the backrest.

tilt the seat back 4.

To tilt the rear seats, always start with the seat cushion, never

When repositioning the

with the backrest (risk of damage).

seat back, ensure that

When repositioning, take care to avoid trapping the seat belts

the seat belts are posi-

under the seat cushion or behind the seat back.

tioned correctly and the

seat back is secured cor-

rectly

YO U R 306 AT A G LA N C E

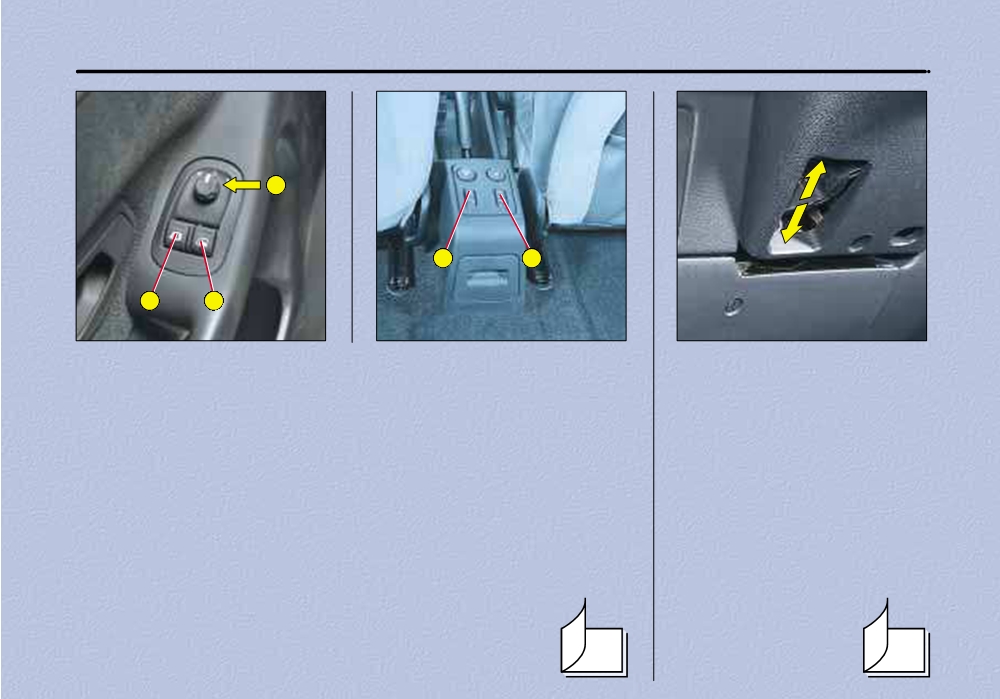

ELECTRIC WINDOWS

ADJUSTING THE HEIGHT

1. Driver's electric window

OF THE STEERING WHEEL

Manual mode: press or pull the switch lightly. The window stops as soon as

Push the handle to unlock the

the switch is released.

steering wheel.

Automatic mode: press or pull the switch firmly. One touch completely opens

Adjust the steering wheel to the

or closes the window.

desired height and pull the handle

to lock it into position.

Automatic opening and closing only work when the engine is running.

2. Passenger’s electric window.

3. Left rear electric window

4. Right rear electric window.

ELECTRIC MIRRORS

Turn the knob A to the right or to the left to select the corre-

sponding mirror.

Move the knob in all four directions to adjust the mirror.

101

YO U R 306 AT A G LA N C E

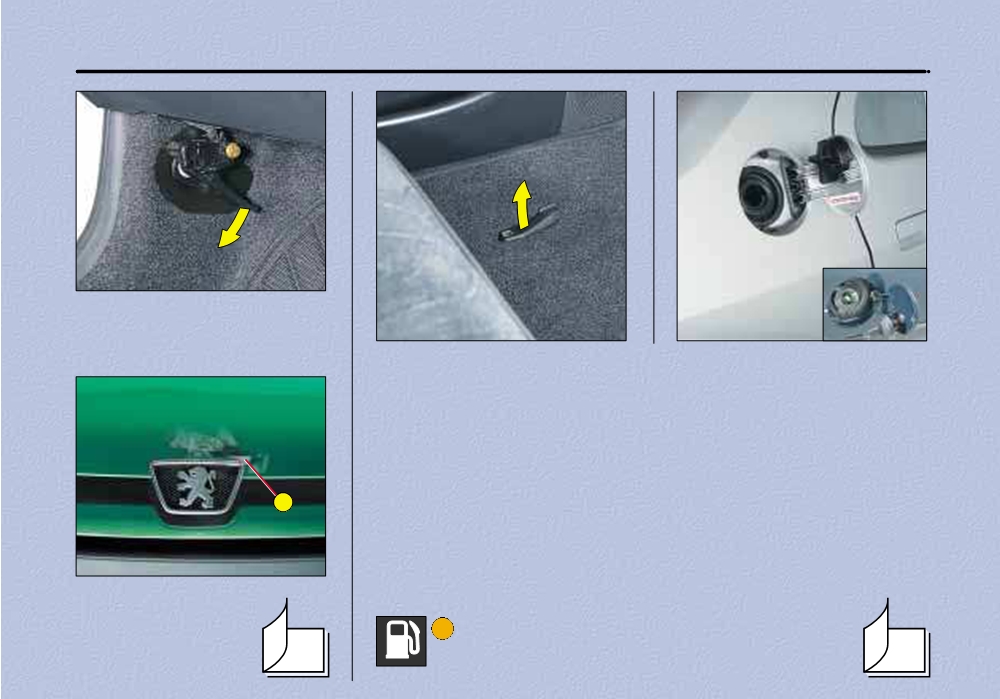

OPENING THE BONNET

Inside the vehicle:

Pull the

handle.

FUEL FILLER FLAP

To open*: firmly pull the handle on the floor to the outside of the drivers

seat.

To close: from outside, push the flap back and check that it is secured

correctly.

The fuel filler cap is opened and closed with the ignition key independently

of opening the doors (during model year).

Filling with fuel

Switch off the engine.

There is a holder for the fuel filler cap.

A label on the inside of the flap shows which fuels are permitted and which

are not allowed.

The capacity of the tank is approximately 13 gallons (60 litres).

Outside the vehicle

Raise the catch 1

and

Fuel low warning light

support the bonnet as it

The fuel low warning light indicates that the quantity of

rises.

fuel remaining in the tank is approximately

1.3 gallons (6 litres).

* According to specification.

YO U R 306 AT A G LA N C E

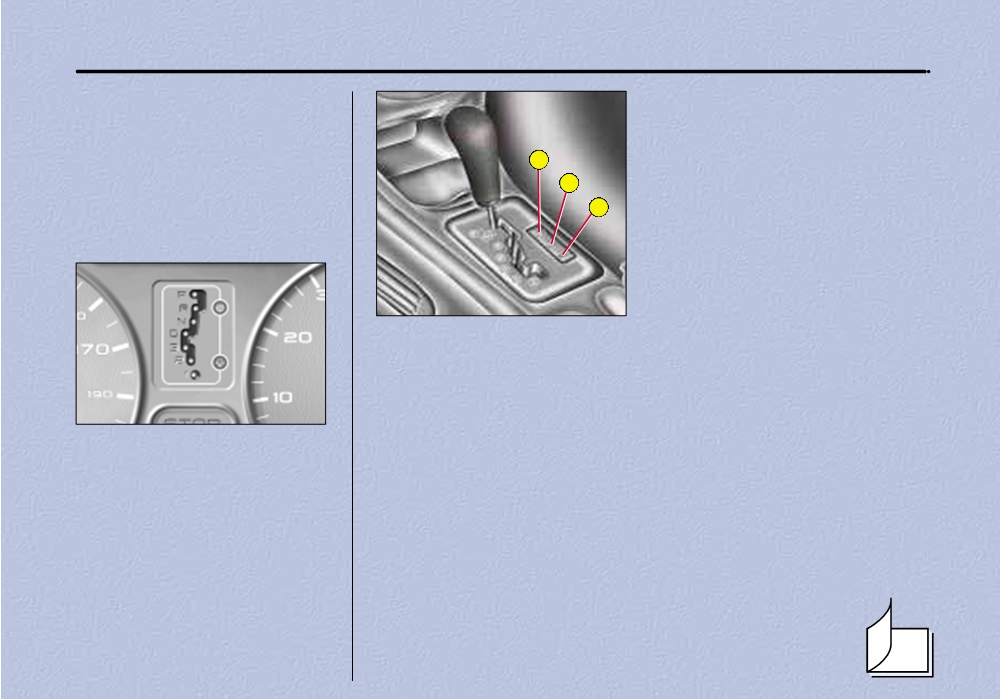

THE AUTOMATIC

AUTOADAPTIVE GEARBOX

Starting

To start the engine, place the

selector lever in position N or P.

Press the brake pedal when start-

ing the engine or when selecting a

forwards or reverse gear.

P. Park.

R. Reverse.

N. Neutral.

D. Drive: in this position, all four gears change automatically.

Position of selector lever

3. Automatic changing of the first three gears only.

This is shown by an indicator on

2. Automatic changing of the first two gears only.

the instrument panel.

1. Selection of first gear only.

Selection of first gear is from position 2 by pressing switch 1.

A. Sport programme.

B. Snow programme.

105

YO U R 306 AT A G LA N C E

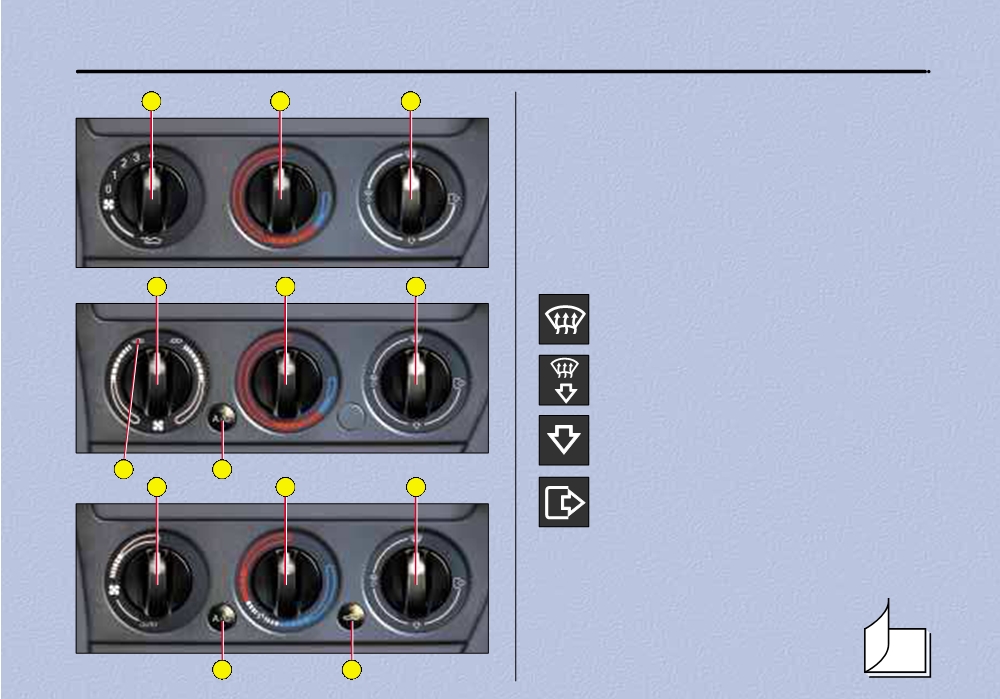

VENTILATION/HEATING/AIR CONDITIONING

1 - Air flow adjustment.

2 - Temperature adjustment.

3 - Air distribution.

Windscreen and side windows.

Windscreen, side windows and footwells.

Footwells.

Central and side vents.

4 - Air conditioning on/off.

5 - Recirculation of interior air.

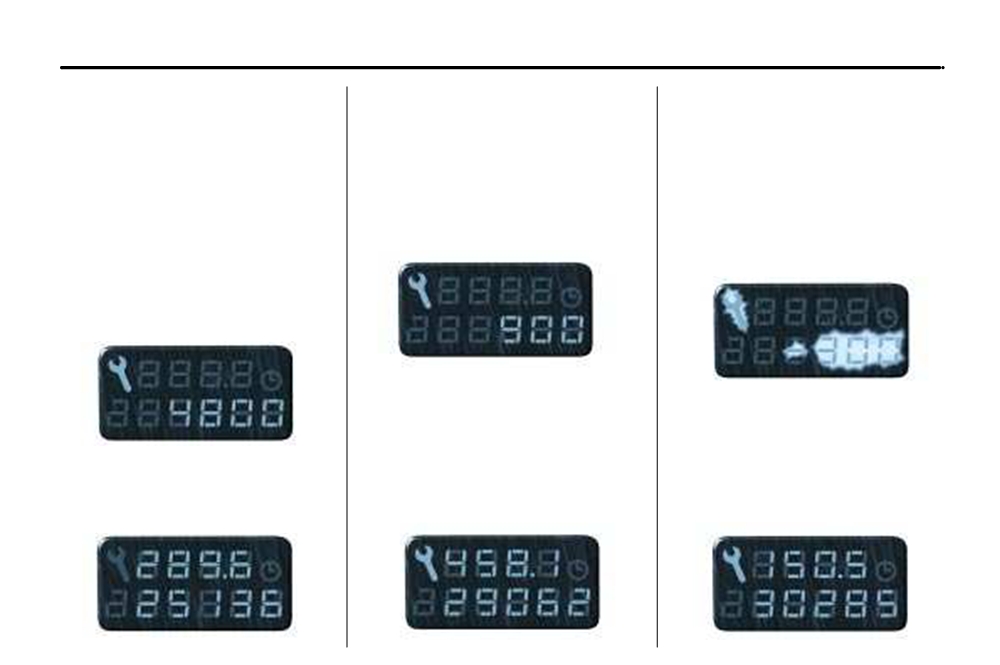

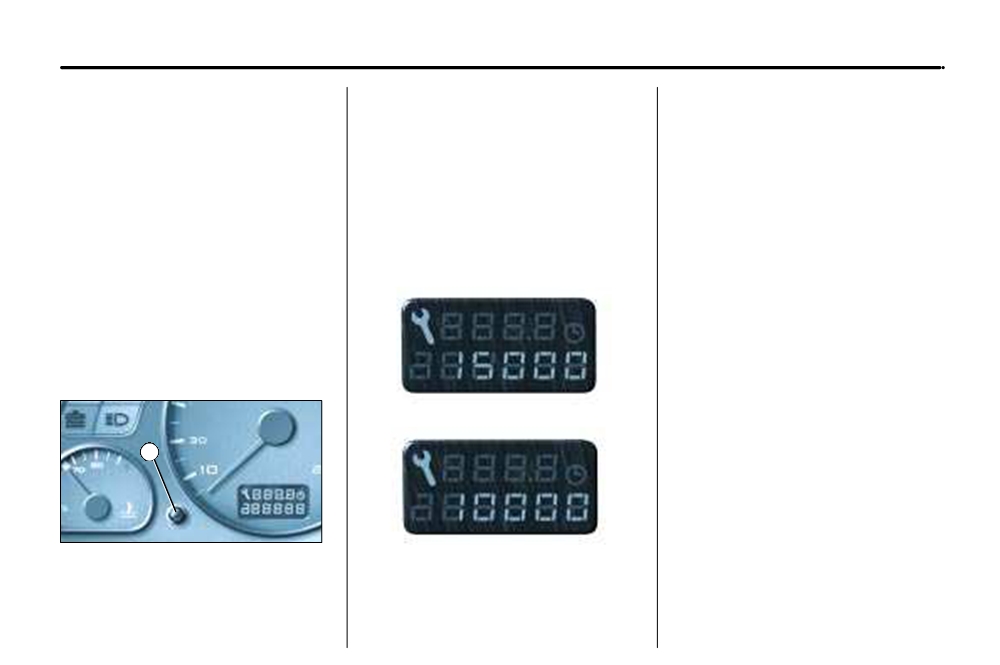

MAINTENANCE OF YOUR 306

PEUGEOT SERVICING

Your vehicle benefits from extended service iintervals.

• For petrol engines: every 20,000 miles (30,000 km) or every two years

• For direct injection diesel engines: every 12,000 miles (20,000 km) or every two years.

• For indirect injection diesel engines: evey 10,000 miles (15,000 km) or every two years.

The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the

oil between oil changes is normal.

That is why the PEUGEOT network is offering you an intermediate visit between each regular service.

The date of this visit is not shown by the service indicator. It is to be carried out at least every 10 000 Miles

(15 000km) for petrol and twin-fuel engines; every 6 000 miles (10 000 km) for direct injection diesel engines and every

5 000 miles (7 500 km) for indirect injection diesel engines.

A Peugeot dealer will carry out a rapid check and top up fluids as necessary (oil, coolant, windscreen wash fluid to

the 2 litre limit).

If the oil level is too low there is a risk of serious damage to the engine : check the engine oil level at least every 2,000

to 3,000 miles (3,000 to 5,000 km), depending on the conditions of use.

This extended servicing has been made possible by modifications to our vehicles and to the lubricants:

THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE

MANUFACTURER.

MAINTENANCE OF YOUR 306

SPECIAL FEATURES

Some of your vehicle’s vital components have specific servicing schedules.

The airbags and the pretensioning seat belts must be replaced every 10 years.

The brake fluid must be replaced every 36/40,000 miles (60,000 km) or every 2 years.

The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).

NB: the coolant does not need to be renewed.

Arduous conditions of use

If the vehicle is used under certain particularly arduous conditions:

• Continuous door-to-door use.

• Town use (e.g. taxi).

• Repeated short journeys, with the engine cold in low temperatures,

Or in long stays under the following conditions:

• Hot countries with temperatures often above 30 °C.

• Cold countries with temperatures often below minus 15 °C.

• Countries with a dusty atmosphere.

• Countries whose lubricants or fuels do not conform to our recommendations.

It is necessary to follow an “Arduous conditions” service schedule which includes special operations and shorter service

intervals:

• Every 12,000 miles (20 000 km) or every year for petrol vehicles.

• Every 9,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.

• Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.

YO U R 306 IN D ETA IL

SERVICE INDICATOR

When the distance remaining before

When a service is overdue.

the next service is less than 1000 km.

For five seconds after the ignition is

This is a reminder of when the next

switched on, the service symbol and

service is due in accordance with the

the excess distance flash.

manufacturer’s maintenance sched-

ule.

Operation

Example:

900 km remain before the

Example: the service is overdue by

The spanner symbolising the service

next service is due.

300 km The vehicle should be ser-

operations comes on for five seconds

For five seconds after the ignition is

viced very soon.

when the ignition is switched on. The

switched on, the display shows:

For five seconds after the ignition is

total distance recorder displays the dis-

switched on, the display shows:

tance remaining

(in round figures)

before the next service.

Example: 4800 km remain before the

next service is due. For five seconds

after the ignition is switched on, the

display shows:

5 seconds after switching on the igni-

tion, the display resumes normal oper-

5 seconds after switching on the igni-

ation and the symbol remains lit.

tion, the display resumes normal oper-

This indicates that a service should

ation and the service symbol remains

5 seconds after switching on the igni-

be carried out shortly. The display

lit. The display shows the total and trip

tion the display resumes normal oper-

shows the total and trip distances.

distances.

ation and shows the total and trip dis-

tances.

YO U R 306 IN D ETA IL

Service intervals

- Switch on the ignition.

Reset

If your vehicle is used in certain par-

- The display begins a 10 second

Your PEUGEOT dealer carries out this

ticularly difficult conditions it is neces-

countdown.

operation after each service.

sary to follow the "Arduous conditions"

- Release the button before the

However, if you service the vehicle

servicing schedule, which involves

countdown finishes.

yourself, reset as follows:

shorter intervals between services

- The service interval is displayed.

(see your Warranty and Maintenance

- Each brief press of button 1 alter-

- Switch off the ignition.

Record booklet).

nates the service intervals.

- Press and hold button 1.

- Switch on the ignition.

Comment: If the time limit between

two services is reached before the rel-

- The display begins a 10 second

evant mileage limit, the service

countdown.

Example:

spanner symbol will light up and the

- Keep button

pressed for

display will show 0.

10 seconds.

- The display shows [= 0] and the

service symbol disappears.

To change the service interval

- When the chosen service interval

- Switch off the ignition.

is displayed, press button

1 for

- Press and hold button 1.

10 seconds (countdown) to confirm.

Content .. 1 2 3 ..
