Peugeot 208 (2017 year). Instruction - part 5

Ease of use and comfort

Sunroof blind

Opening

F Take the blind by its handle and push it

rearward to the desired position.

Locking

F Take the blind by its handle and pull it

forward to the desired position.

Interior fittings

Mats

Fitting

When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.

Ease of use and comfort

Removal

To remove the mat on the driver's side:
F  move the seat as far back as possible,
F  unclip the fixings,
F  remove the mat.

Refitting

To refit the mat on the driver's side:
F  position the mat correctly,
F  put on the fixings again by pressing,
F  check that the mat is secured correctly.

To avoid any risk of jamming of the pedals:
- only use mats which are suited to the

fixings already present in the vehicle;
these fixings must be used,

- never place one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access to
the pedals and hinder the operation of the
cruise control / speed limiter.
The mats approved by PEUGEOT have
two fixings located below the seat.

12 V accessory socket

F To connect a 12 V accessory (maximum

power: 120 Watts), lift the cover and
connect a suitable adaptor.

Do not exceed the maximum power rating
of the socket (risk of damage to your
device).

The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays in
the screens.

USB port/Jack auxiliary socket

This connection box, consisting of a USB port
and a JACK auxiliary socket is located on the
centre console.
You can connect a portable device, such as a
digital audio player e.g. iPod

or USB memory

stick.
It reads the audio files which are transmitted to
your audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them on the screen.

When the USB port is used, the portable
device charges automatically.
While charging, a message is displayed if the
power consumption of the portable device
exceeds the amperage supplied by the vehicle.

Ease of use and comfort

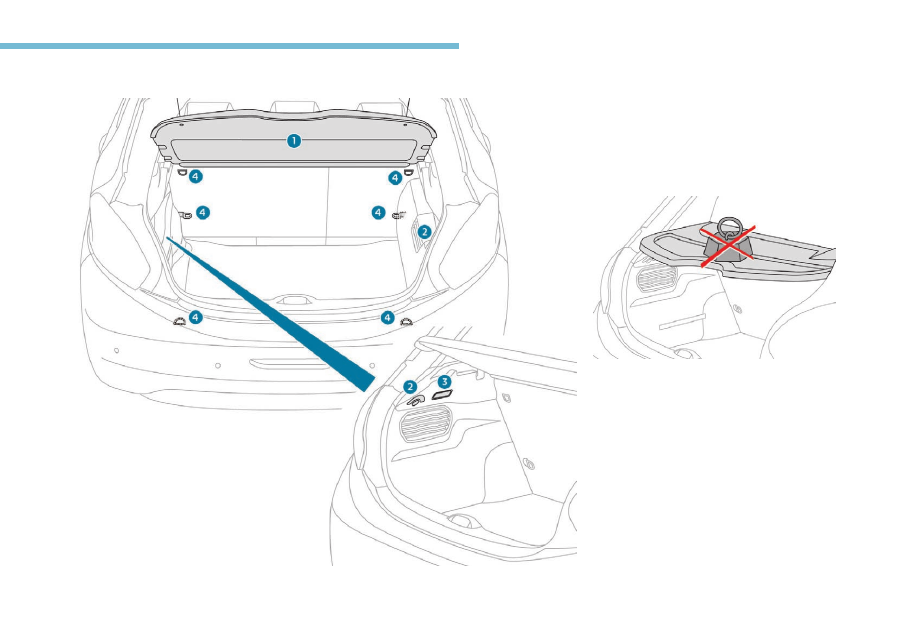

Boot fittings

Rear shelf

Hooks

Boot lamp

Stowing rings (depending on version)

Rear shelf

To remove the shelf:
F unhook the two cords,
F gently lift the shelf, then remove it.

Ease of use and comfort

To stow it:

To refit the shelf:
F engage it on each side of the supports and

slide it until it reaches the notches,

F raise it to refit the two cords.

When sharp deceleration occurs, objects
placed on the load space cover can turn
into projectiles.

- vertically behind the rear seats,
- vertically behind the front seats.

Lighting and visibility

Lighting control stalk

Travelling abroad
If planning to use your vehicle in a country
that drives on the other side of the road,
the headlamp dipped beams must be
adjusted to avoid dazzling oncoming
drivers. Contact a PEUGEOT dealer or a
qualified workshop.

Selection of main lighting
mode

Turn the ring to align the desired symbol with
the marking.

Lighting off (ignition off) / Front
daytime running lamps (engine
running).
Sidelamps only.

Dipped or main beam headlamps.

Automatic illumination of headlamps.

Dipping the headlamps

Pull the lever to switch the lighting between
dipped and main beam headlamps.

In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by keeping the
lever pulled.

Display

Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is on.

Foglamps

The foglamps operate with dipped or main
beam headlamps on.

Rear foglamp only

F To switch it on, turn the ring forwards.
When the lighting is switched off automatically
(version with AUTO lighting), the foglamp and
the dipped beam headlamps will remain on.
F To switch it off, turn the ring rearwards.

In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal surface of the
glass of the headlamps and rear lamps is
normal; it disappears after the lamps have
been on for a few minutes.

Lighting and visibility

Front foglamps and rear foglamp

Rotate and release the ring:
F once forwards to switch on the front

foglamps,

F forwards a second time to switch on the rear

foglamp,

F once rearwards to switch off the rear

foglamp,

F rearwards a second time to switch off the

front foglamps.

If the lighting is switched off automatically
(version with AUTO lighting) or the dipped
beams are switched off manually, the foglamps
and sidelamps remain on.
F Turn the ring rearwards to switch off the

foglamps, the sidelamps will then switch off.

In good or rainy weather, both day and
night, using the front foglamps and the
rear foglamp is prohibited. In these
situations, the power of their beams may
dazzle other drivers. They should only be
used in fog or falling snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped beam headlamps manually as
the sunshine sensor may detect sufficient
light.
Do not forget to turn off the front foglamps
and the rear foglamp as soon as they are
no longer necessary.

Switching off of the lighting when the
ignition is switched off
On switching off the ignition, all of the
lighting turns off immediately, except for
dipped beam if automatic guide-me-home
lighting is activated.

Switching on the lighting after the
ignition is switched off
To reactivate the lighting control, set the
ring to 0 – lamps off, then to the desired
position.
When the driver's door is opened, a
temporary audible signal warns you that
the vehicle's lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically after
a maximum duration of 30 minutes to
prevent discharging of the battery.

Direction indicators

F Lower the lighting control stalk fully when

turning left.

F Raise the lighting control stalk fully when

turning right.

Lighting and visibility

Three flashes

Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash
three times.

This function can be used at any speed,
but it is particularly useful for changing
lane on fast roads.

Automatic illumination of
headlamps

If you forget to cancel the direction
indicators for more than 20 seconds, the
volume of the audible signal will increase if
the speed is above 40 mph (60 km/h).

When a low level of ambient light is detected
by a sunshine sensor, the number plate lamps,
sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver. They can also come
on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the brightness returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.

Switching on

F Turn the ring to the AUTO position.

Activation of the function is accompanied by
a message in the screen.

Switching off

F Turn the ring to another position.

Deactivation of the function is accompanied
by a message in the screen.

In fog or snow, the sunshine sensor may
detect sufficient light. In this case, the
lighting will not come on automatically.
Do not cover the sunshine sensor, linked
with the rain sensor and located in the
centre of the windscreen behind the rear
view mirror; the associated functions
would no longer be controlled.

Automatic guide-me-home
lighting

Association with automatic illumination of
headlamps provides the guide-me-home
lighting with the following additional options:
- selection of the lighting duration of 15, 30 or

60 seconds,

- automatic activation of guide-me-home

lighting when the automatic illumination of
headlamps is in operation.

Lighting and visibility

The guide-me-home lighting can be
configured in the menu Driving /
Vehicle.

In the event of a malfunction of the
sunshine sensor, the lighting comes
on, this warning lamp is displayed
in the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal.
Contact a PEUGEOT dealer or a
qualified workshop.

Manual guide-me-home
lighting

Temporarily keeping the dipped beam
headlamps on after the vehicle's ignition has
been switched off makes the driver's exit easier
when the light is poor.

Switching on

F With the ignition off, "flash" the headlamps

using the lighting stalk.

F A further "headlamp flash" switches the

function off.

Manual guide-me-home lighting
is also available from the remote
control lighting button.

Switching off

Manual guide-me-home lighting goes off
automatically at the end of a given period of
time.

Parking lamps

Side markers for the vehicle by illumination of
the sidelamps on the traffic side only.
F Within one minute after switching off the

ignition, operate the lighting control stalk
up or down depending on the traffic side
(example: parked on the right; lighting
control stalk downwards; the left-hand
sidelamp comes on).

This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or
switch on the ignition.

Lighting and visibility

Headlamp adjustment

To avoid causing a nuisance to other road
users, the height of the headlamp beams
should be adjusted according to the load in the
vehicle.

1 or 2 people in the front seats.

Intermediate setting.

5 people.

5 people + maximum authorised load.

Driver + maximum authorised load.

The initial setting is position 0.

Daytime running lamps/
Sidelamps

In daytime running lamps, the diodes are
brighter.

The front and rear lamps light up automatically
when the engine starts.
They provide the following functions:
- Daytime running lamps (lighting control

stalk at position "0" or "AUTO" with
adequate light level).

- Sidelamps (lighting control stalk in "AUTO"

position with low light levels or "Sidelamps
only" or "dipped/main beam headlamps").

Cornering lighting

With dipped or main beams, this system
makes use of the beam from a front foglamp
to illuminate the inside of a bend, when the
vehicle speed is below 25 mph (approximately
40 km/h) (urban driving, winding road,
intersections, parking manoeuvres, etc.).

Lighting and visibility

Wiper control stalk

In wintry conditions, remove snow, ice or
frost present on the windscreen, around
the wiper arms and blades and the
windscreen seal, before operating the
wipers.

Do not operate the wipers on a dry
windscreen. Under extremely hot or cold
conditions, ensure that the wiper blades
are not stuck to the windscreen before
operating the wipers.

Front wipers

Without cornering lighting

With cornering lighting

Activation

This function operates:
- when the corresponding direction indicator

is switched on,

or
- from a certain angle of rotation of the

steering wheel.

Deactivation

The system does not operate:
- below a certain angle of rotation of the

steering wheel,

- above 25 mph (40 km/h),
- when reverse gear is engaged.

Programming

It is possible to activate or
deactivate the cornering lighting
from the Driving / Vehicle menu.
This function is activated by default.

Lighting and visibility

Fast (heavy rain).

Normal (moderate rain).

Intermittent (proportional to the
speed of the vehicle).

Off.

Single wipe (press down and
release).

Automatic rain sensitive
windscreen wipers

The windscreen wipers operate
automatically, without any action
on the part of the driver, when rain
is detected (sensor behind the rear
view mirror), adapting their speed to
the intensity of the rainfall.

Switching on

Give a short downwards push to the control.
A wiping cycle confirms that the instruction has
been accepted.

This warning lamp comes on in the
instrument panel and a message is
displayed.

Switching off

Give the control stalk a brief push downwards
or shift the control stalk to a different position
(Int, 1 or 2).

This warning lamp goes off in the
instrument panel and a message is
displayed.

The automatic rain sensitive windscreen
wipers must be reactivated by pushing the
control stalk downwards, if the ignition has
been off for more than 1 minute.

If the wipers operate in intermittent mode
when in AUTO mode, have the system
checked by a PEUGEOT dealer or a
qualified workshop.

Lighting and visibility

Do not cover the rain sensor combined
with the sunshine sensor, located at the
top of the windscreen behind the rear view
mirror.
When using an automatic car wash, switch
off the automatic rain sensitive wipers.
In winter, it is advisable to wait until
the windscreen is completely clear of
ice before activating the automatic rain
sensitive wipers.

Front screenwash

Pull the wiper control stalk towards you. The
screenwash and then the wipers operate for a
preset time.

Rear wiper

Off.

Intermittent wipe.

Wash-wipe (set duration).

If a significant accumulation of snow or ice
is present, or when using a bicycle carrier
on the boot, deactivate the automatic rear
wiper via the vehicle configuration menu
or touch screen.

Reverse gear

When reverse gear is engaged, the rear wiper
will come into operation if the windscreen wiper
is operating.

From the Driving / Vehicle menu, it
is possible to activate or deactivate
operation of the rear wiper when
reversing.

Safety

General safety
recommendations

Labels are attached in different places on
your vehicle. They include safety warnings
as well as identification information for
your vehicle. Do not remove them: they
are an integral part of your vehicle.

For any work on your vehicle, use a
qualified workshop that has the technical
information, skills and equipment required,
all of which a PEUGEOT dealer is able to
provide.

We draw your attention to the following
points:
- The fitting of electrical equipment

or accessories not approved by
PEUGEOT may cause excessive
current consumption and faults and
failures with the electrical system of
your vehicle. Contact a PEUGEOT
dealer for information on the range of
recommended accessories.

- As a safety measure, access to

the diagnostic socket, used for the
vehicle's electronic systems, is
reserved strictly for PEUGEOT dealers
or qualified workshops, equipped
with the special tools required (risk
of malfunctions of the vehicle's
electronic systems that could cause
breakdowns or serious accidents).
The manufacturer cannot be held
responsible if this advice is not
followed.

- Any modification or adaptation not

intended or authorised by PEUGEOT
or carried out without meeting the
technical requirements defined by
the manufacturer will result in the
suspension of the legal and contractual
warranties.

Installation of accessory radio
communication transmitters
Before installing a radio communication
transmitter, you must contact a PEUGEOT
dealer for the specification of transmitters
which can be fitted (frequency, maximum
power, aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).

Depending on country regulations, some
safety equipment may be compulsory:
high visibility safety vests, warning
triangles, breathalysers, spare bulbs,
spare fuses, fire extinguisher, first aid kit,
mud flaps at the rear of the vehicle, etc.

Safety

Hazard warning lamps

Visual warning with all of the direction
indicators flashing to alert other road users to a
vehicle breakdown, recovery or accident.

F When you press this button, all of the

direction indicators flash.

It can operate with the ignition off.

Automatic operation of
hazard warning lamps

When braking in an emergency, depending on
the deceleration, the hazard warning lamps
come on automatically.
They switch off automatically the first time you
accelerate.
F You can also switch them off by pressing

the button.

Emergency or assistance
call

Peugeot Connect SOS

** As per the geographic coverage of

"Peugeot Connect SOS", "Peugeot Connect
Assistance" and the official national
language chosen by the owner of the vehicle.

The list of countries covered and PEUGEOT

CONNECT services is available from dealers
or on the website for your country.

In an emergency, press this
button for more than 2 seconds.
The flashing green LED and
the voice message confirm that
the call has been made to the
"Peugeot Connect SOS call
centre*.

Pressing this button again
immediately cancels the call.
The green LED goes off.

The green LED remains on (without flashing)
when communication is established.
It goes off at the end of the call.

"Peugeot Connect SOS" immediately locates
your vehicle, contacts you in your own
language**, and – if necessary – requests the
relevant emergency services be dispatched. In
countries where the service is not available, or
when the locating service has been expressly
declined, the call is sent directly to the
emergency services (112) without the vehicle
location.

* In accordance with the general conditions

of use for the service available from dealers
and subject to technological and technical
limitations.

If an impact is detected by the airbag
control unit, and independently of the
deployment of any airbags, an emergency
call is made automatically.

Safety

If you benefit from the Peugeot Connect
Packs offer with the SOS and assistance
pack included, there are additional
services available to you in your personal
space, via the Internet website for your
country.

Peugeot Connect
Assistance

** As per the geographic coverage of

"Peugeot Connect SOS", "Peugeot Connect
Assistance" and the official national
language chosen by the owner of the vehicle.

The list of countries covered and PEUGEOT

CONNECT services is available from dealers
or at www.peugeot.co.uk.

Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.

A voice message confirms that the call has
been made**.

Pressing this button again
immediately cancels the
request.

The cancellation is confirmed by a voice
message.

Geo-location

You can deactivate geo-location by
simultaneously pressing the "Peugeot Connect
SOS" and "Peugeot Connect Assistance"
buttons, followed by a press on "Peugeot
Connect Assistance" to confirm.

To reactivate geo-location, simultaneously
press the "Peugeot Connect SOS" and
"Peugeot Connect Assistance" buttons again,
followed by a press on "Peugeot Connect
Assistance" to confirm.

Operation of the system

When the ignition is switched
on, the green indicator lamp
comes on for 3 seconds
indicating that the system is
operating correctly.
The orange indicator lamp
flashes then goes off: the
system has a fault.

The orange indicator lamp is permanently on:
the back-up battery should be replaced.

The system's fault does not prevent the
vehicle from being driven.

In both cases, the emergency and assistance
calls service may not work.
Contact a qualified repairer as soon as
possible.

Safety

If you purchased your vehicle outside the
Brand network, we invite you to have the
configuration of these services checked
and, if desired, have a dealer change it to
suit your wishes. In a multilingual country,
configuration is possible in the official
national language of your choice.

For technical reasons, particularly
to improve the quality of PEUGEOT
CONNECT services to customers, the
manufacturer reserves the right to carry
out updates to the vehicle's on-board
telematic system.

Electronic stability control
(ESC)

Electronic stability control (ESC) comprising
the following systems:
- anti-lock braking system (ABS) and

electronic brake force distribution (EBFD),

- emergency braking assistance (EBA),
- wheel anti-slip regulation (ASR) or traction

control,

- dynamic stability control (DSC).

It is triggered in relation to the speed at which
the brake pedal is pressed. This is felt by a
reduction in the resistance of the pedal and an
increase in the effectiveness of the braking.

Anti-slip regulation (ASR)

The ASR system (also known as Traction
Control) optimises traction in order to limit
wheel slip by acting on the brakes of the driving
wheels and on the engine. It also improves
the directional stability of the vehicle on
acceleration.

Dynamic stability control (DSC)

If there is a difference between the path
followed by the vehicle and that required by
the driver, the DSC monitors each wheel and
automatically acts on the brake of one or more
wheels and on the engine to return the vehicle
to the required path, within the limits of the laws
of physics.

Definitions

Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)

This system improves the stability and
manoeuvrability of your vehicle when braking
and contributes towards improved control on
corners, in particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the event of
emergency braking.
The electronic brake force distribution system
manages the braking pressure wheel by wheel.

Emergency braking assistance
(EBA)

In an emergency, this system enables you to
reach the optimum braking pressure more
quickly and therefore reduce the stopping
distance.

Content .. 3 4 5 6 ..
