Peugeot 206 CC (2006 year). Instruction - part 9

115

Practical information

01-01-2006



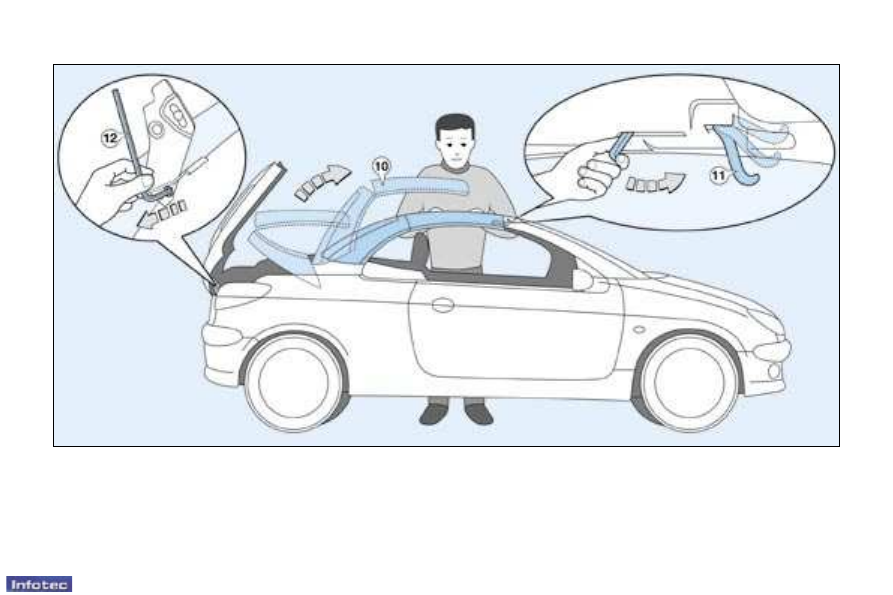

Take hold of the roof

10, unfold it

(a signiﬁcant amount of force is

necessary) and bring it into contact

with the windscreen aperture.



Lock the roof using the two hooks

11.



Take the Allen key out of the

eye

12, while holding the boot

lid, then fold it down slowly and

steadily, without trying to lock it.

116 - Practical information

01-01-2006



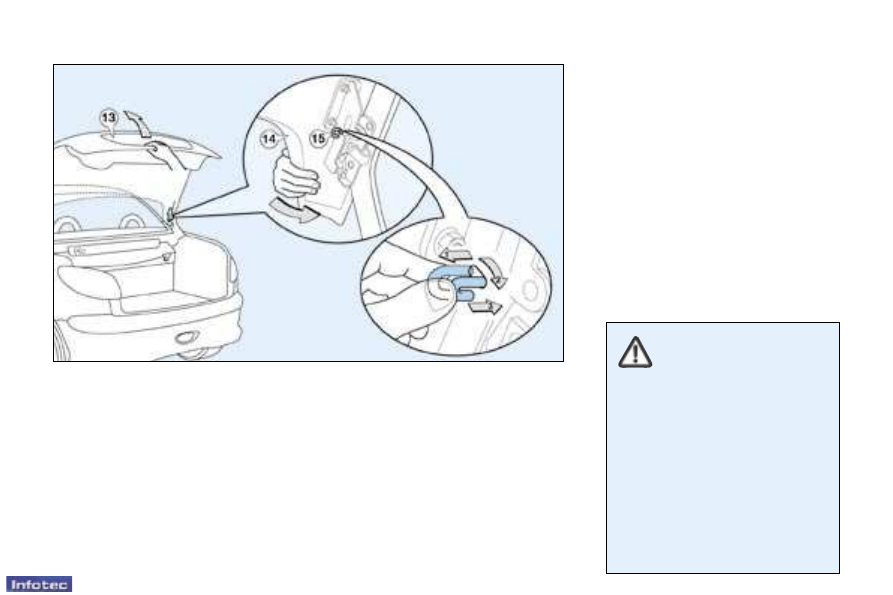

Open the boot lid

13.



While pressing the end of the boot

lid

14 ﬁrmly, pull the white clip 15

(located above the catch).

Turn the white clip a quarter turn

downwards, then push it into its

locking hole (repeat this operation

on the other side of the lid).



Close the boot lid.

Contact a PEUGEOT dealer to have

the system checked.

The roof must not be

operated while a loaded

luggage-holder is ﬁtted on

the boot lid.

When closing the roof, to

prevent risk of injury, ensure that

no-one is in the proximity of the

moving parts.

In the event of danger, release

the control button; the operation

will stop immediately. You can

resume the cycle before the

audible signal ceases.

Closing the roof in the

event of the windows

malfunctioning

When the side windows cannot open

completely, operation of the roof is

impossible; however, it is possible to

close it by carrying out the following

operations simultaneously:


with the ignition switched off,

press or pull both control buttons

for the windows (2nd notch);



place the ignition key in the

running position

(2nd notch),

without releasing the window

control buttons;



after four seconds, when an

audible signal is heard, press the

roof control button;



when the roof control button has

been pressed for six seconds,

the roof closes; the end of the

operation is indicated by an

audible signal;



lock the roof using the two hooks

11.

Contact a PEUGEOT dealer to have

the system checked.

117

Practical information

01-01-2006

206 CC ACCESSORIES

For your PEUGEOT only use

accessories and original parts

approved by the manufacturer.

These accessories and parts are

all adapted to your PEUGEOT,

after being tested and approved

for reliability and safety, which

PEUGEOT cannot guarantee for

other products.

A wide choice of original accessories,

approved by PEUGEOT, is available

through the dealer network. They all

carry the PEUGEOT guarantee:

Travel and Leisure: Towbar, boot

luggage rack, boot tray,...

Exterior style: Alloy wheels, trims,

mud ﬂaps, sports exhaust, ...

Technology: Audio/telephone, sat-

ellite navigation system, CD chang-

ers, audio systems, speakers, audio

trim, ...

Safety: Anti-theft alarm,

lift detection

alarm, window engraving, wheel

locks, warning triangle, first aid kit,

high visibility jacket, snow chains,

booster seats and child seats, Isofix

Kiddy seat,...

Before fitting an electrical

accessory in your vehicle,

consult

PEUGEOT

dealer.

Interior equipment: Covers suitable

for side air bags, mats, can holder,

CD or cassette storage, aluminium

and wood panel trim,

anti-air swirl

net, ...

Note:
To prevent the mat from becoming

caught under the pedals:

- ensure that the mat is positioned

and secured correctly,

- never ﬁt one mat on top of another.

118 - Technical data

01-01-2006

MODELS

Model codes

PETROL

DIESEL

2DNFUA

2DNFUB

2DRFNA

2D9HZA

ENGINES

1.6 litre 16V

2 litre 16V

1.6 litre 16V

turbo HDI

Cubic capacity (cm

)

1587

1997

1560

Bore x stroke (mm)

78.5 x 82

85 x 88

75 x 88.3

EU standard maximum power (kW)

100

Maximum power at engine speed (rpm)

5800

6000

4000

EU standard maximum torque (Nm)

147

190

240

(overboost 260)

Maximum torque at engine speed (rpm)

4000

4100

1750

(overboost 2000)

Fuel

Unleaded

Diesel

Catalytic converter

Yes

Gearbox

Manual

(5 speed)

Automatic

(4 speed)

Manual

(5 speed)

Manual

(5 speed)

Unit capacities (in litres)
Engine (with cartridge replacement)

4.25

3.85

Gearbox-Final drive

1.9

ENGINES AND GEARBOXES

119

Technical data

01-01-2006

In accordance with EC Directive 80/1268 (as amended) M.P.G. (litres/100 km)

Engines

Gearbox

Model codes

Urban driving

Inter-urban

Mixed

Emission of

CO2 by weight

g/km

1.6 litre 16V

Manual

2DNFUA

30.4 (9.3)

48.7 (5.8)

40.4 (7.0)

166

1.6 litre 16V

Automatic

2DNFUB

27.4 (10.3)

48.7 (5.8)

37.6 (7.5)

179

2 litre 16V

Manual

2DRFNA

26.0 (10.9)

44.1 (6.4)

35.3 (8.0)

191

1.6 litre 16V

turbo HDI

Manual

2D9HZA

46.3 (6.1)

67.3 (4.2)

57.6 (4.9)

129

CONSUMPTION

Fuel consumption values correct at time of printing. These consumption values are established in accordance with EC

Directive 80/1268 (as amended). They may vary depending upon circumstances: handling of the vehicle, trafﬁc and weather

conditions, loading of the vehicle, vehicle maintenance and the use of accessories.

120 - Technical data

01-01-2006

Engines

PETROL

DIESEL

1.6 litre 16V

2 litre 16V

1.6 litre 16V

turbo HDI

Gearbox

Manual

Automatic

Manual

Model codes

2DNFUA

2DNFUB

2DRFNA

2D9HZA

• Kerb weight

1215

1252

1227

1343

• Gross vehicle weight (GVW)

1535

1572

1562

1590

• Gross train weight (GTW)*

2435

2472

2462

2490

• Unbraked trailer

600

• Braked trailer (within GTW)

1100

• Recommended nose weight

WEIGHTS AND TOWING LOADS (in Kg)

The speed of a towing vehicle is limited to 60 mph (100 km/h)*.

* according to the legislation in force in the country.

121

Technical data

01-01-2006

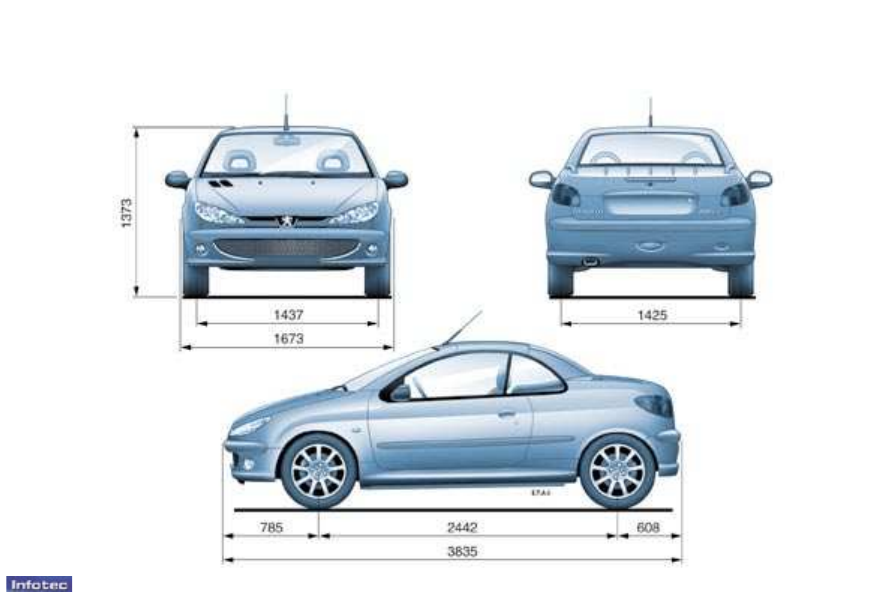

DIMENSIONS (in mm)

122 - Technical data

01-01-2006

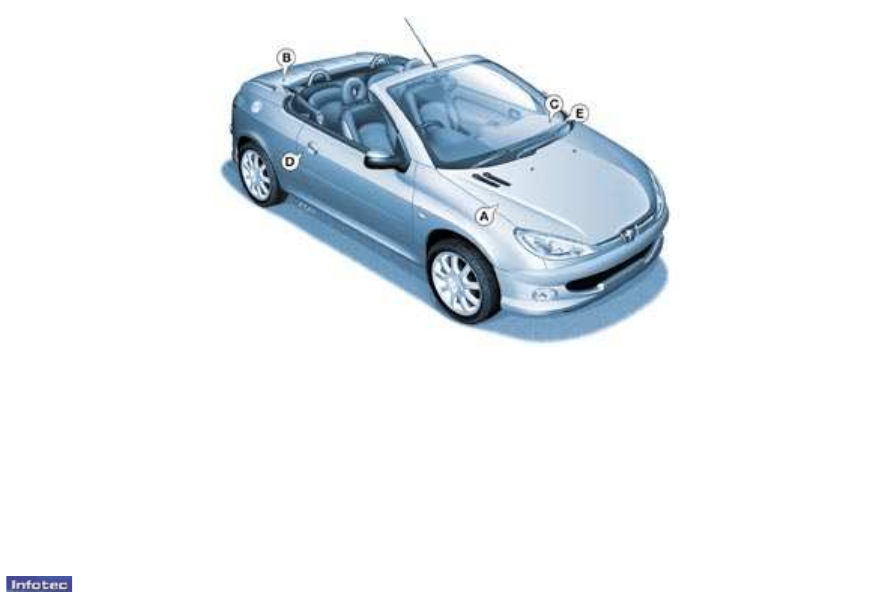

IDENTIFICATION FEATURES OF YOUR 206 CC

D. Tyres

The label

D on the pillar of the

driver’s door, near the hinges,

gives:

- the wheel and tyre sizes,

- the brands of tyres* approved

by the manufacturer,

- the tyre pressures

(the tyre

pressure must be checked

when the tyre is cold, at least

once a month),

the paint colour reference*.

E. Fuel consumption* in the

corner of the windscreen

Tyres of size 205/45 R 16 cannot be

ﬁtted with snow chains, contact a

PEUGEOT dealer.

A. Manufacturer’s plate.

B. Serial number on the

bodywork (in the boot).

C. Serial number on the fascia.

* According to destination.
