Vehicle care

Directional tyres

Fit directional tyres such that they roll

in the direction of travel. The rolling

direction is indicated by a symbol

(e.g. an arrow) on the sidewall.

Tyre pressure

Check the pressure of cold tyres at

least every 14 days and before any

long journey. Do not forget the spare

wheel. This also applies to vehicles

with tyre pressure monitoring system.

Tyre pressure 3 297.

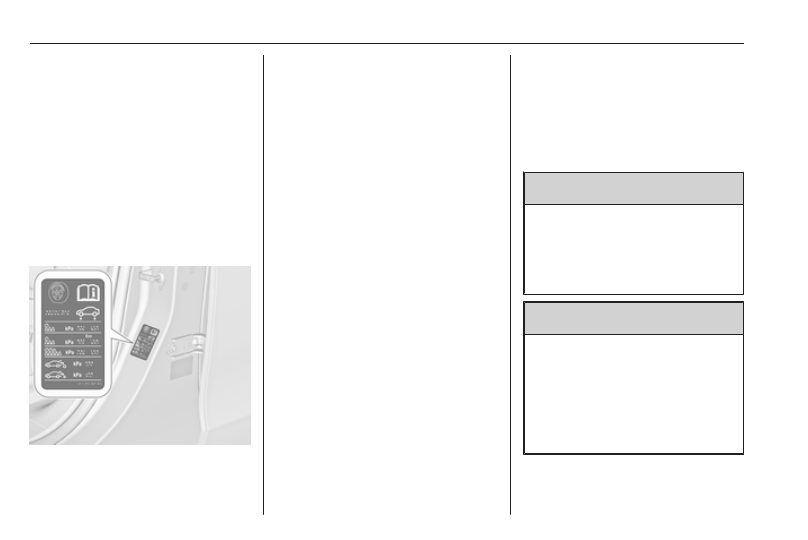

The tyre pressure information label

on the front left or right door frame

indicates the original equipment tyres

and the correspondent tyre

pressures.
The tyre pressure data refers to cold

tyres. It applies to summer and winter

tyres.
Always inflate the spare tyre to the

pressure specified for full load.
The ECO tyre pressure serves to

achieve the smallest amount of fuel

consumption possible.
Incorrect tyre pressures will impair

safety, vehicle handling, comfort and

fuel economy and will increase tyre

wear.
Tyre pressures differ depending on

various options. For the correct tyre

pressure value, follow the procedure

below:

1. Identify the engine identifier code.

Engine data 3 292.

2. Identify the respective tyre.

The tyre pressure tables show all

possible tyre combinations 3 297.

For the tyres approved for your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The driver is responsible for correct

adjustment of tyre pressure.

9 Warning

If the pressure is too low, this can

result in considerable tyre warm-

up and internal damage, leading to

tread separation and even to tyre

blow-out at high speeds.

9 Warning

For specific tyres the

recommended tyre pressure as

shown in the tyre pressure table

may exceed the maximum tyre

pressure as indicated on the tyre.

Never exceed the maximum tyre

pressure as indicated on the tyre.

If the tyre pressure must be reduced

or increased on a vehicle with tyre

pressure monitoring system, switch

Vehicle care

263

off ignition. After adjusting tyre

pressure, switch on ignition and

select the appropriate setting on the

page Tyre load in the Driver

Information Centre, 3 101.

Temperature dependency

The tyre pressure depends on the

temperature of the tyre. During

driving, tyre temperature and

pressure increase. Tyre pressure

values provided on the tyre

information label and tyre pressure

chart are valid for cold tyres, which

means at 20 °C.
The pressure increases by nearly

10 kPa for a 10 °C temperature

increase. This must be considered

when warm tyres are checked.
The tyre pressure value displayed in

the Driver Information Centre shows

the real tyre pressure. A cooled down

tyre will show a decreased value,

which does not indicate an air leak.

Tyre pressure monitoring

system

The tyre pressure monitoring system

checks the pressure of all four tyres

once a minute when vehicle speed

exceeds a certain limit.

Caution

Tyre pressure monitoring system

warns only about low tyre pressure

condition and does not replace

regular tyre maintenance by the

driver.

All wheels must be equipped with

pressure sensors and the tyres must

have the prescribed pressure.

Note

In countries where the tyre pressure

monitoring system is legally

required, the use of wheels without

pressure sensors will invalidate the

vehicle operating permit.

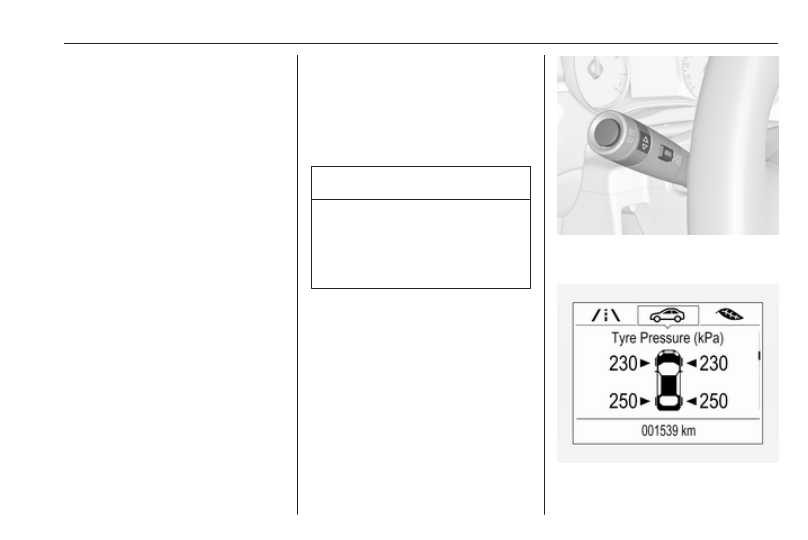

The current tyre pressures can be

shown in the Driver Information

Centre.

Select the menu by the buttons on the

turn signal lever.

264

Vehicle care

Select Tyre pressure page under

Vehicle Information Menu ?

3

 101.

System status and pressure warnings

are displayed by a message

indicating the corresponding tyre in

the Driver Information Centre.
The system considers the tyre

temperature for the warnings.

A detected low tyre pressure

condition is indicated by control

indicator w 3 99.
If w illuminates, stop as soon as

possible and inflate the tyres as

recommended 3 297.
If w flashes for 60-90 seconds and

then illuminates continuously, there is

a fault in the system. Consult a

workshop.

After inflating, some driving may be

required to update the tyre pressure

values in the Driver Information

Centre. During this time w may

illuminate.
If w illuminates at lower temperatures

and extinguishes after some driving,

this could be an indicator for

approaching a low tyre pressure

condition. Check tyre pressure.
Vehicle messages 3 106.
If the tyre pressure must be reduced

or increased, switch off ignition.
Only mount wheels with pressure

sensors, otherwise the tyre pressure

will not be displayed and w

illuminates continuously.
A temporary spare wheel is not

equipped with pressure sensors. The

tyre pressure monitoring system is

not operational for these wheels.

Control indicator w illuminates. For

the further three wheels the system

remains operational.
The use of commercially available

liquid tyre repair kits can impair the

function of the system. Factory-

approved repair kits can be used.

Operating electronic devices or being

close to facilities using similar wave

frequencies could disrupt the tyre

pressure monitoring system.
Each time the tyres are replaced, tyre

pressure monitoring system sensors

must be dismounted and serviced.

For the screwed sensor: replace

valve core and sealing ring. For

clipped sensor: replace complete

valve stem.

Vehicle loading status

Adjust tyre pressure to load condition

according to the tyre information label

or tyre pressure chart 3 297, and

select the appropriate setting in the

Tyre load menu in the Driver

Information Centre 3 101. This

setting is the reference for the tyre

pressure warnings.
The Tyre load menu only appears if

the vehicle is at a standstill and the

parking brake is applied. On vehicles

with automatic transmission the

selector lever has to be in P.

Vehicle care

265

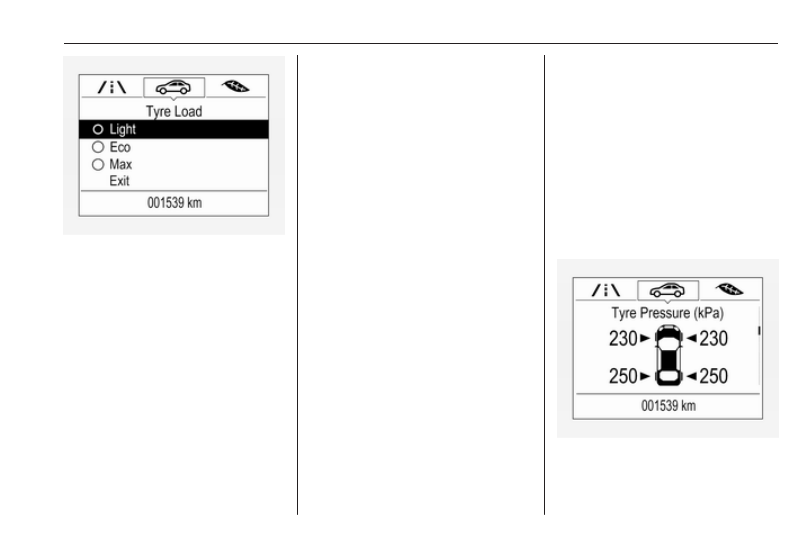

Select Tyre load page under Vehicle

Information Menu ? in the Driver

Information Centre 3 101.
Select:

● Light for comfort pressure up to

3 people.

● Eco for Eco pressure up to

3 people.

● Max for full load.

Tyre pressure sensor matching

process

Each tyre pressure sensor has a

unique identification code. The

identification code must be matched

to a new wheel position after rotating

the wheels or exchanging the

complete wheel set and if one or more

tyre pressure sensors were replaced.

The tyre pressure sensor matching

process should also be performed

after replacing a spare wheel with a

road wheel containing the tyre

pressure sensor.
The malfunction light w and the

warning message or code should

extinguish at the next ignition cycle.

The sensors are matched to the

wheel positions, using a relearn tool,

in the following order: left side front

wheel, right side front wheel, right

side rear wheel and left side rear

wheel. The turn signal light at the

current active position is illuminated

until sensor is matched.
Consult your workshop for service.

There are two minutes to match the

first wheel position, and five minutes

overall to match all four wheel

positions. If it takes longer, the

matching process stops and must be

restarted.
The tyre pressure sensor matching

process is:

1. Apply the parking brake.

2. Turn the ignition on.
3. On vehicles with automatic

transmission: set the selector

lever to P.
On vehicles with manual

transmission: select neutral.

4. Press MENU on the turn signal

lever to select the Vehicle

Information Menu ? in the

Driver Information Centre.

5. Turn the adjuster wheel to scroll to

the tyre pressure menu.

266

Vehicle care

6. Press SET/CLR to begin the

sensor matching process. A

message requesting acceptance

of the process should be

displayed.

7. Press SET/CLR again to confirm

the selection. The horn sounds

twice to indicate the receiver is in

relearn mode.

8. Start with the left side front wheel.
9. Place the relearn tool against the

tyre sidewall, near the valve stem.

Then press the button to activate

the tyre pressure sensor. A horn

chirp confirms that the sensor

identification code has been

matched to this wheel position.

10. Proceed to the right side front

wheel, and repeat the procedure

in Step 9.

11. Proceed to the right side rear

wheel, and repeat the procedure

in Step 9.

12. Proceed to the left side rear

wheel, and repeat the procedure

in Step 9. The horn sounds twice

to indicate the sensor

identification code has been

matched to the left side rear tyre,

and the tyre pressure sensor

matching process is no longer

active.

13. Turn off the ignition.
14. Set all four tyres to the

recommended air pressure level

as indicated on the tyre pressure

information label.

15. Ensure the tyre loading status is

set according to the selected

pressure 3 101.

Tread depth

Check tread depth at regular

intervals.
Tyres should be replaced for safety

reasons at a tread depth of 2-3 mm

(4 mm for winter tyres).
For safety reasons, it is

recommended that the tread depth of

the tyres on one axle should not vary

by more than 2 mm.

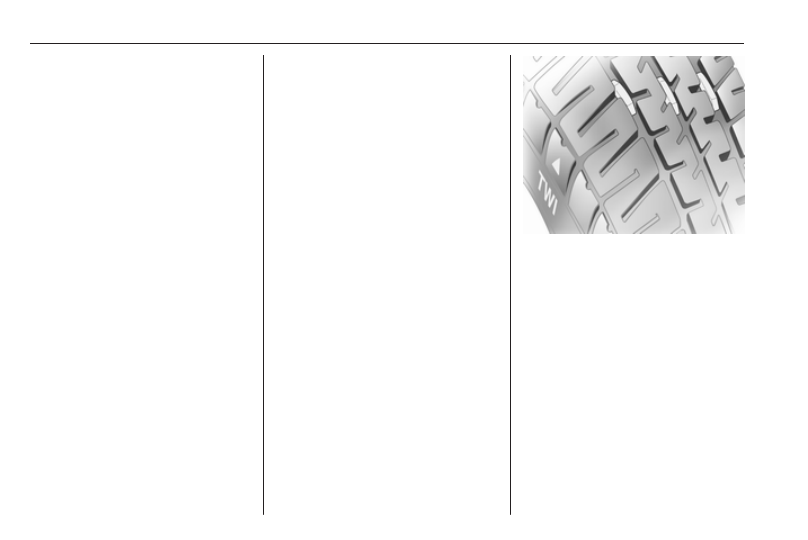

The legally permissible minimum

tread depth (1.6 mm) has been

reached when the tread has worn

down as far as one of the tread wear

indicators (TWI). Their position is

indicated by markings on the

sidewall.
If there is more wear at the front than

the rear, swap round front wheels and

rear wheels periodically. Ensure that

the direction of rotation of the wheels

remains the same.
Tyres age, even if they are not used.

We recommend tyre replacement

every 6 years.

Vehicle care

267

Changing tyre and wheel

size

If tyres of a different size than those

fitted at the factory are used, it may be

necessary to reprogramme the

nominal tyre pressure and make

other vehicle modifications.
After converting to a different tyre

size, have the label with tyre

pressures replaced 3 263.

9 Warning

The use of unsuitable tyres or

wheels may lead to accidents and

will invalidate the vehicle

operating permit.

Wheel covers

Wheel covers and tyres that are

factory approved for the respective

vehicle and comply with all of the

relevant wheel and tyre combination

requirements must be used.
If the wheel covers and tyres used are

not factory approved, the tyres must

not have a rim protection ridge.

Wheel covers must not impair brake

cooling.

9 Warning

Use of unsuitable tyres or wheel

covers could lead to sudden

pressure loss and thereby

accidents.

Vehicles with steel wheels: When

using locking wheel nuts, do not

attach wheel covers.

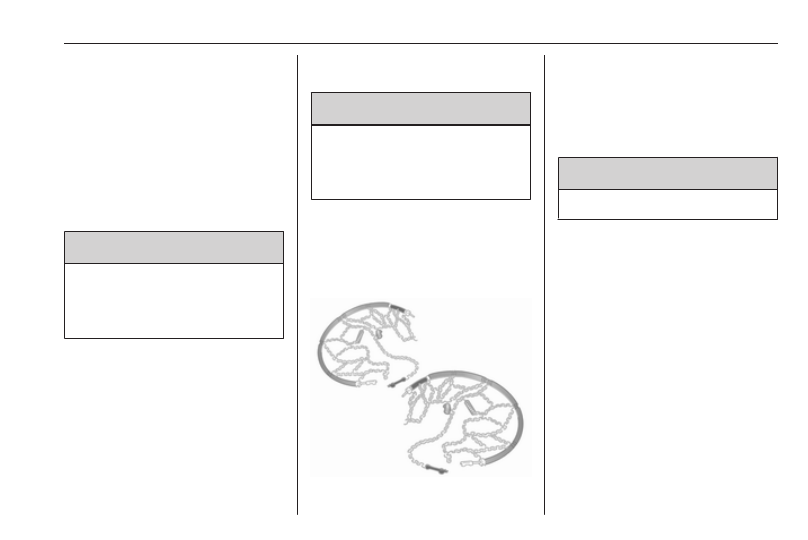

Tyre chains

Tyre chains are only permitted on the

front wheels.
Always use fine mesh chains that add

no more than 10 mm to the tyre tread

and the inboard sides (including chain

lock).

9 Warning

Damage may lead to tyre blowout.

Tyre chains are only permitted on

tyres of size 215/60 R16 and

225/50 R17.
The use of tyre chains is not permitted

on the temporary spare wheel.

Tyre repair kit

Minor damage to the tyre tread can be

repaired with the tyre repair kit.
Do not remove foreign bodies from

the tyres.
Tyre damage exceeding 4 mm or that

is at the tyre's sidewall cannot be

repaired with the tyre repair kit.

268

Vehicle care

9 Warning

Do not drive faster than 80 km/h.
Do not use for a lengthy period.
Steering and handling may be

affected.

If you have a flat tyre:
Apply the parking brake and engage

first gear, reverse gear or P.

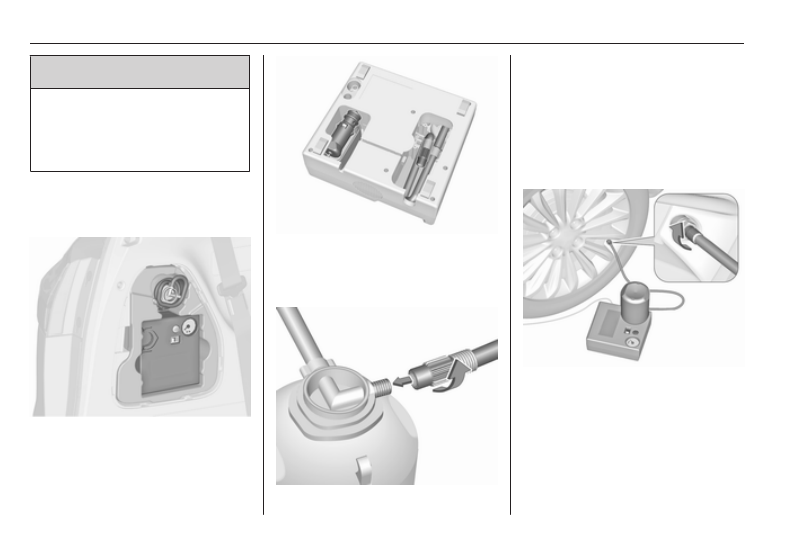

The tyre repair kit is on the left side in

the load compartment behind a cover.

1. Take the tyre repair kit from the

compartment.

2. Remove the compressor.

3. Remove the electrical connection

cable and air hose from the

stowage compartments on the

underside of the compressor.

4. Screw the compressor air hose to

the connection on the sealant

bottle.

5. Fit the sealant bottle into the

retainer on the compressor.
Set the compressor near the tyre

in such a way that the sealant

bottle is upright.

6. Unscrew valve cap from defective

tyre.

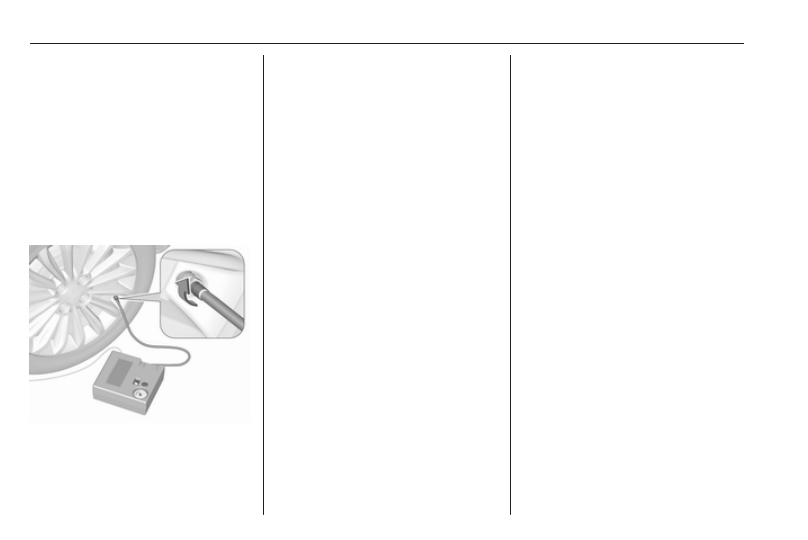

7. Screw the filler hose to the tyre

valve.

8. The switch on the compressor

must be set to J.

Vehicle care

269

9. Connect the compressor plug to

the power outlet or cigarette

lighter socket.
To avoid discharging the battery,

we recommend running the

engine.

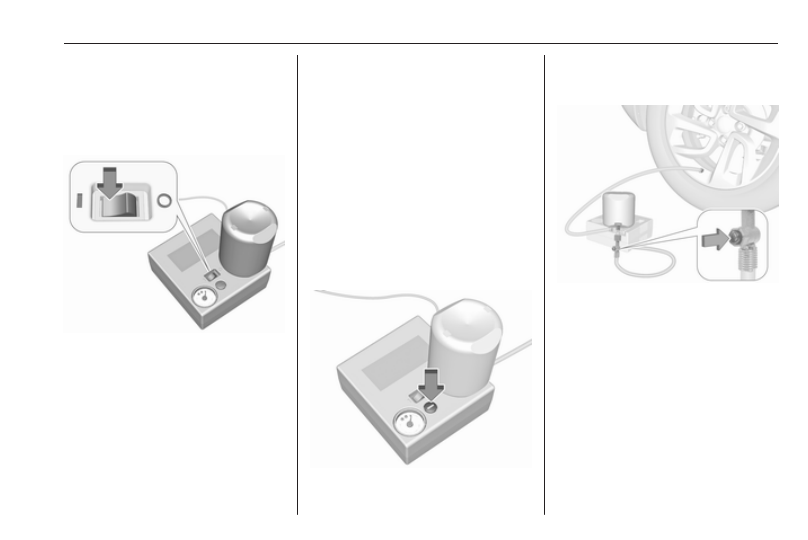

10. Set the rocker switch on the

compressor to I. The tyre is filled

with sealant.

11. The compressor pressure gauge

briefly indicates up to six bar

whilst the sealant bottle is

emptying (approx. 30 seconds).

Then the pressure starts to drop.

12. All of the sealant is pumped into

the tyre. Then the tyre is inflated.

13. The prescribed tyre pressure

should be obtained within 10 min.

Tyre pressure 3 297. When the

correct pressure is obtained,

switch off the compressor.
If the prescribed tyre pressure is

not obtained within 10 min,

remove the tyre repair kit. Move

the vehicle one tyre rotation.

Reattach the tyre repair kit and

continue the filling procedure for

10 min. If the prescribed tyre

pressure is still not obtained, the

tyre is too badly damaged. Seek

the assistance of a workshop.

Drain excess tyre pressure with

the button over the pressure

indicator.

Depending on version the button

can be located on the air hose.
Do not run the compressor longer

than 10 min.

14. Detach the tyre repair kit. Push

catch on bracket to remove

sealant bottle from bracket. Screw

the tyre inflation hose to the free

connection of the sealant bottle.

This prevents sealant from

escaping. Stow tyre repair kit in

load compartment.

15. Remove any excess sealant

using a cloth.

270

Vehicle care

16. Take the label indicating

maximum permitted speed from

the sealant bottle and affix in the

driver's field of view.

17. Continue driving immediately so

that sealant is evenly distributed

in the tyre. After driving approx.

10 km (but no more than 10 min),

stop and check tyre pressure.

Screw compressor air hose

directly onto tyre valve and

compressor when doing this.

If tyre pressure is more than

1.3 bar, set it to the correct value.

Repeat the procedure until there

is no more loss of pressure.

If the tyre pressure has fallen

below 1.3 bar, the vehicle must

not be used. Seek the assistance

of a workshop.

18. Stow away tyre repair kit in load

compartment.

Note

The driving characteristics of the

repaired tyre are severely affected,

therefore have this tyre replaced.
If unusual noise is heard or the

compressor becomes hot, turn

compressor off for at least 30 min.
The built-in safety valve opens at a

pressure of 7 bar.
Note the expiry date of the kit. After

this date its sealing capability is no

longer guaranteed. Pay attention to

storage information on sealant

bottle.
Replace the used sealant bottle.

Dispose of the bottle as prescribed

by applicable laws.
The compressor and sealant can be

used from approx. -30 °C.
The adapters possibly supplied can

be used to pump up other items e.g.

footballs, air mattresses, inflatable

dinghies etc. They can be located on

the underside of the compressor. To

remove, screw on compressor air

hose and withdraw adapter.

Wheel changing

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● Apply the parking brake and

engage first gear, reverse gear or

P.

● If the ground on which the vehicle

is standing is soft, a solid board

(max. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

Vehicle care

271

● Do not start the vehicle when it is

raised on the jack.

● Clean wheel nuts and thread with

a clean cloth before mounting the

wheel.

9 Warning

Do not grease wheel bolt, wheel

nut and wheel nut cone.

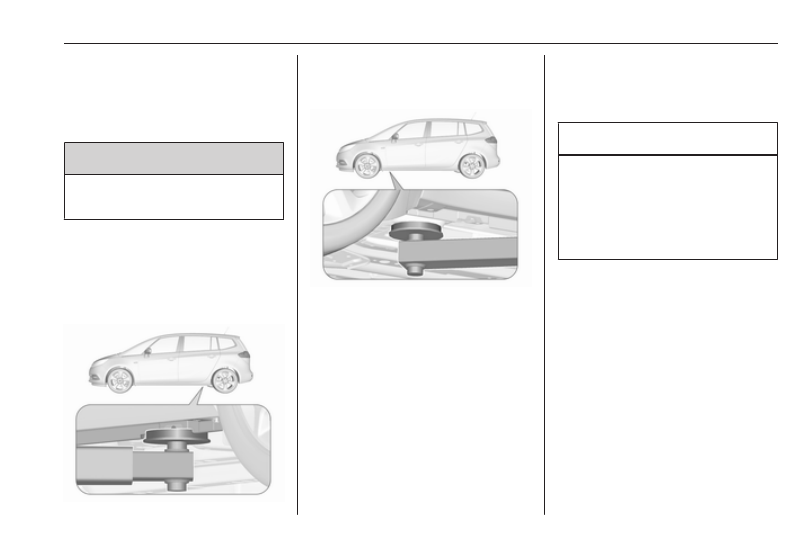

Jacking positions

The jacking positions shown refer to

the use of lifting arms and accessory

jacks used for changing winter /

summer tyres.

Rear arm position of the lifting

platform centrically under the recess

of the sill.

Front arm position of the lifting

platform at the underbody.

Spare wheel

The spare wheel can be classified as

a temporary spare wheel depending

on the size compared to the other

mounted wheels and country

regulations. In this case a permissible

maximum speed applies, even

though no label at the spare wheel

indicates this.

Only mount one temporary spare

wheel. Do not drive faster than

80 km/h. Take curves slowly. Do not

use for a long period of time.

Caution

The use of a spare wheel that is

smaller than the other wheels or in

combination with winter tyres

could affect driveability. Have the

defective tyre replaced as soon as

possible.

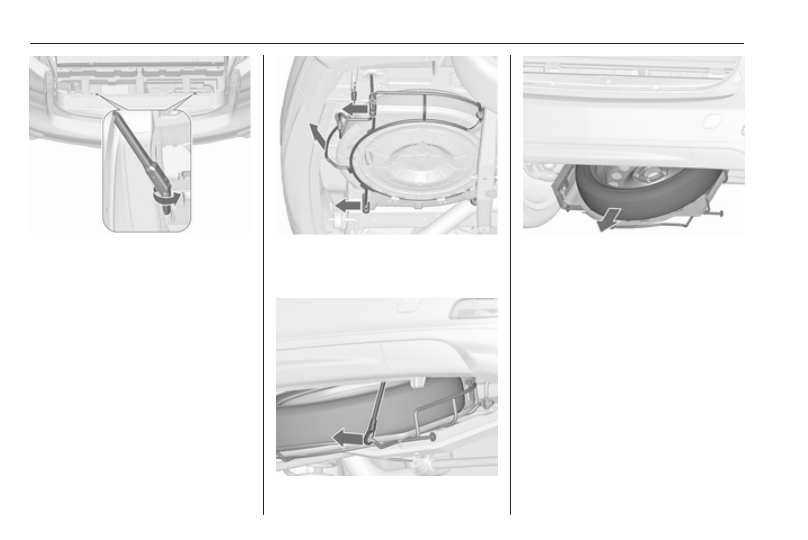

The spare wheel is located in a holder

beneath the vehicle floor.

1. Open the storage in the load

compartment 3 261.

2. Remove both caps above the

hexagon bolts.

272

Vehicle care

3. Fit the wheel wrench on one

hexagon bolt and turn it

anticlockwise until a resistance is

noticeable.

4. Proceed with the other hexagon

bolt in the same way.

5. Lift the spare wheel holder and

unhook both catches.

6. Lower the spare wheel holder.

7. Detach the safety cable.

8. Lower holder all the way and

remove spare wheel.

9. Change the wheel.

The damaged wheel must be

secured in the load compartment,

see below.

10. Lift the empty spare wheel holder

and insert the safety cable.

11. Lift the spare wheel holder further

and engage in both catches. The

open sides of the catches must

point in the direction of travel.

12. Close the empty spare wheel

holder by turning both hexagon

bolts clockwise using the wheel

wrench.

Vehicle care

273

13. Fit the caps above both hexagon

bolts.

14. Stow wheel wrench and the jack

in the storage in front of the

tailgate.

15. Close the storage compartment

cover.

When stowing the spare wheel in the

spare wheel holder, note that the

wheel is positioned with the tyre valve

above the recess of the wheel holder.

Fitting the spare wheel

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● If necessary, place a chock under

the wheel diagonally opposite the

wheel to be changed.

● Apply the parking brake and

engage first gear, reverse gear or

P.

● Remove the spare wheel 3 271.

● Never change more than one

wheel at once.

● Use the jack only to change

wheels in case of puncture, not

for seasonal winter or summer

tyre change.

● The jack is maintenance-free.
● If the ground on which the vehicle

is standing is soft, a solid board

(max. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

● Clean wheel nuts and thread with

a clean cloth before mounting the

wheel.

9 Warning

Do not grease wheel bolt, wheel

nut and wheel nut cone.

9

Warning

Ensure to use always the correct

wheel bolts if changing the

wheels. When installing the spare

wheel, the bolts for alloy wheels

can also be used.

1. Disengage wheel bolt caps with a

screwdriver and remove.
Steel wheels with cover: Pull off

the wheel cover.
Alloy wheels: Disengage wheel

bolt caps with a screwdriver and

remove. To protect the wheel,

place a soft cloth between the

screwdriver and the alloy wheel.

274

Vehicle care

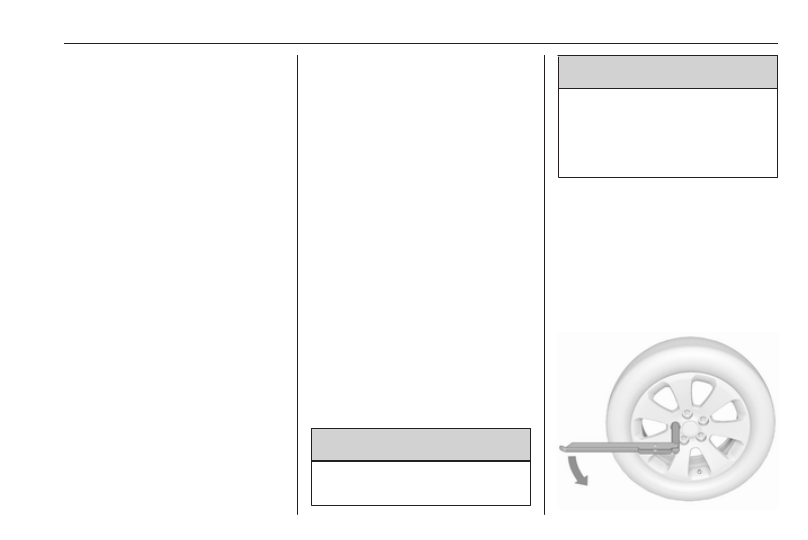

2. Fold out the wheel wrench and

install ensuring that it locates

securely and loosen each wheel

nut by half a turn.
The wheels might be protected by

locking wheel nuts. To loosen

these specific nuts first attach the

adapter onto the head of the nut

before installing the wheel

wrench. The adapter is located in

the glovebox.

3. Some versions may have covered

the vehicle jacking point. Pull out

the cover sideways.

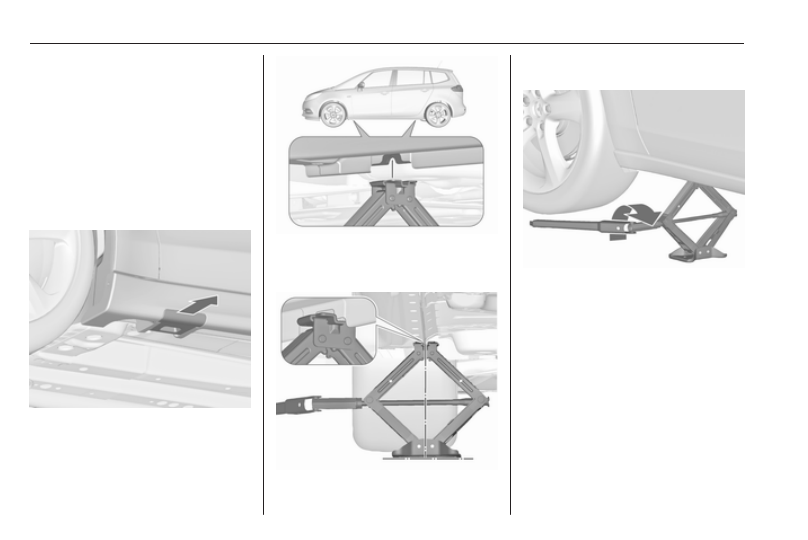

4. Ensure the jack is correctly

positioned under the relevant

vehicle jacking point.

5. Set the jack to the necessary

height. Position it directly below

the jacking point in a manner that

prevents it from slipping.

Attach wheel wrench and with the

jack correctly aligned rotate wheel

wrench until wheel is clear of the

ground.

6. Unscrew the wheel nuts.
7. Change the wheel. Spare wheel

3

 271

8. Screw on the wheel nuts.
9. Lower the vehicle and remove

jack.

Vehicle care

275

10. Install the wheel wrench ensuring

that it is located securely and

tighten each nut in a crosswise

sequence. Tightening torque is

140 Nm.

11. Align the valve hole in the wheel

cover with the tyre valve before

installing.
Install wheel nut caps.

12. Install vehicle jacking point cover.
13. Stow the replaced wheel 3 271,

the vehicle tools 3 261 and the

adapter for the locking wheel nuts

3

 62.

14. Check the tyre pressure of the

installed tyre and the wheel nut

torque as soon as possible.

Stowing a damaged full size

wheel in the load compartment

The spare wheel holder is not

designed for other tyre sizes than the

spare wheel.
A damaged wheel wider than the

spare wheel must be stowed in the

load compartment and secured with a

strap. Vehicle tools 3 261.

The seats of the third row must be

folded down 3 66.

1. Position the wheel close to the left

sidewall of the load compartment.

2. Place the loop end of the strap

through the front lashing eye on

the left side.

3. Place the hook end of the strap

through the loop and pull it until

the strap is fastened securely to

the lashing eye.

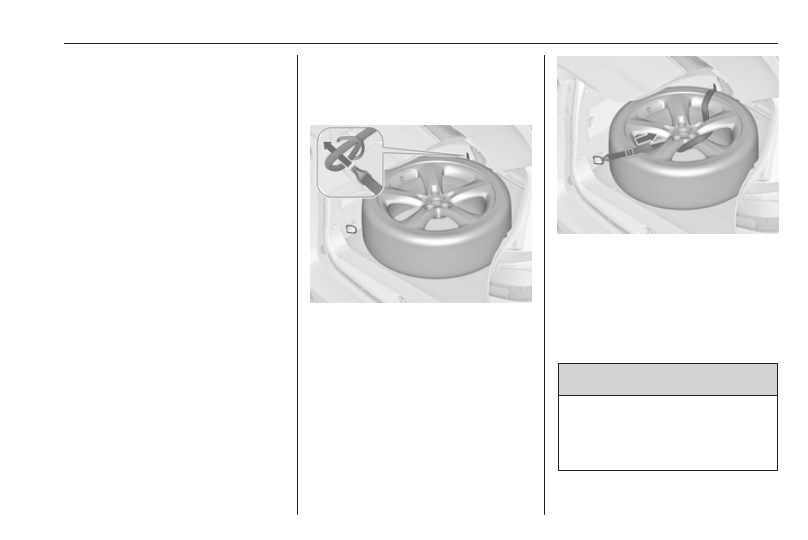

4. Insert the strap through the

spokes of the wheel as shown in

the illustration.

5. Mount the hook to the rear left

lashing eye.

6. Tighten the strap and secure it

using the buckle.

9 Danger

Always drive with folded up and

engaged rear seat backrests when

stowing a damaged full size wheel

in the load compartment.

276

Vehicle care

9 Warning

Storing a jack, a wheel or other

equipment in the load

compartment could cause injury if

they are not fixed properly. During

a sudden stop or a collision, loose

equipment could strike someone.
Always store jack and tools in the

respective storage compartments

and secure them by fixing.
Damaged wheel placed in the load

compartment must always be

secured with the strap.

Spare wheel with directional tyre

If possible, fit directional tyres such

that they roll in the direction of travel.

The rolling direction is indicated by a

symbol (e.g. an arrow) on the

sidewall.

The following applies to tyres fitted

opposing the rolling direction:

● Driveability may be affected.

Have the defective tyre renewed

or repaired as soon as possible

and fit it instead of the spare

wheel.

● Drive particularly carefully on wet

and snow-covered road

surfaces.

Jump starting

Do not start with quick charger.
A vehicle with a discharged battery

can be started using jump leads and

the battery of another vehicle.
Do not start with quick charger.

9 Warning

Be extremely careful when starting

with jump leads. Any deviation

from the following instructions can

lead to injuries or damage caused

by battery explosion or damage to

the electrical systems of both

vehicles.

9 Warning

Avoid contact of the battery with

eyes, skin, fabrics and painted

surfaces. The fluid contains

sulphuric acid which can cause

injuries and damage in the event

of direct contact.

Vehicle care

277

● Never expose the vehicle battery

to naked flames or sparks.

● A discharged vehicle battery can

already freeze at a temperature

of 0 °C. Defrost the frozen vehicle

battery before connecting jump

leads.

● Wear eye protection and

protective clothing when

handling a battery.

● Use a booster vehicle battery

with the same voltage (12 Volt).

Its capacity (Ah) must not be

much less than that of the

discharged vehicle battery.

● Use jump leads with insulated

terminals and a cross section of

at least 16 mm

2

 (25 mm

2

 for

diesel engines).

● Do not disconnect the discharged

vehicle battery from the vehicle.

● Switch off all unnecessary

electrical consumers.

● Do not lean over the battery

during jump starting.

● Do not allow the terminals of one

lead to touch those of the other

lead.

● The vehicles must not come into

contact with each other during

the jump starting process.

● Apply the parking brake,

transmission in neutral,

automatic transmission in P.

● Open the positive terminal

protection cap of your vehicle in

the engine compartment and of

the booster vehicle battery.

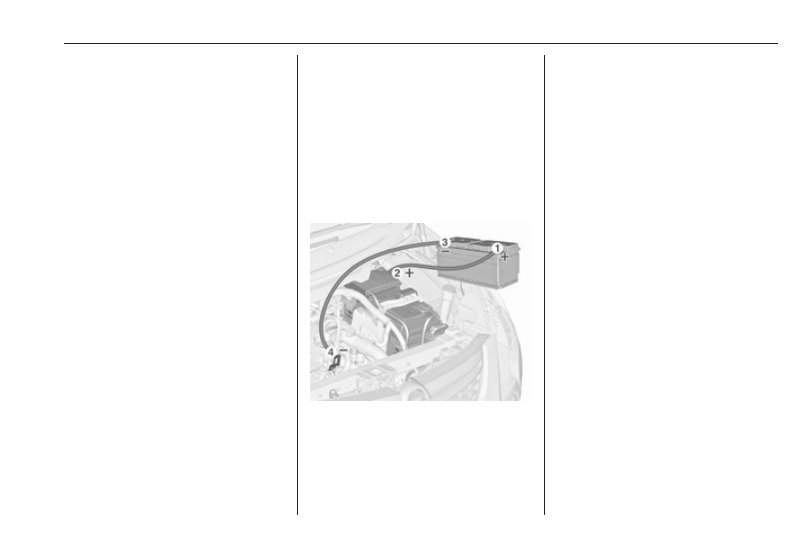

Lead connection order:

1. Connect the red lead to the

positive terminal of the booster

battery.

2. Connect the other end of the red

lead to the positive terminal of the

discharged battery.

3. Connect the black lead to the

negative terminal of the booster

battery.

4. Connect the other end of the black

lead to a vehicle grounding point

of your vehicle in the engine

compartment.

Route the leads so that they cannot

catch on rotating parts in the engine

compartment.
To start the engine:

1. Start the engine of the vehicle

providing the jump.

2. After five minutes, start the other

engine. Start attempts should be

made for no longer than

15 seconds at an interval of one

minute.
