Storage

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

load compartment cover or the

instrument panel, and do not

cover the sensor on top of the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

9 Warning

Always ensure that the load in the

vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or vehicle.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate 3 304) and the EC kerb

weight.
To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than 120 km/

h.

The permissible roof load is

100 kg. The roof load is the

combined weight of the roof rack

and the load.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

87

Instruments and

controls

Controls ....................................... 88

Steering wheel adjustment ........ 88

Steering wheel controls ............. 88

Heated steering wheel ............... 88

Horn ........................................... 89

Windscreen wiper and washer . . 89

Rear window wiper and

washer ...................................... 91

Outside temperature .................. 92

Clock ......................................... 92

Power outlets ............................. 93

Navigation map card port .......... 94

Inductive charging ..................... 94

Ashtrays .................................... 95

Warning lights, gauges and indi‐

cators ........................................... 96

Instrument cluster ...................... 96

Speedometer ........................... 101

Odometer ................................ 102

Trip odometer .......................... 102

Tachometer ............................. 103

Fuel gauge .............................. 103

Engine coolant temperature

gauge ..................................... 104

Service display ........................ 104

Control indicators .................... 105

Turn lights ................................ 105

Seat belt reminder ................... 105

Airbag and belt tensioners ....... 106

Airbag deactivation .................. 106

Charging system ..................... 107

Malfunction indicator light ........ 107

Brake and clutch system ......... 107

Electric parking brake .............. 107

Electric parking brake fault ...... 107

Antilock brake system (ABS) ... 108

Gear shifting ............................ 108

Following distance ................... 108

Lane keep assist ..................... 108

Electronic Stability Control off . 108

Electronic Stability Control and

Traction Control system ......... 108

Traction Control system off ..... 109

Engine coolant temperature .... 109

Preheating ............................... 109

AdBlue ..................................... 109

Tyre pressure monitoring

system .................................... 109

Engine oil pressure .................. 109

Low fuel ................................... 110

Immobiliser .............................. 110

Exterior light ............................ 110

High beam ............................... 110

High beam assist ..................... 110

LED headlights ........................ 110

Front fog lights ......................... 110

Rear fog light ........................... 111

Cruise control .......................... 111

Adaptive cruise control ............ 111

Vehicle detected ahead ........... 111

Pedestrian detection ................ 111

Speed limiter ........................... 111

Traffic sign assistant ................ 111

Door open ................................ 111

Displays ..................................... 112

Driver Information Centre ........ 112

Info Display .............................. 119

Head-up display ...................... 120

Vehicle messages ...................... 123

Warning chimes ....................... 123

Battery voltage ........................ 124

Vehicle personalisation .............. 124
Telematics service ..................... 127

OnStar ..................................... 127

-------------------------------------------------------------------------------------------------------------------------------------------------------------

88

Instruments and controls

Controls

Steering wheel adjustment

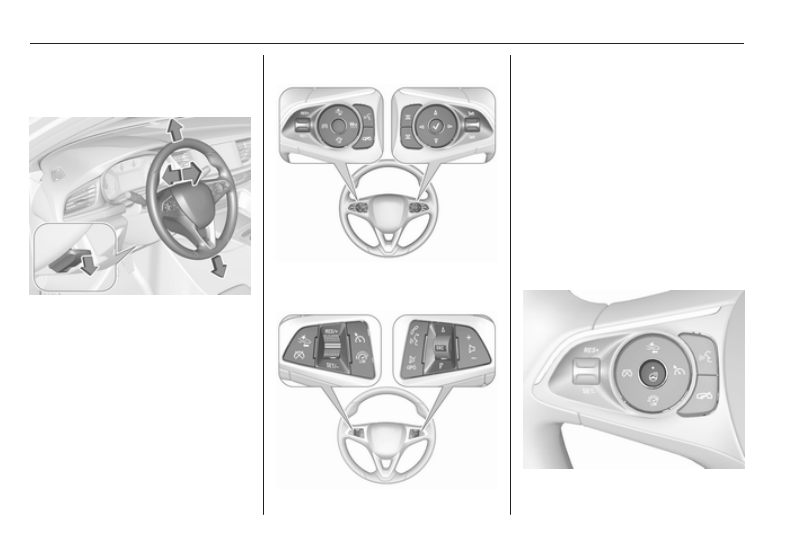

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

The illustrations show different

versions.

Cruise control and speed limiter are

operated via the controls on the left

side of the steering wheel.
Additionally, forward collision alert

can be set by using the controls on the

left side of the steering wheel.
Infotainment system can be operated

via the controls on the steering wheel.
Driver assistance systems 3 203.
Infotainment system 3 145
Driver Information Centre 3 112.

Heated steering wheel

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

89

Activate heating by pressing *.

Activation is indicated by the LED in

the button.
Heating is operational when the

engine is running and during an

Autostop.
Stop-start system 3 182.

Horn

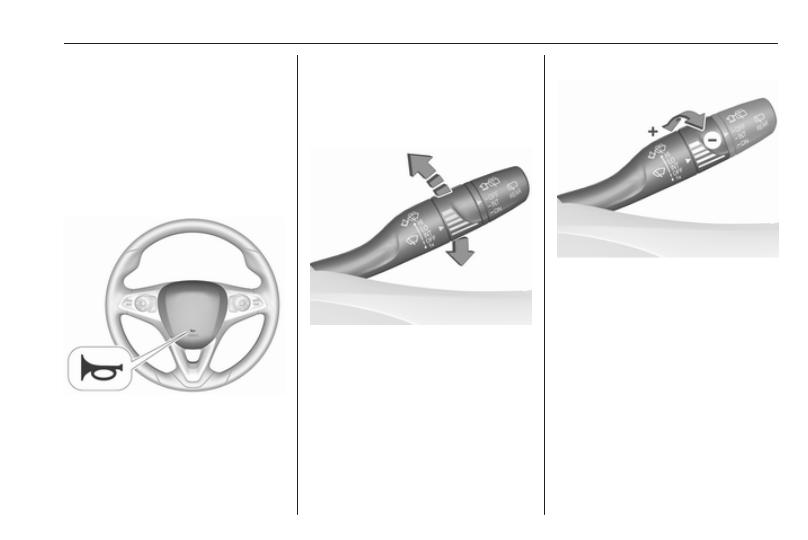

Press j.

Windscreen wiper and

washer

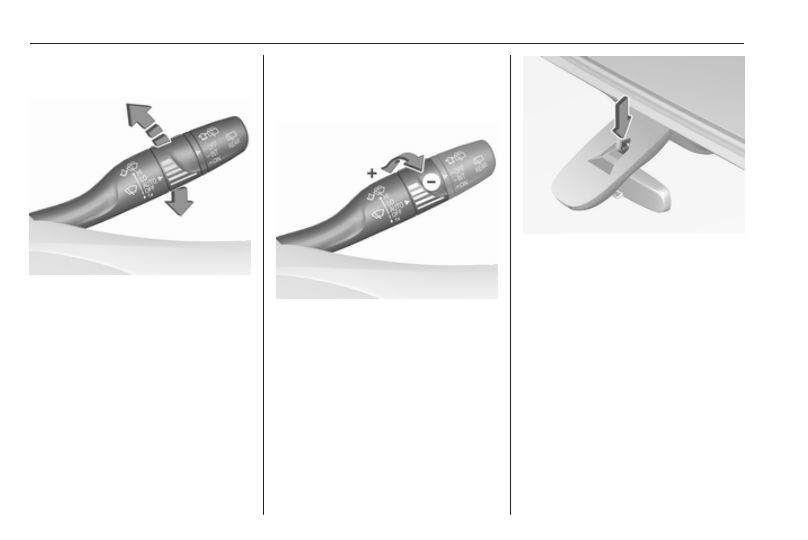

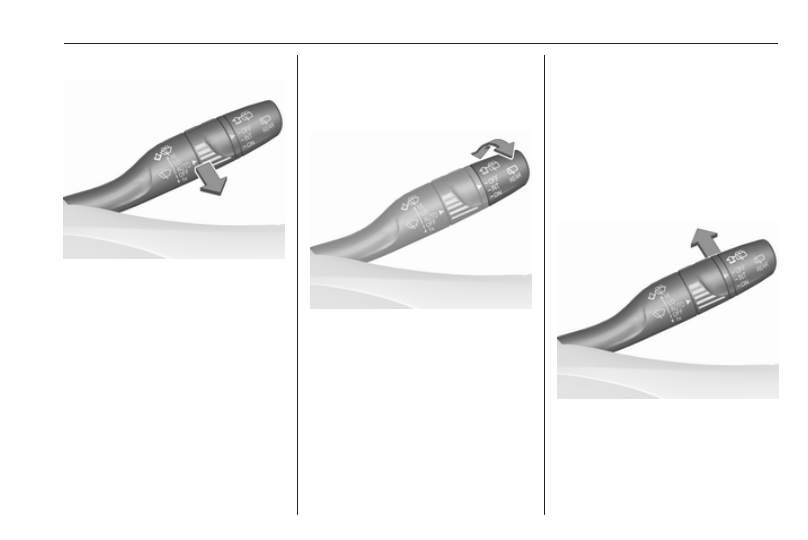

Windscreen wiper with adjustable

wiper interval

HI

: fast

LO : slow

INT : interval wiping

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever downwards to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

wiping frequency.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

90

Instruments and controls

Windscreen wiper with rain

sensor

HI

: fast

LO

: slow

AUTO : automatic wiping with rain

sensor

OFF : off
In AUTO position, the rain sensor

detects the amount of water on the

windscreen and automatically

regulates the frequency of the

windscreen wiper.
For a single wipe when the

windscreen wiper is off, press the

lever downwards to position 1x.
Do not use if the windscreen is frozen.

Switch off in car washes.

Adjustable sensitivity of the rain

sensor

Wiper lever in position AUTO.
Turn the adjuster wheel to adjust the

sensitivity of the rain sensor.

Keep the sensor free from dust, dirt

and ice.
Rain sensor function can be activated

or deactivated in the Vehicle

personalisation.
Select the relevant setting in Settings,

I

 Vehicle in the Info-Display.

Info-Display 3 119.
Vehicle personalisation 3 124.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

91

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.
Washer fluid 3 259.

Rear window wiper and

washer

Rear window wiper

Turn outer cap to activate the rear

window wiper:
OFF : off

INT : intermittent operation

ON : continuous operation
Do not use if the rear window is

frozen.
Switch off in car washes.

The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.
Activation or deactivation of this

function can be changed in the menu

Settings in the Info-Display.
Vehicle personalisation 3 124.

Rear window washer

Push lever.
Washer fluid is sprayed onto the rear

window and the wiper wipes a few

times.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

92

Instruments and controls

The rear window washer system is

deactivated when the fluid level is

low.
Washer fluid 3 259.

Outside temperature

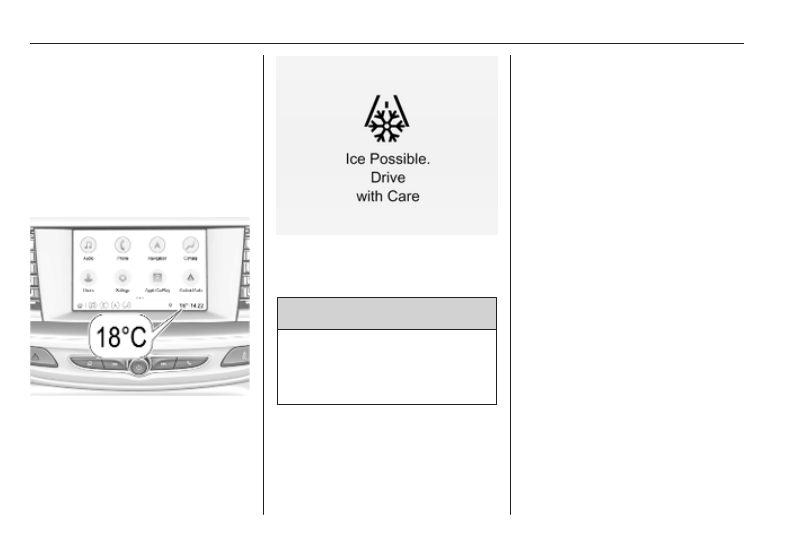

A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.

Illustration shows an example.

If outside temperature drops to 3 °C,

a warning message is displayed in the

Driver Information Centre.

9 Warning

The road surface may already be

icy even though the display

indicates a few degrees above

0 °C.

Clock

Date and time are shown in the Info-

Display 3 119.

8'' Info-Display

Press ! and select Settings.
Select Time/Date.
Time zone, time and date are

provided automatically by default.
All values can be set manually, as

well. Therefore, the automatic set

functions have to be deactivated by

toggeling switch icons beside

Automatic Time and Date and

Automatic Time Zone to "O".

Set time or date

Select Set Time or Set Date to enter

the respective submenu. Adjust

values by touching n or o.
Press O to leave the submenu and

store the new value. Press "x" to

leave without storing.

Set time zone

Select Select Time Zone to enter the

respective submenu. Browse through

list by touching n or o. Select

desired time zone by touching list

entry.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

93

Press O to leave the submenu and

store the new value. Press "x" to

leave without storing.

Set time format

By default, the time is displayed in 24-

hour format. To set 12-hour format,

toggle switch icon beside 24-hour

Format to "O".

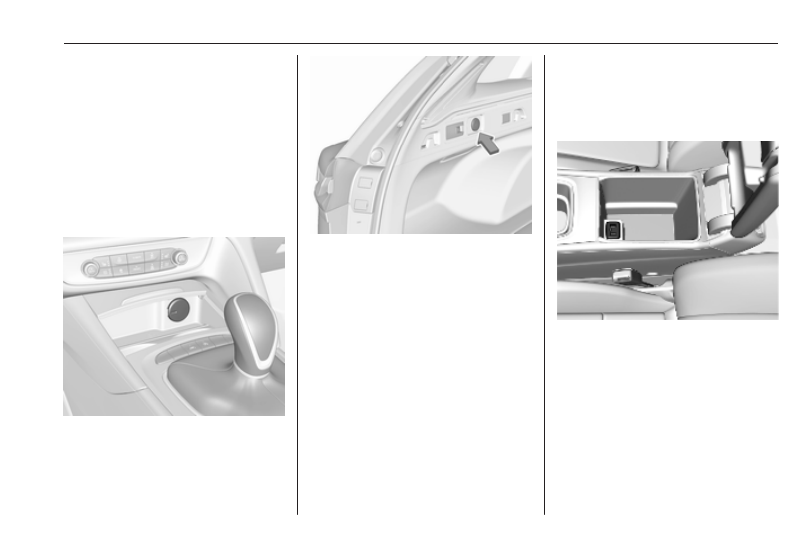

Power outlets

A 12 Volt power outlet is located in the

centre console. With ignition off, this

power outlet is deactivated.

Sports Tourer, Country Tourer: A

12 Volt power outlet is located at the

left sidewall in the load compartment.
With ignition off, this power outlet

remains active.
Do not exceed the maximum power

consumption of 120 watts.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.
Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.

Do not damage the outlets by using

unsuitable plugs.
Stop-start system 3 182.

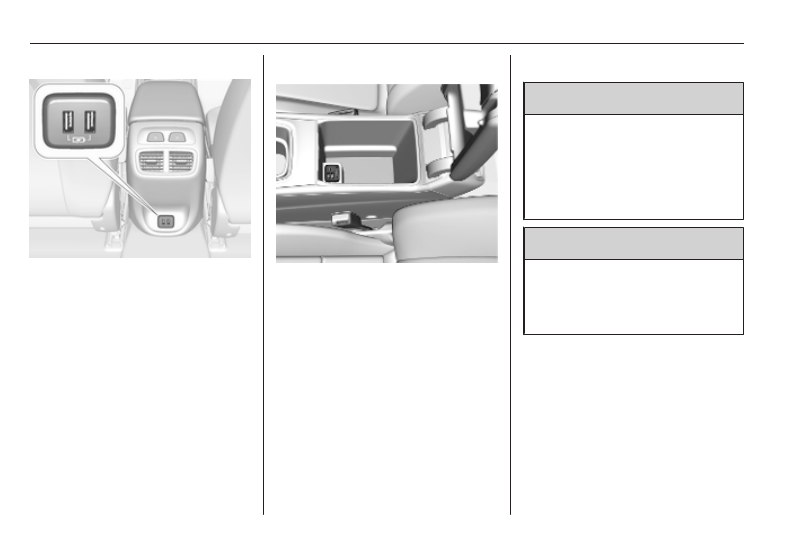

USB ports

Two USB ports for charging devices

are located below the foldable

armrest. These ports have also a data

connection to the Infotainment

system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

94

Instruments and controls

USB charging ports

Two USB ports for charging devices

only are located in the back of the

centre console.

Note

The sockets must always be kept

clean and dry.

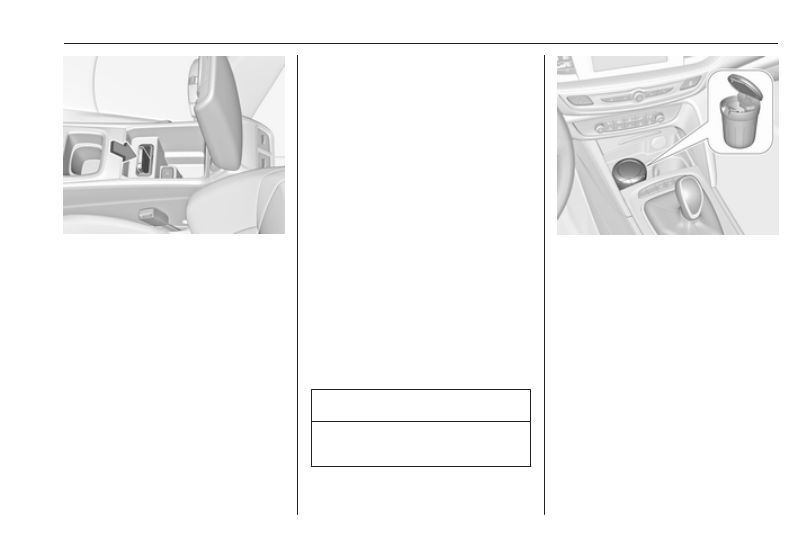

Navigation map card port

The SD-card slot in the center

console is just to be used for

navigation map cards purchased at a

Opel dealership.

Note

The card slot is not designed to

support any other other card

contents, e.g. music or photos.

Inductive charging

9 Warning

Inductive charging can affect the

operation of implanted

pacemakers or other medical

devices. If applicable, seek

medical advice before using the

inductive charging device.

9 Warning

Remove any metal objects from

the charging device before

charging a mobile device, as these

objects could become very hot.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

95

To charge a device, the ignition must

be switched on.
The charging slot is located below the

front armrest.
To charge a mobile device:

1. Remove all objects from the

charging slot otherwise the

system may not charge.

2. Insert the mobile device with the

display facing to the rear in the

charging slot. Charging status is

indicated in the Info display 0 and

shows if mobile device is properly

positioned.

If 0 is not displayed, remove mobile

device from the slot. Turn mobile

device 180 degrees and wait three

seconds before inserting mobile

device again.
PMA, Qi and A4WP compatible

mobile devices can be charged

inductively.
On some mobile devices, a back

cover with an integrated coil or a

jacket may be required to use

inductive charging.
The mobile device must be smaller

than 8 cm in width and 15 cm in length

to fit into the charging device.
Protective cover for the mobile device

could have impact on the inductive

charging.

Ashtrays

Caution

To be used only for ash and not for

combustible rubbish.

A portable ashtray can be placed in

the cupholders.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

96

Instruments and controls

Warning lights, gauges

and indicators

Instrument cluster

Depending on the version, three

instrument clusters are available:

● Baselevel
● Midlevel
● Uplevel

Uplevel instrument cluster can be

displayed as Sport mode or Tour

mode.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

97

Baselevel instrument cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------

98

Instruments and controls

Midlevel instrument cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

99

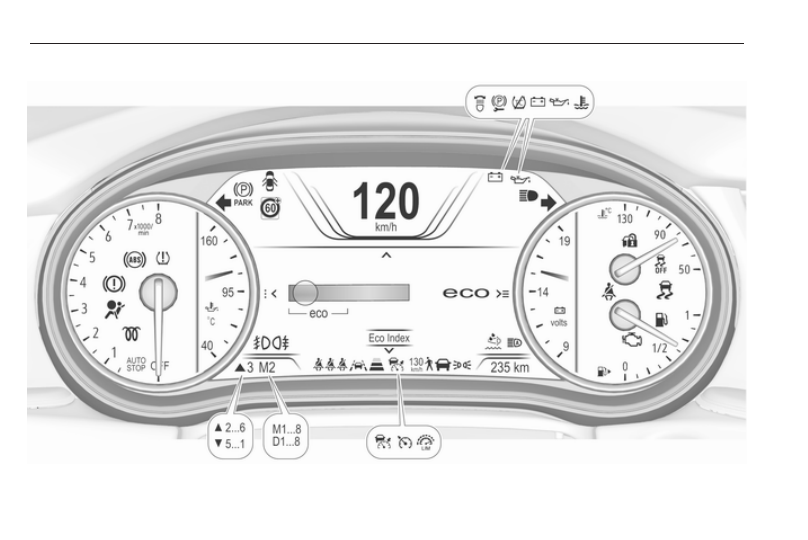

Uplevel instrument cluster, Sport mode

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

Instruments and controls

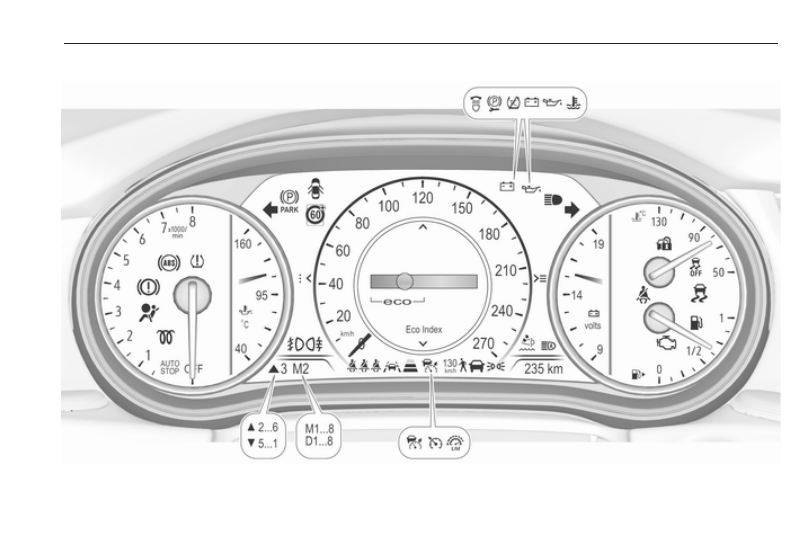

Uplevel instrument cluster, Touring mode

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

101

Overview

O

Turn signal 3 105

X

Seat belt reminder 3 105

v

Airbag and belt tensioners

3

 106

V

Airbag deactivation 3 106

p

Charging system 3 107

Z

Malfunction indicator light

3

 107

R

Brake and clutch system 3 107

m

Electric parking brake 3 107

j

Electric parking brake fault

3

 107

u

Antilock brake system (ABS)

3

 108

R

Gear shifting 3 108

E

Following distance 3 108

a

Lane keep assist 3 108

n

Electronic Stability Control off

3

 108

b

Electronic Stability Control and

Traction Control system 3 108

k

Traction Control system off

3

 109

W

Engine coolant temperature

3

 109

!

Preheating 3 109

u

AdBlue 3 109

w

Tyre pressure monitoring

system 3 109

I

Engine oil pressure 3 109

Y

Low fuel 3 110

d

Immobiliser 3 110

8

Exterior light 3 110

C

High beam 3 110

f

High beam assist 3 110

f

LED headlights 3 110

>

Fog light 3 110

r

Rear fog light 3 111

m

Cruise control 3 111

C

Adaptive cruise control 3 111

A

Vehicle detected ahead 3 111

7

Pedestrian detected ahead

3

 223

L

Speed limiter 3 111

L

Traffic sign assistant 3 111

h

Door open 3 111

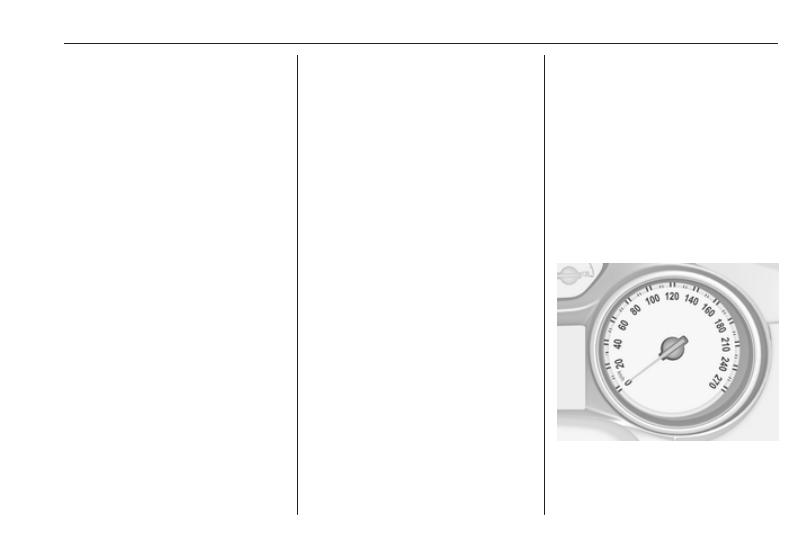

Speedometer

Indicates vehicle speed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
