166

Vehicle care

2. Press the clip to disengage bulb

holder. Withdraw the bulb holder

from the reflector.

3. Detach the bulb from the bulb

holder and replace the bulb.

4. Insert the bulb holder with the clip

downwards and engage into the

reflector until it clicks.

5. Install cap.

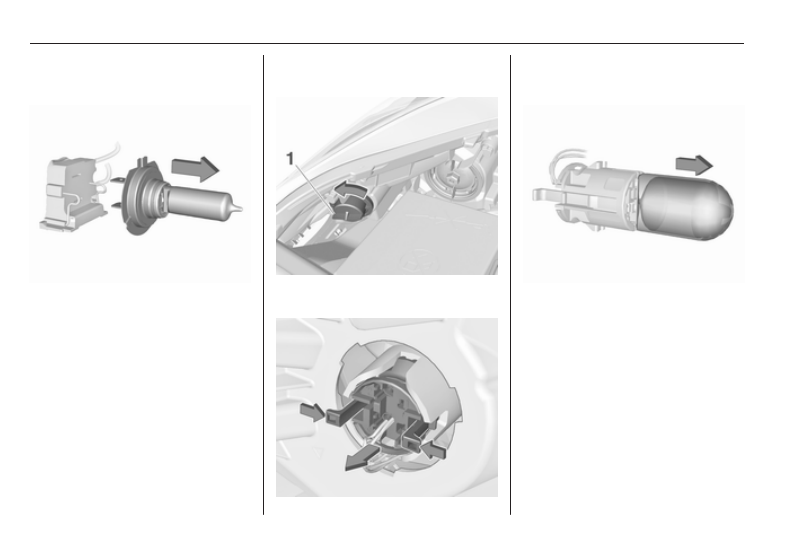

Sidelight / daytime running light

with bulbs

1. Rotate bulb socket (1)

anticlockwise to disengage.

2. Press both clips together and

withdraw the bulb socket from the

headlamp housing.

3. Remove the bulb from the socket

by pulling.

4. Replace and insert new bulb into

socket.

5. Insert the bulb socket into the

headlamp housing and turn

clockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

167

Sidelight / daytime running light

with LEDs

Sidelights and daytime running lights

are designed as LEDs and cannot be

changed. Consult a workshop in case

of a defective LED.

Xenon headlights

9 Danger

Xenon headlights work under

extremely high electrical voltage.

Do not touch. Have bulbs replaced

by a workshop.

Sidelight / daytime running lights are

designed as LEDs and cannot be

changed.
Bulbs for corner lighting can be

changed.
Front turn lights 3 168.

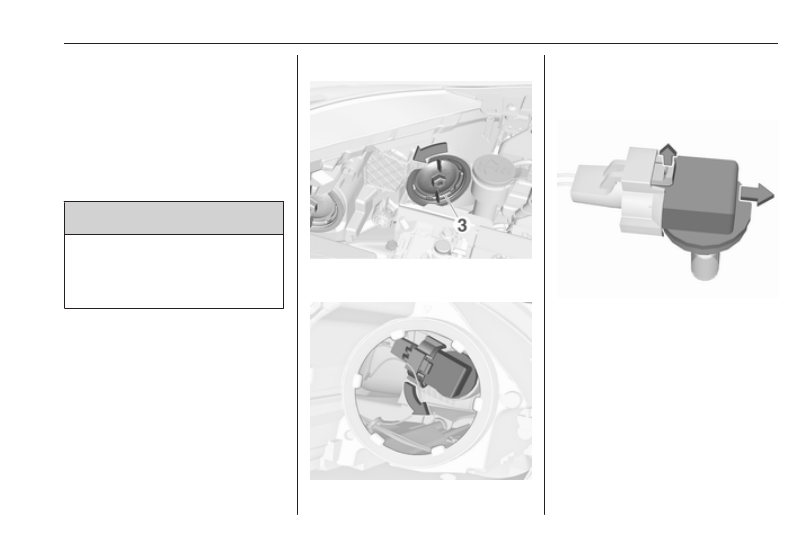

Corner lighting

1. Rotate the cap (3) anticlockwise

and remove it.

2. Rotate the bulb holder

anticlockwise to disengage.

Withdraw the bulb holder from the

reflector.

3. Remove the bulb from the plug

connector by disengaging and

pulling.

4. Replace the bulb. Connect and

engage bulb holder with the plug

connector.

5. Insert the bulb holder into the

reflector and rotate clockwise to

secure.

6. Fit the cap and rotate clockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

168

Vehicle care

Front fog lights

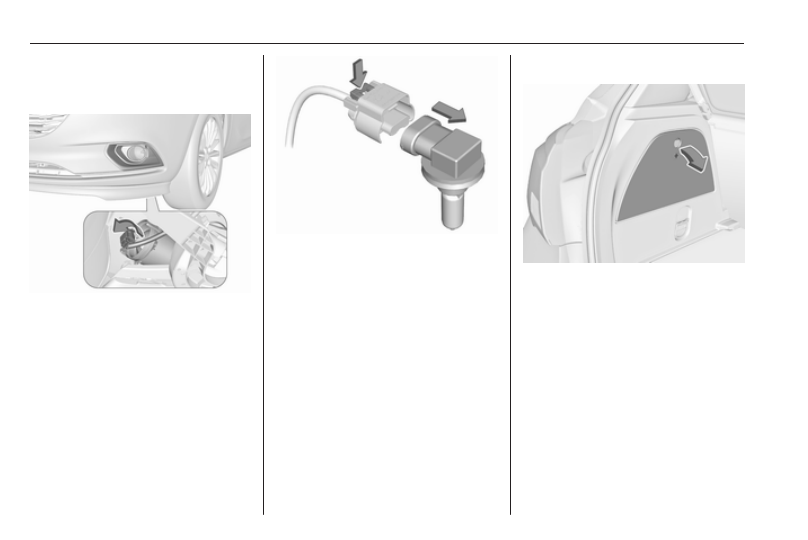

The bulbs are accessible from the

underside of the vehicle.

1. Turn the bulb holder anti-

clockwise and remove it from the

reflector.

2. Disengage the bulb socket from

the plug connector by pressing

the retaining lug.

3. Remove and replace the bulb

socket with bulb and attach the

plug connector.

4. Insert the bulb socket into the

reflector by turning clockwise and

engage.

Front turn lights

Front turn lights consist of long-life

bulbs which cannot be changed.
Consult a workshop in case of a

defective long-life bulb.

Tail lights

1. Release the cover in the load

compartment on the respective

side and remove.
On the right side, remove all

components, such as tyre repair

kit or tools, from the rear insert.

Compress this insert at the upper

side and remove from the

sidewall.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

169

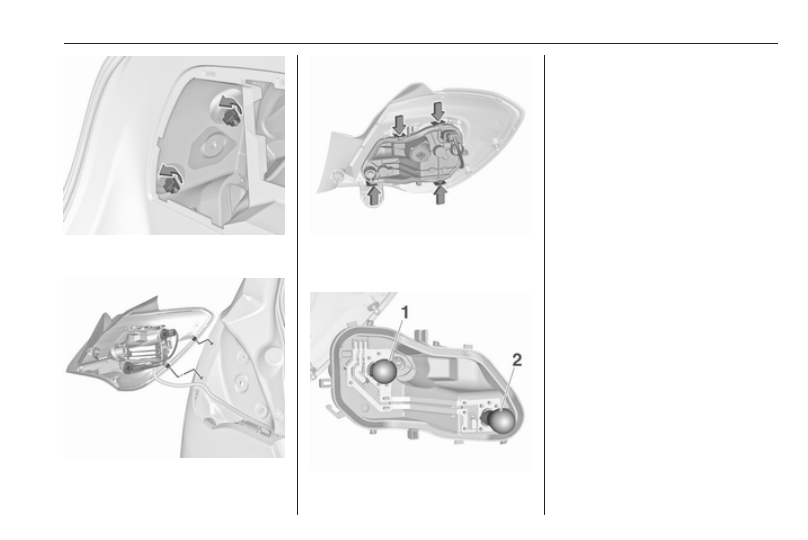

2. Unscrew both plastic securing

nuts from the inside by hand.

3. Carefully withdraw the light

assembly from the recesses and

remove.

4. Press the retaining lugs and

remove the bulb carrier from the

light assembly.

5. Remove the bulb by pushing the

bulb slightly into the socket and

rotating anticlockwise:
Tail light / brake light (1)
Turn light (2)

6. Insert bulb into bulb carrier and

turn clockwise. Engage bulb

carrier into the light assembly. Fit

light assembly with the retaining

pins into the recesses of the

vehicle body and tighten the

plastic securing nuts from inside

the load compartment.
Close cover and engage.

Reversing light / rear fog light

Left-hand drive models
Reversing light is located on the right

light assembly in the tailgate, and the

rear fog light is located on the left light

assembly in the tailgate.
Right-hand drive models
Reversing light is located on the left

light assembly in the tailgate, and the

rear fog light is located on the right

light assembly in the tailgate.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

170

Vehicle care

The description of bulb replacement

is the same for both lights.

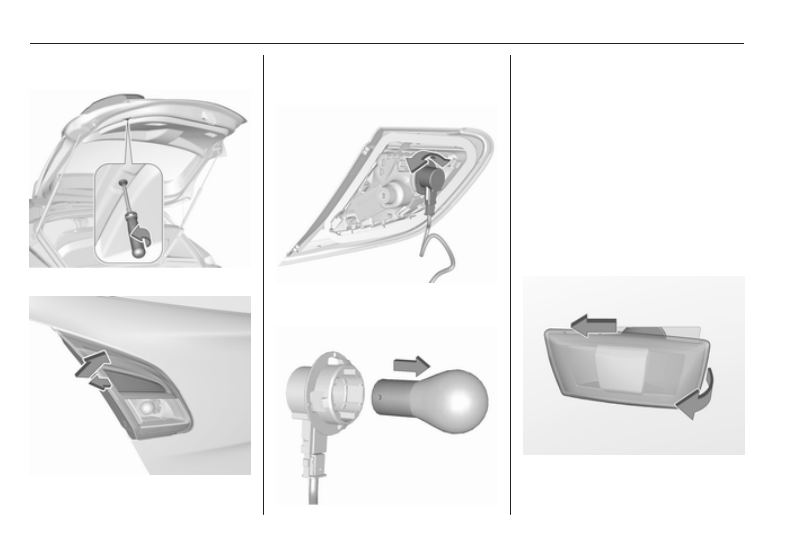

1. Remove screw from the tailgate.

2. Move light assembly slightly to the

outside, then withdraw from the

tailgate.

3. Remove the bulb holder by

turning.

4. Remove the bulb by pushing

slightly into the socket and

rotating anticlockwise. Replace

the bulb.

5. Insert the bulb socket into the

assembly and turn to secure.

6. Attach light assembly into the

tailgate and secure with the

screw.

Side turn lights

To replace bulb, remove lamp

housing:

1. Slide lamp to its left side and

remove with its right end.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

171

2. Turn bulb holder anticlockwise

and remove from housing.

3. Pull bulb from bulb holder and

replace it.

4. Insert bulb holder and turn

clockwise.

5. Insert left end of the lamp, slide to

the left and insert right end.

Centre high-mounted brake

light

Have LEDs replaced by a workshop.

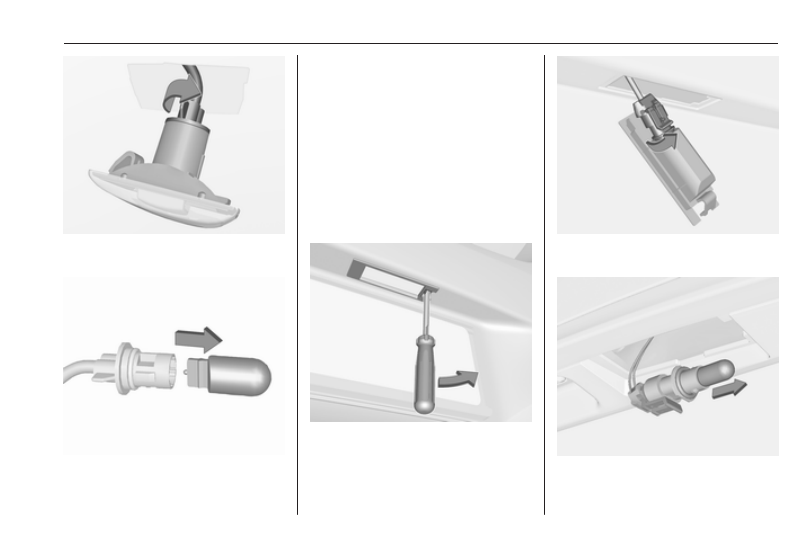

Number plate light

1. Insert screwdriver in recess of the

cover, press to the side and

release spring.

2. Remove lamp downwards, taking

care not to pull on the cable.

3. Remove bulb holder from lamp

housing by turning anticlockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

172

Vehicle care

4. Pull bulb from bulb holder and

replace it.

5. Insert bulb holder into lamp

housing and turn clockwise.

6. Insert lamp into bumper and let

engage.

Interior lights

Have the following bulbs replaced by

a workshop:

● courtesy light, reading lights
● load compartment light
● dome light
● instrument panel illumination

Electrical system

Fuses

Data on the replacement fuse must

match the data on the defective fuse.
There are two fuse boxes in the

vehicle:

● in the front left of the engine

compartment

● in left-hand drive vehicles, behind

the light switch, or, in right-hand

drive vehicles, behind the

glovebox

Before replacing a fuse, turn off the

respective switch and the ignition.

There are different kinds of fuses in

the vehicle.

Depending on the type of fuse, a

blown fuse can be recognized by its

melted wire. Do not replace the fuse

until the cause of the fault has been

remedied.
Some functions are protected by

several fuses.
Fuses may also be inserted without

existence of a function.

Fuse extractor

A fuse extractor may be located in the

fuse box in the engine compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

173

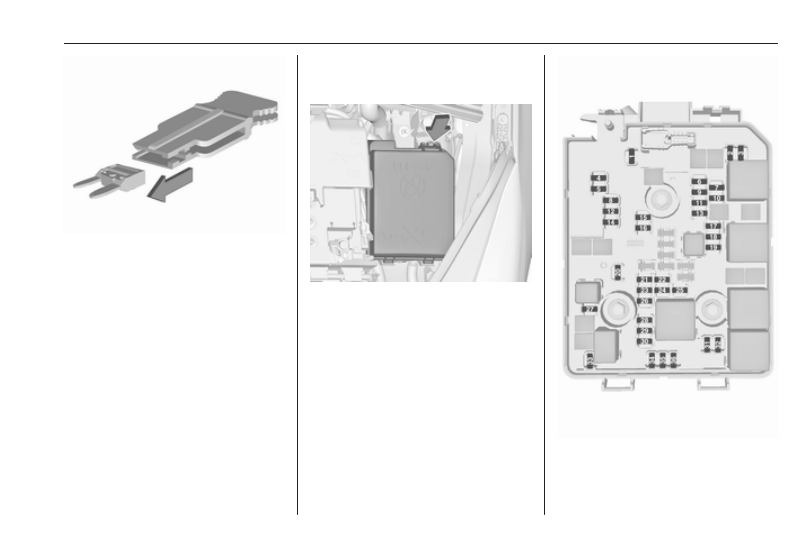

Place the fuse extractor on the

various types of fuse from the top, and

withdraw fuse.

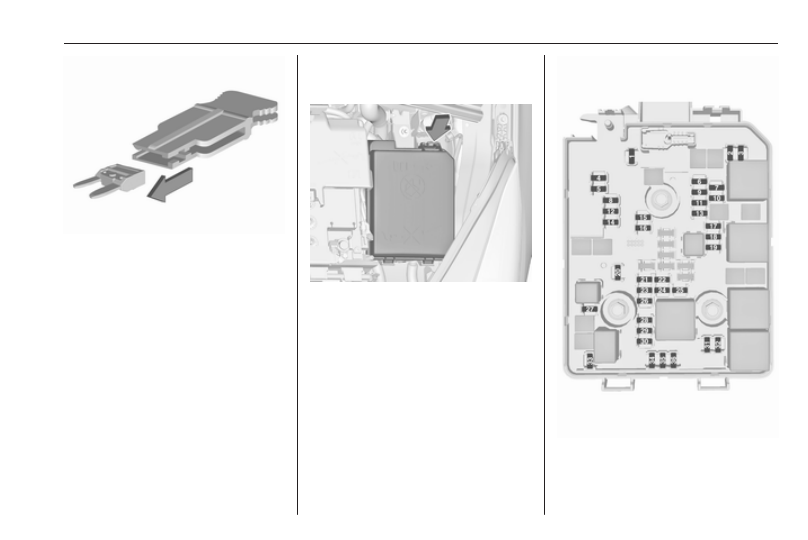

Engine compartment fuse

box

The fuse box is in the front left of the

engine compartment.
Disengage the cover and fold it

upwards until it stops. Remove the

cover vertically upwards.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

174

Vehicle care

No. Circuit
1

-

2

-

3

Battery sensor

4

Chassis control module, fuel

pump

5

ABS

6

Low beam and daytime running

light left, Xenon high beam

7

8

LPG control module

9

Body control module

10 Headlamp levelling
11 Rear wiper
12 Heated rear window
13 Low beam and daytime running

light right

14 Heated exterior mirror
15 –

No. Circuit
16 Brake booster kit
17 Ignition signal, waterpump
18 Engine control module
19 Fuel pump
20 –
21 Engine solenoids, engine

sensors

22 –
23 Ignition coils, injectors
24 Washer system
25 –
26 Engine sensors
27 Engine management
28 Engine control module
29 Engine control module
30 Engine control module
31 High beam left, Xenon low

beam left

No. Circuit
32 High beam right, Xenon low

beam right

33 Engine control module
34 Horn
35 Air condition compressor clutch
36 Front fog lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

175

No.

Circuit

1

ABS

2

Front wiper

3

Blower

4

Seat heating

5

Cooling fan

6

7

Transmission

8

Cooling fan

9

Cooling fan

10

Cooling fan

11

Starter

After having changed defective fuses

close the fuse box cover and press

until it engages.
If the fuse box cover is not closed

correctly, malfunction may occur.

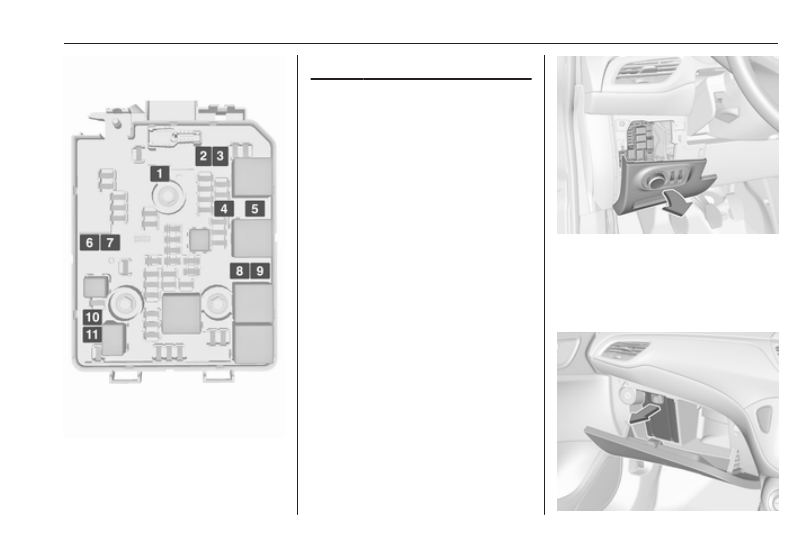

Instrument panel fuse box

Left-hand drive vehicles

The fuse box is behind the light switch

in the instrument panel. Hold the

handle, then pull and fold down the

light switch.
Right-hand drive vehicles

-------------------------------------------------------------------------------------------------------------------------------------------------------------

176

Vehicle care

The fuse box is located behind a

cover in the glovebox. Open the

glovebox, then open the cover and

fold it down.

No. Circuit
1

2

3

Power windows

4

Voltage transformer

5

Body control module 1

6

Body control module 2

7

Body control module 3

8

Body control module 4

9

Body control module 5

10 Body control module 6
11 Body control module 7
12 Body control module 8
13 –
14 Tailgate
15 Airbag system
16 Data link connector
17 Ignition

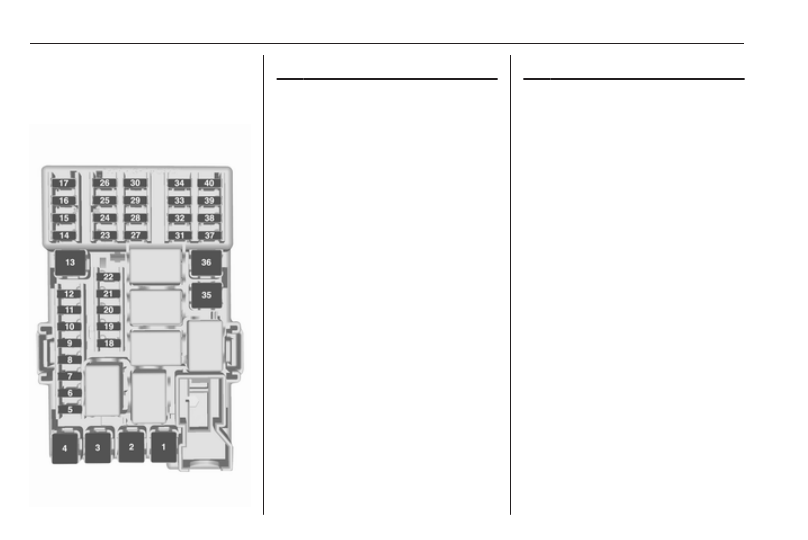

No. Circuit
18 Air conditioning system
19 –
20 Parking assist, rain sensor, front

camera

21 Brake switch
22 Infotainment system
23 Display
24 –
25 Auxiliary jack
26 Instrument panel
27 –
28 –
29 –
30 –
31 Horn
32 –
33 Heated steering wheel

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

177

No. Circuit
34 –
35 Tyre repair kit
36 –
37 Rear wiper
38 Cigarette lighter
39 Power windows, automatic

transmission display

40 –

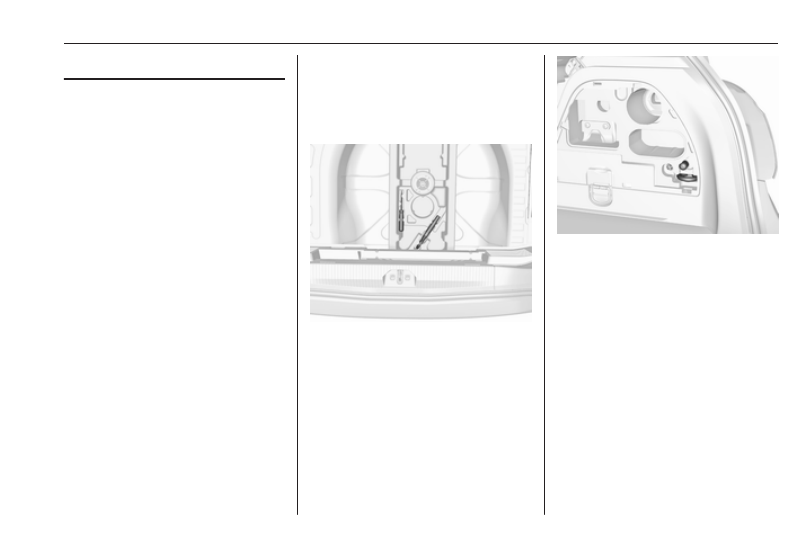

Vehicle tools

Tools

Vehicles without spare wheel

The tools and the towing eye are

located in the load compartment

below the floor cover.

On LPG version, the tools and the

towing eye are located on the right

side of the load compartment behind

a cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

178

Vehicle care

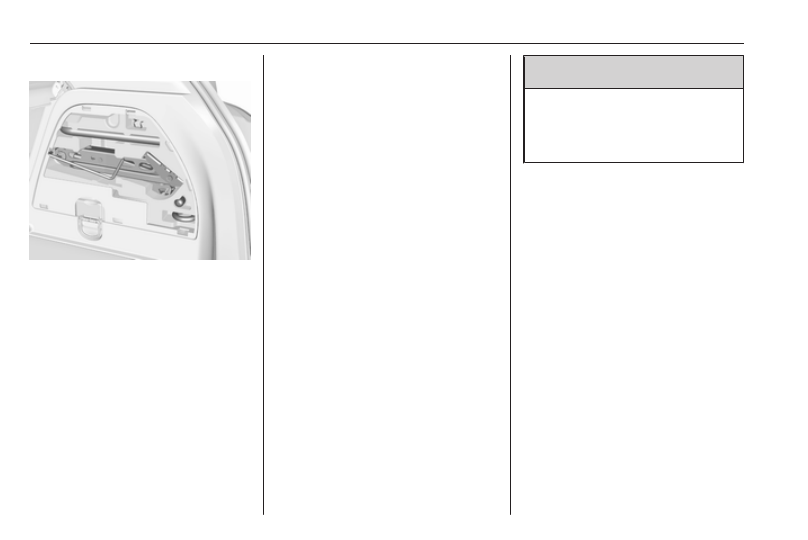

Vehicles with spare wheel

The jack, wheel bolt wrench and

some tools are located on the right

side of the load compartment, behind

a cover 3 59.

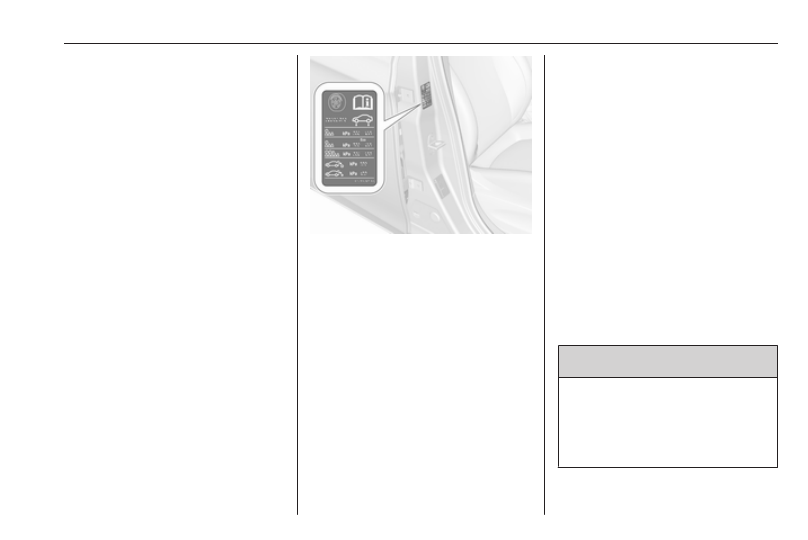

Wheels and tyres

Tyre condition, wheel condition

Drive over edges slowly and at right

angles if possible. Driving over sharp

edges can cause tyre and wheel

damage. Do not trap tyres on the kerb

when parking.
Regularly check the wheels for

damage. Seek the assistance of a

workshop in the event of damage or

unusual wear.
We recommend not swapping the

front wheels with the rear wheels and

vice versa, as this can affect vehicle

stability. Always use less worn tyres

on the rear axle.

Winter tyres

Winter tyres improve driving safety at

temperatures below 7 °C and should

therefore be fitted on all wheels.
All tyre sizes are permitted as winter

tyres 3 214.
In accordance with country-specific

regulations, affix the speed sticker in

the driver's field of view.

9

Danger

Use winter tyres at temperatures

below 0 °C, otherwise damage of

the high performance sports tyres

is possible.

Tyre designations

E.g. 195/55 R 16 95 H
195 : tyre width, mm

55 : cross-section ratio (tyre height

to tyre width), percentage

R

: belt type: Radial

RF : type: RunFlat

16 : wheel diameter, inches

95 : load index e.g. 95 is equivalent

to 690 kg

H

: speed code letter

Speed code letter:
Q : up to 160 km/h

S : up to 180 km/h

T : up to 190 km/h

H : up to 210 km/h

V : up to 240 km/h

W : up to 270 km/h

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

179

Choose a tyre appropriate for the

maximum speed of your vehicle.

Refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents. Optional equipment

could reduce the maximum speed of

the vehicle.

Directional tyres

Directional tyres must be mounted so

that they rotate in the correct

direction. The proper rotation

direction is indicated by a symbol

(e.g. an arrow) on the sidewall.

Tyre pressure

Check the pressure of cold tyres at

least every 14 days and before any

long journey.
Do not forget the spare wheel.

Tyre pressure 3 214.
The tyre pressure information label

on the right door frame indicates the

original equipment tyres and the

correspondent tyre pressures.
The tyre pressure data refers to cold

tyres. It applies to summer and winter

tyres.
The ECO tyre pressure serves to

achieve the smallest amount of fuel

consumption possible.
Incorrect tyre pressures will impair

safety, vehicle handling, comfort and

fuel economy and will increase tyre

wear.

Tyre pressures differ depending on

various options.
For the correct tyre pressure value,

follow the procedure below:

● Identify the engine identifier

code. Engine data 3 210.

● Identify the respective tyre.

The tyre pressure table indicates the

required pressure for a specific tyre

size only 3 214.
For the tyres approved for your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The driver is responsible for correct

adjustment of tyre pressure.

9 Warning

If the pressure is too low, this can

result in considerable tyre warm-

up and internal damage, leading to

tread separation and even to tyre

blow-out at high speeds.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

180

Vehicle care

9 Warning

For specific tyres the

recommended tyre pressure as

shown in the tyre pressure table

may exceed the maximum tyre

pressure as indicated on the tyre.

Never exceed the maximum tyre

pressure as indicated on the tyre.

If the tyre pressure must be reduced

or increased, switch off ignition. After

adjusting tyre pressure switch on

ignition and select the relevant setting

on the page Tyre load in the Driver

Information Centre 3 83.

Temperature dependency

The tyre pressure depends on the

temperature of the tyre. During

driving, tyre temperature and

pressure increase. Tyre pressure

values provided on the tyre

information label and tyre pressure

chart are valid for cold tyres, which

means at 20 °C.

The pressure increases by nearly

10 kPa for a 10 °C temperature

increase. This must be considered

when warm tyres are checked.
The tyre pressure value displayed in

the Driver Information Centre shows

the real tyre pressure. A cooled down

tyre will show a decreased value,

which does not indicate an air leak.

Tyre pressure monitoring

system

The tyre pressure monitoring system

checks the pressure of all four tyres

once a minute when vehicle speed

exceeds a certain limit.

Caution

Tyre pressure monitoring system

warns only about low tyre pressure

condition and does not replace

regular tyre maintenance by the

driver.

All wheels must be equipped with

pressure sensors and the tyres must

have the prescribed pressure.

Note

In countries where the tyre pressure

monitoring system is legally

required, the use of wheels without

pressure sensors will invalidate the

vehicle operating permit.

The current tyre pressures can be

shown in the Vehicle Information

Menu ? in the Driver Information

Centre.
The menu can be selected by

pressing the buttons on the stalk.

Press MENU to select the Vehicle

Information Menu ?.
Turn the adjuster wheel to select the

tyre pressure monitoring system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

181

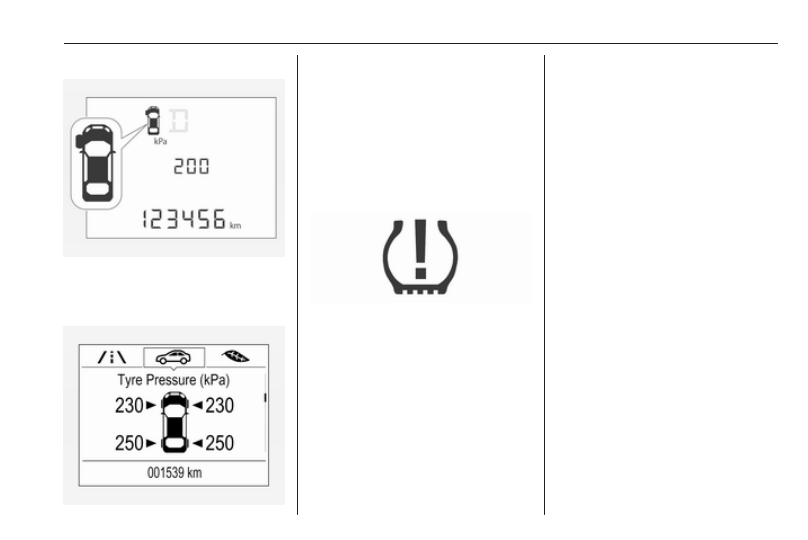

Midlevel display:

The tyre pressure for each tyre is

displayed on its own page.
Uplevel display:

The tyre pressures for all tyres are

displayed on one page.
System status and pressure warnings

are displayed by a message

indicating the corresponding tyre in

the Driver Information Centre.
The system considers the tyre

temperature for the warnings.
Temperature dependency 3 179.

A detected low tyre pressure

condition is indicated by the control

indicator w 3 81.
If w illuminates, stop as soon as

possible and inflate the tyres as

recommended 3 214.
If w flashes for 60-90 seconds then

illuminates continuously, there is a

fault in the system. Consult a

workshop.

After inflating, some driving may be

required to update the tyre pressure

values in the Driver Information

Centre. During this time w may

illuminate.
If w illuminates at lower temperatures

and extinguishes after driving, this

could be an indicator for approaching

a low tyre pressure condition. Check

tyre pressure.
Vehicle messages 3 89.
If the tyre pressure must be reduced

or increased, switch off ignition.
Only mount wheels with pressure

sensors, otherwise the tyre pressure

will not be displayed and w

illuminates continuously.
A spare wheel or temporary spare

wheel is not equipped with pressure

sensors. The tyre pressure

monitoring system is not operational

for these tyres. Control indicator w

illuminates. For the further three

tyres, the system remains

operational.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     9      10      11      12     ..
