With ignition off, the power outlet is

deactivated. Additionally, the power

outlet is deactivated in the event of

low vehicle battery voltage.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.
Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.
Do not damage the outlet by using

unsuitable plugs.
Stop-start system 3 122.

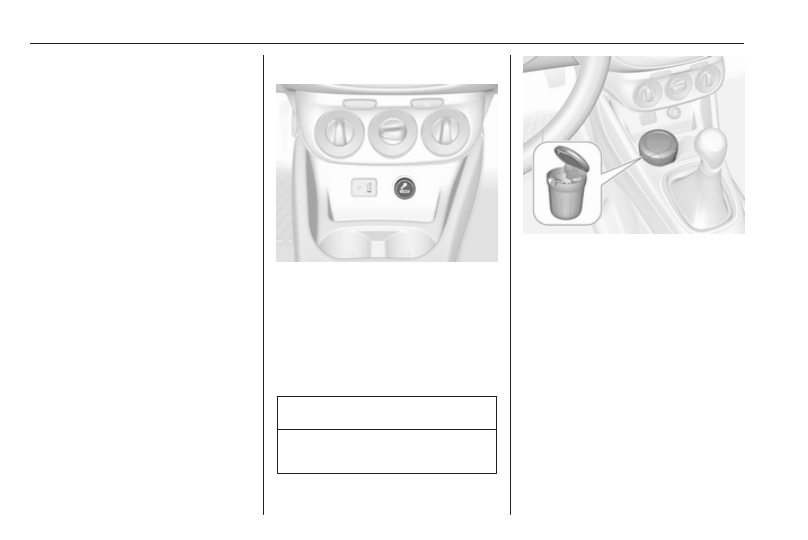

Cigarette lighter

The cigarette lighter is located in the

centre console.
Press in cigarette lighter. It switches

off automatically once the element is

glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for

combustible rubbish.

The portable ashtray can be placed in

the cupholders.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

71

Warning lights, gauges

and indicators

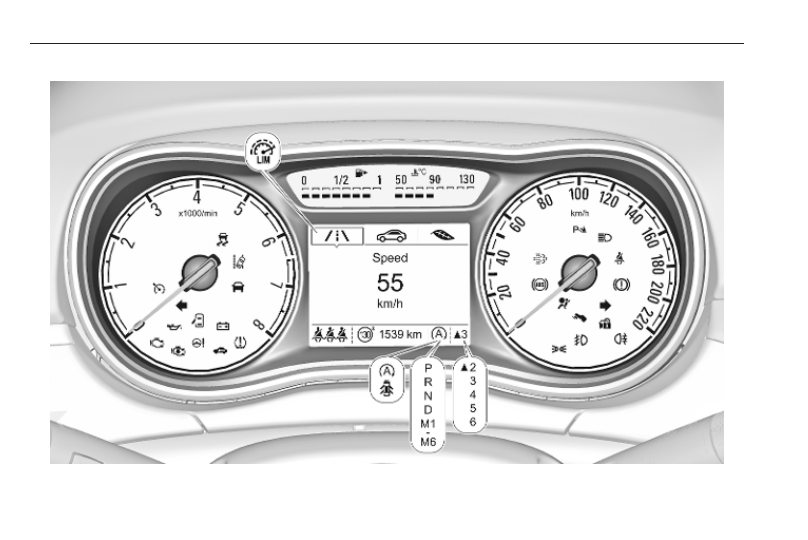

Instrument cluster

The needles of the instruments briefly

rotate to the end position when the

ignition is switched on.

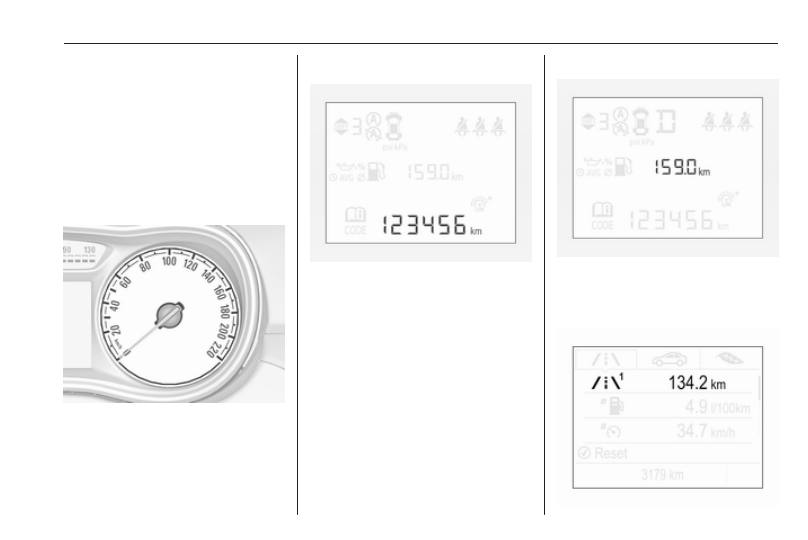

Speedometer

Indicates vehicle speed.

Odometer

The bottom line displays the recorded

distance in km.

Trip odometer

The recorded distance is displayed

since the last reset.
Trip odometer counts up to 9999 km

and then restarts at 0.

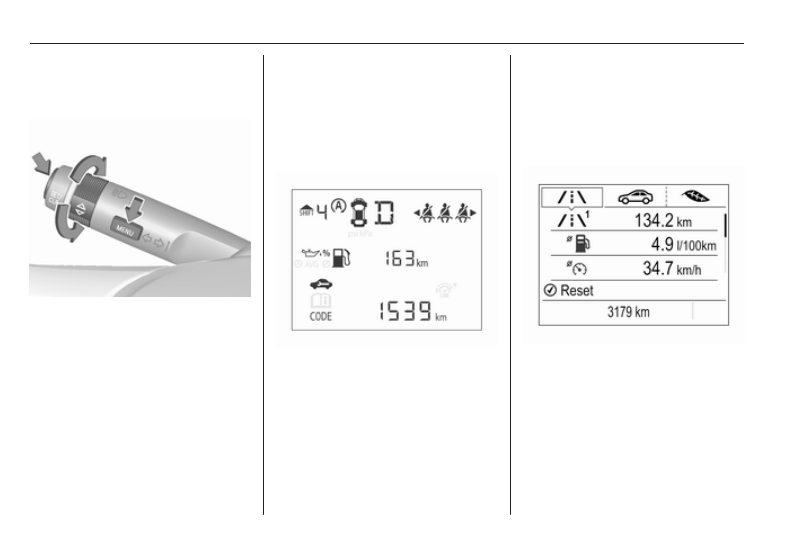

Midlevel display

To reset, press SET/CLR on the stalk

for a few seconds 3 83.
Uplevel display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

72

Instruments and controls

Two trip odometer pages are

selectable for different trips.
Select menu ; by pressing Menu

on the stalk. Turn adjuster wheel on

the stalk and select ;1 or ;2.

Each trip odometer page can be reset

separately by pressing SET/CLR on

the stalk for a few seconds on the

respective menu.

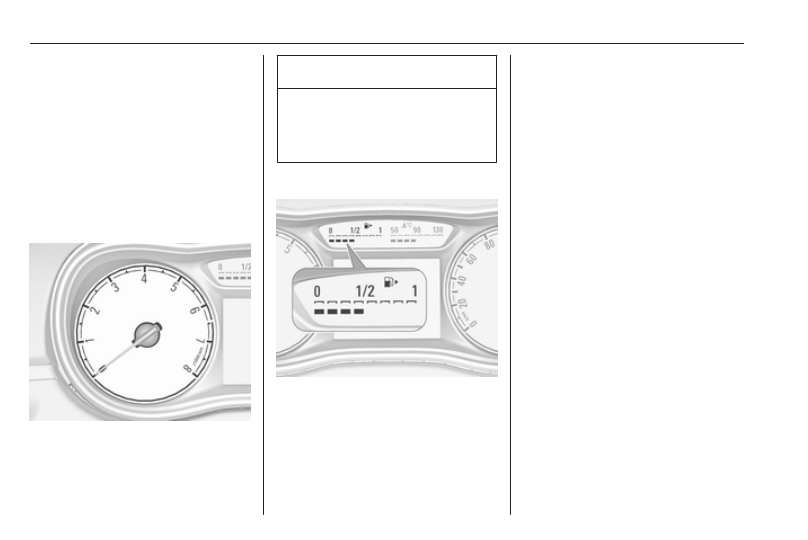

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning

zone, the maximum permitted

engine speed is exceeded. Engine

at risk.

Fuel gauge

Displays the fuel level or gas content

in the tank depending on the

operation mode.
Number of LEDs displayed shows the

level in the respective fuel tank. 8

LEDs means fuel tank is full.

During liquid gas operation, the level

in the gas tank is displayed.

Low fuel indication

One remaining LED illuminating white

indicates that the fuel level is low.
If the LED changes to red and Y

illuminates yellow, refuel the tank

soon.
If the LED illuminates red and Y

flashes yellow, refuel immediately.
Never run the fuel tank dry.
The arrow indicates the vehicle side

where the fuel filler flap is located.
Because of the fuel remaining in the

tank, the top-up quantity may be less

than the specified tank capacity.
During liquid gas operation, the

system automatically switches over to

petrol operation when gas tanks are

empty 3 73.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

73

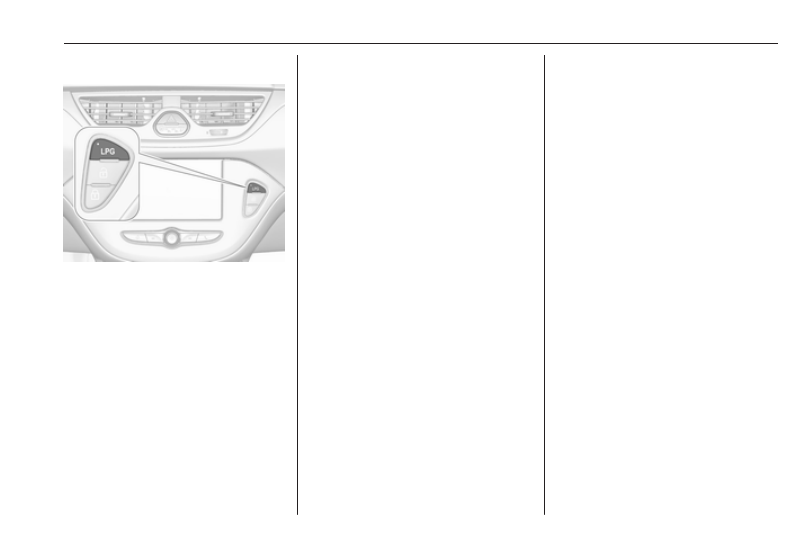

Fuel selector

Pressing LPG switches between

petrol and liquid gas operation as

soon as the required parameters

(coolant temperature, gas

temperature and minimum engine

speed) have been reached. The

requirements are usually fulfilled after

approx. 60 seconds (depending on

exterior temperature) and the first firm

press on the accelerator. The LED

status shows the current operating

mode.

LED off : petrol operation

LED

flashes

: checking conditions for

fuel transition to liquid

gas operation.

Illuminates if conditions

are fulfilled.

LED illu‐

minates

: liquid gas operation

LED

flashes

five

times

and

extin‐

guishes

: liquid gas tank is empty

or failure in liquid gas

system. A message is

displayed in the Driver

Information Centre.

The selected fuel mode is stored and

reactivated at the next ignition cycle,

if conditions allow.
As soon as the liquid gas tank is

empty, petrol operation is

automatically engaged until the

ignition is switched off.
When switching automatically

between petrol or gas operation, a

brief delay of engine tractive power

may be noticeable.
When petrol fuel tank is empty, the

engine will not start.

Every six months, run the petrol tank

down until control indicator Y

illuminates, then refuel. This helps

maintain fuel quality and system

function for petrol operation.
Fill the tank completely at regular

intervals to prevent corrosion in the

tank.

Faults and remedies

If gas mode is not possible, check

whether there is enough liquid gas or

petrol present for starting.
Due to extreme temperatures in

combination with the gas

composition, it may take slightly

longer before the system switches

from petrol to gas mode.
In extreme situations, the system may

also switch back to petrol mode if the

minimum requirements are not

fulfilled. If conditions allow, it might be

possible to manually switch back to

liquid gas operation.
Seek the assistance of a workshop in

the event of all other faults.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

74

Instruments and controls

Caution

Repairs and adjustments may only

be made by trained specialists in

order to maintain the safety and

warranty on the LPG system.

Liquid gas is given a particular odour

(odorised) so that any leaks can be

detected easily.

9 Warning

If you smell gas in the vehicle or in

the immediate vicinity, switch to

petrol mode immediately. No

smoking. No naked flames or

ignition sources.

If the gas odour persists, do not start

the engine. Have the cause of the

fault remedied by a workshop.
When using underground car parks,

follow the instructions of the operator

and local laws.

Note

In the event of an accident, switch off

the ignition.

Fuel for liquid gas operation 3 152.

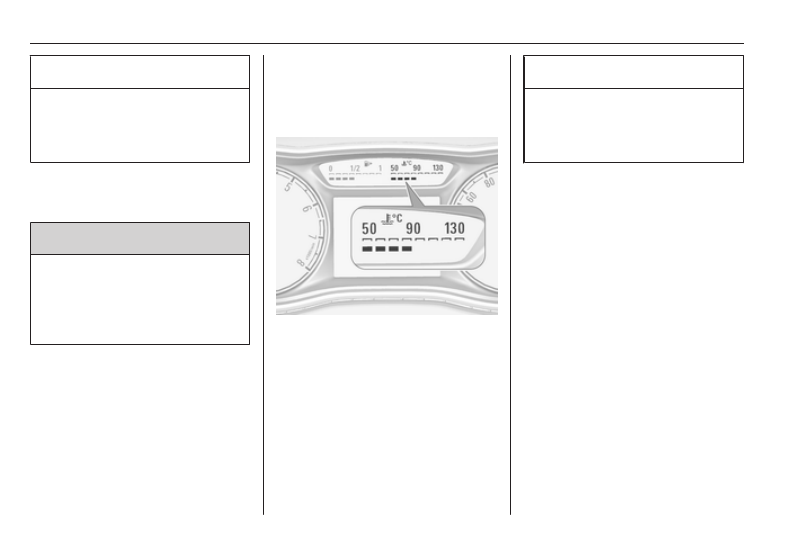

Engine coolant temperature

gauge

Number of LEDs displayed shows the

coolant temperature.
up to 3 LEDs

: engine operating

temperature not

yet reached

4 to 6 LEDs

: normal operating

temperature

more than 6

LEDs

: temperature too

high

Caution

If engine coolant temperature is

too high, stop vehicle, switch off

engine. Danger to engine. Check

coolant level.

Service display

The engine oil life system lets you

know when to change the engine oil

and filter. Based on driving

conditions, the interval at which an

engine oil and filter change will be

indicated can vary considerably.
When the system has calculated that

engine oil life has been diminished, a

warning message appears in the

Driver Information Centre. Have

engine oil and filter changed by a

workshop within one week or

500 km, whichever occurs first.
This can be an additional engine oil

and filter change or part of a regular

service.

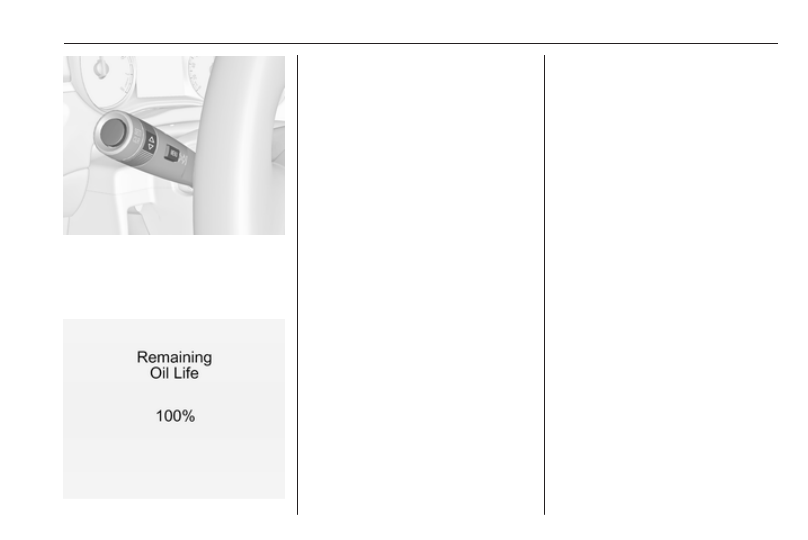

To display the remaining engine oil

life duration use the buttons on the

stalk:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

75

Press MENU to select the Vehicle

Information Menu ?.
Turn the adjuster wheel to select

Remaining Oil Life.

The remaining engine oil life duration

is displayed in percent in the Driver

Information Centre.

Reset

Press SET/CLR on the stalk for

several seconds to reset. The

remaining engine oil life duration

menu must be active. Switch on

ignition, but not the engine.
The system must be reset every time

the engine oil is changed to ensure

proper functionality. Seek the

assistance of a workshop.

Next service

A message appears in the Driver

Information Centre, when

maintenance of the vehicle is

required. Have maintenance work

carried out by a workshop within one

week or 500 km, whichever occurs

first.
Driver Information Centre 3 83.
Service information 3 202.

Control indicators

The control indicators described are

not present in all vehicles. The

description applies to all instrument

versions.
Depending on the equipment, the

position of the control indicators may

vary. When the ignition is switched

on, most control indicators will

illuminate briefly as a functionality

test.
The control indicator colours mean:
red

: danger, important reminder

yellow : warning, information, fault

green : confirmation of activation

blue

: confirmation of activation

white : confirmation of activation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

76

Instruments and controls

Control indicators in the instrument cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

77

Control indicators in the centre

console

Overview

O

Turn lights 3 77

X

Seat belt reminder 3 78

v

Airbag and belt tensioners

3

 78

V

Airbag deactivation 3 79

p

Charging system 3 79

Z

Malfunction indicator light

3

 79

g

Service vehicle soon 3 79

R

Brake and clutch system

3

 79

-

Operate pedal 3 80

u

Antilock brake system (ABS)

3

 80

R

Gear shifting 3 80

c

Power steering 3 80

)

Lane departure warning 3 80

r

Parking assist 3 80

b

Electronic Stability Control and

Traction Control system 3 81

%

Exhaust filter 3 81

w

Tyre pressure monitoring

system 3 81

I

Engine oil pressure 3 81

Y

Low fuel 3 82

d

Immobiliser 3 82

#

Reduced engine power 3 82

D

Autostop 3 82

8

Exterior light 3 82

C

High beam 3 82

>

Fog light 3 82

r

Rear fog light 3 82

m

Cruise control 3 83

A

Vehicle detected ahead 3 83

L

Speed limiter 3 83

L

Traffic sign assistant 3 83

h

Door open 3 83

Turn lights

O

 illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

A turn light or the hazard warning

flashers are activated.
Rapid flashing: failure of a turn light or

associated fuse.
Bulb replacement 3 164.
Fuses 3 172.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

78

Instruments and controls

Turn lights 3 104.

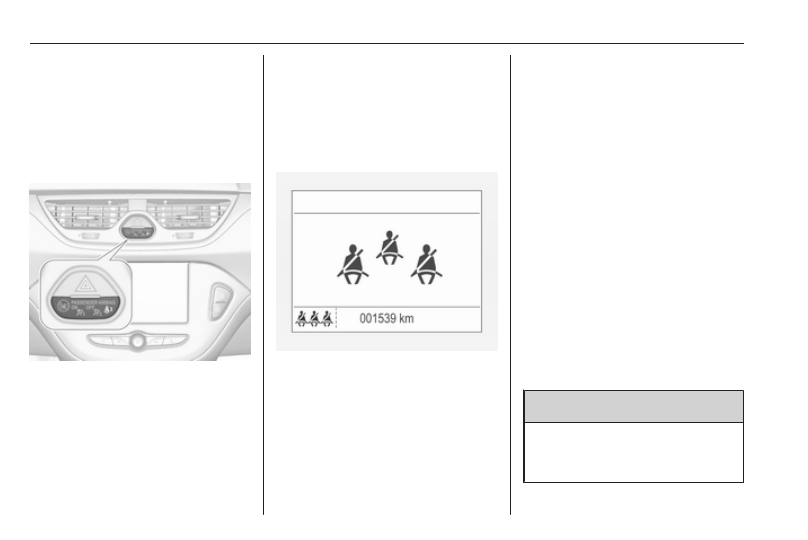

Seat belt reminder

Seat belt reminder on front seats

X

 for driver's seat illuminates or

flashes red in the tachometer.

k for front passenger seat illuminates

or flashes red in the centre console

when the seat is occupied.

Illuminates

After the ignition has been switched

on, until the seat belt has been

fastened.

Flashes

After having started the engine for a

maximum of 100 seconds, until the

seat belt has been fastened.
Fastening the seat belt 3 40.

Seat belt status on rear seats

X

 in the Driver Information Centre

flashes or illuminates.

Illuminates

After having started the engine for a

minimum of 35 seconds, until the seat

belt has been fastened.
Also illuminates if an unfastened seat

belt is fastened whilst driving.

Flashes

After starting-off, when the seat belt is

unfastened.
Fastening the seat belt 3 40.

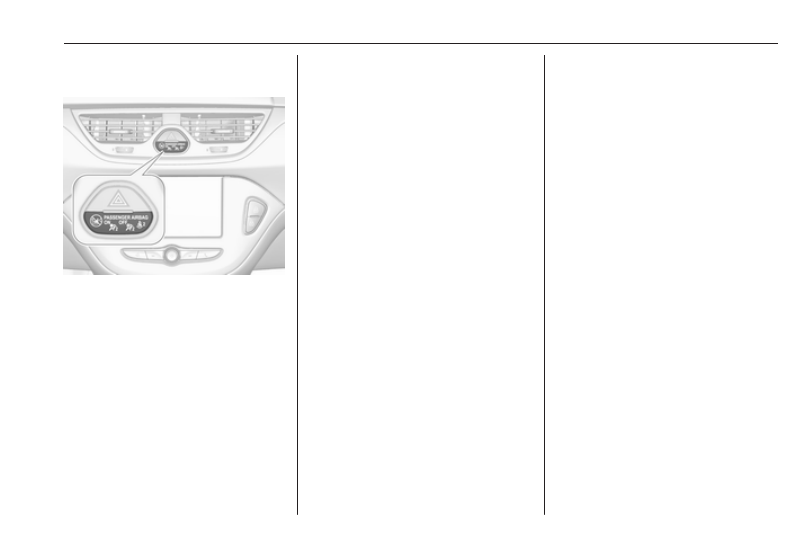

Airbag and belt tensioners

v

 illuminates red.

When the ignition is switched on, the

control indicator illuminates for

approx. 4 seconds. If it does not

illuminate, does not go out after

4 seconds or illuminates whilst

driving, there is a fault in the airbag

system. Seek the assistance of a

workshop. The airbags and belt

pretensioners may fail to trigger in the

event of an accident.
Deployment of the belt pretensioners

or airbags is indicated by continuous

illumination of v.

9 Warning

Have the cause of the fault

remedied immediately by a

workshop.

Belt pretensioners 3 39.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

79

Airbag system 3 42.

Airbag deactivation

V

 illuminates yellow.

Illuminates for approx. 60 seconds

after the ignition is switched on. The

front passenger airbag is activated.
* illuminates yellow.
The front passenger airbag is

deactivated 3 47.

9 Danger

Risk of fatal injury for a child using

a child restraint system together

with activated front passenger

airbag.
Risk of fatal injury for an adult

person with deactivated front

passenger airbag.

Charging system

p

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Stop, switch off engine. Vehicle

battery is not charging. Engine

cooling may be interrupted. The

brake servo unit may cease to be

effective. Seek the assistance of a

workshop.

Malfunction indicator light

Z

 illuminates or flashes yellow.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

Illuminates when the engine is

running

Fault in the emission control system.

The permitted emission limits may be

exceeded. Seek the assistance of a

workshop immediately.

Flashes when the engine is

running

Fault that could lead to catalytic

converter damage. Ease up on the

accelerator until the flashing stops.

Seek the assistance of a workshop

immediately.

Service vehicle soon

g

 illuminates yellow.

Additionally, a warning message is

displayed in the Driver Information

Centre.
The vehicle requires a service.
Seek the assistance of a workshop.
Vehicle messages 3 89.

Brake and clutch system

R

 illuminates red.

The brake and clutch fluid level is too

low, when manual parking brake is

not applied 3 161.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

80

Instruments and controls

9 Warning

Stop. Do not continue your

journey. Consult a workshop.

Illuminates when the manual parking

brake is applied and ignition is

switched on 3 132.

Operate pedal

-

 illuminates or flashes yellow.

Illuminates

Clutch pedal must be depressed to

start the engine in Autostop mode.
Stop-start system 3 122.

Flashes

Clutch pedal must be depressed to

start the engine with the key 3 18,

3

 121.

On some versions, the Driver

Information Centre indicates a

message to operate the clutch pedal

3

 89.

Antilock brake system

(ABS)

u

 illuminates yellow.

Illuminates for a few seconds after the

ignition is switched on. The system is

ready for operation when the control

indicator extinguishes.
If the control indicator does not go out

after a few seconds, or if it illuminates

while driving, there is a fault in the

ABS. The brake system remains

operational but without ABS

regulation.
Antilock brake system 3 131.

Gear shifting

R

 with the number of a higher gear is

indicated, when upshifting is

recommended for fuel saving

reasons.

Power steering

c

 illuminates yellow.

Illuminates with power steering

disabled

Failure in the power steering system.

Consult a workshop.

Illumination of c and b

simultaneously

Power steering system must be

calibrated, system calibration 3 134.

Lane departure warning

)

 illuminates green or flashes yellow.

Illuminates green

System is switched on and ready to

operate.

Flashes yellow

System recognises an unintended

lane change.
Lane departure warning 3 149.

Parking assist

r illuminates yellow.
Fault in system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

81

or
Fault due to sensors that are dirty or

covered by ice or snow
or
Interference due to external sources

of ultrasound. Once the source of

interference is removed, the system

will operate normally.
Have the cause of the fault in the

system remedied by a workshop.
Parking assist 3 141.

Electronic Stability Control

and Traction Control system

b

 flashes or illuminates yellow.

Flashes

The system is actively engaged.

Engine output may be reduced and

the vehicle may be braked

automatically to a small degree.

Illuminates

A fault in the system is present. A

warning message or warning code

appears in the Driver Information

Centre. Continued driving is possible.

The system is not operational. Driving

stability, however, may deteriorate

depending on road surface

conditions.
Have the cause of the fault remedied

by a workshop.
Electronic Stability Control 3 133.
Traction Control system 3 133.

Exhaust filter

%

 illuminates or flashes yellow.

The exhaust filter requires cleaning.
Continue driving until %

extinguishes. If possible, do not allow

engine speed to drop below

2000 rpm.

Illuminates

The exhaust filter is full. Start cleaning

process as soon as possible.

Flashes

The maximum filling level of the filter

is reached. Start cleaning process

immediately to avoid damage to the

engine.
Exhaust filter 3 125.

Stop-start system 3 122.

Tyre pressure monitoring

system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss. Stop immediately

and check tyre pressure.

Flashes

Fault in system or tyre without

pressure sensor mounted (e.g. spare

wheel). After 60-90 seconds the

control indicator illuminates

continuously. Consult a workshop.
Tyre pressure monitoring system

3

 180.

Engine oil pressure

I

 illuminates red.

Illuminates when the ignition is

switched on and extinguishes shortly

after the engine starts.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

82

Instruments and controls

Illuminates when the engine is

running

Caution

Engine lubrication may be

interrupted. This may result in

damage to the engine and/or

locking of the drive wheels.

1. Depress the clutch.
2. Set selector lever to neutral.
3. Move out of the flow of traffic as

quickly as possible without

impeding other vehicles.

4. Switch off the ignition.

9 Warning

When the engine is off,

considerably more force is needed

to brake and steer.
During an Autostop, the brake

servo unit will still be operational.
Do not remove key until vehicle is

stationary, otherwise the steering

wheel lock could engage

unexpectedly.

Keep engine turned off and let the

vehicle be towed to a workshop.

Low fuel

Y

 illuminates or flashes yellow.

Illuminates

Level in fuel tank is too low.

Flashes

Fuel used up. Refuel immediately.

Never run the fuel tank dry.
Refuelling 3 152.
Catalytic converter 3 126.

Immobiliser

d

 flashes yellow.

Fault in the immobiliser system. The

engine cannot be started.
Immobiliser 3 28.

Reduced engine power

#

 illuminates yellow.

The engine power is limited. Consult

a workshop.

Autostop

Autostop active

D

 illuminates red or white.

Engine is in an Autostop.
Stop-start system 3 122.

Exterior light

8

 illuminates green.

The exterior lights are on 3 100.

High beam

C illuminates blue.
Illuminated when high beam is on or

during headlight flash 3 102.

Front fog lights

>

 illuminates green.

The front fog lights are on 3 104.

Rear fog light

r

 illuminates yellow.

The rear fog light is on 3 105.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

83

Cruise control

m

 illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Cruise control is active.
Cruise control 3 135.

Vehicle detected ahead

A

 illuminates green.

A vehicle ahead is detected in the

same lane.
Forward collision alert 3 138.

Speed limiter

L

 illuminates in the Driver

Information Centre when Speed

limiter is active. Set speed is indicated

alongside L symbol.
Speed limiter 3 137.

Traffic sign assistant

L

 displays detected traffic signs as a

control indicator.
Traffic sign assistant 3 146.

Door open

h

 illuminates.

A door or the tailgate is open.

Displays

Driver Information Centre

The Driver Information Centre is

located in the instrument cluster.
Depending on the version and

equipment, the Driver Information

Centre is available as Midlevel

display or Uplevel display.
Driver Information Centre indicates

depending on the equipment:

● vehicle information and settings
● trip/fuel information
● economic information

The following indications appear if

required:

● warning messages 3 89
● gear shift indication 3 80
● drive mode indication 3 127
● tyre pressure warning 3 180
● seat belt reminder indication

3

 78

● Autostop indication 3 122
● service information 3 79

-------------------------------------------------------------------------------------------------------------------------------------------------------------

84

Instruments and controls

Selecting menus and functions

The menus and functions can be

selected via the buttons on the stalk.

Press MENU to switch between the

main menus or to return from a

submenu to the next higher menu

level.
Turn the adjuster wheel to select a

submenu of the main menu or to set

a numeric value.
Press SET/CLR to select and confirm

a function.

Vehicle and service messages are

popped-up in the Driver Information

Centre if required. Confirm messages

by pressing SET/CLR.
Vehicle messages 3 89.

Midlevel display

Main menus are:

● trip/fuel information, see

description below

● vehicle information, see

description below

Some of the displayed functions differ

when the vehicle is being driven or at

a standstill. Some functions are only

available when the vehicle is being

driven.

Uplevel display

Main menus are:

● trip/fuel information menu,

displayed by ;, see

description below

● vehicle information menu,

displayed by ?, see

description below

● eco information menu, displayed

by @, see description below

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

85

Note

Some systems override the main

menu tabs. The currently active tab

is indicated by a small arrow head.

Some of the displayed functions differ

when the vehicle is being driven or at

a standstill. Some functions are only

available when the vehicle is being

driven.

Trip/Fuel information menu;

Possible pages are:

● digital vehicle speed
● trip odometer
● average fuel economy
● average vehicle speed
● instantaneous fuel economy
● fuel range
● fuel range LPG version
● timer
● outside temperature

Selection and indication is different

between Midlevel display and Uplevel

display.

Digital vehicle speed

Digital display of the instantaneous

speed.

Trip odometer

Trip odometer displays the current

distance since a certain reset.
Trip odometer counts up to

9999.9 km and then restarts at 0.
Turn the adjuster wheel to select

between trip odometer 1 and 2 for

Uplevel display.
To reset, press SET/CLR for a few

seconds while viewing this page.
The information of trip page 1 and 2

can be reset separately while the

respective display is active.

Average fuel economy

Display of average consumption. The

measurement can be reset at any

time and starts with a default value.
To reset, press SET/CLR for a few

seconds while viewing this page.
The information of trip page 1 and 2

can be reset separately while the

respective display is active.

On vehicles with LPG engines:

Average consumption is indicated for

the currently selected mode, LPG or

petrol.

Average vehicle speed

Display of average speed. The

measurement can be reset at any

time.
To reset, press SET/CLR for a few

seconds while viewing this page.
The information of trip page 1 and 2

can be reset separately while the

respective display is active.

Instantaneous fuel economy

Display of the instantaneous

consumption.
On vehicles with LPG engines:

Instantaneous consumption is

indicated for the currently selected

mode, LPG or petrol.

Fuel range

Range is calculated from current fuel

tank level and current consumption.

The display shows average values.
After refuelling, the range is updated

automatically after a brief delay.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
