Opel Vivaro (2018 year). Manual - part 1

6

In brief

In brief

Initial drive information

Vehicle unlocking

Unlocking with remote control

Press c to unlock the driver's door.

Press again to unlock entire vehicle.
Open the doors by pulling the

handles.
Press G; only the load

compartment is unlocked.
Radio remote control 3 22.
Central locking system 3 26.
Load compartment 3 35.
Unlocking with manual key 3 26.

Unlocking with electronic key

Press the button on any exterior door

handle when the electronic key is

within range of the detection zone

(approx. one metre of the front doors

or load compartment) and pull the

handle to open.
- or -
Press electronic key button c to

unlock all doors and the load

compartment.
Electronic key system 3 24.

In brief

7

Seat adjustment

Longitudinal adjustment

Pull handle, slide seat, release

handle.
Try to move the seat back and forth to

ensure that the seat is locked in place.
Seat position 3 47.
Seat adjustment 3 48.

Backrests inclination

Pull lever, adjust inclination and

release lever. Allow the backrest to

engage. Do not lean on backrest

when adjusting.
Seat position 3 47.
Seat adjustment 3 48.

Seat height

Lever pumping motion:
up

: seat higher

down : seat lower
Seat position 3 47.
Seat adjustment 3 48.

8

In brief

Head restraint adjustment

Press release button, adjust height,

engage.
Head restraints 3 46.

Seat belt

Pull out the seat belt and fasten in belt

buckle. The seat belt must not be

twisted and must fit close against the

body. The backrest must not be tilted

back too far (maximum approx. 25°).
To unfasten belt, press red button on

belt buckle.
Seat position 3 47.
Seat belts 3 55.
Airbag system 3 59.

Mirror adjustment

Interior mirror

To adjust the mirror, move the mirror

housing in the desired direction.
Interior mirror, Wide view mirror

3

 42.

Automatic anti-dazzle interior mirror

3

 42.

In brief

9

Exterior mirrors

Manual adjustment

Swivel mirror in required direction.
The lower mirrors are not adjustable.
Exterior mirrors 3 40.

Electric adjustment

Select the relevant exterior mirror and

adjust it.
Convex exterior mirrors 3 40.
Electric adjustment 3 41.
Folding exterior mirrors 3 41.
Heated exterior mirrors 3 41.

Steering wheel adjustment

Unlock the lever, adjust the steering

wheel, then engage the lever and

ensure it is fully locked.
Do not adjust the steering wheel

unless vehicle is stationary and the

steering wheel lock has been

released.
Airbag system 3 59.
Ignition positions 3 132.

10

In brief

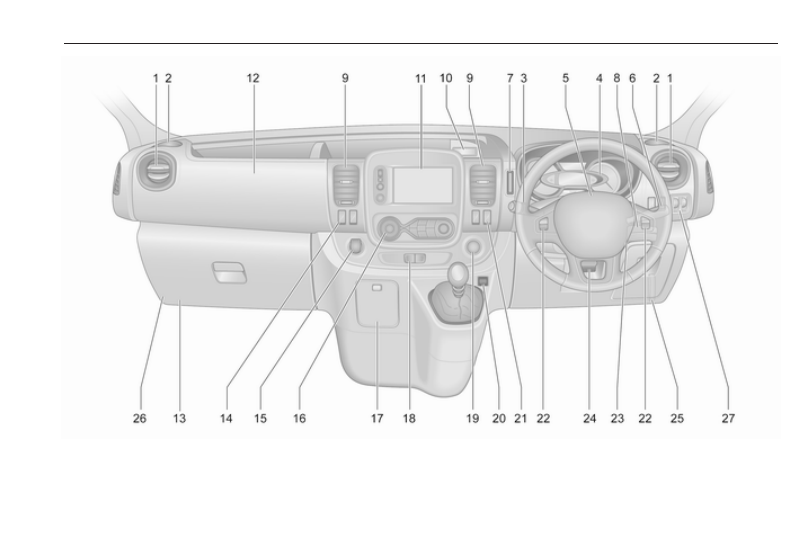

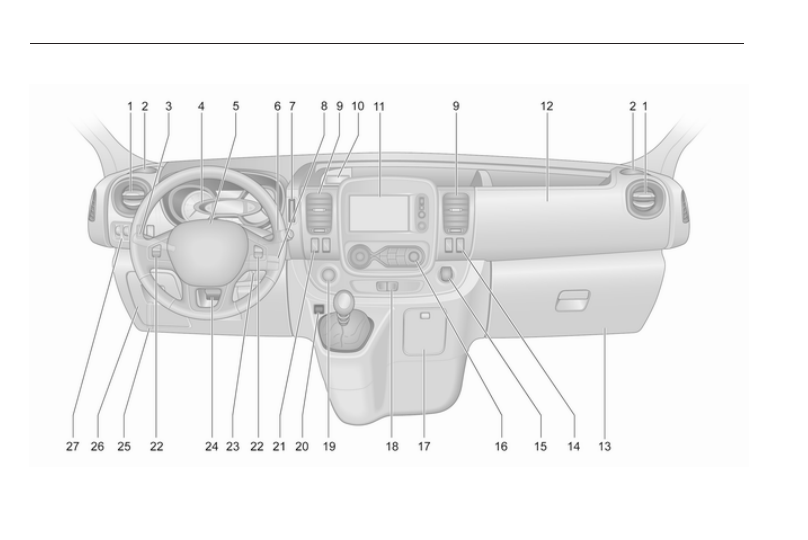

Instrument panel overview

In brief

11

1

Side air vents ...................... 127

2

Ashtray .................................. 90
Cupholder  ............................ 75

3

Light switch  ........................ 108
Rear fog light ....................... 112
Front fog lights  ................... 111
Exit lighting .......................... 114
Turn and lane-change

signals ................................. 111
Sidelights ............................ 108
Headlight flash, low beam

and high beam .................... 109

4

Instruments  .......................... 91
Driver Information Centre .... 102
Trip computer  ..................... 105

5

Horn ...................................... 85
Driver airbag ......................... 63

6

Windscreen wiper,

windscreen washer system  .. 86
Rear window wiper, rear

window washer system  ........ 87
Trip computer  ..................... 105

7

Card reader for electronic

key system ............................ 24

8

Steering column controls ...... 85

9

Centre air vents ................... 127

10 Power outlet .......................... 88

Cigarette lighter ..................... 90
Coin tray, USB slot ................ 73

11 Info display .......................... 102
12 Front passenger airbag ......... 63
13 Glovebox  .............................. 74
14 Heated exterior mirrors ......... 41

Heated rear window .............. 45
Idle speed control ............... 135

15 Power outlet .......................... 88

Cigarette lighter ..................... 90

16 Climate control system ........ 116

Electronic climate control

system ................................. 118

17 Ashtray .................................. 90

Cupholder  ............................ 75

18 Hazard warning flashers ..... 111

Central locking system .......... 26

19 Power button for electronic

key system .......................... 132

20 Eco button for fuel

economy mode ................... 130

21 Stop-start system ................ 136

Cruise control and speed

limiter  ................................. 152

22 Remote control on

steering wheel  ...................... 85
Cruise control  ..................... 152

23 Ignition switch with

steering wheel lock ............. 132

24 Steering wheel adjustment . . . 85
25 Bonnet release lever ........... 166
26 Fuse box ............................. 182

In brief

13

14

In brief

Exterior lighting

Turn outer light switch:
7

: off

8

: sidelights

9P

: headlights

Vehicles with automatic light control:
AUTO : automatic light control:

exterior lighting is switched

on and off automatically

depending on external

lighting conditions.

Lighting 3 108.
Automatic light control 3 109.
Headlight warning device 3 104.
Adaptive forward lighting 3 110.

Front and rear fog lights

Turn inner light switch
>

: front fog lights

ø

: rear fog light

Front fog lights 3 111.
Rear fog light 3 112.

In brief

15

Headlight flash, high beam and

low beam

headlight flash : pull lever

high beam

: push lever

low beam

: push or pull lever

Automatic light control 3 109.
High beam 3 109.
Headlight flash 3 109.

Turn and lane-change signals

lever up

: right turn signal

lever down : left turn signal
Turn and lane-change signals

3

 111.

Hazard warning flashers

Operated by pressing ¨.
Hazard warning flashers 3 111.

16

In brief

Horn

Press j.

Washer and wiper systems

Windscreen wiper

7

: off

AUTO or P : interval wiping or

automatic wiping with

rain sensor

1

: slow

2

: fast

Windscreen wiper 3 86.
Wiper blade replacement 3 174.

Windscreen washer

Pull lever.
Windscreen washer 3 86.
Washer fluid 3 170.

In brief

17

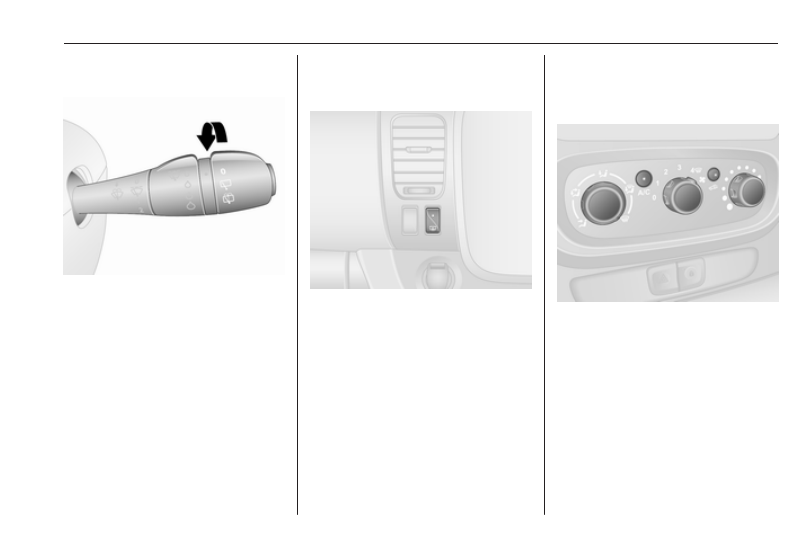

Rear window wiper and washer

system

Turn lever:
7

: off

e

: wiper

f

: washer

Rear window wiper/washer 3 87.
Washer fluid 3 170.

Climate control

Heated rear window

Heating is operated by pressing Ü.
Heated rear window 3 45.

Heated exterior mirrors

Pressing Ü also activates the heated

exterior mirrors.
Heated exterior mirrors 3 41.

Demisting and defrosting the

windows

Climate control system

● Air distribution to V.
● Set temperature control to

warmest level.

● Set fan speed to highest level.
● Cooling A/C on.
● Heated rear window Ü on.

Climate control system 3 116.

18

In brief

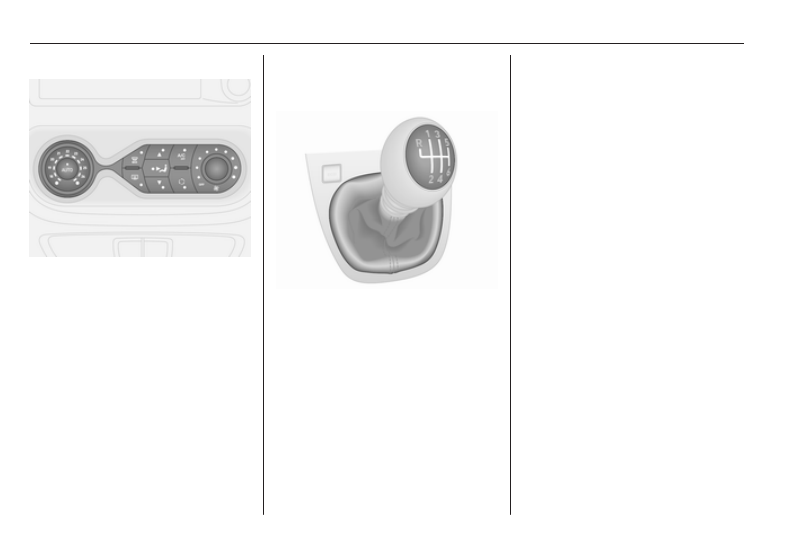

Electronic climate control system

● Press Ê. LED illuminates in the

button when activated.

● Temperature, air distribution and

cooling are regulated

automatically and the fan runs at

high speed.

● Switch on heated rear window Ü

3

 45.

Electronic climate control system

3

 118.

Transmission

Manual transmission

Reverse: with the vehicle stationary,

wait three seconds after depressing

clutch pedal and then pull up the

collar on the selector lever and

engage the gear.
If the gear does not engage, set the

lever to neutral, release the clutch

pedal and depress again; then repeat

gear selection.
Manual transmission 3 146.

Starting off

Check before starting off

● Tyre pressure and condition

3

 186, 3 220.

● Engine oil level and fluid levels

3

 167.

● All windows, mirrors, exterior

lighting and number plates are

free from dirt, snow and ice and

are operational.

● Proper position of mirrors, seats

and seat belts 3 41, 3 47,

3

 56.

● Brake function at low speed,

particularly if the brakes are wet.

In brief

19

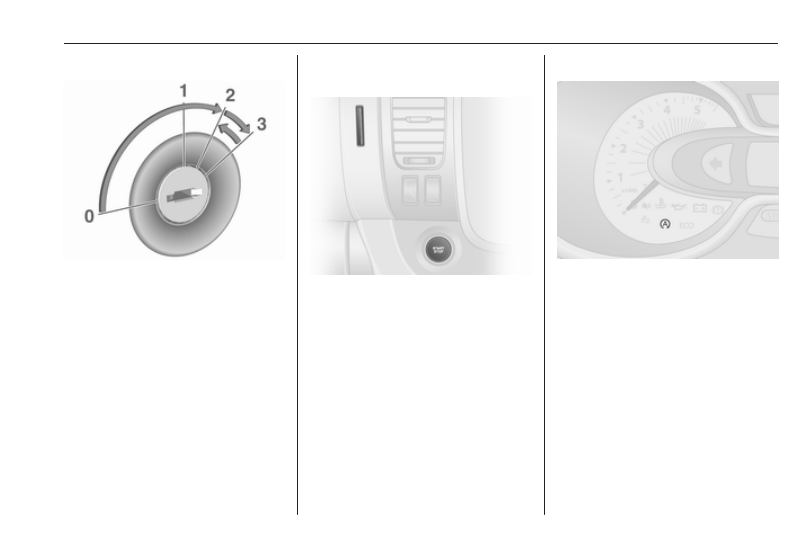

Starting the engine with key

● Turn key to position 1.
● Move the steering wheel slightly

to release the steering wheel

lock.

● Operate clutch and brake pedal.
● Do not operate accelerator pedal.
● Diesel engines: turn the key to

position 2 for preheating and wait

until control indicator !

extinguishes in the instrument

cluster.

● Turn key to position 3 and

release.

Starting the engine 3 134.

Starting the engine with the power

button

Electronic key must be inside the

vehicle, either in the card reader or

the front passenger compartment.

● Move the steering wheel slightly

to release the steering wheel

lock.

● Operate clutch and brake pedal.
● Do not operate accelerator pedal.
● Press START/STOP and

release.

● Engine starts after a short delay.

Power button 3 132.

Stop-start system

If the vehicle is at low speed or in

standstill and certain conditions are

fulfilled, activate an Autostop as

follows:

● Depress the clutch pedal.
● Move the selector lever to

neutral.

● Release the clutch pedal.

An Autostop is indicated when Ï

illuminates in the instrument cluster

3

 101.

To restart the engine, depress the

clutch pedal again.
Stop-start system 3 136.

20

In brief

Parking

9 Warning

● Do not park the vehicle on an

easily ignitable surface. The

high temperature of the

exhaust system could ignite the

surface.

● Always apply parking brake

without pressing release

button. Apply as firmly as

possible on a downhill slope or

uphill slope. Depress brake

pedal at the same time to

reduce operating force.

● Switch off the engine.
● If the vehicle is on a level

surface or uphill slope, engage

first gear. On an uphill slope,

turn the front wheels away from

the kerb.
If the vehicle is on a downhill

slope, engage reverse gear.

Turn the front wheels towards

the kerb.

● Close the windows.
● Remove the ignition key from

the ignition switch. Turn the

steering wheel until the

steering wheel lock is felt to

engage.

● Lock the vehicle by pressing e on

the remote control 3 26.
Activate the anti-theft locking

system 3 37 and anti-theft

alarm system 3 38.

● The engine cooling fans may run

after the engine has been

switched off 3 166.

Caution

After running at high engine

speeds or with high engine loads,

operate the engine briefly at a low

load or run in neutral for approx.

30 seconds before switching off, in

order to protect the turbocharger.

Keys, locks 3 21.
Laying the vehicle up for a long period

of time 3 165.

Keys, doors and windows

21

Keys, doors and

windows

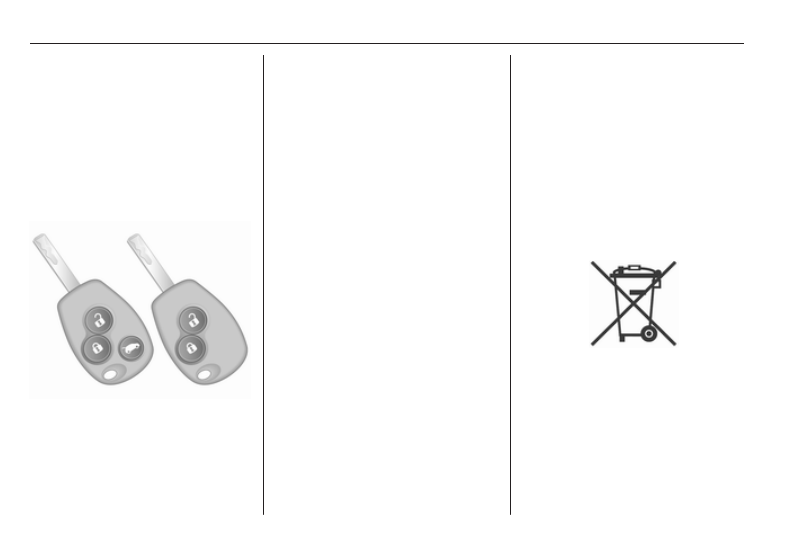

Keys, locks ................................... 21

Keys .......................................... 21

Car Pass .................................... 22

Radio remote control ................. 22

Electronic key system ................ 24

Door locks ................................. 25

Central locking system .............. 26

Automatic locking ...................... 31

Child locks ................................. 32

Doors ........................................... 32

Sliding door ............................... 32

Rear doors ................................. 33

Load compartment .................... 35

Vehicle security ............................ 37

Anti-theft locking system ........... 37

Anti-theft alarm system .............. 38

Immobiliser ................................ 40

Exterior mirrors ............................ 40

Convex shape ........................... 40

Manual adjustment .................... 40

Electric adjustment .................... 41

Folding mirrors .......................... 41

Heated mirrors ........................... 41

Interior mirrors ............................. 42

Manual anti-dazzle .................... 42

Automatic anti-dazzle ................ 42

Windows ...................................... 43

Windscreen ............................... 43

Power windows ......................... 43

Rear windows ............................ 44

Heated rear window .................. 45

Sun visors .................................. 45

Keys, locks

Keys

Caution

Do not attach heavy or bulky items

to the ignition key.

Replacement keys

The key number is specified on the

key or on a detachable tag.
The key number must be quoted

when ordering replacement keys as it

is a component of the immobiliser

system.
If the electronic key needs to be

replaced, the vehicle must be taken to

a workshop.
Locks 3 200.
Radio remote control 3 22.
Electronic key system 3 24.
Central locking system 3 26.
Starting the engine 3 134.

22

Keys, doors and windows

Car Pass

The Car Pass contains security

related vehicle data and should

therefore be kept in a safe place.
When the vehicle is taken to a

workshop, this vehicle data is needed

in order to perform certain operations.

Radio remote control

Used to operate:

● central locking system 3 26
● load compartment 3 35
● anti-theft locking system 3 37
● anti-theft alarm system 3 38

The remote control has a range of

approx. five metres. It can be

restricted by external influences. The

hazard warning flashers confirm

operation.
Handle with care, protect it from

moisture and high temperatures and

avoid unnecessary operation.
Depending on model, the vehicle may

use a 2-button or 3-button remote

control or an electronic key which

includes the functionality of the

remote control.
Electronic key system 3 24.

Fault

If the central locking system cannot

be operated with the remote control,

it may be due to the following:

● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of

the remote control while not in

range, which will require

reprogramming by a workshop.

● Overload of the central locking

system by operating at frequent

intervals; the power supply is

interrupted for a short time.

● Interference from higher-power

radio waves from other sources.

Manual key operation 3 26.

Remote control battery

replacement

Replace the battery as soon as the

range reduces.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.
