Keys, doors and windows

23

Reattach both halves of cover

ensuring it engages correctly.
Replace screw and tighten.

Door locks

Anti-theft security lock

To prevent the front doors from being

opened from the outside, open the

door and engage the anti-theft

security lock.
Using a suitable tool, turn the lock

switch on the door to the horizontal

locked position. The door cannot be

opened from outside and can only be

opened from inside the vehicle or by

using the manual key.
To disengage, turn the switch to the

unlocked position.

Manual door locks

To unlock the front doors manually,

turn the key in the driver's door lock.

Open the front doors by pulling the

handles.
Sliding side door(s) 3 28.

To unlock the rear doors manually,

turn the key in the right-hand rear

door lock. Open the door by pulling

the handle.

24

Keys, doors and windows

The left-hand rear door is then

released using the lever on the inside

edge of the door.
Always close the left-hand door

before the right-hand door.
Rear doors 3 32.

Central locking system

Unlocks and locks the front doors,

sliding side doors and load

compartment.
With the 3-button remote control, the

front doors and load compartment

(and, depending on vehicle

configuration, the sliding side doors)

can be unlocked and locked

separately.

Note

A short time after unlocking with the

remote control the doors are locked

automatically if no door has been

opened.

Unlocking the vehicle

Operation of central locking system

with the remote control is confirmed

by the hazard warning flashers. The

hazard warning flashers flash once to

indicate the vehicle is unlocked, and

twice to indicate the vehicle is locked.

Unlocking with 2-button remote

control

Press c to unlock the front doors.

Press again to unlock entire vehicle.

Unlocking with 3-button remote

control

Depending on vehicle configuration:

● Press c: Front doors and sliding

side doors are unlocked.
Press c again: Load

compartment is also unlocked.

● Press c: Front doors are

unlocked.
Press c again: Sliding side doors

and the load compartment are

also unlocked.

● Press c: All doors and the load

compartment are unlocked.

Keys, doors and windows

25

Locking the vehicle

Close all doors and load

compartment. If the doors are not

closed properly, the central locking

system will not work.

Locking with 2-button remote control

Press e: All doors and the load

compartment are locked.

Locking with 3-button remote control

Press e: All doors and the load

compartment are locked.

Note

Where fitted, alarm monitoring of the

passenger compartment 3 34 is

switched off by pressing and holding

e

 (which is confirmed by an audible

signal).
If this was done unintentionally,

unlock the doors again and press e

briefly to lock the vehicle.

Load compartment

Locking and unlocking load

compartment with 2-button remote

control

After unlocking the front doors with c,

press c again: Load compartment is

unlocked.
Press e once: Load compartment is

locked.

26

Keys, doors and windows

Locking and unlocking load

compartment with 3-button remote

control

Depending on vehicle configuration:

● Press G: Load compartment is

locked or unlocked.

● Press G: Load compartment

and sliding side doors are locked

or unlocked.

Central locking switch

Locks or unlocks the doors and load

compartment from inside the

passenger compartment.

Press e to lock or unlock.
LED in switch illuminates when the

vehicle is locked.
Depending on version, if the vehicle

is driven with an open load

compartment, the front doors (and

sliding side doors) can still be locked.

With the ignition switched on, press

and hold e for more than

five seconds. When closing the rear

doors/tailgate, they are locked

automatically.

Automatic locking when exiting the

vehicle

Depending on version, the e switch

can also be used to lock all doors and

the load compartment automatically

when closing the front door and

exiting the vehicle:
Remove key from ignition switch then

press and hold the e switch for more

than five seconds; vehicle is locked

when the front door is closed.
Automatic locking after driving off

3

 27.

Fault in remote control system

Unlocking

Manually unlock the front door by

turning the key in the lock.
Switch on the ignition and press the

central locking switch e to open all

doors and the load compartment.

Locking

Manually lock the front door by

turning the key in the lock.

Keys, doors and windows

27

Fault in central locking system

Unlocking

Manually unlock the front door by

turning the key in the lock. The other

doors can be opened by pulling the

interior handles.

Locking

Push inside locking knob of all doors

except driver's door. Then close the

driver's door and lock it from the

outside with the key.

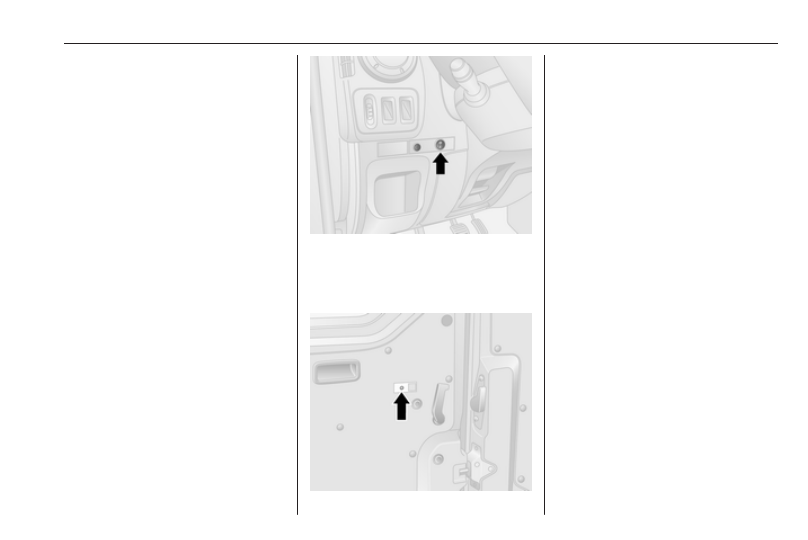

Power door locks

Combi, Bus

For safety, it is possible for the driver

to operate the passenger door locks

remotely.
All doors must be fully closed and

automatic locking deactivated 3 27.

To lock, press l side of switch; the

warning light alongside the switch will

flash once (then extinguish) and an

audible warning will sound.

Warning lights in the appropriate

doors extinguish.
To unlock, press 0 side of switch.

Warning lights in the appropriate

doors illuminate continuously.

Fault

In the event of a fault in the system,

the warning light alongside the switch

illuminates continuously and an

audible warning will sound.
Check the doors are manually

unlocked (interior door lock switches).
If necessary, have the cause of the

fault remedied by a workshop.

Automatic locking

Automatic locking after driving off

Depending on version, this security

feature can be configured to

automatically lock all doors and the

load compartment as soon as the

vehicle is driven.

28

Keys, doors and windows

Activation

With the ignition switched on, press

and hold the central locking switch e

for approx. five seconds. An audible

signal confirms activation.
LED in switch illuminates when the

vehicle is locked.

Deactivation

With the ignition switched on, press

and hold e for approx. five seconds.

An audible signal confirms

deactivation.

Child locks

9 Warning

Use the child locks whenever

children are occupying the rear

seats.

Press down the child lock, door

cannot be opened from the inside.

Raise to deactivate.

Doors

Sliding door

Unlock the sliding side door with the

remote control or key (if equipped).

Open the door by pulling the handle

and sliding the door towards the rear.
Open and close the sliding side door

only when the vehicle is at a standstill

with the parking brake applied (on

certain models, a warning chime will

sound when the sliding side door is

open and the parking brake is

released).

Keys, doors and windows

29

The sliding side door can be locked

from inside the vehicle with the

interior lock switch.
Ensure the side door is fully closed

and secure before driving the vehicle.

9 Warning

Take care when operating the

sliding side door. Risk of injury.
Ensure that nothing becomes

trapped during operation and no-

one is standing within the moving

area.
If the vehicle is parked on a slope,

open sliding doors may move

accidentally on account of their

weight.
Close the sliding doors before

driving off.

9 Danger

Do not drive with the sliding side

door open or ajar, e.g. when

transporting bulky objects, since

toxic exhaust gases, which cannot

be seen or smelled, could enter

the vehicle. This can cause

unconsciousness and even death.

Central locking system 3 24.

Power sliding door

Opening

With vehicle at a standstill and the

parking brake applied, press switch

on instrument panel to open the

power sliding door automatically; the

LED in the switch flashes during

operation.

If the switch is pressed while the

engine is in an Autostop, the engine

will restart automatically.
Stop-start system 3 137.

Note

If the parking brake is not applied

when the switch is pressed, a

warning chime will sound and the

power sliding door will not open.

To stop movement at any time, press

the switch again. Press once more to

continue power sliding door

movement.

Note

If the power sliding door is locked

from the inside with the child lock

active, a warning chime will sound.

Unlock the door manually from the

inside.

Bus

The engine is restarted automatically

when operating the power sliding

door switch during an Autostop.
Stop-start system 3 137.

Closing

Press switch again; the LED flashes

and a chime sounds during operation.

30

Keys, doors and windows

In the event of opening or closing

difficulties, e.g. due to frost, press and

hold the switch to increase power to

the sliding door.

9 Warning

Take care when operating the

power sliding door. Risk of injury,

particularly to children.
Take particular care when the

vehicle is parked on a slope: open

or close the door fully until it

latches into its locking position.
Keep a close watch on the moving

door when operating. Ensure that

nothing becomes trapped during

operation and no-one is standing

within the moving area.

Note

Do not operate power sliding door

too often without engine running as

this will discharge the vehicle

battery.

Emergency exit

In an emergency, the sliding side door

can be opened manually after

releasing the interior handle.

Alternatively, if the vehicle is

unlocked, open the door using the

exterior handle (depending on model

variant). Lift the handle (3) to the

second notch position, then slide the

door backwards using the handle (2)

near the front edge of the door.

Reset

If the door has been opened

manually, the power sliding door

system must be reset.

Open the sliding side door halfway

and move the relevant handle to the

first notch position; the warning light

Keys, doors and windows

31

illuminates in the instrument panel.

Then press the button (1) on the

relevant handle.
Move the handle back and forth to

ensure the door actuator motor

operates, then press and hold the

switch on the instrument panel to fully

close the door; the warning light

extinguishes when the system is

reset correctly.

Maintenance

It is the owner's responsibility to have

the drive belt replaced after every

25,000 cycles, and for this purpose a

counter is incorporated in the lower B-

pillar. The counter is incremented at

each opening and closing, it is not

possible to reset the counter. Seek

the assistance of a workshop.
If the drive belt should fail, the door

may still be opened and closed

manually.

Fault

If a system fault is detected when

unlocking the doors, an audible

warning will sound and the LED in the

switch illuminates. Check position of

exterior handle. Reset handle if in the

open position and use key to operate

door locks.
Seek the assistance of a workshop if

the fault remains.

Power side step

9 Warning

Take care when using the power

side step, particularly in wet and

cold weather conditions.

The power side step operates

automatically when the sliding door is

opened or closed.

9 Warning

Ensure there is adequate

clearance to allow the power side

step to fully extend and retract

without obstruction.

32

Keys, doors and windows

The indicator illuminates during

operation of the power side step. If it

remains illuminated with the door

closed, the step has not retracted, or

the door has not fully latched into its

locking position.
In the event of a failure, manually

retract the power side step by

unscrewing the orange handwheel

located at the rear of the step,

ensuring that there are no obstacles

preventing closure. When the step is

retracted, screw in the orange

handwheel. Seek the assistance of a

workshop.

Rear doors

Lock and unlock the rear doors with

the remote control or key (if

equipped).
Central locking system 3 24, Manual

door locks 3 23.
To open the right-hand rear door, pull

the exterior handle.

The right-hand door can also be

opened from inside the vehicle by

pulling the interior handle.

The left-hand rear door is then

released using the lever.

9 Warning

The rear lights may be obscured if

the rear doors are open and the

vehicle is parked on the roadside.
Make other road users aware of

the vehicle, by using a warning

triangle or other equipment

specified in the road traffic

regulations.

The doors are retained in the 90º

position by locking stays.

Keys, doors and windows

33

To open the doors to 180º or further

(depending on model) release locking

stays from the catches on the door

frames and swing doors open to the

desired position.

When opening the doors to 270º, the

doors are retained in the fully open

position by magnets on the body side.

9 Warning

Ensure extended opening doors

are secured when fully opened.
Opened doors may slam closed

due to the force of the wind!

When closing the doors, secure each

locking stay to the catch on the door

frame.

The rear doors can be locked from

inside the vehicle with the interior lock

switch on the inside of the right-hand

door.
Always close the left-hand door

before the right-hand door.

Combi, Bus

In left-hand drive vehicles, the rear

doors are opened from inside the

vehicle by pulling the interior handle.
In right-hand drive vehicles, from

inside the vehicle pull the interior

handle on the right-hand door and

open, then release the left-hand door

by lowering the lever and open.
Always close the left-hand door

before the right-hand door.

9 Danger

Do not drive with the rear doors

open or ajar, e.g. when

transporting bulky objects, since

toxic exhaust gases, which cannot

be seen or smelled, could enter

the vehicle. This can cause

unconsciousness and even death.

34

Keys, doors and windows

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are

people in the vehicle! The doors

cannot be unlocked from the

inside.

The system deadlocks the doors. All

doors must be closed or the system

cannot be activated.

Note

The anti-theft locking system cannot

be activated when the hazard

warning lights or sidelights are

switched on.

Activation and deactivation are not

possible with the central locking

switch.

Activation

Press e twice within three seconds.
Hazard warning lights flash

five times as confirmation.

Deactivation

Unlock the doors by pressing c on the

remote control.

Anti-theft alarm system

The anti-theft alarm system is

operated in conjunction with the

central locking system.

It monitors:

● doors, tailgate, bonnet
● passenger compartment
● load compartment
● ignition
● interruption of alarm siren power

supply

Activation

All doors and the bonnet must be

closed.

Press e to activate anti-theft alarm

system. Hazard warning lights flash

twice to confirm activation.

Keys, doors and windows

35

If the hazard warning lights do not

flash upon activation, a door or the

bonnet is not fully closed.

Note

Changes to the vehicle interior, e.g.

the use of seat covers, and open

windows, could impair the function

of passenger compartment

monitoring.

Deactivation

Unlocking the vehicle or switching on

the ignition deactivates the anti-theft

alarm system. Hazard warning lights

flash once to confirm deactivation.

Note

If the alarm has been triggered,

unlocking the vehicle with the key

will not stop the alarm siren. To stop

the siren, switch on the ignition. The

hazard warning lights will not flash

upon deactivation if the alarm has

been triggered.

Activation without monitoring of

passenger compartment

Switch off monitoring of the

passenger compartment when

people or animals are being left in the

vehicle, or if the auxiliary heater

3

 124 is set for a timed or remote

controlled start.

Depending on vehicle configuration:

● press and hold e, or
● switch ignition on and off twice

quickly, then close doors and

activate the anti-theft alarm

system

An audible signal will sound as

confirmation.
The status will remain until the doors

are unlocked.

Alarm

When triggered, the alarm sounds via

a separate battery-backed power

sounder, and the hazard warning

lights flash simultaneously. The

number and duration of alarm signals

are stipulated by legislation.
If the vehicle battery is disconnected

or its power supply is interrupted, the

alarm siren will be triggered. First

deactivate the anti-theft alarm system

if the vehicle battery must be

disconnected.
To silence the alarm siren (if

triggered) and therefore deactivate

the anti-theft alarm system, reconnect

vehicle battery and unlock vehicle

with remote control button c (or

switch on the ignition).

Immobiliser

The system is part of the ignition

switch and checks whether the

vehicle is allowed to be started with

the key being used.

36

Keys, doors and windows

The immobiliser is activated

automatically after the key has been

removed from the ignition switch and

also if the key is left in the ignition

switch when the engine is turned off.
If the engine cannot be started, switch

off the ignition and remove key, wait

approx. two seconds and then repeat

the start attempt. If start attempt is

unsuccessful, attempt to start the

engine using the spare key and seek

the assistance of a workshop.

Note

Radio Frequency Identification

(RFID) tags may cause interference

with the key. Do not have it placed

near the key when starting the

vehicle.
Note

The immobiliser does not lock the

doors. You should always lock the

vehicle after leaving it and switch on

the anti-theft alarm system 3 24,

3

 34.

Exterior mirrors

Convex shape

The convex exterior mirror contains

an aspherical area and reduces blind

spots. The shape of the mirror makes

objects appear smaller, which will

affect the ability to estimate

distances.

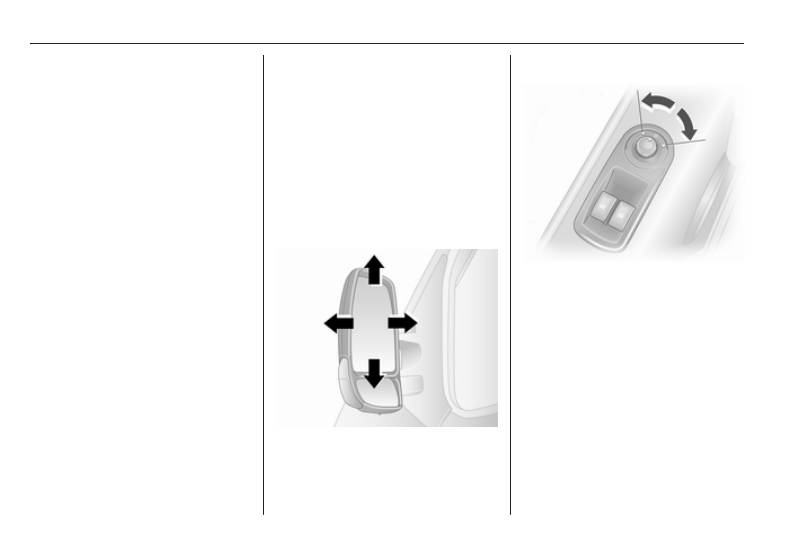

Manual adjustment

Adjust mirrors by swivelling in

required direction.
The lower mirrors are not adjustable.

Electric adjustment

Switch on ignition to operate electric

exterior mirrors.
Select the relevant exterior mirror by

switching the control to the left or

right, then swivel the control to adjust

the mirror.
No mirror is selected when the control

is in the centre position.
The lower mirrors are not adjustable.

Keys, doors and windows

37

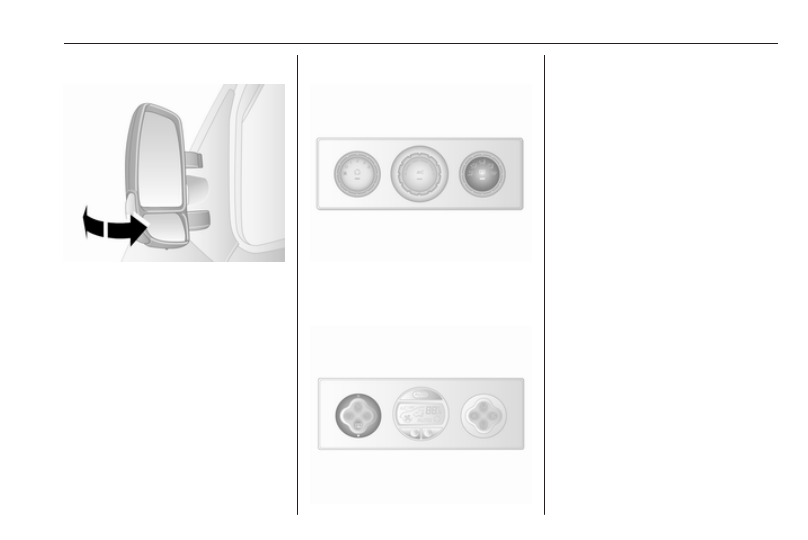

Folding mirrors

For pedestrian safety, the exterior

mirrors will swing out of their normal

mounting position if they are struck

with sufficient force. Reposition the

mirror by applying slight pressure to

the mirror housing.

Parking position

The exterior mirrors can be folded in

by pressing gently on the outer edge

of the housing, e.g. when in a

confined parking situation.

Heated mirrors

Operated by pressing Ü on either

system. LED illuminates in button

during operation.

Heating works with the engine

running and is switched off

automatically after a short time.
Climate control system 3 117.
Electronic climate control system

3

 119.

38

Keys, doors and windows

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on

the underside of the mirror housing.

Wide view mirror

Depending on vehicle, a large convex

mirror is located in the front

passenger sun visor which helps to

increase visibility and reduce blind

spots.

Windows

Windscreen

Windscreen stickers

Do not attach stickers, e.g. toll road

stickers or similar, on the windscreen

in the area of the interior mirror.

Otherwise the detection zone of the

sensor in the mirror housing could be

restricted.

Windscreen replacement

Caution

If the vehicle has a front-looking

camera sensor for the driver

assistance systems, it is very

important that any windscreen

replacement is performed

accurately according to Opel

specifications. Otherwise, these

systems may not work properly

and there is a risk of unexpected

behaviour and/or messages from

these systems.
