Keys, locks

Keys

Caution

Do not attach heavy or bulky items

to the ignition key.

Replacement keys

The key number is specified on a

detachable tag.
The key number must be quoted

when ordering replacement keys as it

is a component of the immobiliser

system.
Locks 3 232, Central locking 3 25,

Starting the engine 3 139.
Radio remote control 3 23.
Electronic key 3 24.
The code number of the adapter for

the locking wheel nuts is specified on

a card. It must be quoted when

ordering a replacement adapter.
Wheel changing 3 225.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

23

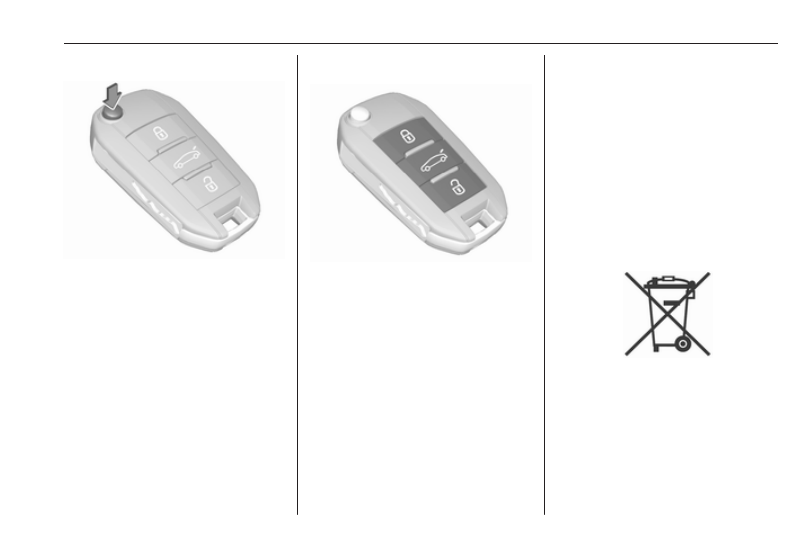

Key with foldaway key section

Press button to extend. To fold the

key, first press the button.

Radio remote control

Enables operation of the following

functions via the use of the remote

control buttons:

● central locking system 3 25
● anti-theft locking system 3 36
● anti-theft alarm system 3 36
● tailgate unlocking and opening
● power windows 3 41
● mirrors folding

The remote control has a range of up

to 100 metres, but may also be much

less due to external influences. The

hazard warning flashers confirm

operation.
Handle with care, protect from

moisture and high temperatures and

avoid unnecessary operation.

Replacing battery in radio remote

control

Replace the battery as soon as the

range reduces.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

24

Keys, doors and windows

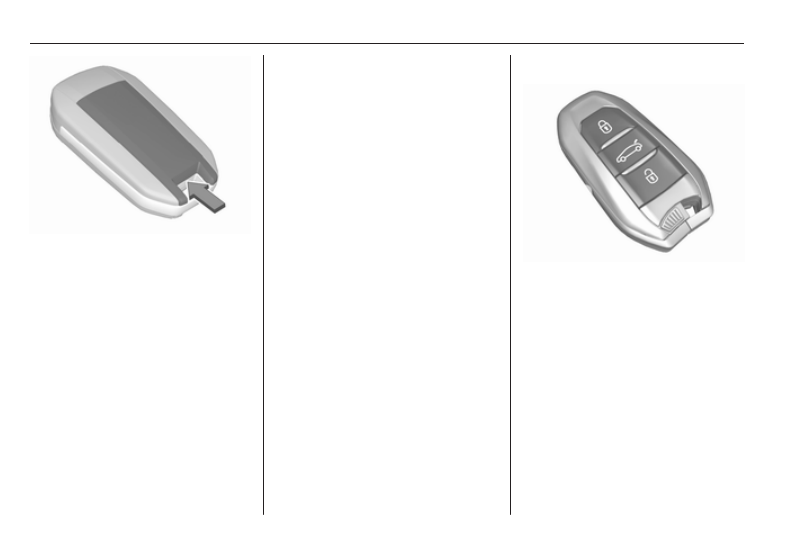

1. Remove the back cover from the

remote control.

2. Extract the flat battery from its

location.

3. Replace battery with a battery of

the same type. Pay attention to

the installation position.

4. Clip the back cover in place.

Fault

If the central locking system cannot

be operated with the radio remote

control, the cause may be one of the

following:

● Fault in radio remote control.
● Electronic key is out of reception

range.

● The battery voltage is too low.
● Overload of the central locking

system by operating at frequent

intervals, the power supply is

interrupted for a short time.

● Interference from higher-power

radio waves from other sources.

Manual unlocking 3 25.

Electronic key system

Enables a keyless operation of the

following functions:

● central locking system 3 25
● power tailgate 3 31
● ignition switching on and starting

the engine 3 139

The electronic key simply needs to be

on the driver's person.
Additionally, the electronic key

includes the functionality of the radio

remote control 3 23.
Handle with care, protect from

moisture and high temperatures and

avoid unnecessary operation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

25

Replacing battery in electronic

key

Replace the battery as soon as the

system no longer operates properly

or the range is reduced. The need for

battery replacement is indicated by a

message in the Driver Information

Centre 3 105.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.

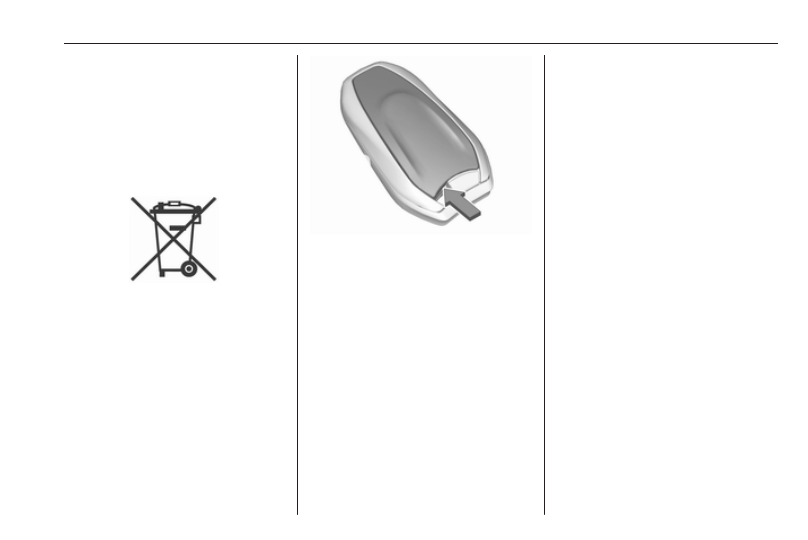

1. Remove the cover.
2. Extract the flat battery from its

location.

3. Replace battery with a battery of

the same type. Pay attention to

the installation position.

4. Clip the cover in place.

Fault

If the central locking cannot be

operated or the engine cannot be

started, the cause may be one of the

following:

● Fault in electronic key.
● Electronic key is out of reception

range.

● The battery voltage is too low.
● Overload of the central locking

system by operating at frequent

intervals, the power supply is

interrupted for a short time.

● Interference from higher-power

radio waves from other sources.

To rectify the cause of the fault,

change the position of the electronic

key.
Manual unlocking 3 25.

Central locking system

Unlocks and locks doors, load

compartment and fuel filler flap.
A pull on an interior door handle

unlocks the respective door. Pulling

the handle once more opens the door.

Note

In the event of an accident in which

airbags or belt pretensioners are

deployed, the vehicle is

automatically unlocked.
Note

A short time after unlocking with the

remote control the doors are locked

automatically if no door has been

-------------------------------------------------------------------------------------------------------------------------------------------------------------

26

Keys, doors and windows

opened. A precondition is that the

setting is activated in the vehicle

personalisation 3 106.

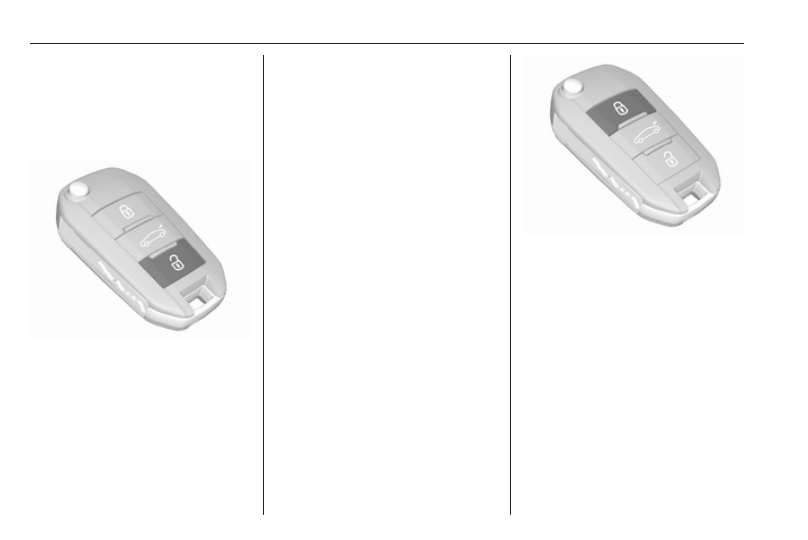

Remote control operation

Unlocking

Press O.

Unlocking mode can be set in the

vehicle personalisation menu in the

Info-Display. Two settings are

selectable:

● All doors, load compartment and

fuel filler flap will be unlocked by

pressing O once.

● Only the driver's door, load

compartment and fuel filler flap

will be unlocked by pressing O

once. To unlock all doors, press

O

 twice.

Select the relevant setting in the

Vehicle personalisation.
Vehicle personalisation 3 106.

Unlocking the tailgate

Press P longer to unlock the

tailgate only.
Unlocking and opening the tailgate

3

 31.

Locking

Close doors, load compartment and

fuel filler flap.

Press N.
If the driver's door is not closed

properly, the central locking system

will not work.

Confirmation

Operation of the central locking

system is confirmed by the hazard

warning flashers. A precondition is

that the setting is activated in the

vehicle personalisation 3 106.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

27

Electronic key system operation

The electronic key must be outside

the vehicle, within a range of approx.

one metre of the relevant door side.

Unlocking

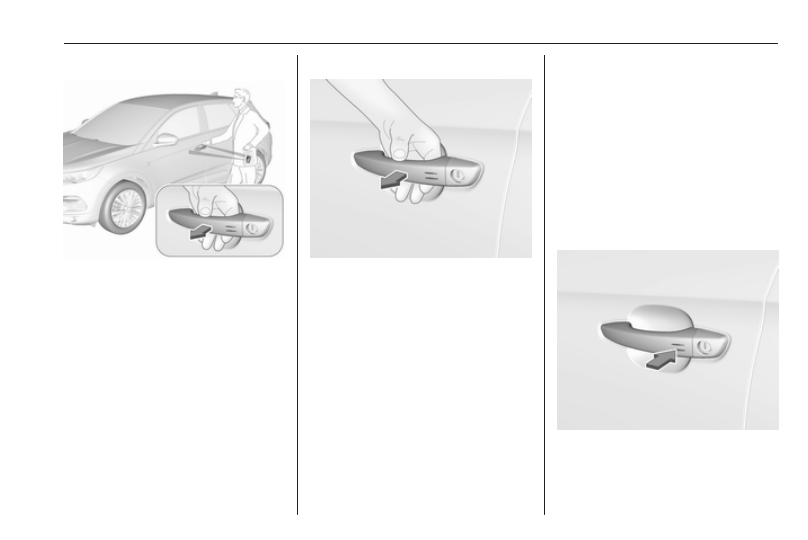

Pass your hand behind the door

handle of one of the front doors to

unlock the vehicle or press the

tailgate opening control.
Keep the hand behind the door

handle or keep the tailgate opening

control pressed to open the windows.
Unlocking mode can be set in the

vehicle personalisation menu in the

Info-Display. Two settings are

selectable:

● Only the driver's door will be

unlocked by passing your hand

behind the driver's door handle.

● All doors, load compartment and

fuel filler flap will be unlocked by

passing your hand behind the

passenger's door handle or by

pressing the tailgate opening

control.

● Only the tailgate will be unlocked

by pressing the tailgate

touchpad.

Vehicle personalisation 3 106

Locking

Press with a finger or thumb on one

of the door handles (at the markings)

or press the tailgate touchpad.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

28

Keys, doors and windows

All doors, load compartment and fuel

filler flap will be locked.
The system locks if any door has

been opened and all doors are now

closed.
If the driver's door is not closed

properly, the electronic key remains in

the vehicle or the ignition is not off,

locking will not be permitted and a

warning chime sounds.
If there have been two or more

electronic keys in the vehicle and the

ignition was on once, the doors will be

locked even if just one electronic key

is taken out of the vehicle.

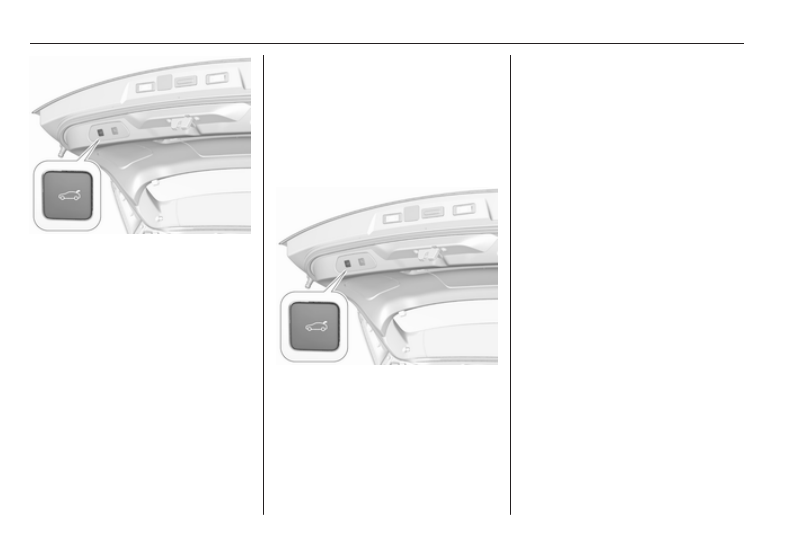

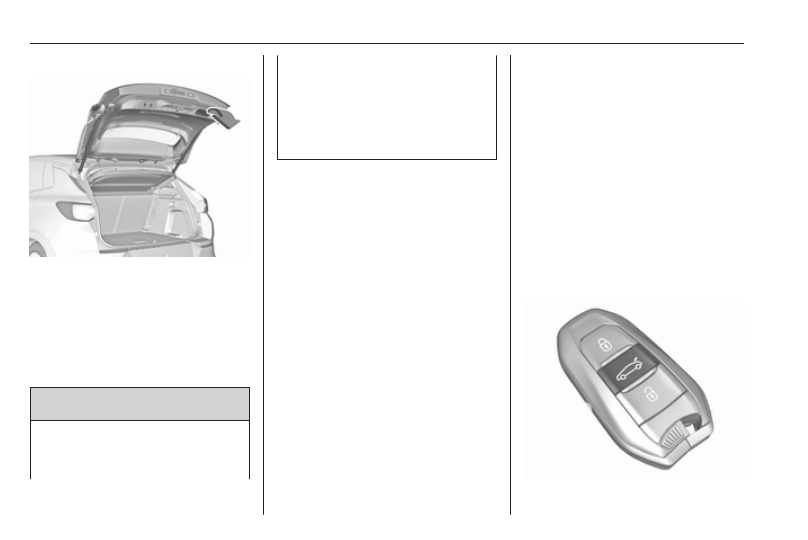

Unlocking and opening the tailgate

The tailgate can be unlocked and

opened handsfree by pushing the

touchpad switch under the tailgate

moulding when the electronic key is in

range. The doors remain locked.

Load compartment 3 31.

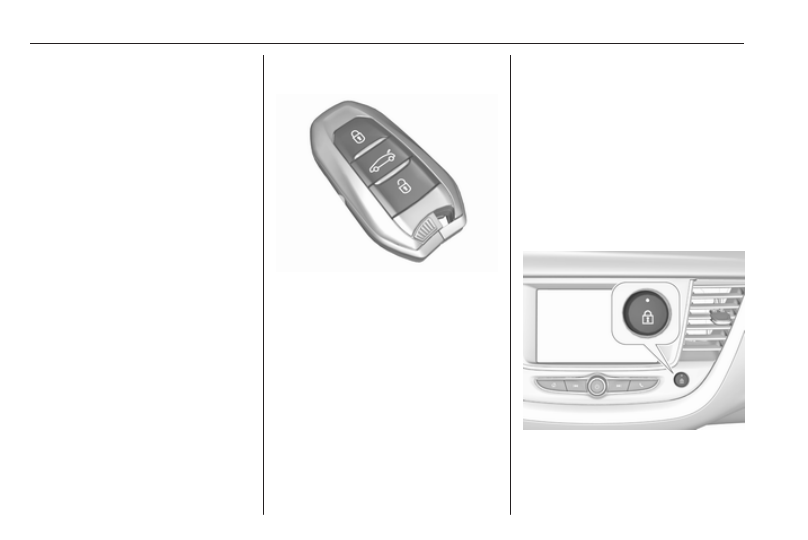

Operation with buttons on the

electronic key

The central locking system can also

be operated with the buttons on the

electronic key.
Press O to unlock.
Press N to lock.
Press P longer to unlock and open

only the power tailgate.
Remote control operation 3 25.

Confirmation

Operation of central locking system is

confirmed by the hazard warning

flashers. A precondition is that the

setting is activated in the vehicle

personalisation 3 106.

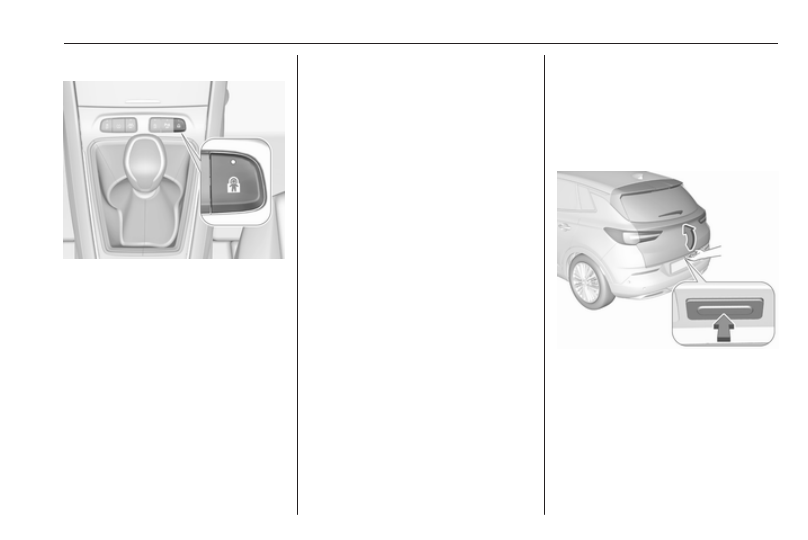

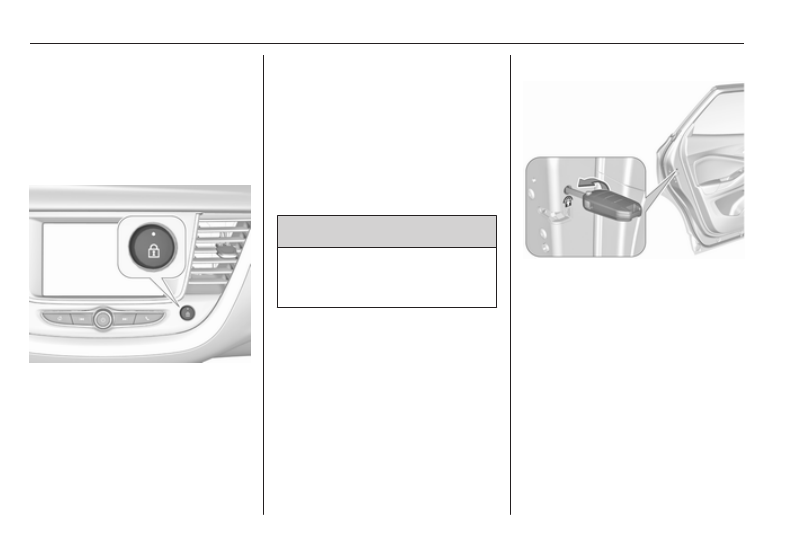

Central locking buttons

Locks or unlocks all doors, the load

compartment and fuel filler flap from

the passenger compartment via a

switch in the driver's door panel.

Press Q to lock. The LED in the button

illuminates.
Press Q again to unlock. The LED in

the button extinguishes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

29

Operation with the key in case of

a central locking system fault

In case of a fault, e.g. vehicle battery

or remote control/electronic key

battery is discharged, the driver's

door can be locked or unlocked with

the mechanical key.

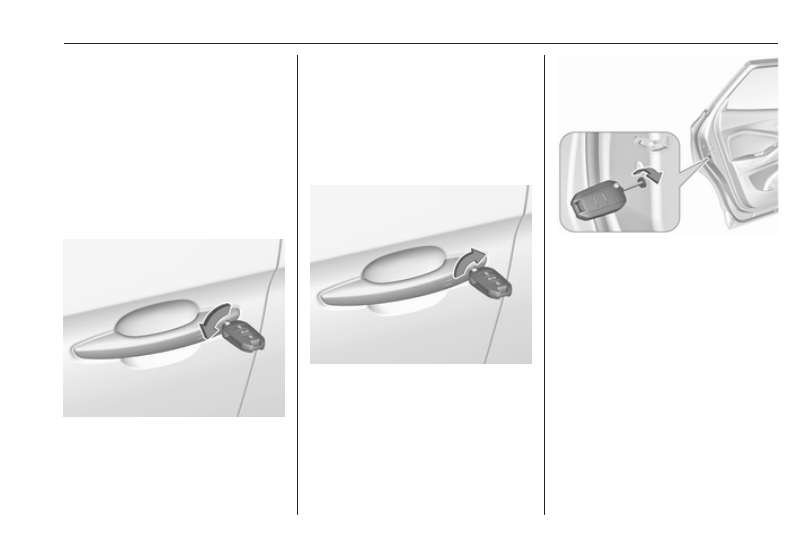

Manual unlocking

Electronic key: press and hold the

latch to extract the integral key.

Manually unlock the driver's door by

inserting and turning the key in the

lock cylinder.

The other doors can be opened by

pulling the interior handle. The load

compartment and fuel filler flap will

possibly not be unlocked.
By switching on the ignition, the anti-

theft locking system is deactivated.

Manual locking

Manually lock the driver's door by

inserting and turning the key in the

lock cylinder.

To lock the other doors, remove the

black cover by using a key.
Insert key carefully and move to the

inner side of the door without turning

the key.
Remove key and attach black cover.
The fuel filler flap and tailgate are

possibly not locked.

Automatic locking

Automatic locking after driving off

This system allows automatic

simultaneous locking of the doors and

boot as soon as the speed of the

vehicle exceeds 10 km/h.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

30

Keys, doors and windows

If one of the doors or the load

compartment is open, the automatic

central locking does not take place.

This is signalled by the sound of the

locks rebounding, accompanied by

illumination of h in the instrument

panel, an audible signal and the

display of an alert message.

You can activate or deactivate this

function permanently. With the

ignition on, press Q until an audible

signal starts and a corresponding

message is displayed.
The state of the system stays in

memory when switching off the

ignition.

Automatic relock after unlocking

This feature automatically locks all

doors, load compartment and fuel

filler flap a short time after unlocking

with the remote control or electronic

key, provided no door has been

opened.

Child locks

9 Warning

Use the child locks whenever

children are occupying the rear

seats.

Child locks, mechanical

Turn the red child lock in the rear door

to the horizontal position by using a

key. The door cannot be opened from

the inside.
To deactivate, turn the child lock to

the vertical position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

31

Child locks, electric

Remotely operated system to prevent

opening of the rear doors using their

interior controls and use of the rear

electric windows. The control is

located in the centre console in front

of the selector lever.

Switching on

Press R. The indicator lamp in the

button comes on, accompanied by a

confirmation message. This indicator

lamp remains on until the child lock is

switched off.

Switching off

Press R again. The indicator lamp on

button goes off, accompanied by a

confirmation message. This indicator

lamp remains on while child lock is

switched on.

Doors

Load compartment

Tailgate

Opening

After unlocking, press the touchpad

switch under the tailgate moulding

and open the tailgate.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

32

Keys, doors and windows

Closing

Use the interior handle.
Do not push the touchpad switch

whilst closing as this will unlock the

tailgate again.
Central locking system 3 25.

Power tailgate

9 Warning

Take care when operating the

power tailgate. Risk of injury,

particularly to children.

Keep a close watch on the

movable tailgate when operating.

Ensure that nothing becomes

trapped during operating and no

one is standing within the moving

area.

The power tailgate can be operated

by:

● Pressing P longer on the

electronic key.

● Handsfree operation with motion

sensor below the rear bumper.

● The touchpad switch under the

exterior tailgate moulding and

T

 in the open tailgate.

On vehicles with automatic

transmission, the tailgate can only be

operated when the vehicle is

stationary and automatic

transmission in P.
The turn signal lights flash and a

chime sounds when the power

tailgate is operating.

Note

Operating the power tailgate does

not operate the central locking

system. To open the tailgate with the

button on the electronic key, or with

the touchpad switch under the

tailgate moulding or via handsfree

operation, it is not necessary to

unlock the vehicle. A precondition is

that the electronic key is outside the

vehicle, within a range of approx.

one metre of the tailgate.
Do not leave the electronic key in the

load compartment.
Lock the vehicle after closing if it was

unlocked previously.

Central locking system 3 25.

Operation with the electronic key

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

33

Press P longer to open or close the

tailgate.

Handsfree operation with motion

sensor below the rear bumper

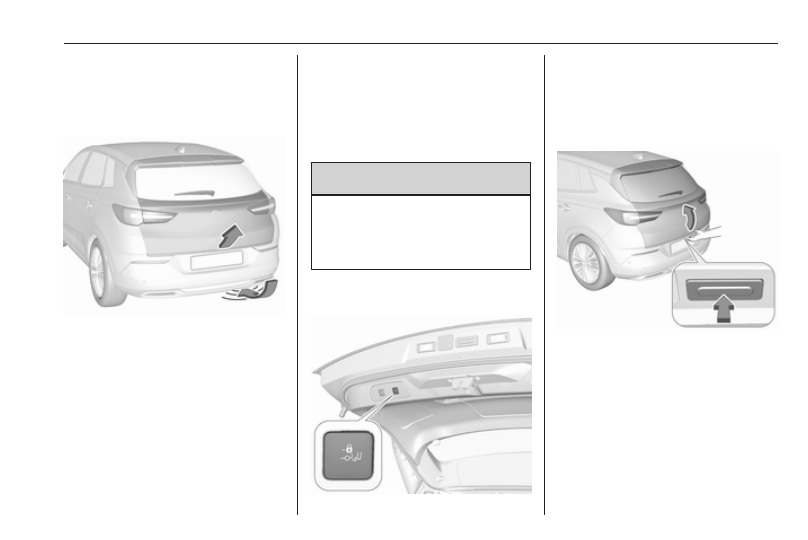

To open or close the tailgate move the

foot below the rear bumper back and

forth in the area below the license

plate (see illustration). The key must

be within a range of one meter. If

equipped with parking assist, the area

is recognisable below the shown

sensor. Do not hold the foot longer or

move too slow below the bumper. The

electronic key must be outside the

vehicle, within a range of approx.

one metre of the tailgate.

Activation or deactivation of

handsfree operation can be set in the

menu Settings, I Vehicle in the Info-

Display.
Info-Display 3 103.
Vehicle personalisation 3 106.

9 Danger

Do not touch any vehicle parts

below the vehicle during

handsfree operation. There is a

risk of injury from hot engine parts.

Automatic locking after handsfree

operation

Press button S in the open tailgate,

the whole vehicle will be locked after

handsfree closing of the tailgate.

Operation with the touchpad switch

under the exterior tailgate moulding

To open the tailgate, press the

touchpad switch under the tailgate

moulding until the tailgate starts to

move. If the vehicle is locked, the

electronic key must be outside the

vehicle, within a range of approx.

one metre of the tailgate.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

34

Keys, doors and windows

To close, press T in the open

tailgate until the tailgate starts to

move.

Stop or change direction of

movement

Stop movement of the tailgate

immediately:

● press P longer on the

electronic key, or

● press the touchpad switch under

the exterior tailgate moulding, or

● press T on the open tailgate.

Pressing one of the switches again

will reverse the direction of

movement.

Adjust reduced opening height

1. Open power tailgate with any

operation switch.

2. Stop movement at the desired

height by pressing T. If

required, manually move the

stopped tailgate to the desired

position.

3. Press and hold the button T on

the inside of the open tailgate for

three seconds.

Note

Adjusting opening height should be

programmed at ground level.

A chime sound indicates the new

setting and the turn signal lights will

flash. The reduced height can only set

at an opening angle of above 30°.
To delete reduced height position,

open tailgate in half position and

press T for three seconds
The tailgate can only be held open if

a minimum height is exceeded

(minimum opening angle from 30°).

The opening height cannot be

programmed below that height.

Safety function

If the power tailgate encounters an

obstacle during opening or closing,

the direction of movement will

automatically be reversed slightly.

Multiple obstacles in one power cycle

will deactivate the function. In this

case, close or open the tailgate

manually.
The power tailgate has pinch sensors

on the side edges. If the sensors

detect obstacles between tailgate and

chassis, the tailgate will open, until it

is activated again or closed manually.
The safety function is indicated by a

warning chime.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

35

Remove all obstacles before

resuming normal power operation.
If the vehicle is equipped with factory-

fitted towing equipment and a trailer

is electrically connected, the power

tailgate can only be opened with the

touchpad switch or closed with T in

the open tailgate. Ensure that there

are no obstacles in the moving area.

Overload

If the power tailgate is repeatedly

operated at short intervals, the

function is disabled for some time.

Move tailgate manually into end

position to reset the system.

Initialising power tailgate

If the power tailgate cannot be

operated automatically (e.g. after

disconnecting the vehicle battery), a

warning message is displayed in the

Driver Information Centre.
Activate electronics as follows:

1. Open tailgate manually.
2. Close tailgate manually.
3. Switch on ignition.

Seek the assistance of a workshop if

the problem is not solved.

General hints for operating

tailgate

9 Danger

Do not drive with the tailgate open

or ajar, e.g. when transporting

bulky objects, since toxic exhaust

gases, which cannot be seen or

smelled, could enter the vehicle.

This can cause unconsciousness

and even death.

Caution

Before opening the tailgate, check

overhead obstructions, e.g. a

garage door, to avoid damage to

the tailgate. Always check the

moving area above and behind the

tailgate.

Note

The installation of certain heavy

accessories onto the tailgate may

affect its ability to remain open.

Note

The operation of the power tailgate

is disabled under low vehicle battery

conditions. In this case, the tailgate

may not even by manually operable.
Note

With the power tailgate disabled and

all doors unlocked, the tailgate can

only be operated manually. In this

event, manually closing the tailgate

requires significantly greater force.
Note

At low outside temperatures the

tailgate may not open fully by itself.

In this case lift the tailgate manually

to its normal end position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

36

Keys, doors and windows

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are

people in the vehicle! The doors

cannot be unlocked from the

inside.

The system deadlocks all the doors.

All doors must be closed otherwise

the system cannot be activated.
Unlocking the vehicle disables the

mechanical anti-theft locking system.

This is not possible with the central

locking button.

Activating

Press N on the radio remote control

twice within five seconds.

Anti-theft alarm system

The anti-theft alarm system is

combined with the anti-theft locking

system.
It monitors:

● doors, tailgate, bonnet
● passenger compartment

including adjoining load

compartment

● vehicle inclination, e.g. if it is

raised

● ignition

Activation

All doors must be closed and the

electronic key of the electronic key

system must not remain in the

vehicle. Otherwise the system cannot

be activated.

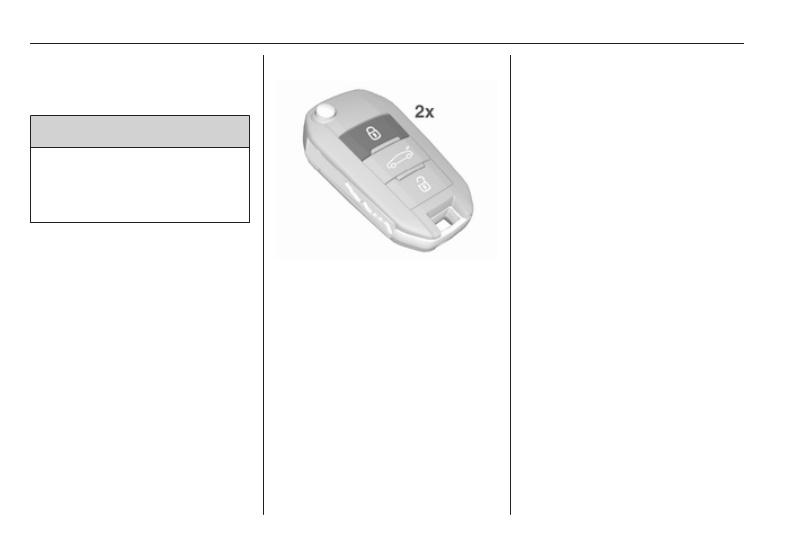

● Radio remote control: self-

activated 30 seconds after

locking the vehicle by pressing e

once.

● Electronic key system: self-

activated 30 seconds after

locking the vehicle by pressing

with a finger or thumb on one of

the front door handles at the

markings.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

37

● Radio remote control or

electronic key: directly by

pressing e twice within

five seconds.

● Electronic key system with

passive locking enabled: briefly

activated after passive locking

occurs.

Note

Changes to the vehicle interior such

as the use of seat covers and open

windows, could impair the function

of passenger compartment

monitoring.

Activation without monitoring of

passenger compartment and

vehicle inclination

Switch off the monitoring of

passenger compartment and vehicle

inclination when animals are being

left in the vehicle, because of high

volume ultrasonic signals or

movements triggering the alarm. Also

switch off when the vehicle is on a

ferry or train.

1. Close tailgate, bonnet, windows.

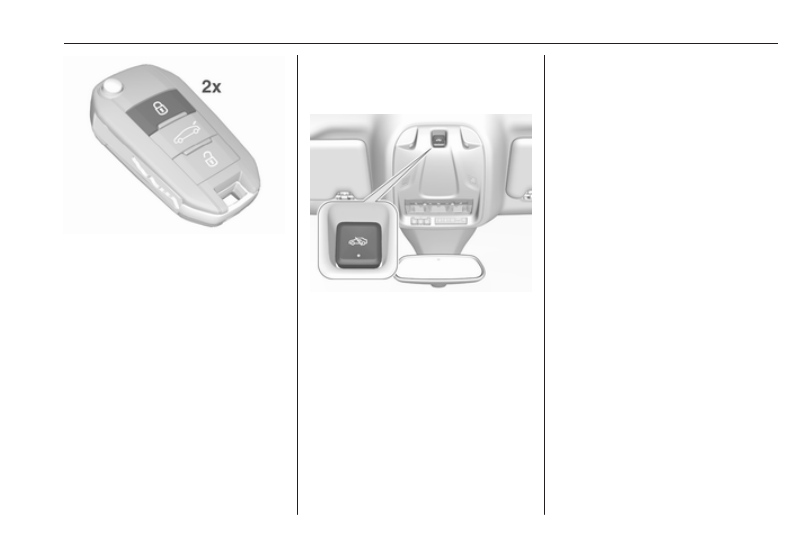

2. Press o. LED in the button o

illuminates for a maximum of

ten minutes.

3. Close doors.
4. Activate the anti-theft alarm

system.

Status message is displayed in the

Driver Information Centre.

Indication

LED in the central locking button

flashes if the anti-theft alarm system

is activated.
Seek the assistance of a workshop in

the event of faults.

Deactivation

Radio remote control: Unlocking the

vehicle by pressing c deactivates the

anti-theft alarm system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..      1      2      3      ..
