22

Keys, doors and windows

Key with foldaway key section

Press button to extend. To fold the

key, first press the button.

Car Pass

The Car Pass contains security

related vehicle data and should

therefore be kept in a safe place.
When the vehicle is taken to a

workshop, this vehicle data is needed

in order to perform certain operations.

Radio remote control

Used to operate:

● central locking system
● anti-theft locking system
● anti-theft alarm system
● soft top
● power windows

The radio remote control has a range

of approx. 20 metres. It can be

restricted by external influences. The

hazard warning flashers confirm

operation.
Handle with care, protect from

moisture and high temperatures and

avoid unnecessary operation.

Fault

If the central locking system cannot

be operated with the radio remote

control, it may be due to the following:

● Range is exceeded.
● Battery voltage is too low.
● Frequent, repeated operation of

the radio remote control while not

in range, which will require re-

synchronisation.

● Overload of the central locking

system by operating at frequent

intervals, the power supply is

interrupted for a short time.

● Interference from higher-power

radio waves from other sources.

Unlocking 3 23.

Basic settings

Some settings can be changed in the

Settings menu in the Info-Display.

Vehicle personalisation 3 104.

Radio remote control battery

replacement

Replace the battery as soon as the

range reduces.

Keys, doors and windows

23

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.

Key with foldaway key section

Extend the key and open the unit

sideways. Replace the battery

(battery type CR 2032), paying

attention to the installation position.

Close the unit and synchronise.

Radio remote control

synchronisation

After replacing the battery, unlock the

door with the key in the driver's door

lock. The radio remote control is

synchronised when the ignition is

switched on.

Memorised settings

Whenever the key is removed from

the ignition switch, the following

settings are automatically memorised

by the key:

● lighting
● presets for Infotainment system
● central locking system
● Sport mode settings
● comfort settings

The saved settings are automatically

used the next time the memorised key

is inserted into the ignition switch and

turned to position 1 3 138.
Graphic-Info-Display
A precondition is that Personalization

by driver is activated in the personal

settings. This must be set for each

key used.
Colour-Info-Display
The personalisation is permanently

activated.
Vehicle personalisation 3 104.

Central locking system

Unlocks and locks doors, load

compartment and fuel filler flap.
A pull on an interior door handle

unlocks the respective door. Pulling

the handle once more opens the door.

Note

In the event of an accident in which

airbags or belt pretensioners are

deployed, the vehicle is

automatically unlocked.

24

Keys, doors and windows

Note

A short time after unlocking with the

remote control, the doors are

relocked automatically if no door has

been opened.

Unlocking

Press c.
Two settings are selectable:

● Press c once briefly to unlock

both doors, load compartment

and fuel filler flap.

Press c again and hold to open

the windows and the soft top

3

 33.

● Press c once briefly to unlock

only the driver's door, load

compartment and fuel filler flap.

To unlock the entire vehicle,

press c twice.

The setting can be changed in the

Settings menu in the Info-Display.

Vehicle personalisation 3 104.
The setting can be saved for the key

being used. Memorised settings

3

 23.

Unlocking and opening the boot lid

3

 26.

Locking

Close doors, load compartment and

fuel filler flap.

Press e briefly.
If the driver's door is not closed

properly, the central locking system

will not work.
Press and hold e again to close the

soft top and the windows 3 33.

Central locking buttons

Locks or unlocks both doors, the load

compartment and fuel filler flap from

the passenger compartment.

Keys, doors and windows

25

Press e to lock.
Press c to unlock.

Fault in radio remote control

system

Unlocking

Manually unlock the driver's door by

turning the key in the lock. Switch on

the ignition and press the central

locking button c to unlock

passenger's door, load compartment

and fuel filler flap.
By switching on the ignition, the anti-

theft locking system is deactivated.

Locking

Manually lock the driver's door by

turning the key in the lock.

Fault in central locking system

Unlocking

Manually unlock the driver's door by

turning the key in the lock. The

passenger's door can be opened by

pulling the interior handle twice. The

load compartment and fuel filler flap

cannot be opened.
To deactivate the anti-theft locking

system, switch on the ignition 3 28.

Locking

Push inside locking knob of

passenger's door. Then close the

driver's door and lock it from the

outside with the key. The fuel filler flap

and tailgate cannot be locked.

Manual closing of the soft top
3

 36.

Automatic locking

This security feature can be

configured to automatically lock the

doors, load compartment and fuel

filler flap as soon as a certain speed

is exceeded.

26

Keys, doors and windows

Additionally, it is configurable to

unlock the driver's door or both doors

after the ignition is switched off and

the ignition key is removed (manual

transmission) or the selector lever is

moved to position P (automatic

transmission).
Settings can be changed in the

Settings menu in the Info-Display.

Vehicle personalisation 3 104.
The settings can be saved for the key

being used 3 23.

Doors

Load compartment

Boot lid

Opening

Press x on the radio remote control

or push the brand emblem at the

bottom half after unlocking to open

the boot lid.

Pressing x opens the boot lid while

the vehicle remains locked.
Central locking system 3 23.
Load compartment 3 72.

Keys, doors and windows

27

Closing

Use the interior handle.
Do not touch the brand emblem whilst

closing as this could unlock the boot

lid again.
Central locking system 3 23.

Blockage of boot lid

The boot lid can only be opened when

the soft top is completely opened or

closed. The soft top lid must be

closed.
Manual closing of the soft top 3 36.

Blockage of soft top

The soft top can only be operated

when the boot lid is closed.

General hints for operating the

boot lid

9 Danger

Do not drive with the boot lid open

or ajar, e.g. when transporting

bulky objects, since toxic exhaust

gases, which cannot be seen or

smelled, could enter the vehicle.

This can cause unconsciousness

and even death.

Caution

Before opening the boot lid check

overhead obstructions, such as a

garage door, to avoid damage to

the boot lid. Always check the

moving area above and behind the

boot lid.

Note

The installation of certain heavy

accessories onto the boot lid may

affect its ability to remain open.

28

Keys, doors and windows

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are

people in the vehicle! The doors

cannot be unlocked from the

inside.

The system deadlocks the doors. The

doors must be closed otherwise the

system cannot be activated.
If the ignition was on, the driver's door

must be opened and closed once so

that the vehicle can be secured.
Unlocking the vehicle disables the

mechanical anti-theft locking system.

This is not possible with the central

locking button.

Activating

Press e on the radio remote control

twice briefly within 15 seconds. Long

press will activate soft top closing.

Anti-theft alarm system

The anti-theft alarm system is

combined with the anti-theft locking

system.
It monitors:

● doors, boot lid, bonnet
● passenger compartment

including adjoining load

compartment

● vehicle inclination, e.g. if it is

raised

● ignition

Activation

● Self-activated 30 seconds after

locking the vehicle by pressing e

once.

● Directly by pressing e twice

briefly within five seconds. Long

press will activate soft top

closing.

Note

Changes to the vehicle interior, such

as the use of seat covers and open

windows, could impair the function

of passenger compartment

monitoring.

Keys, doors and windows

29

Activation without monitoring of

passenger compartment and

vehicle inclination

Switch off the monitoring of

passenger compartment and vehicle

inclination when animals are being

left in the vehicle, because of high

volume ultrasonic signals or

movements triggering the alarm. Also

switch off when the vehicle is on a

ferry or train.

1. Close boot lid, bonnet, windows

and soft top.

2. Press o. LED in the button o

illuminates for a maximum of

10 minutes.

3. Close doors.
4. Activate the anti-theft alarm

system.

To prevent false alarms passenger

compartment monitoring is

deactivated if the soft top is open. The

LED in the button o does not

illuminate.
If only the windows are open,

passenger compartment monitoring

operates restricted and the LED in the

button o illuminates.
Status message is displayed in the

Driver Information Centre.

Status LED

Status LED is integrated in the sensor

on top of the instrument panel.
Status during the first 30 seconds of

anti-theft alarm system activation:
LED illuminates : test, arming delay

LED flashes

quickly

: doors, boot lid, soft

top or bonnet not

completely closed,

or system fault

Status after system is armed:
LED flashes

slowly

: system is armed

Seek the assistance of a workshop in

the event of faults.

Deactivation

Unlocking the vehicle by pressing c

deactivates the anti-theft alarm

system. Long press will activate soft

top opening.
The system is not deactivated when

unlocking the driver's door with the

key or by pressing the central locking

button in the passenger

compartment.

30

Keys, doors and windows

Alarm

When triggered, the alarm horn

sounds and the hazard warning lights

flash simultaneously. The number

and duration of alarm signals are

stipulated by legislation.
The alarm can be silenced by

pressing any button on the radio

remote control or by switching on the

ignition.
The anti-theft alarm system can be

deactivated only by pressing c or by

switching on the ignition.
A triggered alarm, which has not been

interrupted by the driver, will be

indicated by the hazard warning

lights. They will flash quickly three

times the next time the vehicle is

unlocked with the radio remote

control. Additionally a warning

message is displayed in the Driver

Information Centre after switching on

the ignition.
Vehicle messages 3 102.

Immobiliser

The system is part of the ignition

switch and checks whether the

vehicle is allowed to be started with

the key being used.
The immobiliser is activated

automatically after the key has been

removed from the ignition switch.
If the control indicator d flashes when

the ignition is on, there is a fault in the

system; the engine cannot be started.

Switch off the ignition and repeat the

start attempt.
If the control indicator continues

flashing, attempt to start the engine

using the spare key and seek the

assistance of a workshop.

Note

The immobiliser does not lock the

doors. You should always lock the

vehicle after leaving it.
Switch on the anti-theft alarm

system 3 23, 3 28.

Control indicator d 3 94.

Exterior mirrors

Convex shape

The convex exterior mirror contains

an aspherical area and reduces blind

spots. The shape of the mirror makes

objects appear smaller, which will

affect the ability to estimate

distances.

Electric adjustment

Select the relevant exterior mirror by

turning the control to left (L) or right

(R). Then swivel the control to adjust

the mirror.

Keys, doors and windows

31

In position 0 no mirror is selected.

Folding mirrors

For pedestrian safety, the exterior

mirrors will swing out of their normal

mounting position if they are struck

with sufficient force. Reposition the

mirror by applying slight pressure to

the mirror housing.

Electric folding

Turn control to 0, then push the

control down. Both exterior mirrors

will fold.
Push the control down again - both

exterior mirrors return to their original

position.
If an electrically folded mirror is

manually extended, pressing down

the control will only electrically extend

the other mirror.

Heated mirrors

Operated by pressing Ü.
The LED in the button indicates

activation.
Heating works with the engine

running and is switched off

automatically after a short time.

32

Keys, doors and windows

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on

the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles at

night is automatically reduced.

Windows

Windscreen

Heat-reflecting windscreen

The heat-reflecting windscreen has a

coating which reflects solar radiation.

Also data signals, e.g. from toll

stations, might be reflected.

The marked areas on the windscreen

are not covered with the coating.

Devices for electronic data recording

and fee payment must be attached in

these areas. Otherwise data

recording malfunctions may occur.

Keys, doors and windows

33

Windscreen stickers

Do not attach stickers such as toll

road stickers or similar on the

windscreen in the area of the interior

mirror. Otherwise the detection zone

of the sensor and the view area of the

camera in the mirror housing could be

restricted.

Windscreen replacement

Caution

If the vehicle has a front-looking

camera sensor for the driver

assistance systems, it is very

important that any windscreen

replacement is performed

accurately according to Opel

specifications. Otherwise, these

systems may not work properly

and there is a risk of unexpected

behaviour and/or messages from

these systems.

Power windows

9 Warning

Take care when operating the

power windows. Risk of injury,

particularly to children.
Keep a close watch on the

windows when closing them.

Ensure that nothing becomes

trapped in them as they move.

Operable with ignition switch in

position 1 or 2 (ignition on) 3 138.
Retained power off 3 138.

Operate the switch for the respective

window by pushing to open or pulling

to close.
Pushing or pulling gently to the first

detent: window moves up or down as

long as the switch is operated.
Pushing or pulling firmly to the second

detent then releasing: window moves

up or down automatically with safety

function enabled. To stop movement,

operate the switch once more in the

same direction.

Central switch ,

Switch in the centre console to

operate all windows.

34

Keys, doors and windows

Push switch , briefly to open all

windows automatically.
Pull switch , briefly to close all

windows automatically.

Safety function

If the window glass encounters

resistance above the middle of the

window during automatic closing, it is

immediately stopped and opened

again.

Override safety function

In the event of closing difficulties due

to frost or the like, switch on the

ignition, then pull the switch to the first

detent and hold. The window moves

up with safety function disabled. To

stop movement, release the switch.

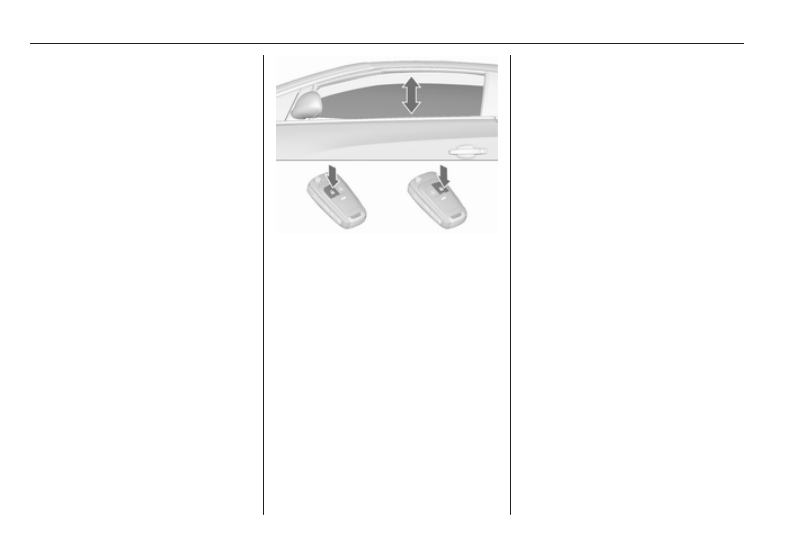

Comfort operating with the

remote control

The windows and the soft top can be

operated remotely from outside the

vehicle.

Opening

● Press c once briefly: the doors

are unlocked.

● Press c once more for two

seconds: the windows move

down automatically. Press c

longer: the soft top will be

opened. Press and hold c until

soft top is completely opened.

Release c during opening the soft

top: movement stops for 10 seconds;

pressing c once more continues

opening.

Closing

● Press e once briefly: the doors

are locked.

● Press e once more longer: the

soft top and the windows will be

closed. Press and hold e until soft

top is completely closed.
Release e during closing the soft

top: movement stops for

10 seconds; pressing e once

more continues closing.

● If the soft top is already closed

but windows are opened:

pressing e for two seconds will

close the windows.

Confirmation

Complete opening or closing of the

soft top is confirmed by the hazard

warning flashers.

Overload

If the windows are repeatedly

operated within short intervals, the

window operation is disabled for

some time.

Keys, doors and windows

35

Initialising the power windows

If the windows cannot be closed

automatically (e.g. after

disconnecting the vehicle battery), a

warning message is displayed in the

Driver Information Centre.
Vehicle messages 3 102.
Activate the window electronics for

each window, beginning with the rear

windows, as following:

1. Soft top must be closed.
2. Close doors.
3. Switch on ignition.
4. Pull switch to the second detent

until the window starts to close,

and hold pulled for an additional

4 seconds.

5. Push switch to the second detent

until the window starts to open

automatically.

6. Repeat for each window.

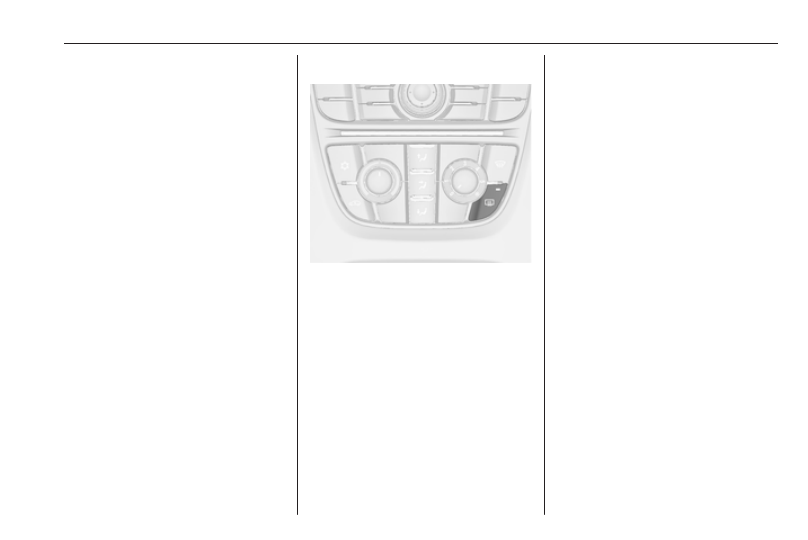

Heated rear window

Operated by pressing Ü.
The LED in the button indicates

activation.
Heating works with the engine

running and is switched off

automatically after a short time.
Heated rear window is deactivated

when the soft top is opened.

Sun visors

The sun visors can be folded down or

swivelled to the side to prevent

dazzling.

If the sun visors have integral mirrors,

the mirror covers should be closed

when driving.
A ticket holder is located on the

backside of the sun visor.

36

Keys, doors and windows

Roof

Soft top

9 Warning

Take care when operating the soft

top. Risk of injury. Monitor the

action zone above, to the side and

to the rear of the vehicle during

operation.
Make sure that no body parts or

objects could get pinched. Make

sure that people stay clear of the

action zone of the soft top or soft

top lid. Risk of injury.
Check the height, length and width

of the available space before

operating the soft top, e.g. in a

garage, parking garage or when a

bicycle rack is fitted.
Vehicle passengers should be

informed accordingly.
Before leaving the vehicle, remove

the ignition key in order to prevent

unauthorised operation of the

windows and the soft top.

Operation with the switch in the

centre console

Operable with ignition switch in

position 1 or 2 (ignition on) 3 138.
The soft top can be opened and

closed while driving up to a speed of

50 km/h.

Open soft top

Hold switch pulled until the soft top is

completely opened and the soft top lid

is closed. All windows will be opened

during this operation.
To close all windows pull switch ,.

Close soft top

Hold switch pushed until the soft top

and the soft top lid are completely

closed. All windows will be opened

during this operation.
Pull switch , briefly to close all

windows.

Confirmation of operation

Complete opening or closing of the

soft top with the switch in the centre

console is confirmed by the sound of

an acoustic signal.

Keys, doors and windows

37

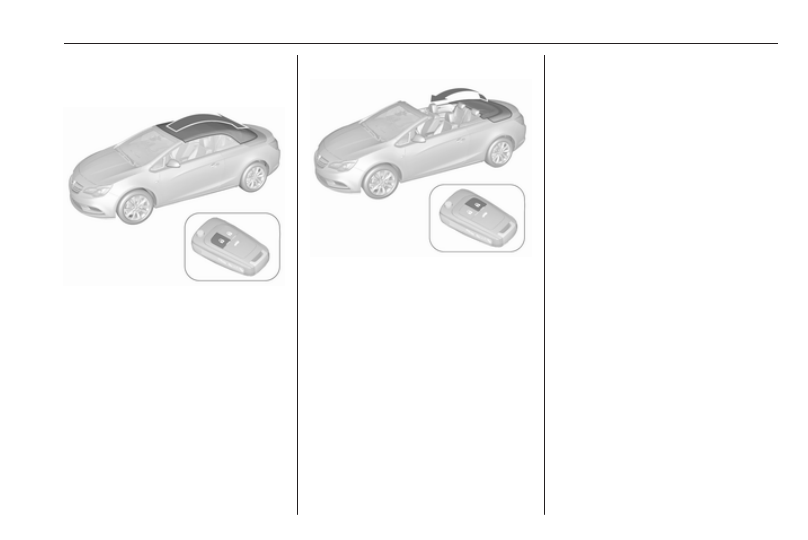

Operation with remote control

Open soft top

Press and hold c until the soft top is

opened completely and the soft top lid

is closed. All windows will be opened

during this operation.

Close soft top

Press and hold e until the soft top, the

soft top lid and the windows are

completely closed. All windows will be

opened at first during this operation.

Confirmation of operation

Complete opening or closing of the

soft top with the remote control is

confirmed by the hazard warning

flashers.

Safety stop

The button on the remote control or

the switch in the centre console must

be actuated until the soft top is in its

respective end position. Releasing

the button or the switch during

operation stops soft top movement

immediately. The soft top remains in

intermediate position only for a

certain time. After this time a warning

chime sounds, the hydraulic pressure

in the system decreases and the soft

top can start to move by itself.

Actuating button or switch once more

continues operation.

Requirements for operation

● Vehicle is stationary or driving

with a speed up to 50 km/h.
