Technical data

Sales designation

1.3

1.7

1.7

1.7

Engine identifier code

A13DTE

A17DT

A17DTC

A17DTS

Number of cylinders

4

4

4

4

Piston displacement [cm

3

]

1248

1686

1686

1686

Engine power [kW]

70

74

81

96

at rpm

4000

4000

4000

4000

Torque [Nm]

180

260

280

300

at rpm

1750-3500

1700-2550

1700-2500

2000-2500

Fuel type

Diesel

Diesel

Diesel

Diesel

Oil consumption [l/1000 km]

0.6

0.6

0.6

0.6

Performance

Engine

A14XER

A14NEL

A14NET

A13DTC

Maximum speed

2)

 [km/h]

Manual transmission

177

188

196

160

Automatic transmission

–

–

–

–

2)

The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment

could reduce the specified maximum speed of the vehicle.

Technical data

195

Engine

A13DTE

A17DT

A17DTC

A17DTS

Maximum speed

3)

 [km/h]

Manual transmission

168

–

182

196

Automatic transmission

–

172

–

–

Fuel consumption - CO

2

-emissions

Manual transmission / automatic transmission.
Engine

A14XER

A14NEL

A14NET

A13DTC

urban [l/100 km]

7.9/–

8.0/–

8.8/–

5.9/–

extra-urban [l/100 km]

5.1/–

5.0/–

5.4/–

4.3/–

total [l/100 km]

6.1/–

6.1/–

6.7/–

4.9/–

CO

2

 [g/km]

144/–

143/–

156/–

129/–

3)

The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment

could reduce the specified maximum speed of the vehicle.

196

Technical data

Engine

A13DTE

A17DT

A17DTC

A17DTS

urban [l/100 km]

5.6/–

–/8.6

6.7/–

6.7/–

extra-urban [l/100 km]

3.9/–

–/5.1

4.6/–

4.6/–

total [l/100 km]

4.5/–

–/6.4

5.4/–

5.4/–

CO

2

 [g/km]

119/–

–/168

142/–

142/–

Vehicle weight

Kerb weight, basic model without any optional equipment

Engine

Manual transmission

Automatic transmission

without/with air conditioning
[kg]

A14XER

1360/1375

–

A14NEL

1393/1408

–

A14NET

1393/1408

–

A13DTC

1437/1452

–

A13DTE

1393/1408

–

A17DT

–

1503/1518

A17DTC

1503/1518

1503/1518

A17DTS

1503/1518

–

Technical data

197

Kerb weight, basic model with all optional equipment

Engine

Manual transmission

Automatic transmission

without/with air conditioning
[kg]

A14XER

–/1571

–

A14NEL

–/1613

–

A14NET

–/1613

–

A13DTC

–/1613

–

A13DTE

–/1471

–

A17DT

–

–/1701

A17DTC

–/1664

–/1701

A17DTS

–/1664

–

Vehicle dimensions

Length [mm]

4288

Width without exterior mirrors [mm]

1812

Width with two exterior mirrors [mm]

1994

Height (without antenna) [mm]

1615

Length of load compartment floor [mm]

815

198

Technical data

Length of load compartment with folded rear seats [mm]

1642

Load compartment width [mm]

1038

Load compartment height [mm]

803

Height of load compartment opening

791

Wheelbase [mm]

2644

Turning circle diameter [m]

11.1

Capacities

Engine oil

Engine

A14XER

A14NEL

A14NET

A13DTC

including Filter [l]

4.0

4.0

4.0

3.2

between MIN and MAX [l]

1.0

1.0

1.0

1.0

Engine

A13DTE

A17DT

A17DTC

A17DTS

including Filter [l]

3.2

5.4

5.4

5.4

between MIN and MAX [l]

1.0

1.0

1.0

1.0

Technical data

199

Fuel tank

Petrol/diesel, nominal capacity [l]

54

Tyre pressures

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine

Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

A14XER 195/65 R15,

230/2.3 (33) 210/2.1 (30) 280/2.8 (41) 260/2.6 (38) 250/2.5 (36) 320/3.2 (46)

205/55 R16,
225/45 R17
225/40 R18

4)

230/2.3 (33) 210/2.1 (30) –

–

250/2.5 (36) 320/3.2 (46)

A14NEL 195/65 R15,

230/2.3 (33) 210/2.1 (30) 280/2.8 (41) 260/2.6 (38) 250/2.5 (36) 320/3.2 (46)

205/55 R16,
225/45 R17
225/40 R18

4)

250/2.5 (36) 230/2.3 (33) –

–

270/2.7 (39) 320/3.2 (46)

4)

With reduced steering angle.

200

Technical data

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine

Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

A14NET 205/55 R16,

230/2.3 (33) 210/2.1 (30) 280/2.8 (41) 260/2.6 (38) 250/2.5 (36) 320/3.2 (46)

225/45 R17
225/40 R18

4)

250/2.5 (36) 230/2.3 (33) –

–

270/2.7 (39) 320/3.2 (46)

A13DTC 195/65 R15,

230/2.3 (33) 210/2.1 (30) 280/2.8 (41) 260/2.6 (38) 250/2.5 (36) 320/3.2 (46)

205/55 R16,
225/45 R17
225/40 R18

4)

230/2.3 (33) 210/2.1 (30) –

–

250/2.5 (36) 320/3.2 (46)

A13DTE 195/65 R15,

230/2.3 (33) 210/2.1 (30) 280/2.8 (41) 260/2.6 (38) 250/2.5 (36) 320/3.2 (46)

205/55 R16,
225/45 R17
225/40 R18

4)

230/2.3 (33) 210/2.1 (30) –

–

250/2.5 (36) 320/3.2 (46)

4)

With reduced steering angle.

Technical data

201

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine

Tyres

front

rear

front

rear

front

rear

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

[kPa/bar]

([psi])

A17DT,
A17DTC,
A17DTS

195/65 R15

5)6)

,

250/2.5 (36) 230/2.3 (33) 300/3.0 (43) 280/2.8 (41) 270/2.7 (39) 320/3.2 (46)

205/55 R16,
225/45 R17
225/40 R18

4)

270/2.7 (39) 250/2.5 (36) –

–

280/2.8 (41) 320/3.2 (46)

All

Temporary spare wheel 420/4.2 (61) 420/4.2 (61) –

–

420/4.2 (61) 420/4.2 (61)

5)

Only permitted in combination with weight reduction package.

6)

Only permitted with A17DT and A17DTC.

4)

With reduced steering angle.

202

Technical data

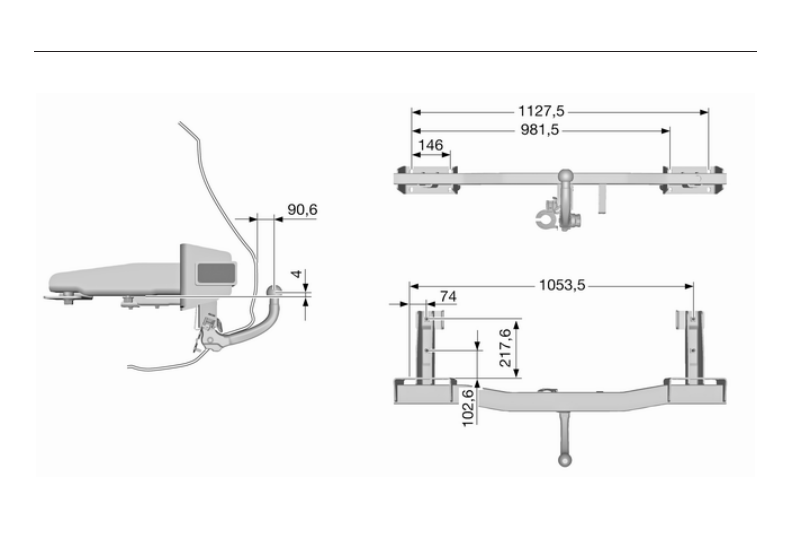

Towing hitch installation dimensions

Customer information

203

Customer information

Vehicle data recording and

privacy ....................................... 203

Vehicle data recording

and privacy

Event data recorders

The vehicle has a number of

sophisticated systems that monitor

and control several vehicle data.

Some data may be stored during

regular operation to facilitate repair of

detected malfunctions, other data is

stored only in a crash or near crash

event by systems commonly called

event data recorders (EDR).
The systems may record data about

the condition of the vehicle and how it

was operated (e.g. engine speed,

brake application, seat belt usage).

To read this data special equipment

and access to the vehicle is required.

This will take place when the vehicle

is serviced in a workshop. Some data

is electronically fed into global

diagnostic systems. The

manufacturer will not access

information about a crash event or

share it with others except

■ with the consent of the vehicle

owner or, if the vehicle is leased,

with the consent of the lessee,

■ in response to an official request of

police or similar government office,

■ as part of the manufacturer’s

defense in case of legal

proceedings,

■ as required by law.

In addition, the manufacturer may use

the collected or received data

■ for the manufacturer's research

needs,

■ to make it available for research

needs where appropriate

confidentiality is maintained and

need is shown,

■ to share summary data which is not

tied to a specific vehicle with other

organisations for research

purposes.

204

Customer information

Radio Frequency

Identification (RFID)

RFID technology is used in some

vehicles for functions such as tyre

pressure monitoring and ignition

system security. It is also used in

connection with conveniences such

as radio remote controls for door

locking/unlocking and starting, and in-

vehicle transmitters for garage door

openers. RFID technology in Opel

vehicles does not use or record

personal information or link with any

other Opel system containing

personal information.

Customer information

205

206

Index

A

Accessories and vehicle

modifications .......................... 146

Active head restraints................... 35

Adaptive brake light.................... 132

Adaptive forward lighting ..........

.................................. 93, 110, 155

Adjustable air vents ................... 121

Airbag and belt tensioners ........... 88

Airbag deactivation ................ 49, 89

Airbag system .............................. 47

Air conditioning regular

operation ................................ 122

Air conditioning system .............. 117

Air intake .................................... 122

Alert............................................ 100

Antifreeze................................... 149

Antilock brake system ................ 132

Antilock brake system (ABS) ....... 90

Anti-theft alarm system ................ 27

Anti-theft locking system .............. 26

Armrest................................... 39, 42

Armrest storage ........................... 60

Ashtrays ....................................... 83

Automatic anti-dazzle .................. 29

Automatic light control ............... 108

Automatic locking .................. 24, 93

Automatic transmission ............. 128

Auxiliary heater........................... 121

B

Battery ....................................... 151

Battery discharge protection ...... 115

Battery, jump starting.................. 178

Battery voltage ........................... 101

Belts.............................................. 43

Bicycle rack.................................. 60

Bonnet ....................................... 147

Brake and clutch fluid................. 186

Brake and clutch system ............. 89

Brake assist ............................... 134

Brake fluid .................................. 150

Brakes ............................... 132, 150

Bulb replacement ....................... 152

C

Capacities .................................. 198

Car Pass ...................................... 19

Catalytic converter ..................... 128

Central locking system ................ 21

Centre console lighting .............. 114

Changing tyre and wheel size ... 170

Charging system .......................... 89

Child locks ................................... 24

Child restraint installation

locations ................................... 53

Child restraint systems ................ 51

Cigarette lighter ........................... 83

Cleaning the vehicle................... 182

207

Climate control ............................. 16

Climate control, service.............. 122

Clock............................................. 81

Code............................................. 98

Control indicators.......................... 86

Control of the vehicle ................. 124

Controls in steering wheel............ 77

Convex shape .............................. 28

Coolant....................................... 149

Coolant and antifreeze............... 186

Coolant temperature gauge.......... 85

Coupling ball bar........................ 143

Cruise control ...................... 93, 136

Cupholders .................................. 57

Curtain airbag system .................. 49

D

Danger, Warnings and Cautions ... 3

Dashboard.................................... 11

Daytime running light.................. 108

Deflation detection system........... 92

Diesel fuel system bleeding ....... 151

Diesel particle filter............... 91, 127

Door open .................................... 93

Driver Information Center............. 94

Driving characteristics and

towing tips .............................. 142

E

Electric adjustment ...................... 28

Electrical parking brake................ 90

Electrical parking brake fault........ 90

Electronic climate control

system .................................... 118

Electronic driving programmes .. 130

Electronic Stability Control.......... 135

Electronic Stability Control and

Traction Control system............ 91

Electronic Stability Control off....... 91

End-of-life vehicle recovery ....... 147

Engine compartment fuse box ... 162

Engine coolant ........................... 149

Engine coolant temperature

gauge ....................................... 85

Engine data ............................... 193

Engine exhaust .......................... 127

Engine oil ................... 148, 186, 190

Engine oil pressure ...................... 92

Entry lighting .............................. 114

Event data recorders.................. 203

Exhaust gases............................ 127

Exit lighting ................................ 114

Exterior care .............................. 182

Exterior light ................................. 93

Exterior lighting ............................ 13

Exterior mirrors............................. 28

F

Fault ........................................... 130

First aid kit ................................... 74

Fixed air vents ........................... 122

Flex-Fix system............................ 60

Fog light ....................................... 93

Fog lights............................ 111, 157

Folding ......................................... 28

Folding tray .................................. 74

Front airbag system ..................... 47

Front fog lights ........................... 111

Front storage................................ 59

Fuel consumption - CO

2

-

Emissions ....................... 141, 195

Fuel for diesel engines .............. 140

Fuel for petrol engines ............... 139

Fuel gauge ................................... 85

Fuse box..................................... 162

Fuses ......................................... 161

G

Gauges......................................... 84

General information ................... 142

Glovebox ..................................... 57

Graphic-Info-Display, Colour-

Info-Display .............................. 96

H

Halogen headlights .................... 152

Hand brake................................. 133

208

Hazard warning flashers ............ 110

Headlight flash ........................... 108

Headlight range adjustment ...... 108

Headlights................................... 108

Headlights when driving abroad  109

Head restraint adjustment ............. 8

Head restraints ............................ 34

Heated ......................................... 29

Heated rear window ..................... 32

Heated steering wheel ................. 78

Heating ........................................ 40

Heating and ventilation system . 116

High beam ........................... 93, 108

High beam assist........................ 110

Hill start assist ........................... 134

Horn ....................................... 14, 78

I

Identification plate ..................... 189

Ignition switch positions ............. 125

Immobiliser ............................ 27, 92

Instrument panel fuse box ......... 164

Instrument panel illumination ..... 161

Instrument panel illumination

control .................................... 112

Instrument panel overview ........... 11

Interior care ............................... 183

Interior lights ...................... 113, 160

Interior mirrors.............................. 29

Interruption of power supply ...... 130

Introduction .................................... 3

ISOFIX child restraint systems .... 56

J

Jump starting ............................. 178

K

Keys ............................................. 19

L

Lashing eyes ............................... 72

Light covers, misted.................... 112

Lighting....................................... 107

Lighting features......................... 114

Light switch ................................ 107

Load compartment ................ 25, 69

Load compartment cover ............. 70

Load compartment fuse box ...... 165

Loading information ..................... 75

Low fuel ....................................... 92

M

Malfunction indicator light ............ 89

Manual anti-dazzle ...................... 29

Manual mode ............................. 130

Manual transmission .................. 131

Manual windows .......................... 30

Memorised settings...................... 21

Messages..................................... 98

Mirror adjustment ........................... 8

Mirrors.................................... 28, 29

Misted light covers ..................... 112

Moonroof ..................................... 32

N

New vehicle running-in .............. 124

Number plate light ..................... 159

O

Octane rating.............................. 193

Odometer ..................................... 84

Oil............................................... 148

Oil, engine.......................... 186, 190

Oil pressure.................................. 92

Outside temperature .................... 81

Overrun cut-off ........................... 126

P

Parking ................................ 18, 126

Parking assist ............................ 137

Parking brake ............................ 133

Parking lights ............................. 112

Particulate filter........................... 127

Performance .............................. 194

Performing work ........................ 147

Personalisation........................... 103

Pollen filter ................................. 122

Power outlets ............................... 82

Power windows ............................ 30

Preheating ................................... 91

209

Q

Quickheat................................... 121

R

Radio Frequency Identification

(RFID)..................................... 204

Radio remote control ................... 19

Reading lights ............................ 113

Rear carrier system...................... 60

Rear doors ................................... 25

Rear floor storage cover .............. 71

Rear fog light ............................... 93

Rear fog lights ........................... 111

Rear seats ................................... 41

Rear storage................................. 70

Rear window wiper/washer .......... 80

Recommended fluids and

lubricants ........................ 186, 190

Reduced engine power................ 92

Refuelling ................................... 140

Remote control............................. 19

Retained power off..................... 125

Reversing lights ......................... 112

Roof rack ..................................... 75

S

Safety belts................................... 43

Safety net .................................... 72

Seat adjustment ....................... 6, 36

Seat belt ........................................ 8

Seat belt reminder ....................... 88

Seat belts ..................................... 43

Seat heating................................. 40

Seat position ................................ 36

Selector lever ............................. 129

Service ............................... 122, 185

Service display ............................ 85

Service information .................... 185

Service vehicle soon .................... 89

Side airbag system ...................... 48

Side turn signal lights ................ 159

Spare wheel ............................... 176

Speedometer ............................... 84

Starting off ................................... 17

Starting the engine .................... 125

Steering wheel adjustment ...... 9, 77

Steering wheel controls ............... 77

Steering wheel, heated................. 78

Sunglasses storage ..................... 59

Sunvisor lights ........................... 113

Sun visors .................................... 32

Symbols ......................................... 4

T

Tachometer ................................. 84

Tailgate......................................... 25

Tail lights ................................... 157

Technical data............................ 193

Three-point seat belt .................... 44

Tools .......................................... 167

Top-tether fastening eyes ............ 56

Towing........................................ 142

Towing another vehicle ............. 181

Towing a trailer........................... 142

Towing equipment ..................... 143

Towing eye................................. 180

Towing hitch installation

dimensions ............................. 202

Towing the vehicle ..................... 180

Traction Control system ............. 134

Traction Control system off........... 91

Trailer towing ............................. 142

Transmission ............................... 17

Transmission display ................. 128

Tread depth ............................... 169

Trip computer ............................ 101

Trip odometer .............................. 84

Tunnel detection......................... 108

Turn and lane-change signals ... 111

Turn signal ................................... 88

Tyre chains ................................ 170

Tyre changing............................. 173

Tyre deflation detection system . 169

Tyre designations ...................... 168

Tyre pressure ............................ 168

Tyre pressures ........................... 199

Tyre repair kit ............................. 171

Tyres and wheel size, changing. 170
