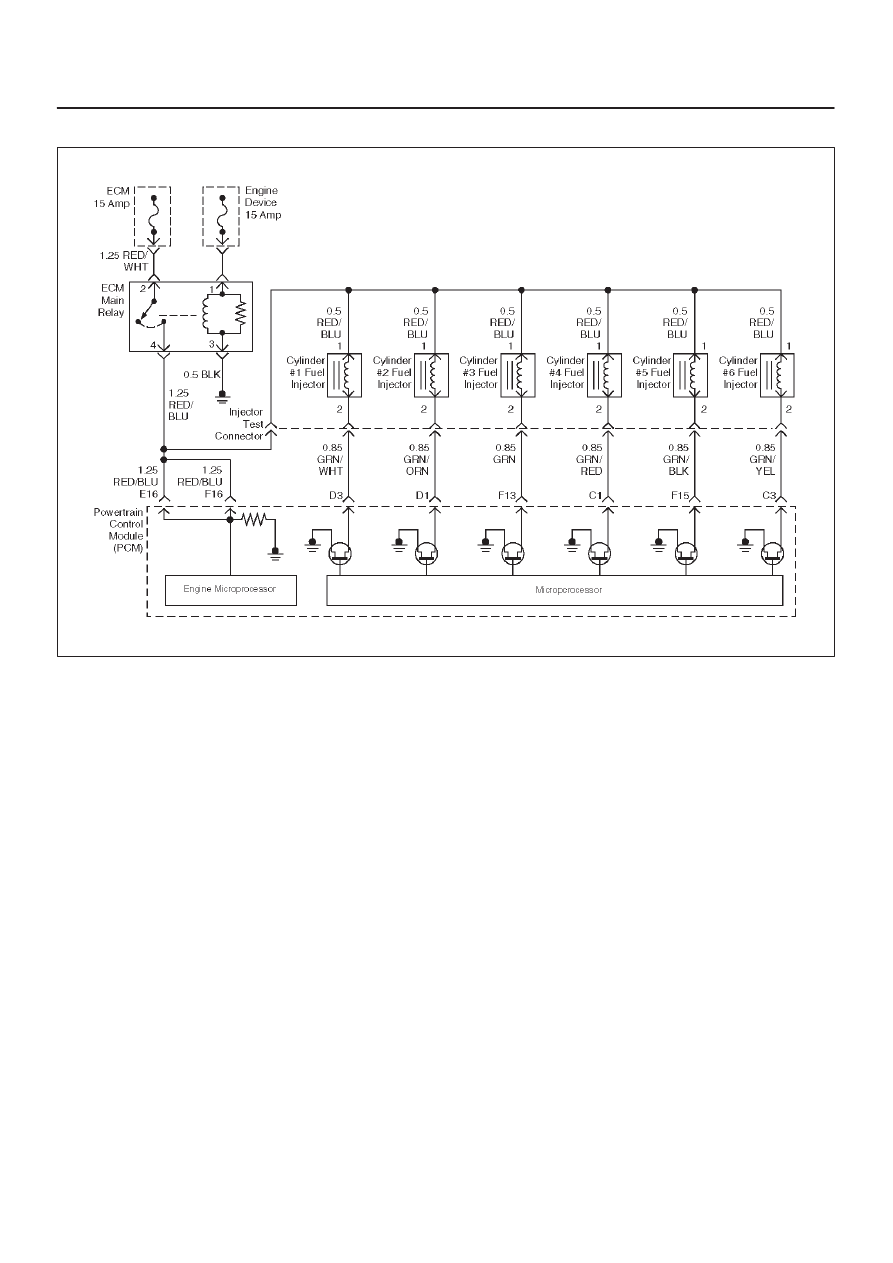

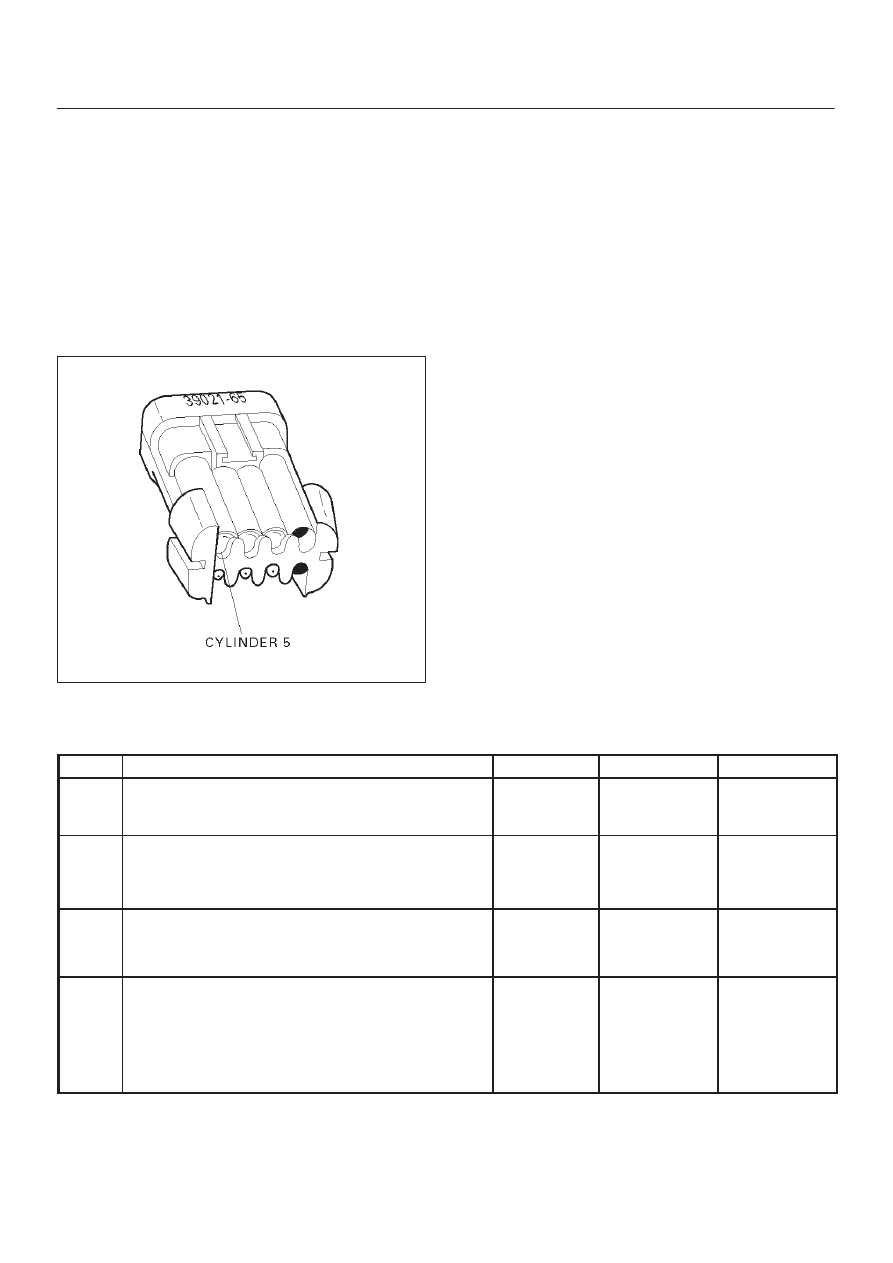

6E2–178 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS DTC P0204 – Injector 4 Control Circuit (Cont'd) Step No Yes Value(s) Action 5 1. Engine “OFF.” injector test connector. 4. Crank the engine and note the light. Does the cylinder 4 test light blink? — Go to Fuel Injector Coil Test Procedure Go to Step 6 6 Note whether the injector test light was “OFF” or “ON” Was the test light “ON” steady while cranking the — Go to Step 7 Go to Step 9 7 1. Disconnect the PCM connector for the affected injectors. 2. With a test light connected to B+, probe the affected injector driver circuit. Does the test light illuminate? — Go to Step 8 Go to Step 15 8 Repair short to ground in the injector driver circuit. Is the action complete? — Go to OBD System Check — 9 1. Disconnect the injector test connector. ohmmeter between the positive wire (red with blue Does the ohmmeter indicate continuity? — Go to Step 11 Go to Step 10 10 Repair the open injector harness wire or open injector. Is the action complete? — Verify repair — 11 At the PCM side of the injector test connector, check Was there a short to voltage? — Go to Step 12 Go to Step 13 12 Repair the short to voltage. Is the action complete? — Verify repair — 13 Check for an open circuit between the injector test Was there an open circuit? — Go to Step 14 Go to Step 15 14 Repair the open circuit. Is the action complete? — Verify repair — 15 Replace the PCM. Is the action complete? — Verify repair — |
