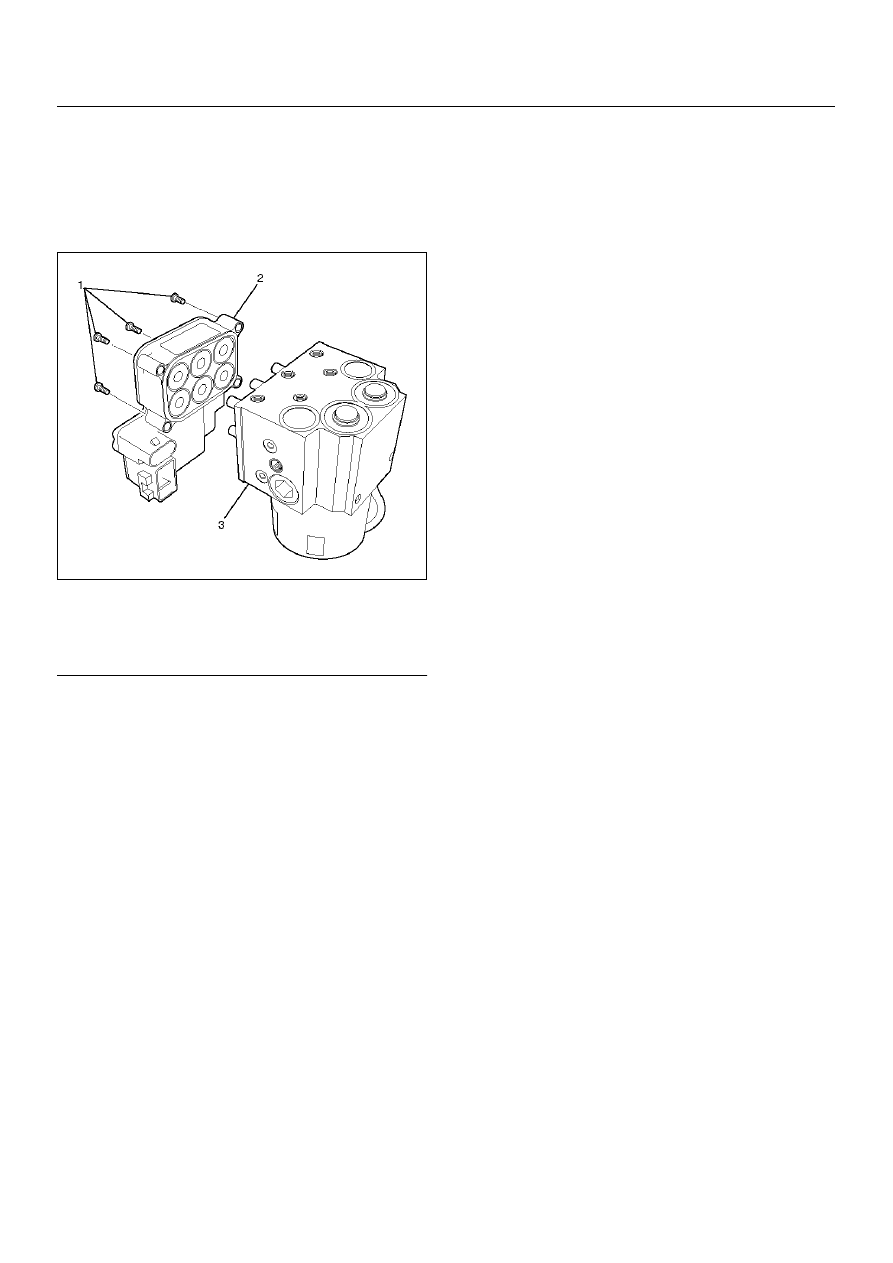

ANTI-LOCK BRAKE SYSTEM 5B–3 4. Remove harness connector. 5. Remove EHCU ASM. 6. Remove EHCU. Disassembled View 350RW025 Legend EndOFCallout Disassembly 1. Remove fixing bolts from EHCU. 2. Remove coil integrated module from hydraulic unit. Reassembly To reassembly, follow the disassembly steps in the Torque: Fixing bolts: 4.4 N·m (4.5 kg·cm/39 lb in) Installation To install, follow the removal steps in the reverse order, Torque: Hydraulic unit fixing nuts : 22 N·m (2.2 kg·m/16 lbft) Ground cable : 14 N·m (1.4 kg·m/10 lbft) Brake pipe (joint bolts) : 16 N·m (1.6 kg·m/12 lbft) • After installing the hydraulic unit, bleed brakes completely. See Hydraulic Brakes in Power–assisted (1) Fixing Bolts |
