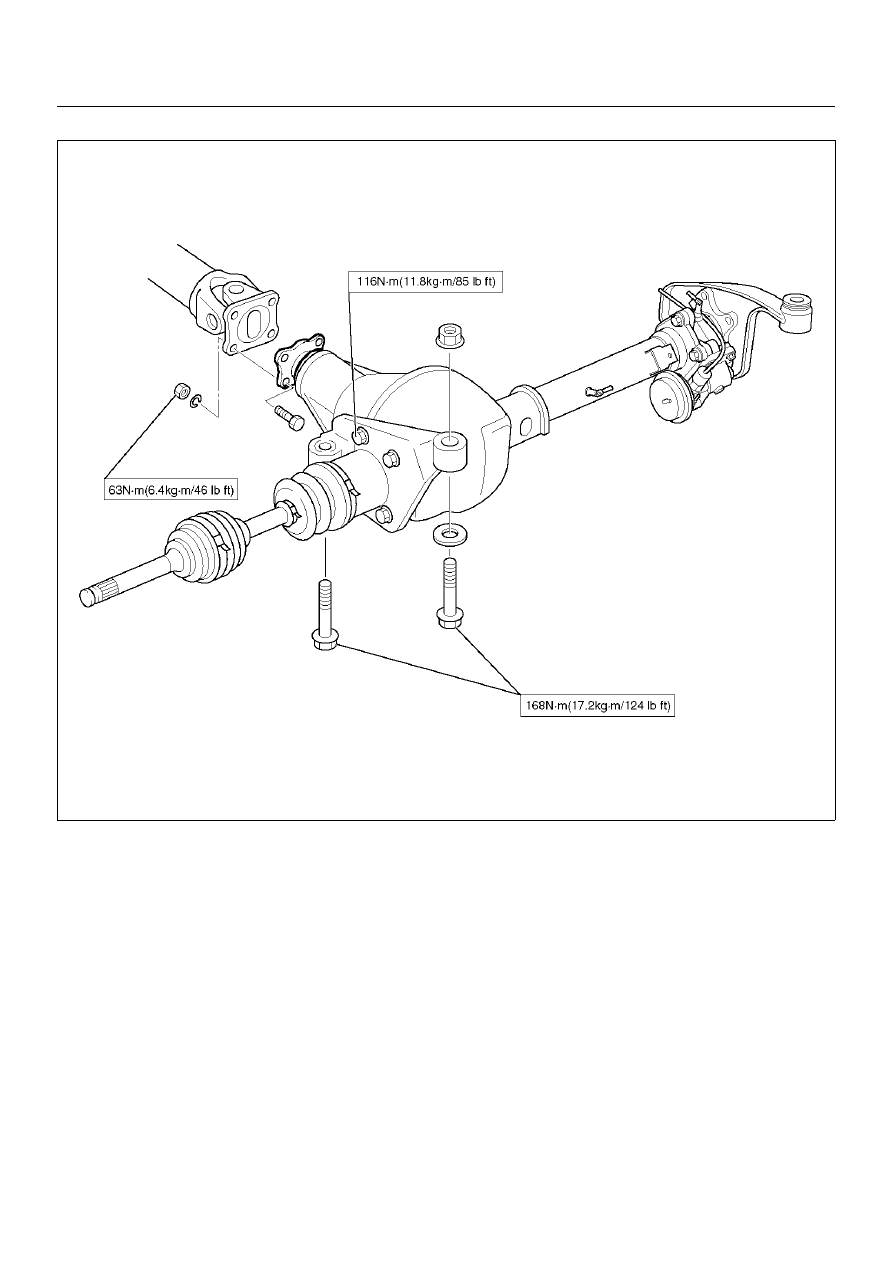

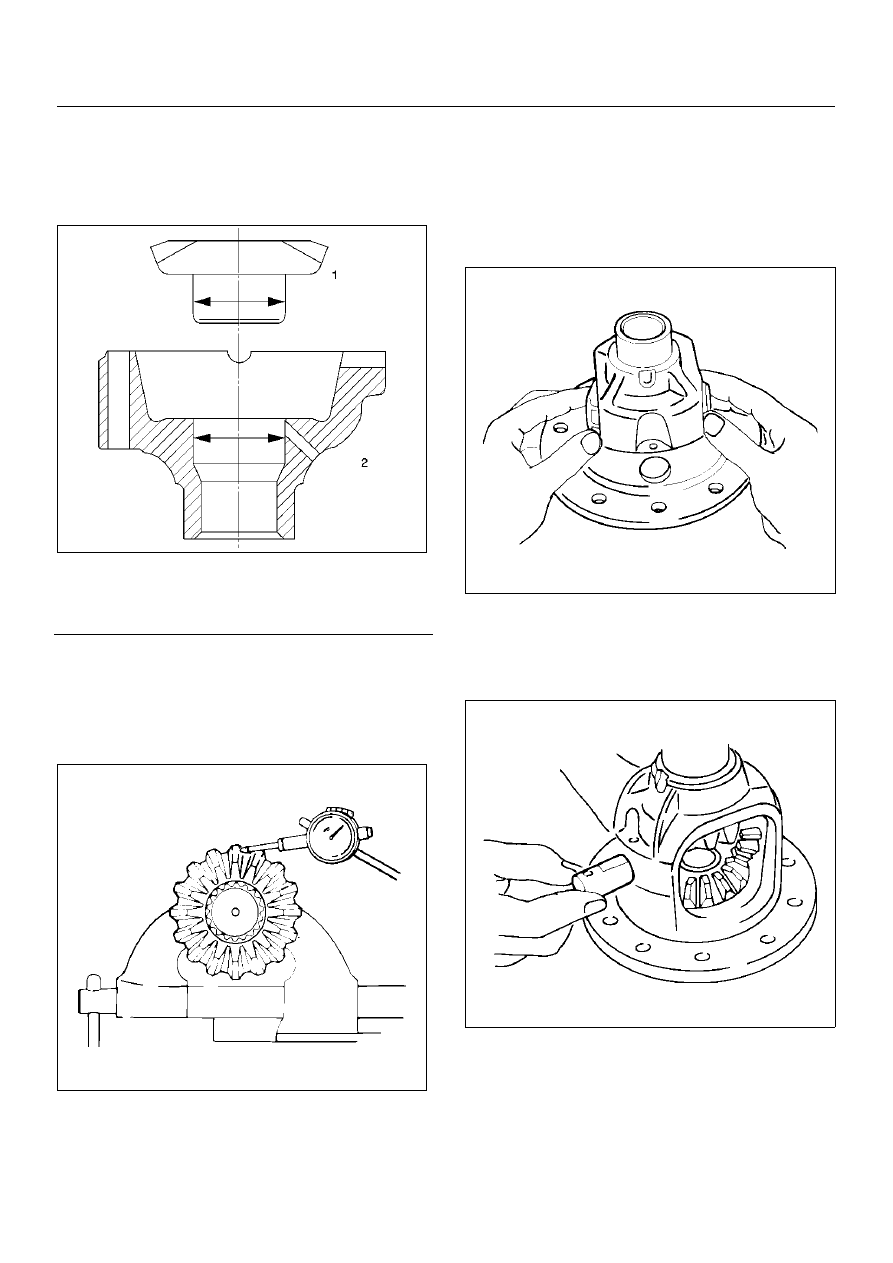

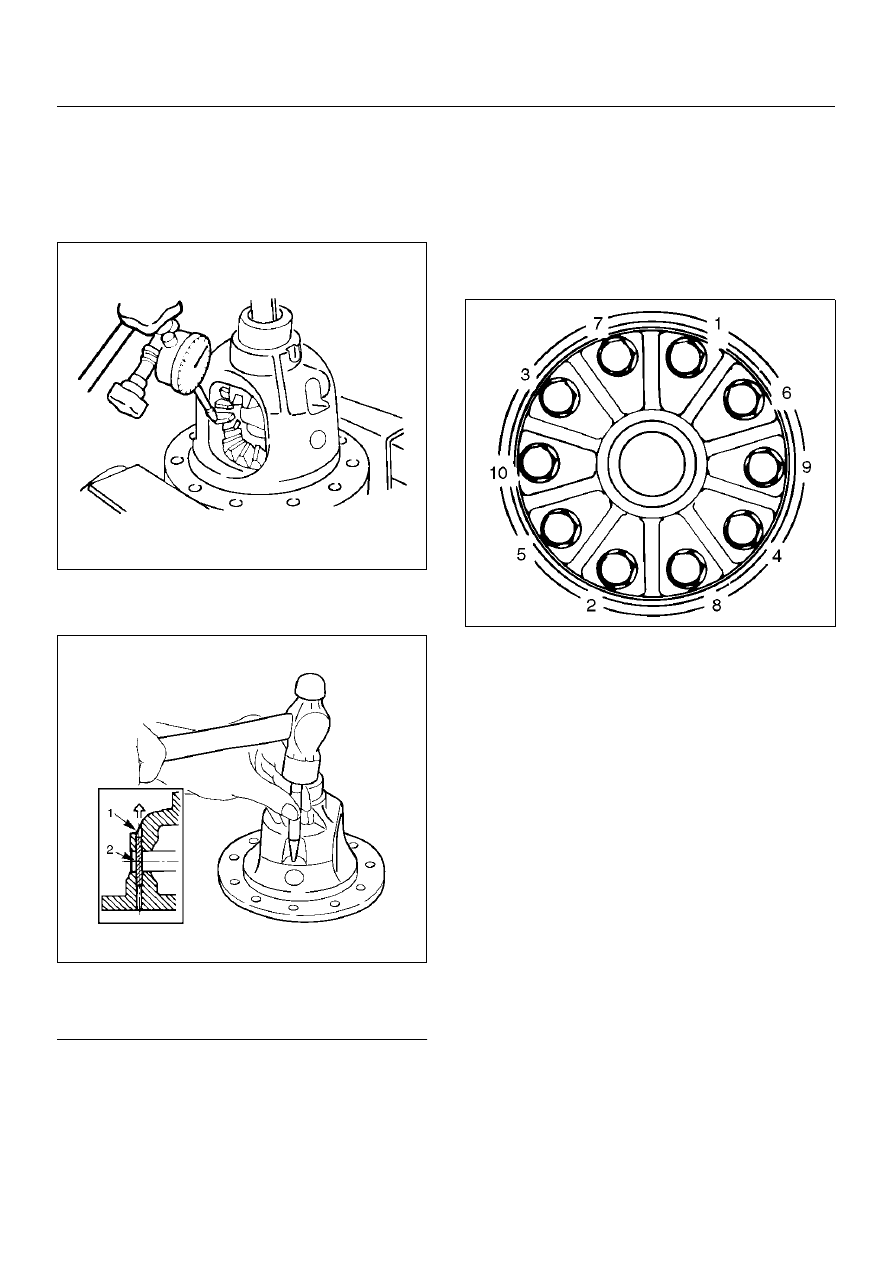

4A1–22 DIFFERENTIAL (FRONT) Clearance between the side gear and the Standard: 0.03 - 0.10 mm (0.001 - 0.004 in) Limit: 0.15 mm (0.006 in) 425RS046 Legend EndOFCallout Play in splines between the side gear and Standard: 0.08 - 0.36 mm (0.003 - 0.014 in) Limit: 0.5 mm (0.02 in) 425RS047 Reassembly 1. Install thrust washer. 2. Install side gear. 3. Install the pinion gear with thrust washer by engaging it with the side gears while turning both 425RS048 4. Install cross pin. 1. Be sure to install the cross pin so that it is in alignment with the lock pin hole in the differential 425RS049 (1) Side Gear |
