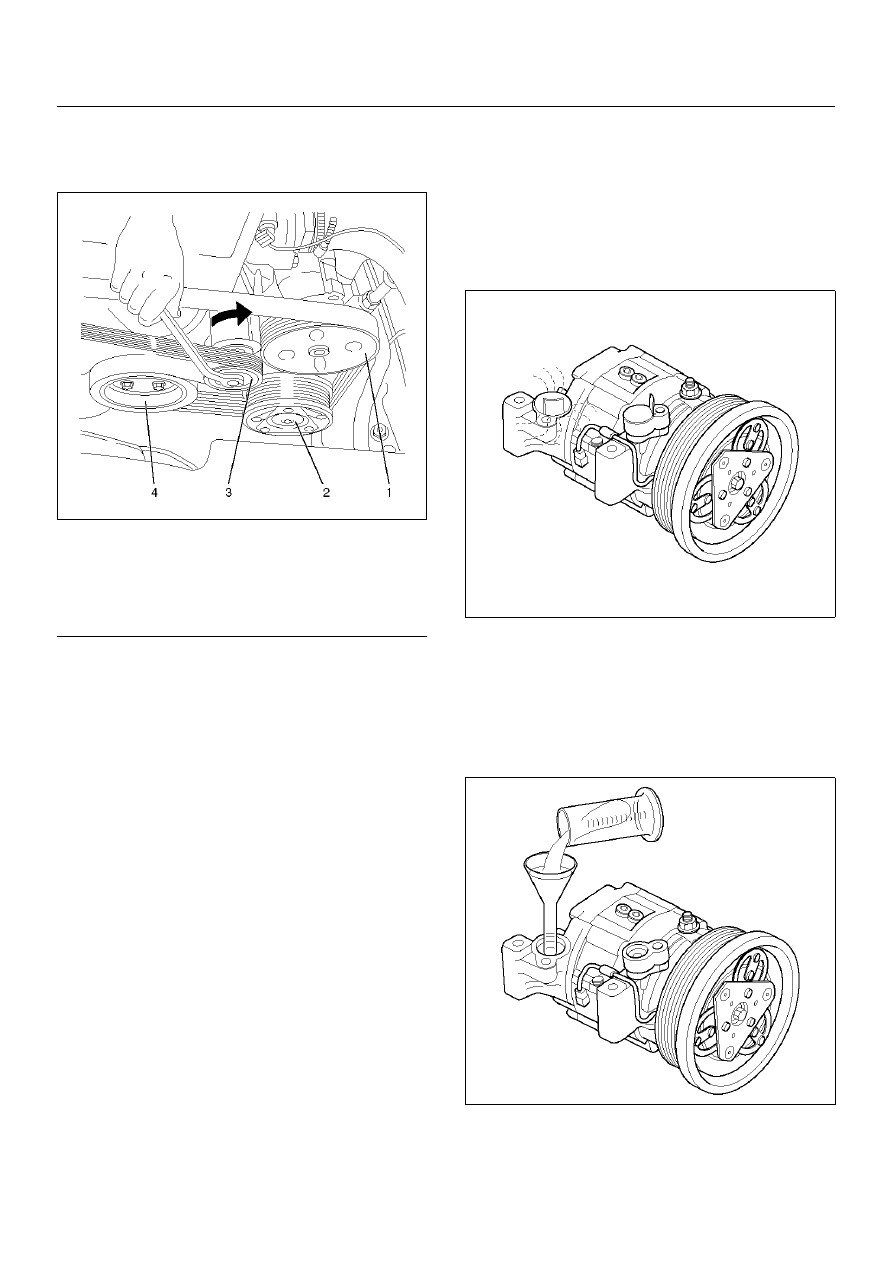

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–57 4. Remove serpentine belt. • Move serpentine belt tensioner to loose side using wrench then remove serpentine belt. 850RX006 EndOFCallout 5. Disconnect refrigerant line connector. • When removing the line connector, the connecting part should immediately be plugged 6. Remove compressor. Installation 1. Install compressor. • Tighten the compressor fixing bolts to the specified torque. Torque: 19N•m (1.9kg•m/14lb ft) 2. Connect refrigerant line connector. • Tighten the refrigerant line connector fixing bolts to the specified torque. Torque: 15N•m (1.5kg•m/11lb ft) • O-rings cannot be reused. Always replace with new ones. • Be sure to apply new compressor oil to the O-rings when connecting refrigerant lines. 3. Install serpentine belt. • Move serpentine belt tensioner to loose side using wrench, then install serpentine belt to 4. Connect magnetic clutch harness connector. New Compressor Installation The new compressor is filled with 150cc (5.0fl.oz.)of 1. Gently release nitrogen gas from the new compressor. 871RX033 2. Turn the compressor several times by hand and release the compressor oil in the rotor. 3. When installing on a new system, the compressor should installed as it is. When installing on a used 871RX035 Legend (1) Power Steering Oil Pump |
