RESTRAINT CONTROL SYSTEM
9J1–41
5. This test determines whether the malfunction is in
CKT IB06–YELLOW/BLACK.
6. This test determines whether the malfunction is in the
Supplemental Restraint System (SRS) coil assembly
or the driver air bag assembly.
Diagnostic Aids:

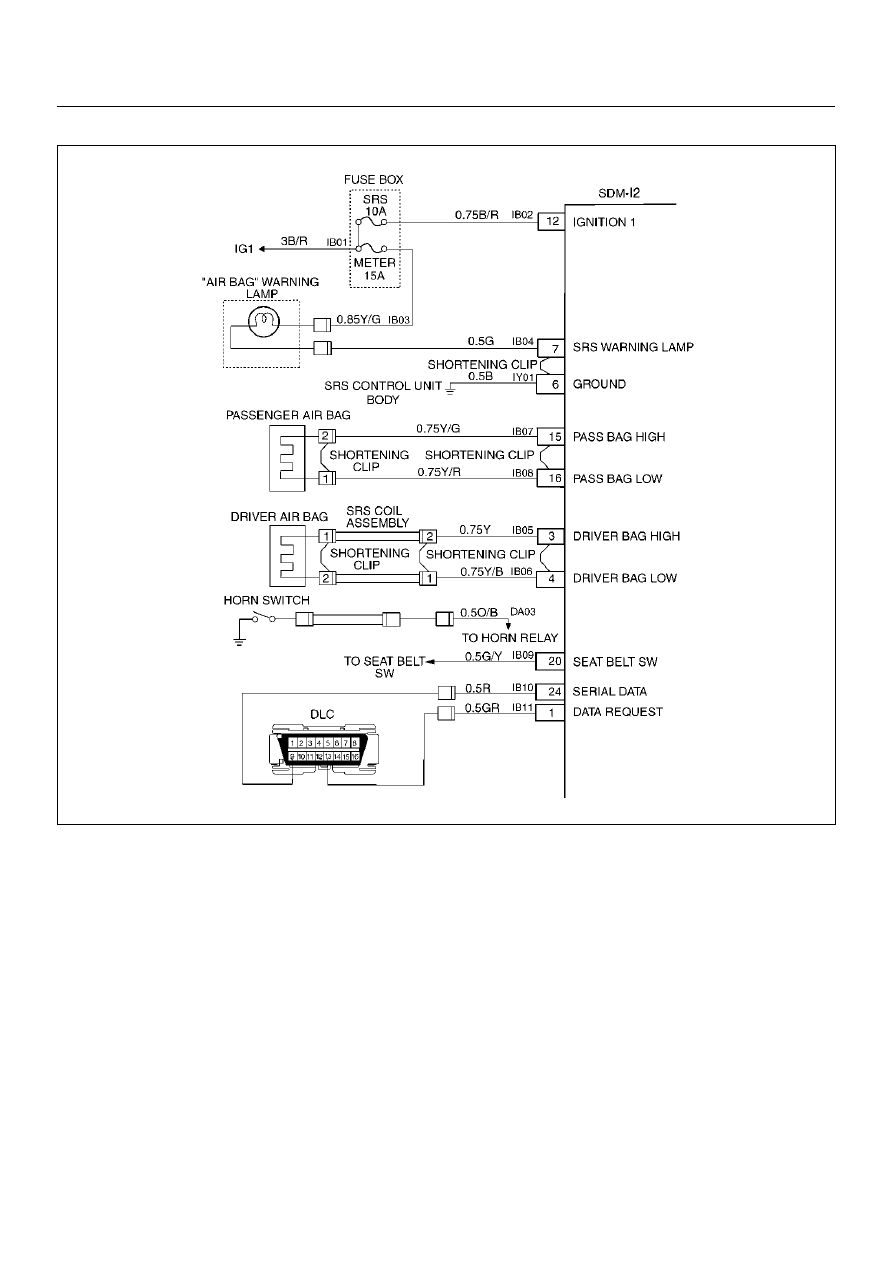

An intermittent condition is likely to be caused by a short
to B+ in the driver air bag assembly circuit. Inspect
CKTs IB05–YELLOW and IB06–YELLOW/BLACK
carefully for cutting or chafing. If the wiring pigtail of the
driver air bag assembly and SRS coil assembly is
damaged, the components must be replaced. A
careful inspection of CKT IB05–YELLOW and IB06–
YELLOW/BLACK, including the SRS coil assembly and
driver air bag assembly is essential to ensure that the
replacement Sensing and Diagnostic Module (SDM) will
not be damaged.
