RESTRAINT CONTROL SYSTEM
9J1–29
5. This test determines whether the malfunction is in
CKT IB08–YELLOW/RED.
Diagnostic Aids:
An intermittent condition is likely to be caused by a short
to B+ in the passenger air bag assembly circuit.

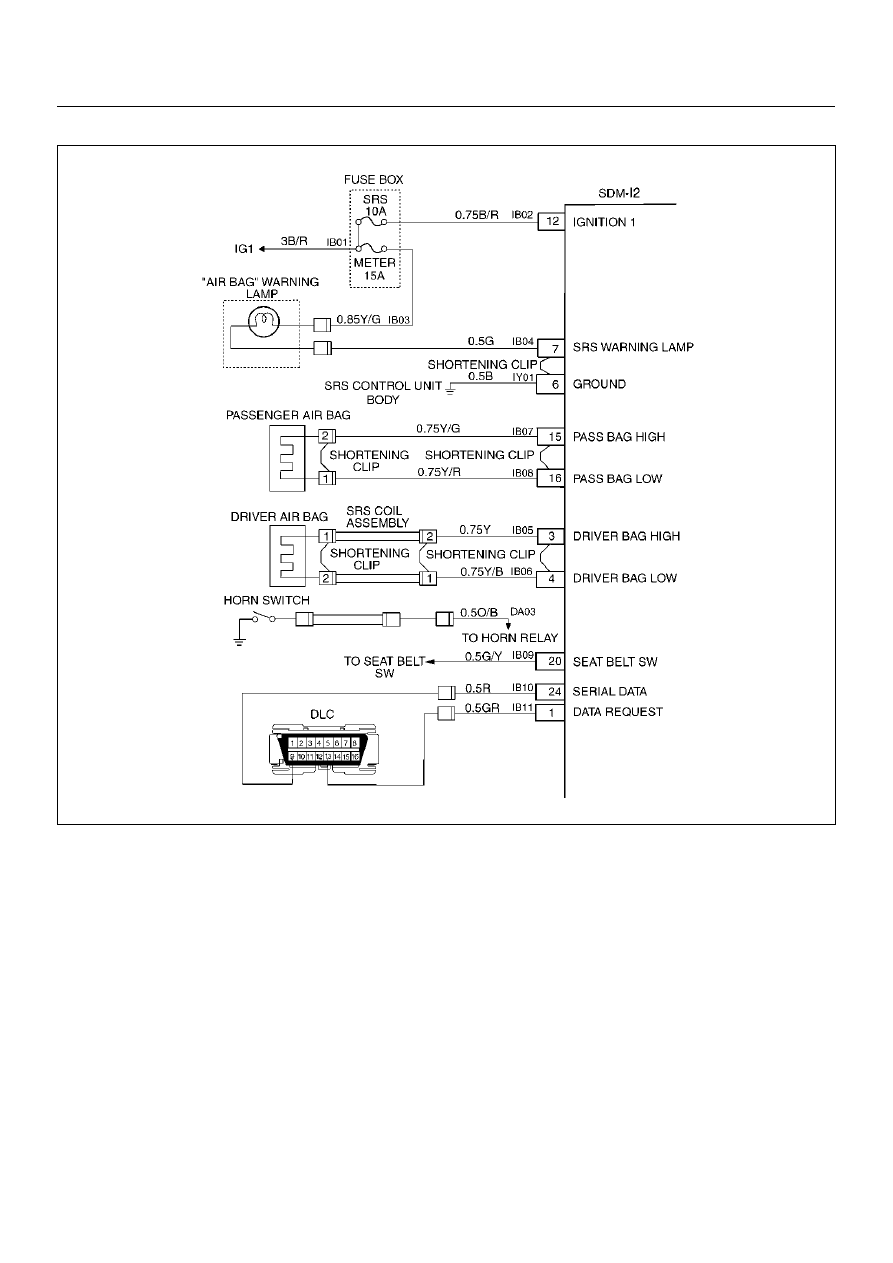

Inspect CKTs IB07–YELLOW/GREEN and IB08–
YELLOW/RED carefully for cutting or chafing. If the
wiring pigtail of the passenger air bag assembly is
damaged, the component must be replaced. A careful
inspection of CKT IB07–YELLOW/GREEN and IB08–
YELLOW/RED, including the passenger air bag
assembly pigtail is essential to ensure that the
replacement Sensing and Diagnostic Module (SDM) will
not be damaged.
