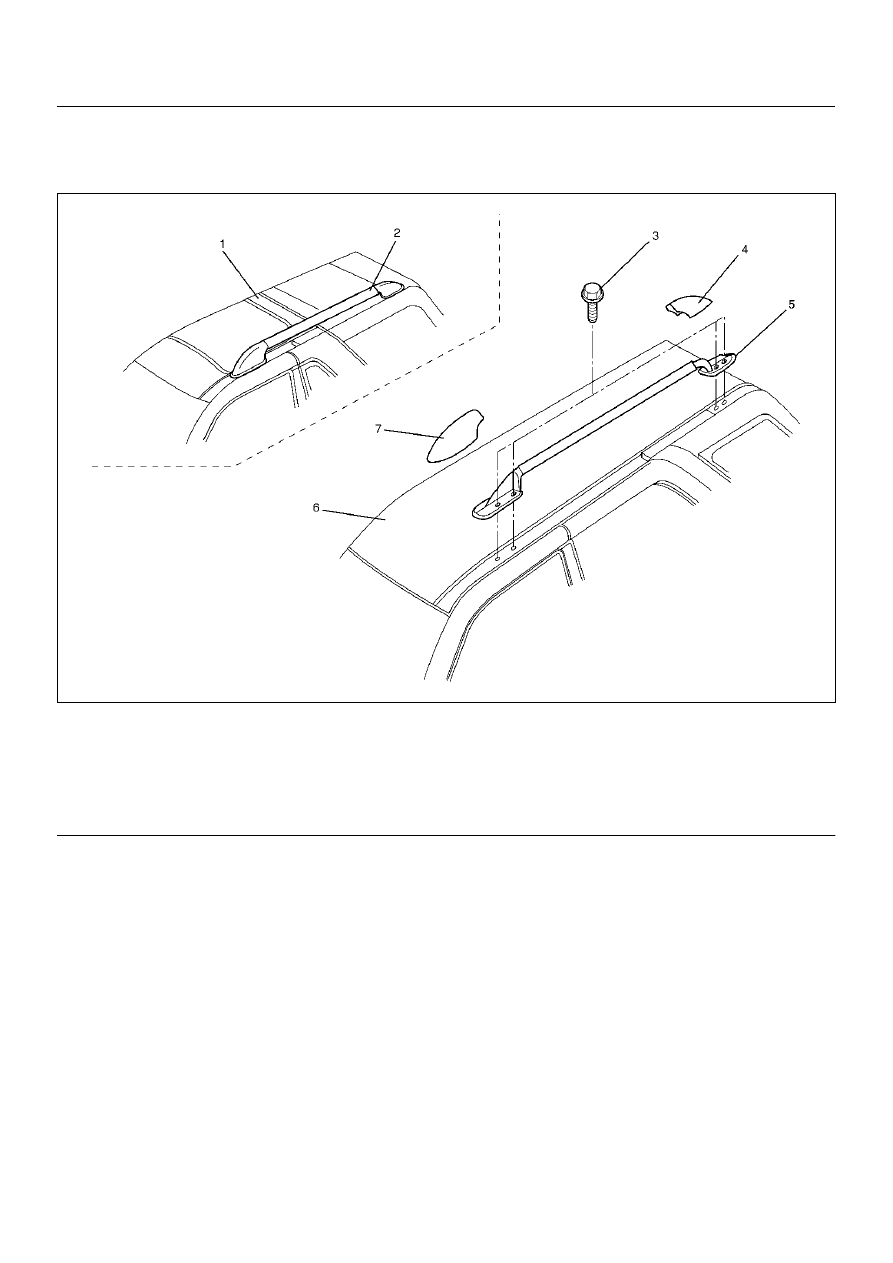

8J–20 EXTERIOR/INTERIOR TRIM Roof Rail Parts Location 660RW022 Legend EndOFCallout Removal 1. Remove the front and rear of roof rail cover. • Pry the roof rail covers. 2. Remove the roof rail sub assembly. • Remove the four fixing bolts at each roof rail. Installation To install, follow the removal steps in the reverse order, 1. Tighten the roof rail sub assembly fixing bolts to the specified torque. Torque 8N·m (0.8kg·m/69lbin) (1) SWB (5) Roof Rail Sub Assembly |
