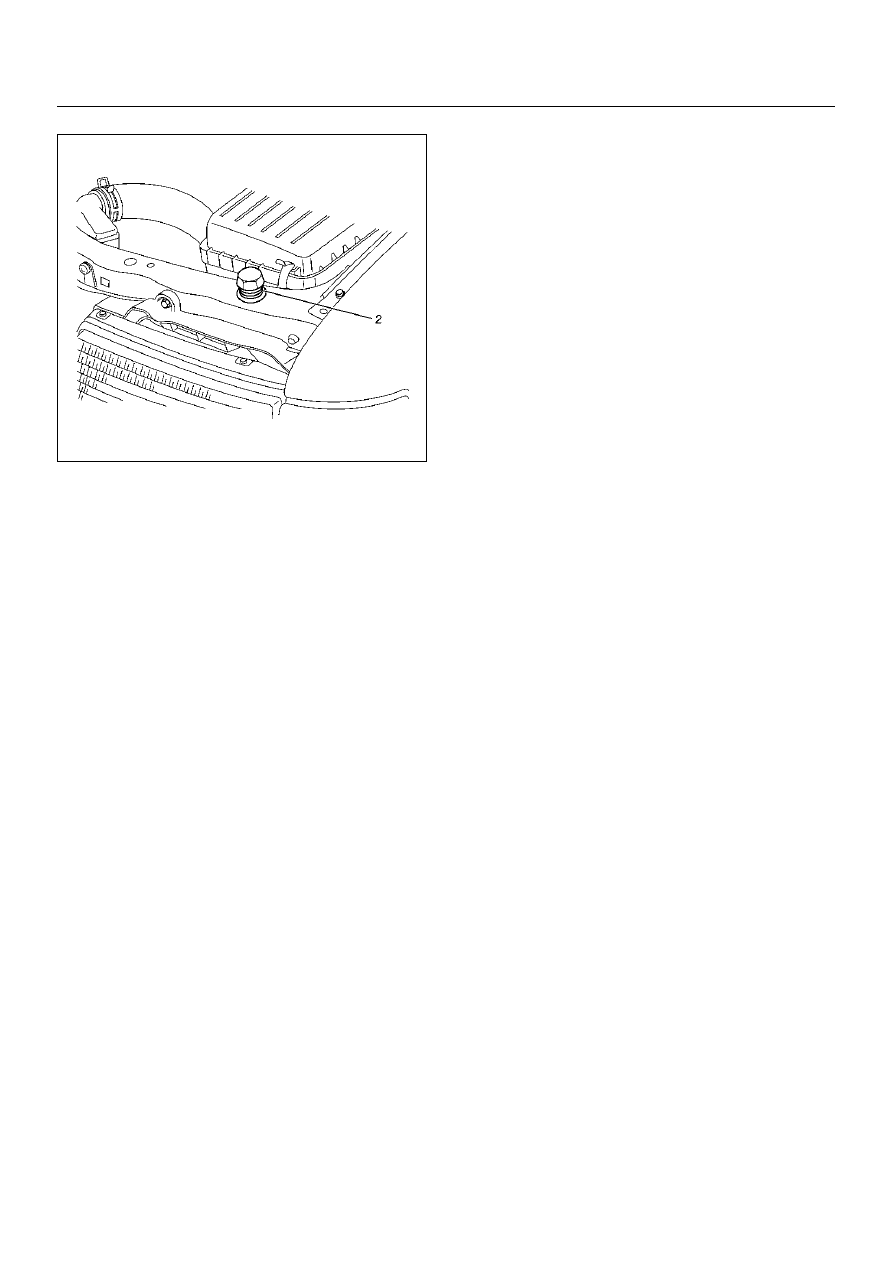

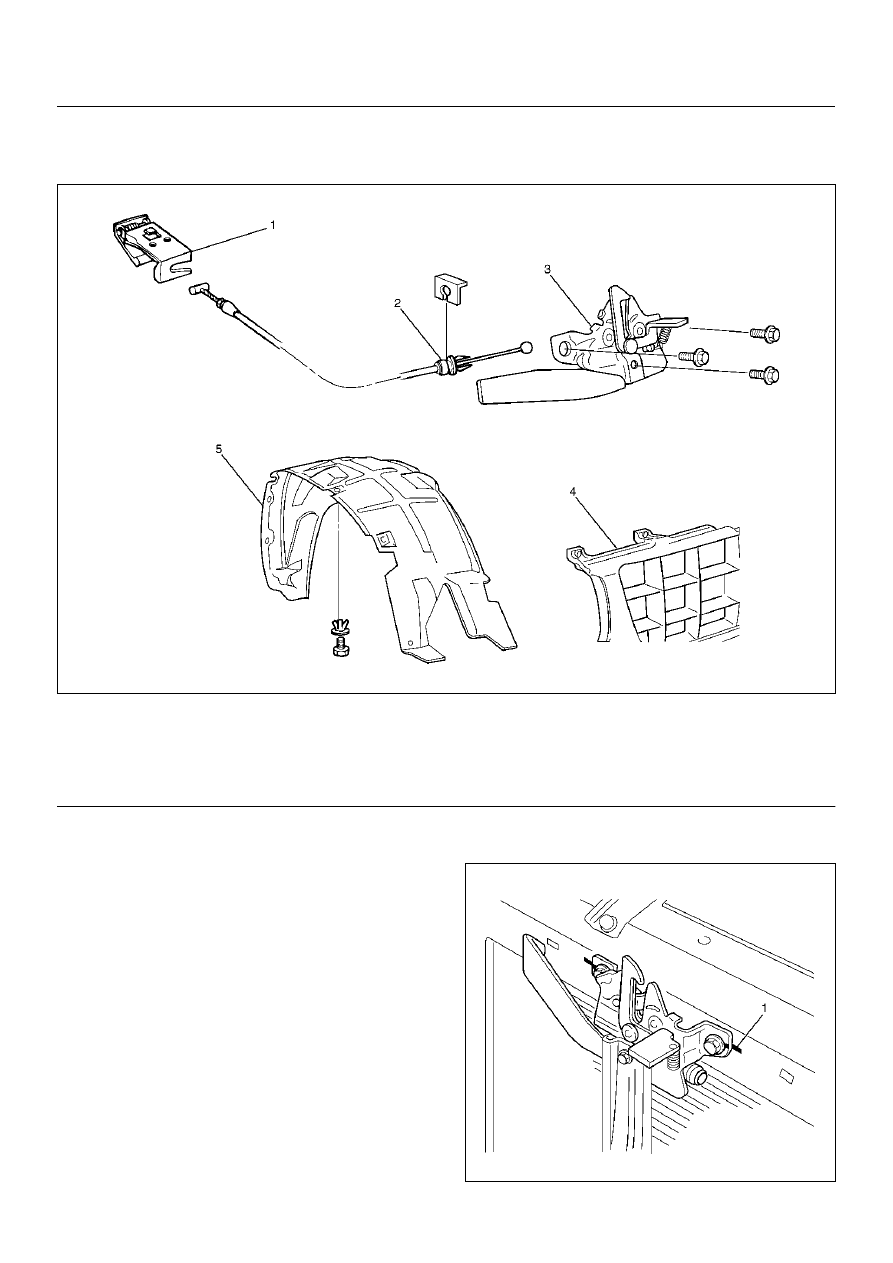

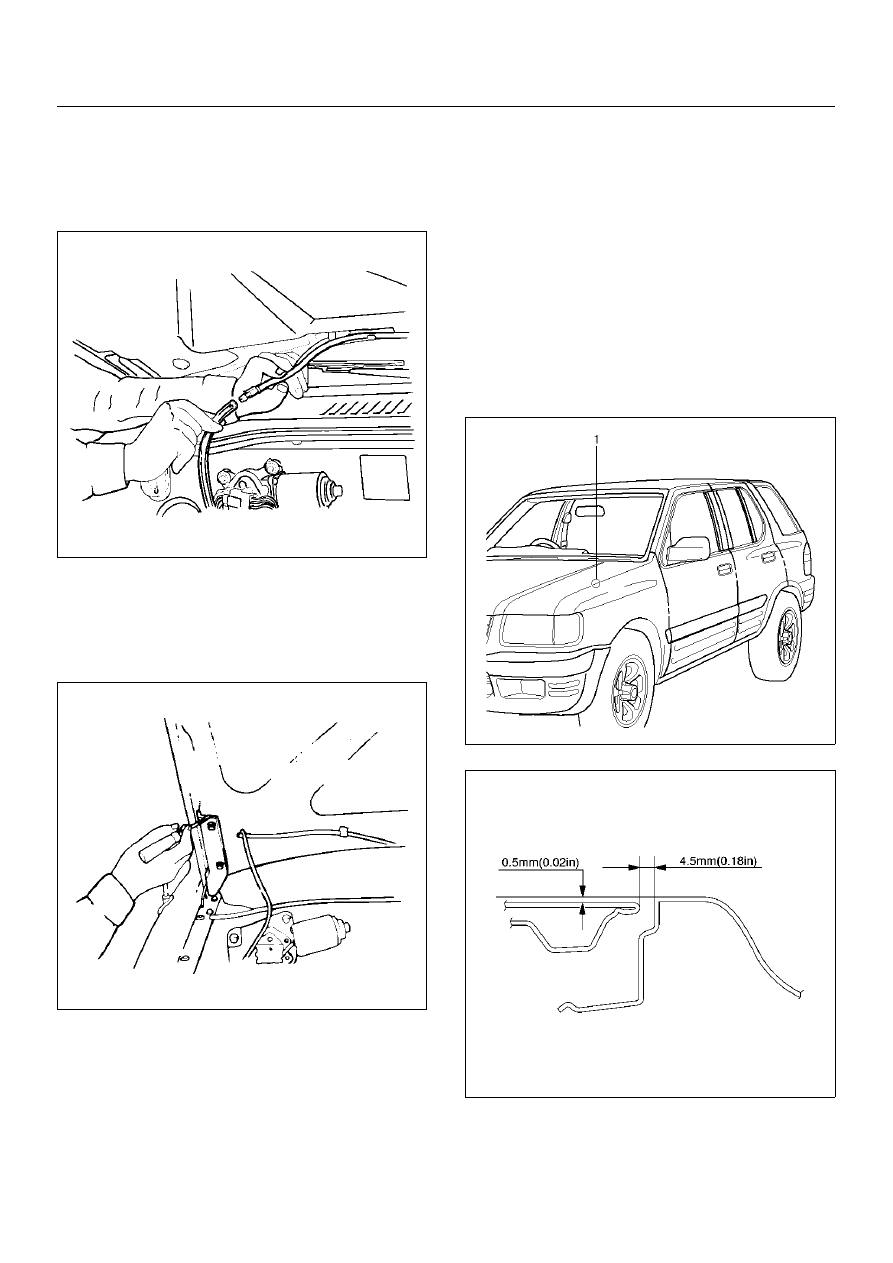

8F–12 BODY STRUCTURE Removal 1. Open the hood. 2. Support the hood. 3. Remove the windshield washer nozzle tube. 880RS001 4. Remove the hood hinge bolts. • Before removing the hinges from the engine hood, scribe a mark showing location of the 610RS006 5. Remove the engine hood. Installation To install, follow the removal steps in the reverse order, 1. Tighten the engine hood hinge fixing bolts to the specified torque. Torque : 10 N·m (1.0 kg·m/87 lb in) 2. Check the engine hood and fender(1). Clearance: 4.5 mm (0.18 in) Height (step): 0.5 mm (0.02 in) • Adjust clearance with the hinges on the engine hood. • Adjust height (step) with the hood rests(2). 610RW016 610RX001 |
