8D–152
WIRING SYSTEM
Anti–Lock Brake System (ABS)
General Description

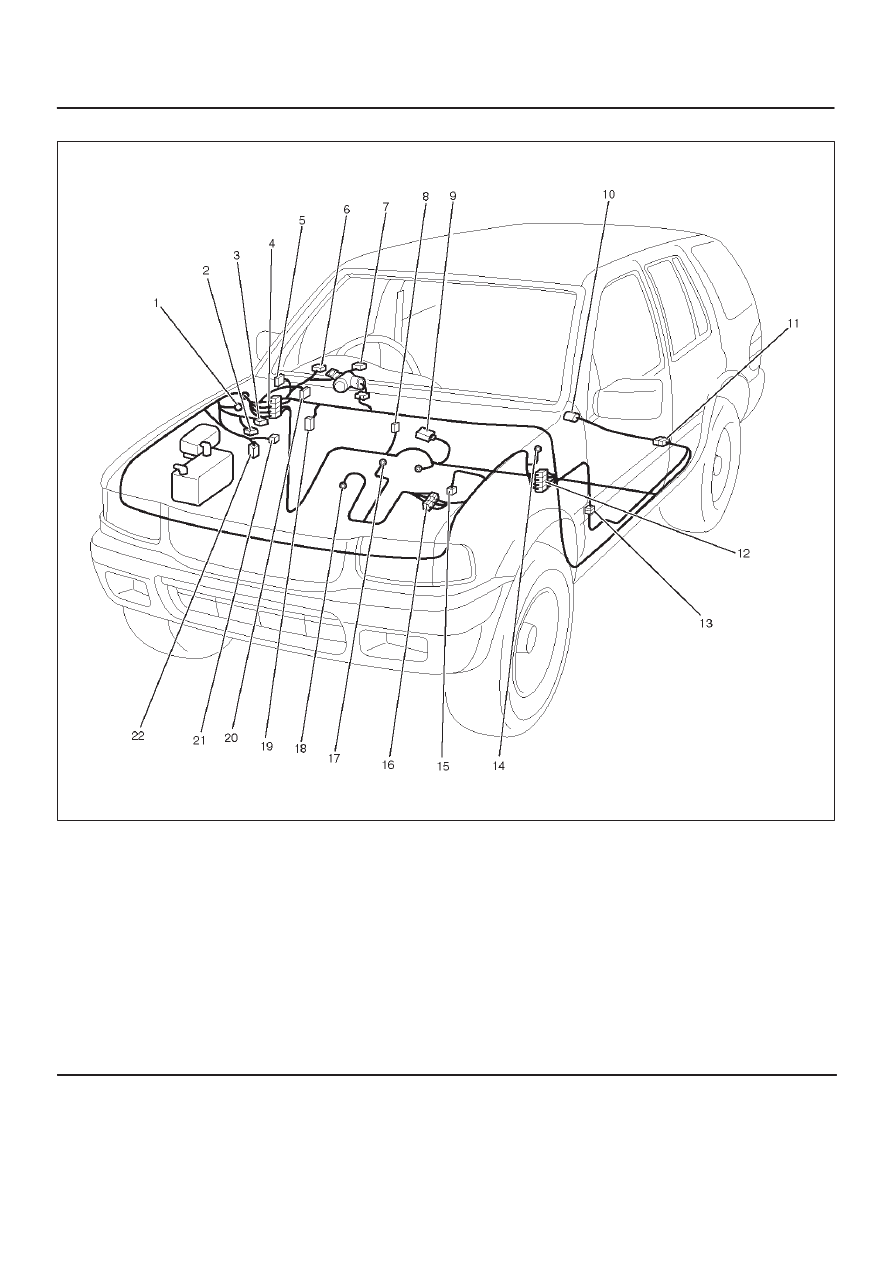

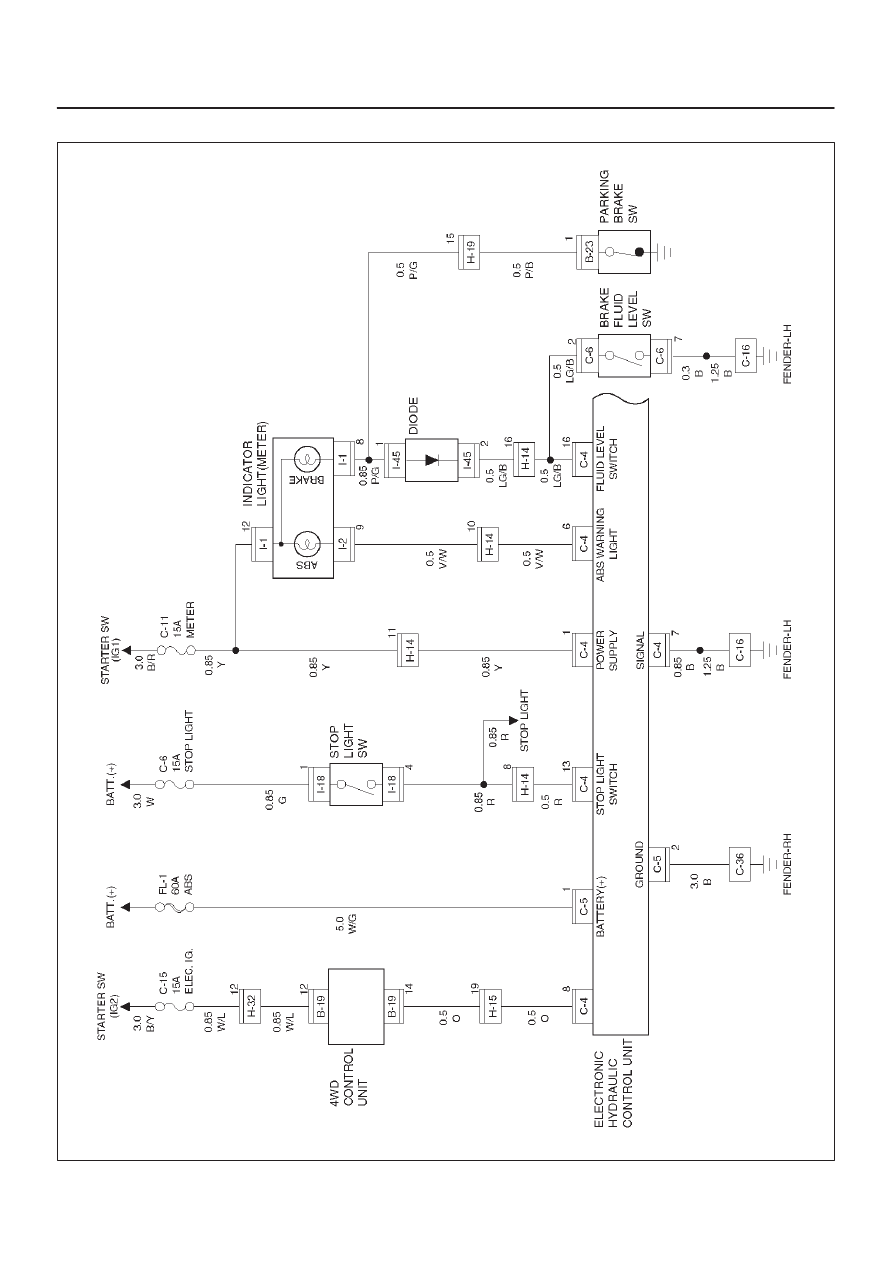

The circuit consists of the starter switch, stoplight switch
EHCU wheel speed sensor, ABS warning light, BRAKE
warning light, and data link connector.

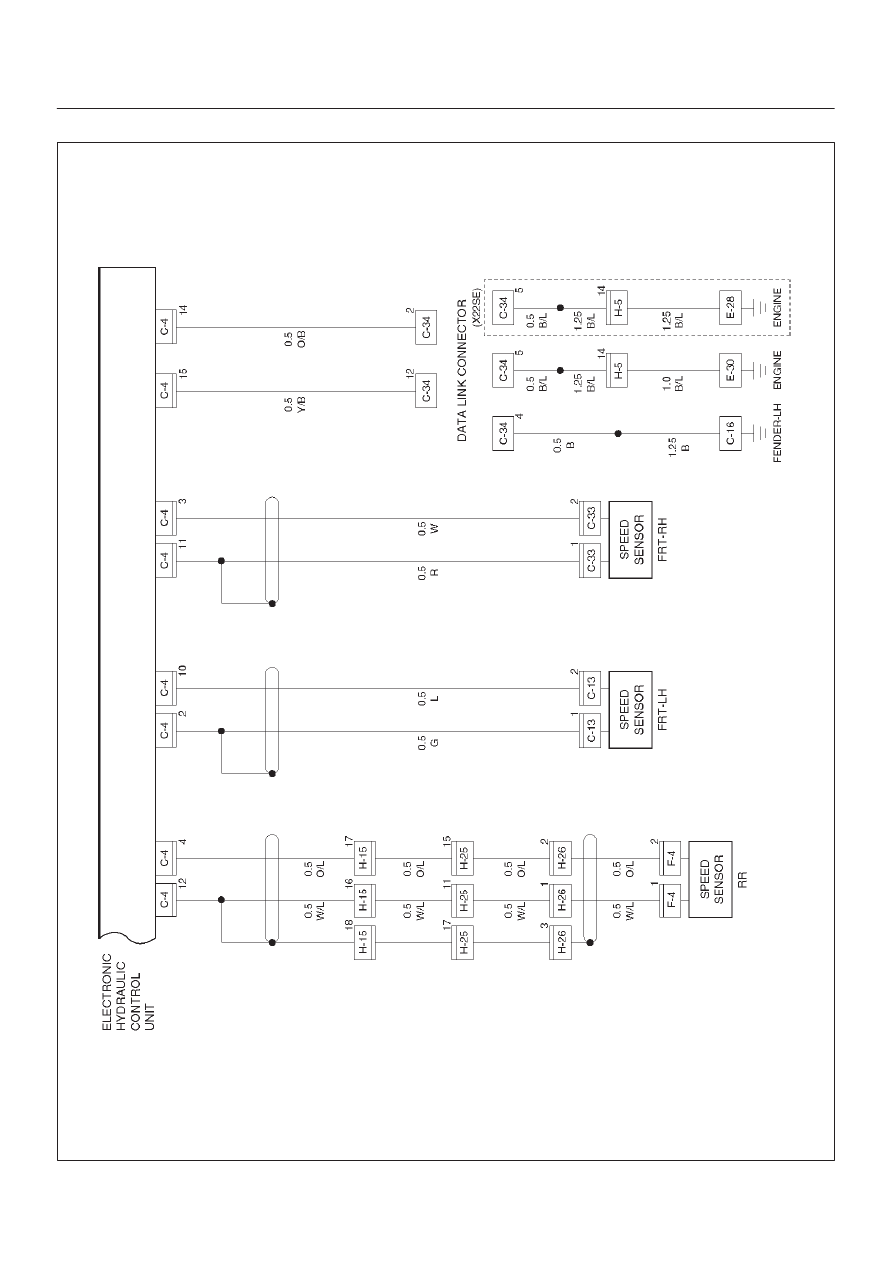

When the service brake is applied while in the running
mode, the EHCU (Electronic Hydraulic Control Unit)
judges which wheel is about to lock by using the wheel
rotation speed signals sent from the three wheel speed
sensors at the front wheels and rear differential. And the
brake fluid pressure applied to the four wheels is
controlled by the EHCU to prevent the wheels from
locking.
Refer to Brake Control System in Brakes section in detail.
