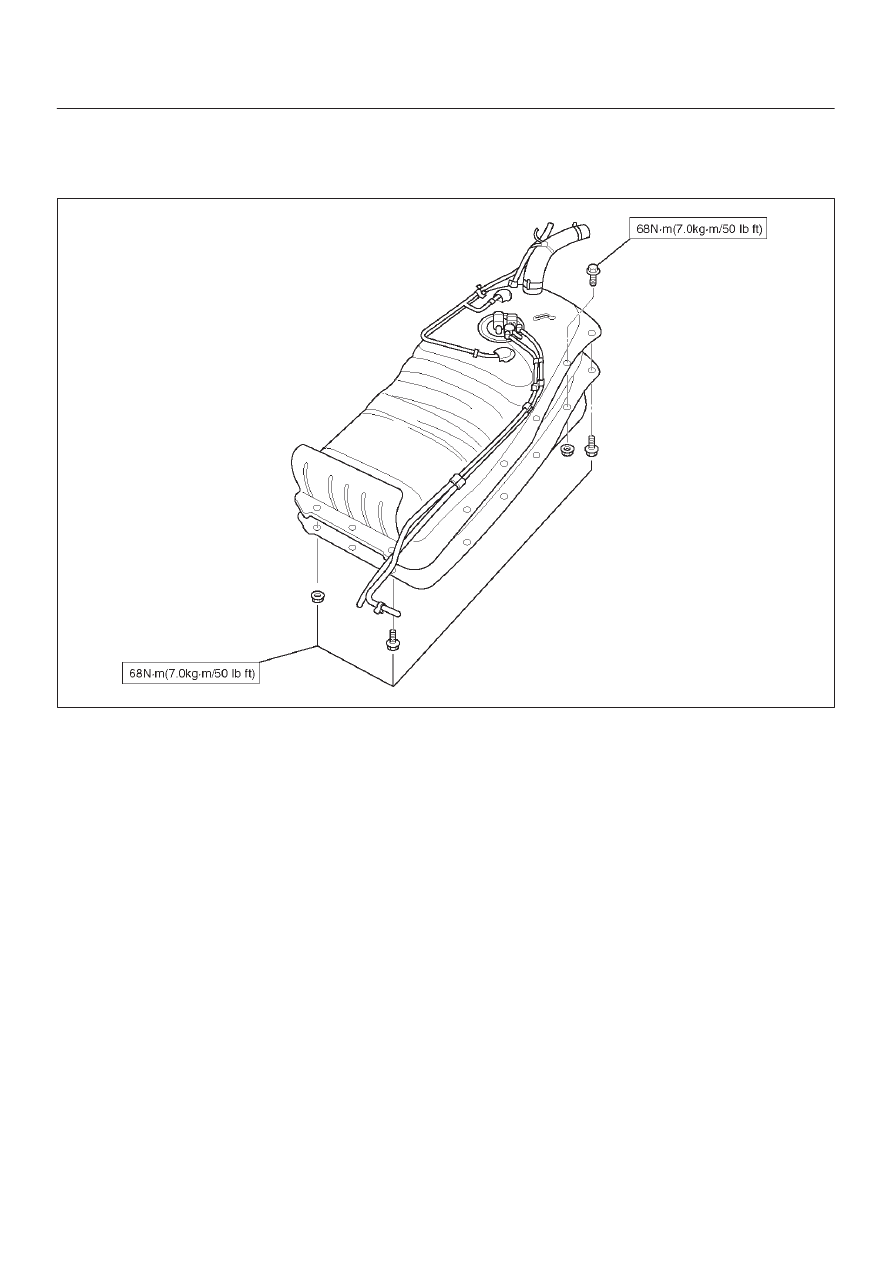

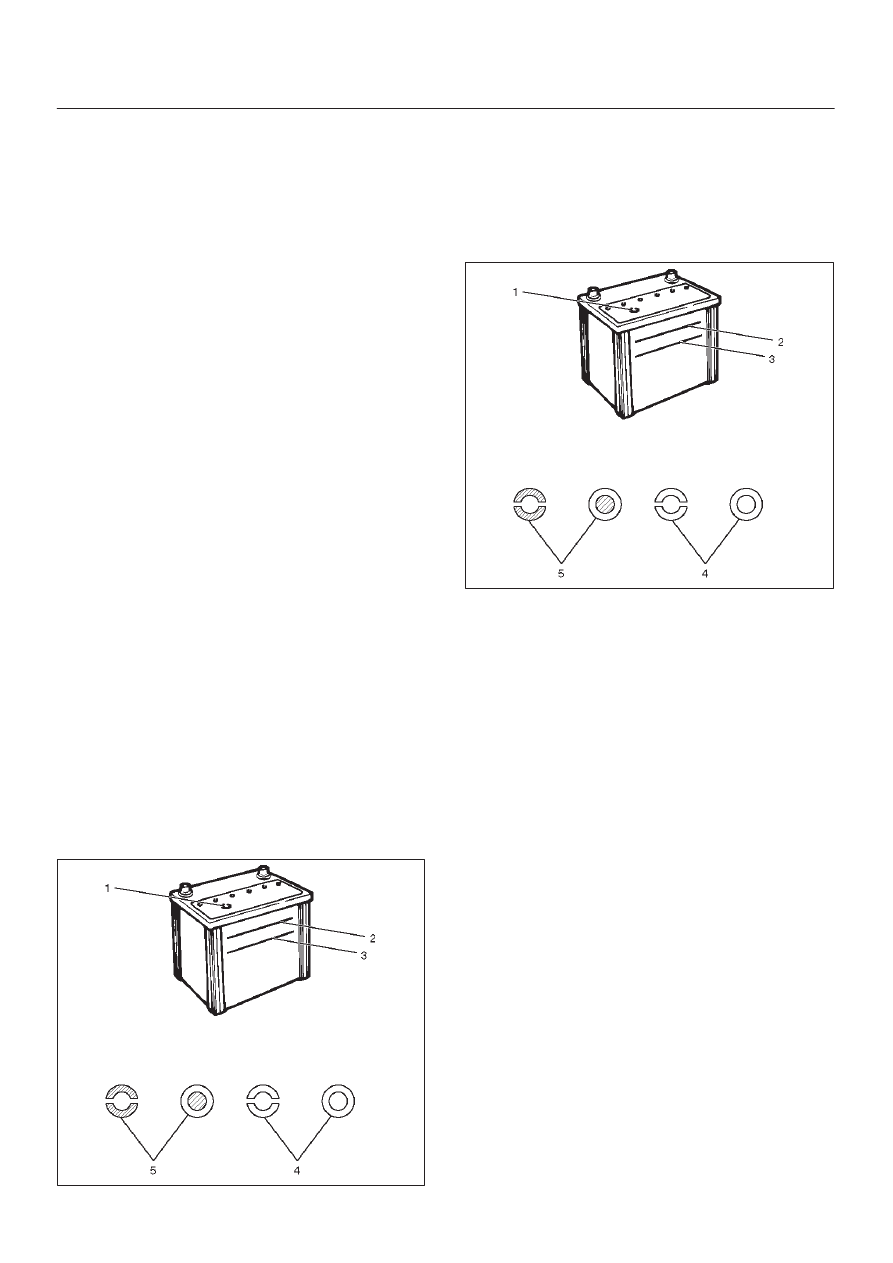

6C–11 ENGINE FUEL (6VD1 3.2L) 11. Remove Fuel Tube/Quick Connector (12). NOTE: Handling of the fuel tube sure to refer “Fuel 12. Remove fuel pump and sender assembly (10) by removing the snap ring (7) along with the fuel hoses 13. Remove protectors (15,19) by removing the six fixing bolts (6). Installation 1. Install protectors (15,19) and tighten the six fixing bolts to the specified torque. Torque: 68 N·m (7.0 kg·m/50 lb ft) 2. Install fuel pump and sender assembly by fitting in of the snap ring (7). 3. Install Fuel Tube/Quick connector (12). NOTE: Handling of the fuel tube sure to refer “Fuel 4. Install roll over & float valve (1) by fitting in of the retaining cover (2). 5. Lift up fuel tank assembly and connect the wiring connectors (8,9). 6. Install fuel tank assembly along with protectors and tighten the four fixing bolts to the specified torque. Torque: 68 N·m (7.0 kg·m/50 lb ft) 7. Connect fuel filler hose (5) and air breather hose (4), and clip them firmly. 8. Connect fuel feed hose (17) and fuel return hose (18), and clip them firmly. 9. Connect evaporative fuel hose (3). 10. Tighten fuel filler cap. 11. Connect battery ground cable. Fuel Gauge Unit Removal and Installation As for removal and installation of the Fuel Gauge Unit, Fuel Filler Cap General Description Fuel filler cap includes vacuum valve. 140RW014 Legend (1) Vacuum Valve Inspection Check the seal ring in the filler cap for presence of any CAUTION: |
