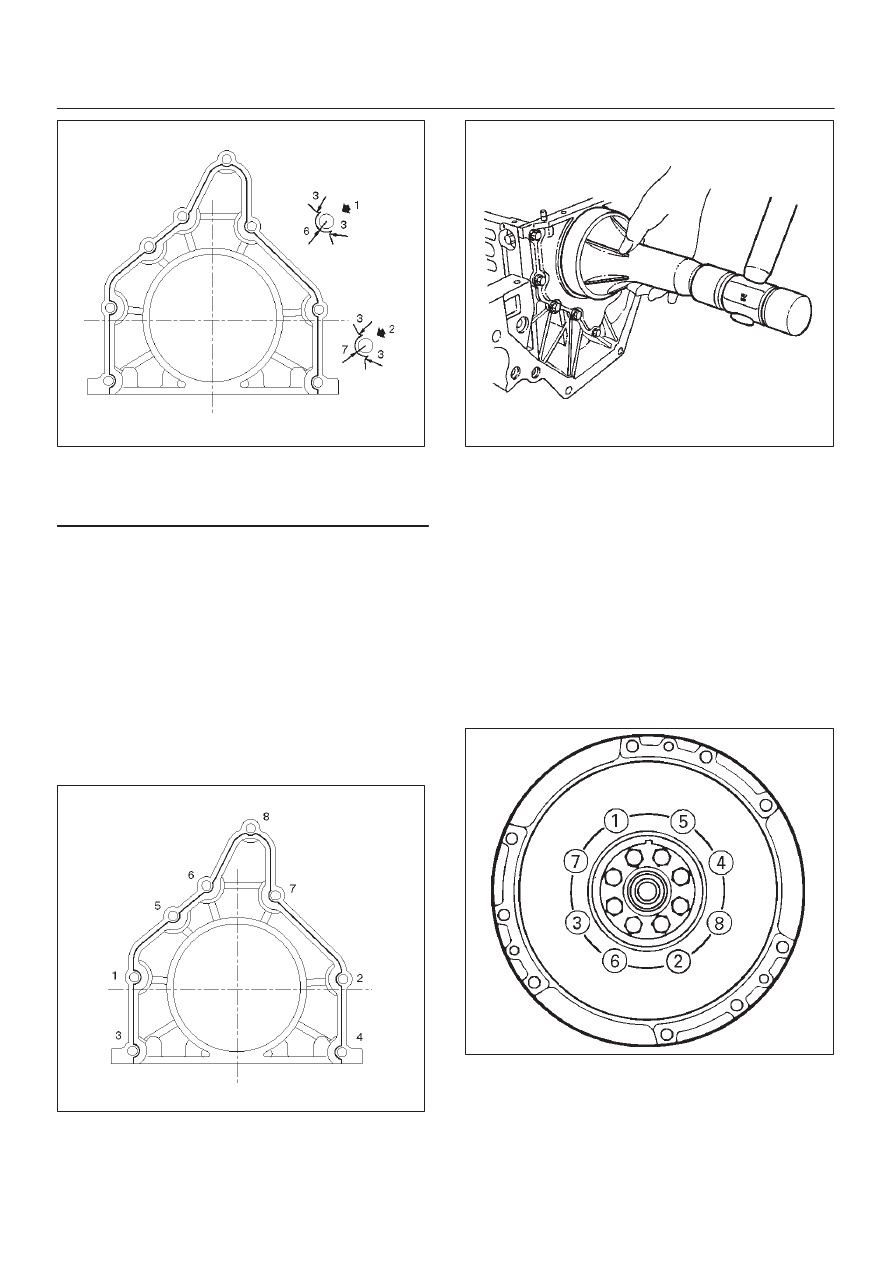

6A–72 ENGINE MECHANICAL (6VD1 3.2L) 015RW002 Legend (1) Around Bolt Holes D Apply engine oil to the oil seal lip. D Align the cylinder block dowel pin holes with the rear D Tighten the rear retainer fixing bolts. New bolts Torque: 18 N·m (1.8 Kg·m/13 lb ft) NOTE: Be very careful not to disengage the oil seal garter If the seal was removed from retainer for 015RW001 015RS017 3. Flywheel 1. Thoroughly clean and remove the oil from the threads of crankshaft. 2. Remove the oil from the crankshaft and flywheel mounting faces. 3. Mount the flywheel on the crankshaft and then install the washer. 4. Hold the crankshaft to prevent from rotating then install the bolts in the order shown to the specified Torque: 54 N·m (5.5 Kg·m/40 lb ft) NOTE: Do not reuse the bolt and do not apply oil or thread 015RS018 |
