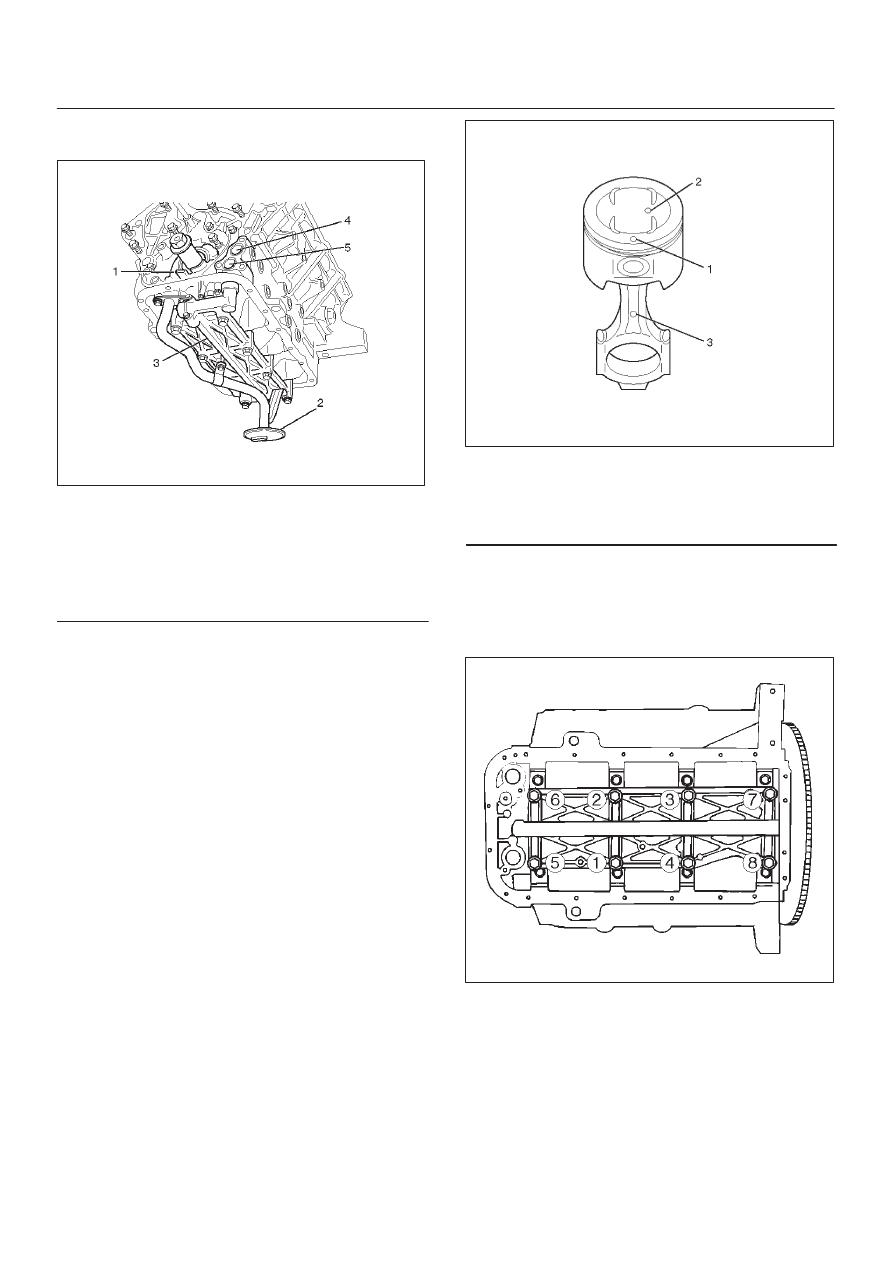

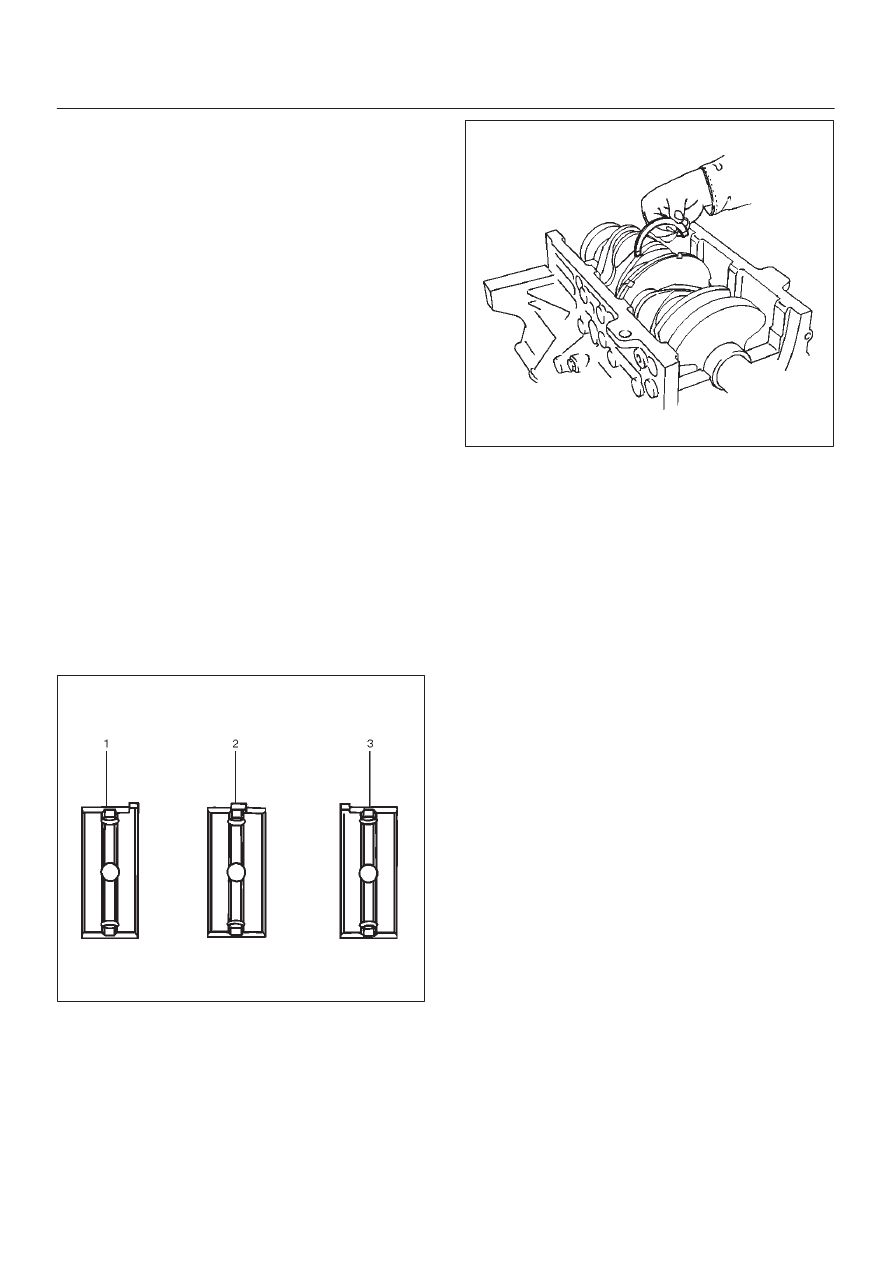

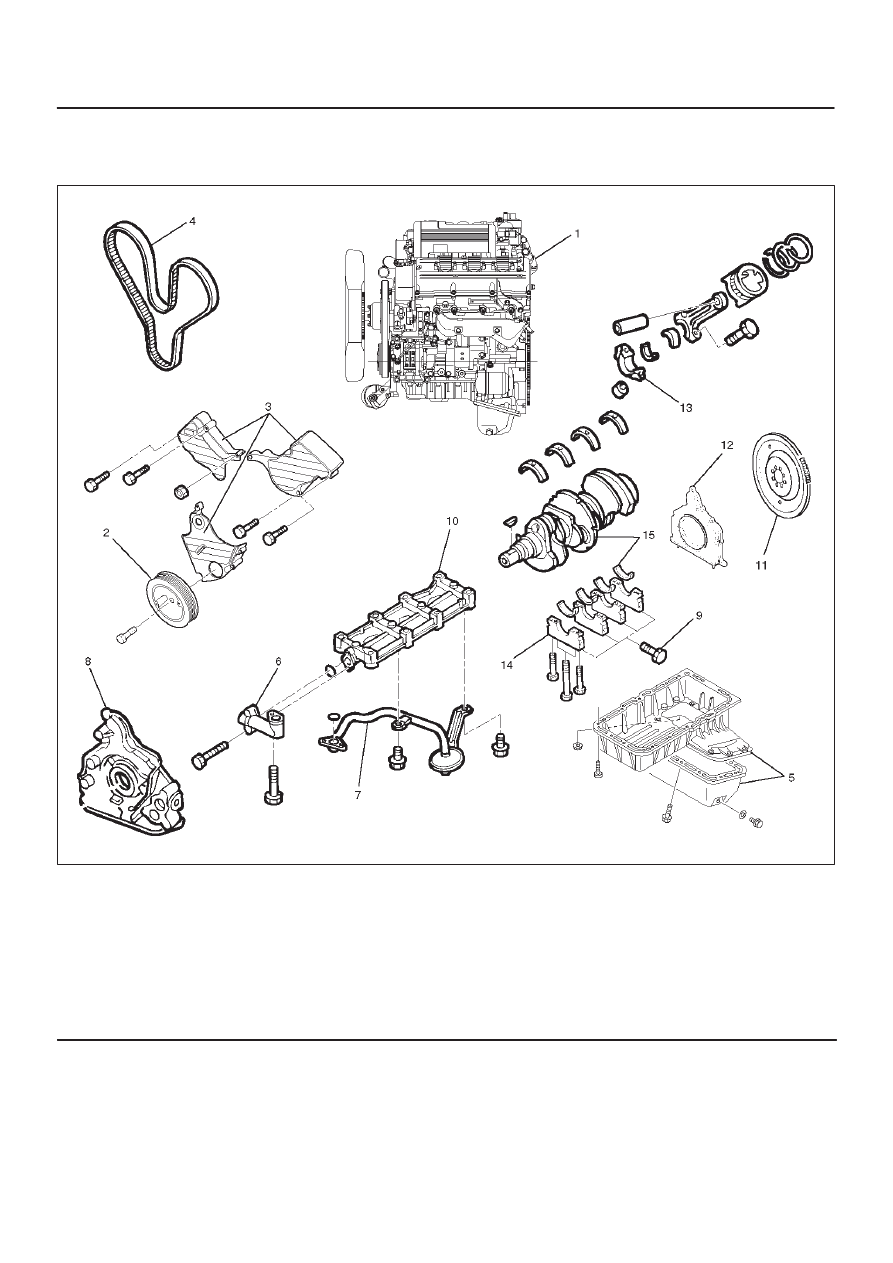

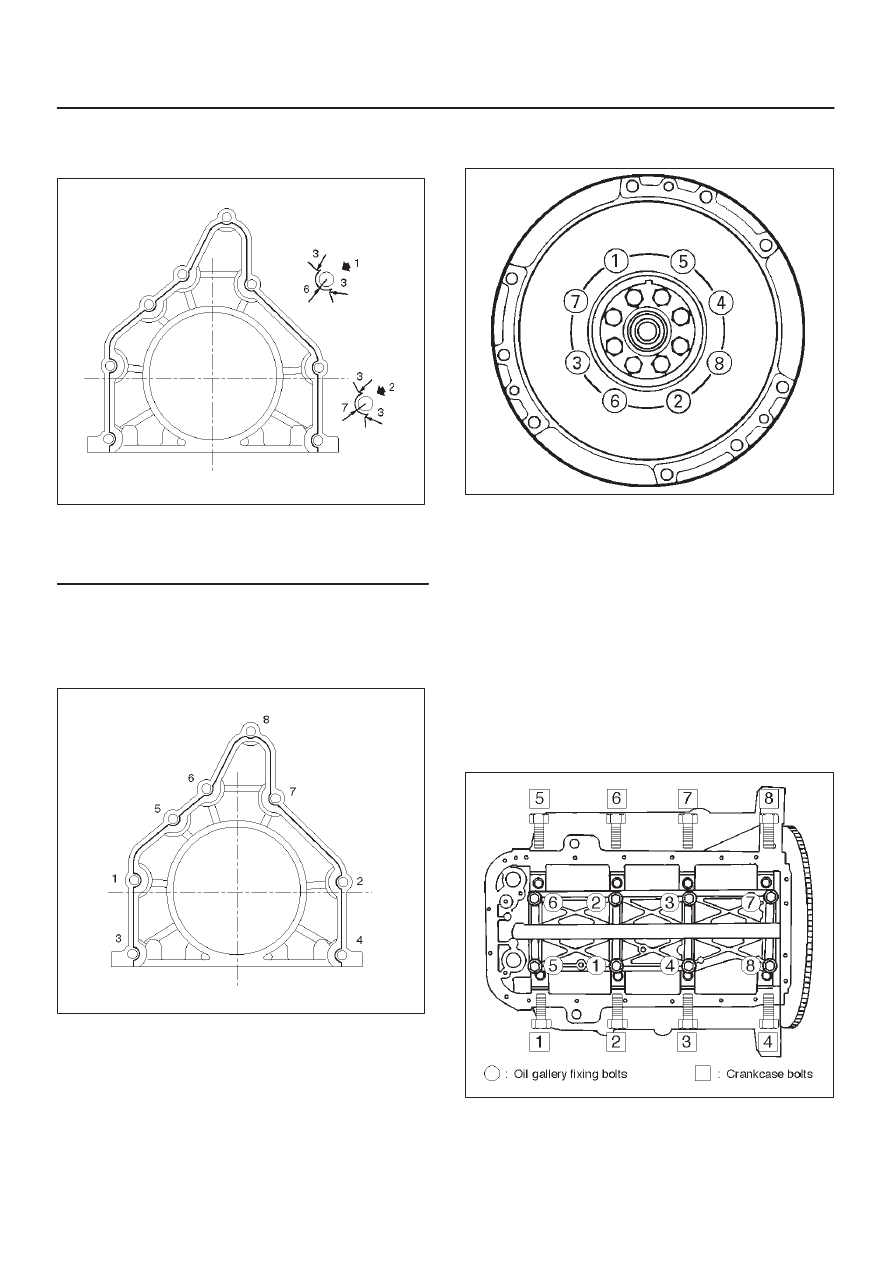

6A–40 ENGINE MECHANICAL (6VD1 3.2L) 3. Remove oil strainer fixing bolts, remove oil strainer assembly with O-ring. 050RW002 Legend (1) Oil Pump 4. Remove three fixing bolts, oil pipe with O-ring. removing the bearing cap, remove carbon on the top Installation 1. Install piston with connecting rod assembly. D Apply engine oil to cylinder bore, connecting rod D The bearing cap number must be the same as D Apply engine oil to the thread and seating surface of D Tighten nuts to the specified torque. Torque : 54 N·m (5.5 Kg·m/40 lb ft) D After tightening the nuts, make sure that the NOTE: Do not apply engine oil to the bearing back faces 015RW003 Legend (1) Piston Front Mark 2. Install oil gallery and tighten the bolts in two steps, in the order shown in illustration. Torque : ° –65 ° 051RS009 3. Install oil pipe with O-ring. Torque : 10 N·m (1.0 Kg·m/89 lb in) 4. Install oil strainer assembly with O-ring. Torque : 25 N·m (2.5 Kg·m/18 lb ft) 5. Install crankcase with Oil Pan. D Refer to installation procedure for Oil Pan and 6. Install cylinder head assembly. D Refer to installation procedure for Cylinder Head in |
