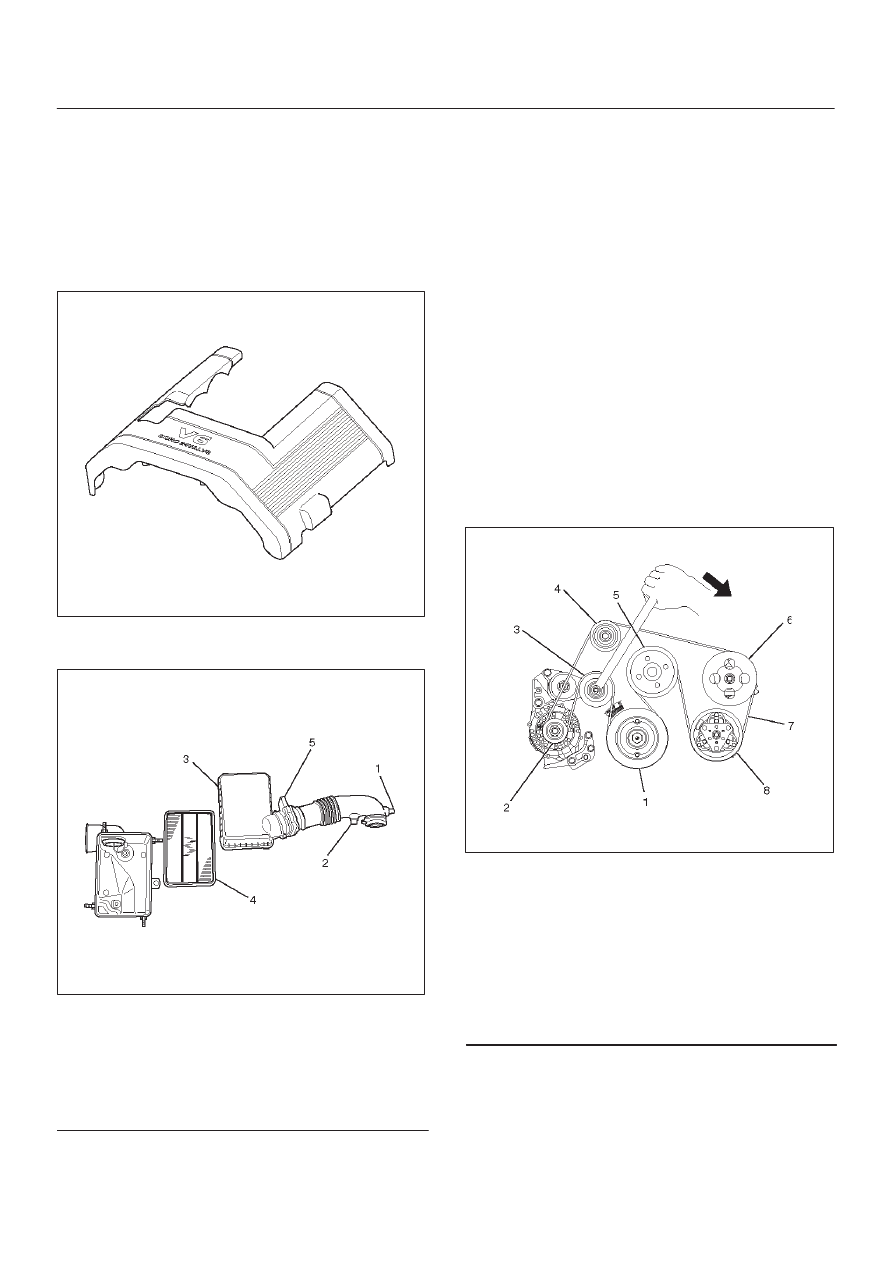

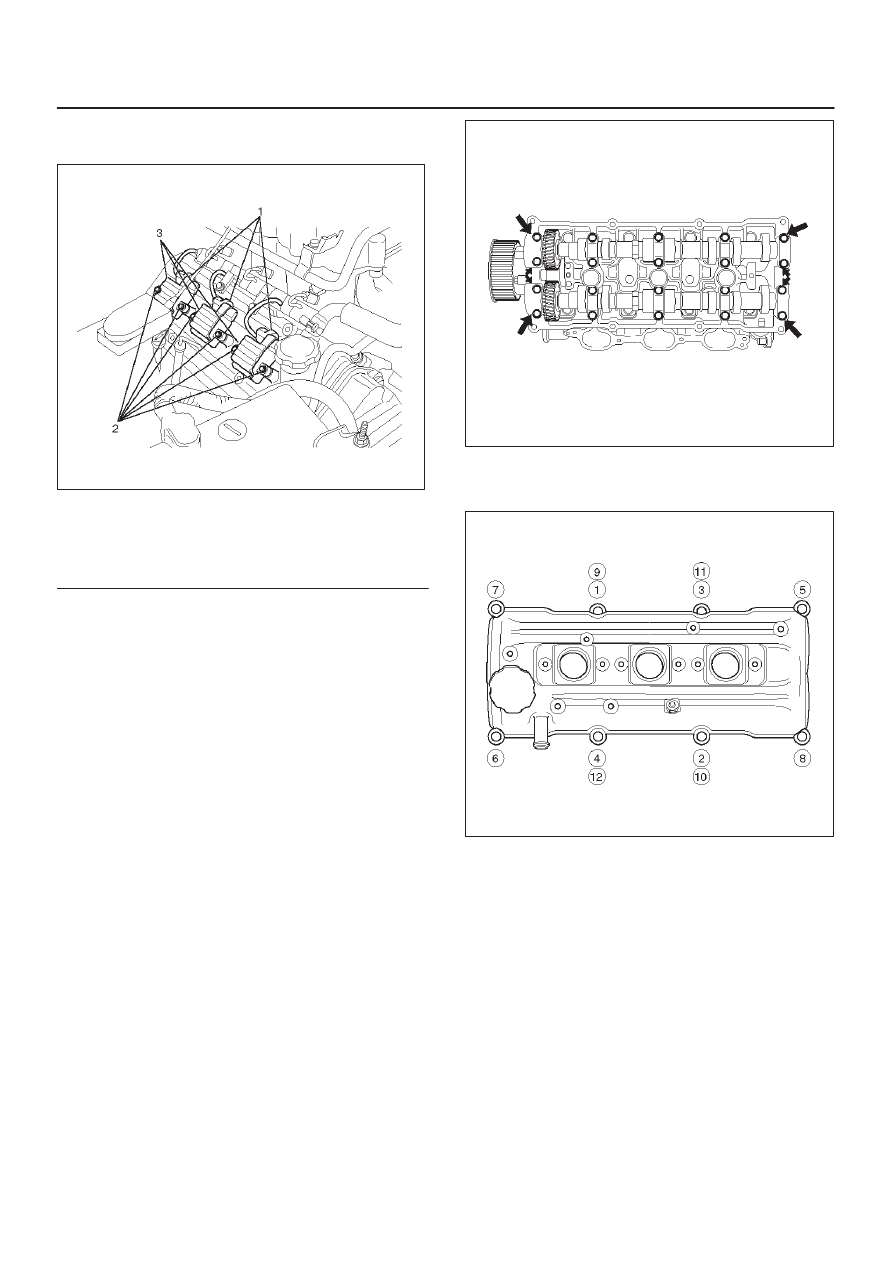

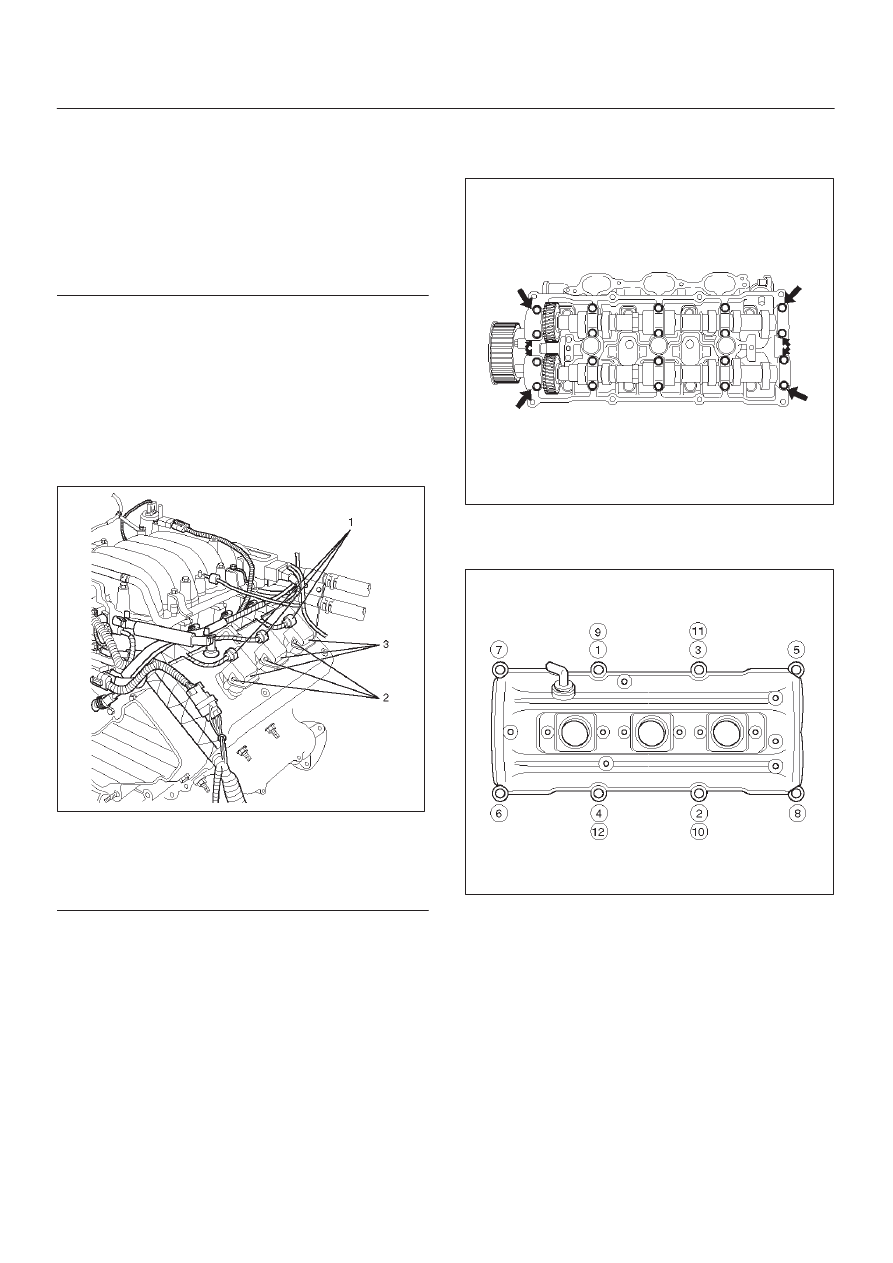

6A–20 ENGINE MECHANICAL (6VD1 3.2L) Legend (1) Crankshaft Pulley 12. Remove power steering oil pump pulley. crankshaft holder. 17. Remove timing belt covers from the right bank side to the left bank side in order. 18. Remove ignition coil assemblies for the left side bank. 060RW018 Legend (1) Ignition Coil Connectors 19. Remove cylinder head cover assembly. Installation 1. Install cylinder head cover. D Clean the sealing surface of cylinder head and D Apply sealant (TB-1207B or equivalent) of bead D The cylinder head cover must be installed within 5 014RW144 D Tighten bolts to the specified torque. Torque : 9 N·m (0.9 Kg·m/78 lb in) 010RW008 2. Install ignition coil assemblies and tighten the fixing bolts to the specified torque. Torque : 4 N·m (0.4 Kg·m/35 lb in) 3. Install timing belt covers from left bank side to right bank side, and tighten the fixing bolts and nut to the Torque : 19 N·m (1.9 Kg·m/14 lb ft) 4. Install crankshaft pulley and tighten the fixing bolt using 5–8840–0133–0 crankshaft holder to the Torque : 167 N·m (17.0 Kg·m/123 lb ft) |
