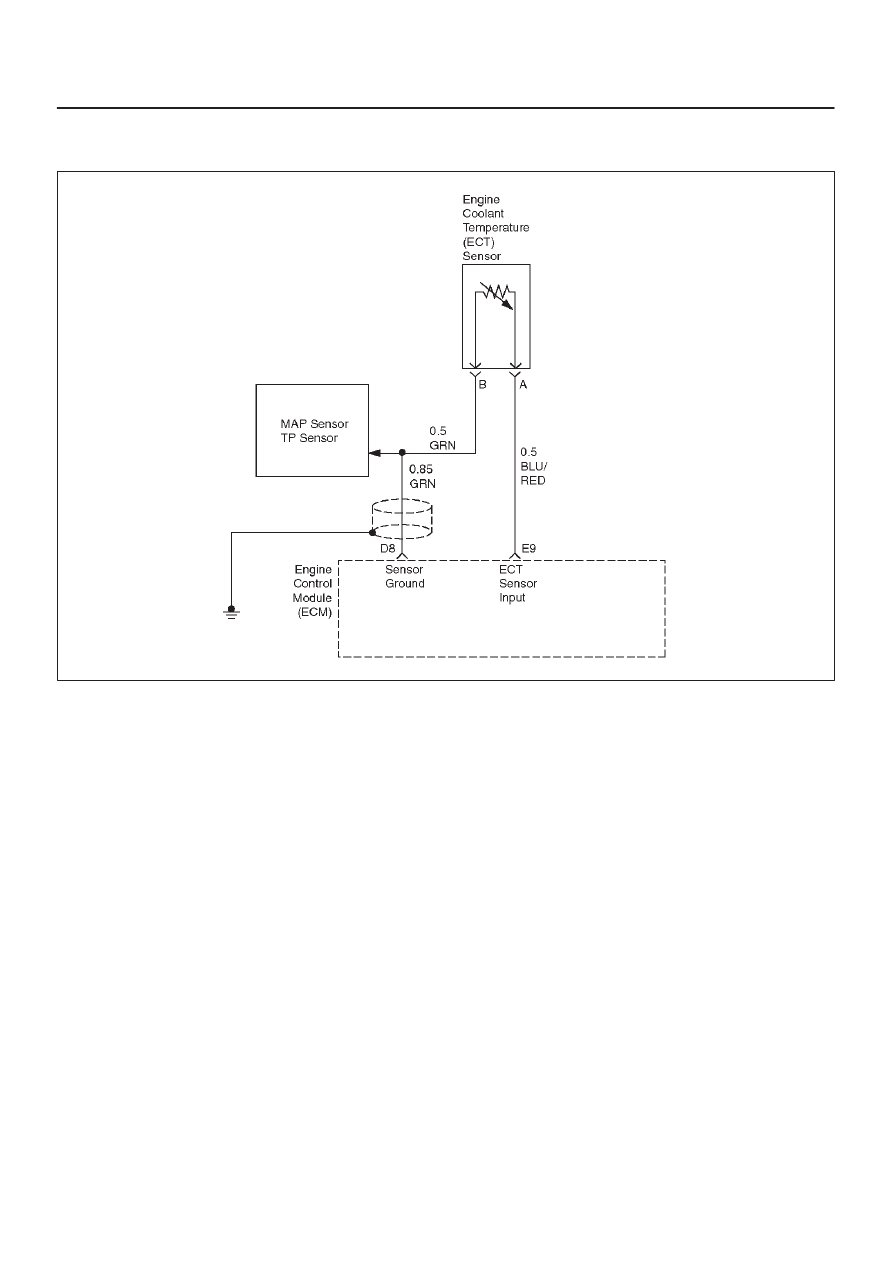

6E1–214 X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION Engine Coolant Temperature Sensor ° C ° F W Temperature vs. Resistance Values (approximate) 100 212 177 80 176 332 60 140 667 45 113 1188 35 95 1802 25 77 2796 15 59 4450 5 41 7280 –5 23 12300 –15 5 21450 –30 –22 52700 –40 –40 100700 DTC P1114 – ECT Sensor Circuit Intermittent Low Voltage
Step Action Value(s) Yes No 1 Was the ”On–Board Diagnostic (OBD) System Check” — Go to Step 2 Go to OBD System Check 2 Is DTC P0117 also set? — Go to DTC P0117 first Go to Step 3 3 1. Check the ECT signal circuit between the ECT sensor connector and the ECM for an intermittent 2. If a problem is found, repair as necessary. Was a problem found? — Verify repair Refer to Diagnostic Aids |
