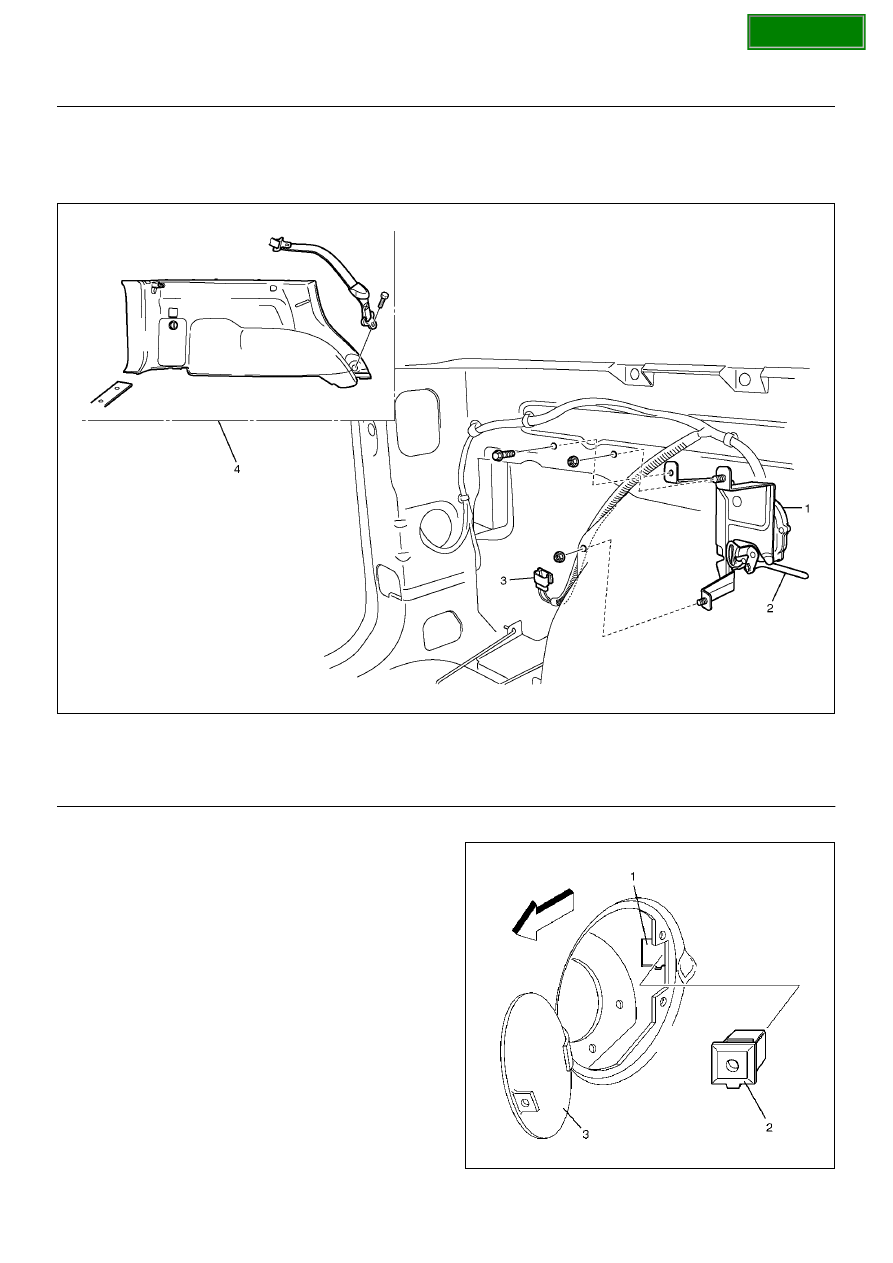

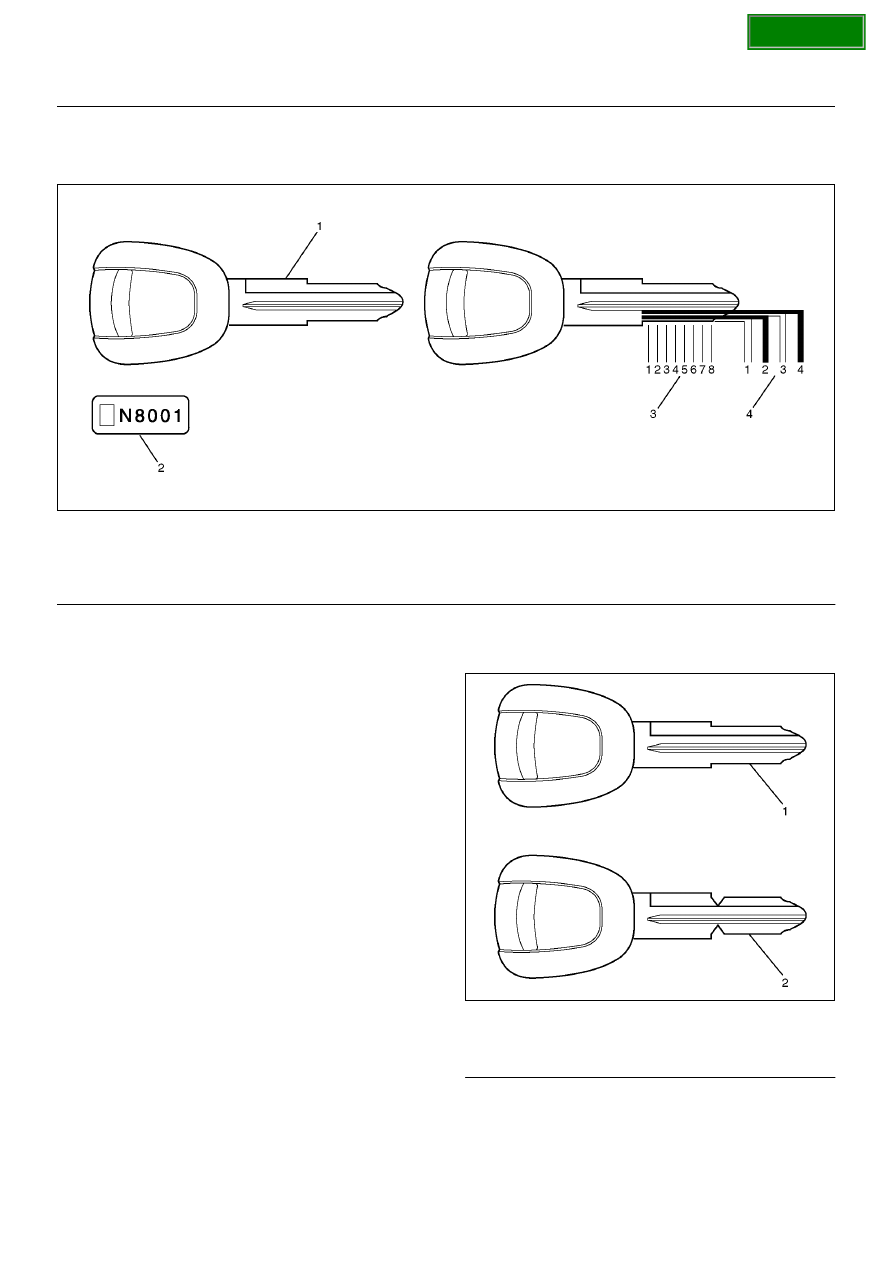

8H–12 SECURITY AND LOCKS Fuel Filler Door Lock Fuel Filler Door Lock and Associated Parts 686R100004 Legend EndOFCallout Removal 1. Unlock the fuel filler door. 2. Disconnect the battery ground cable. 3. Remove the lower quarter trim cover (Left side). • Refer to Interior Trim Panels in Exterior/Interior Trim section. 4. Remove the fuel filler door lock actuator assembly. • Remove the one fixing bolt and two fixing nuts. • Disconnect the body harness connector. 5. Remove the fuel filler door lock cap (2). • While pressing the two lock portions of the cap from inside of the vehicle, push the cap into the 686RW013 (1) Fuel Filler Door Lock Actuator Assembly (3) Body Harness Connector |
