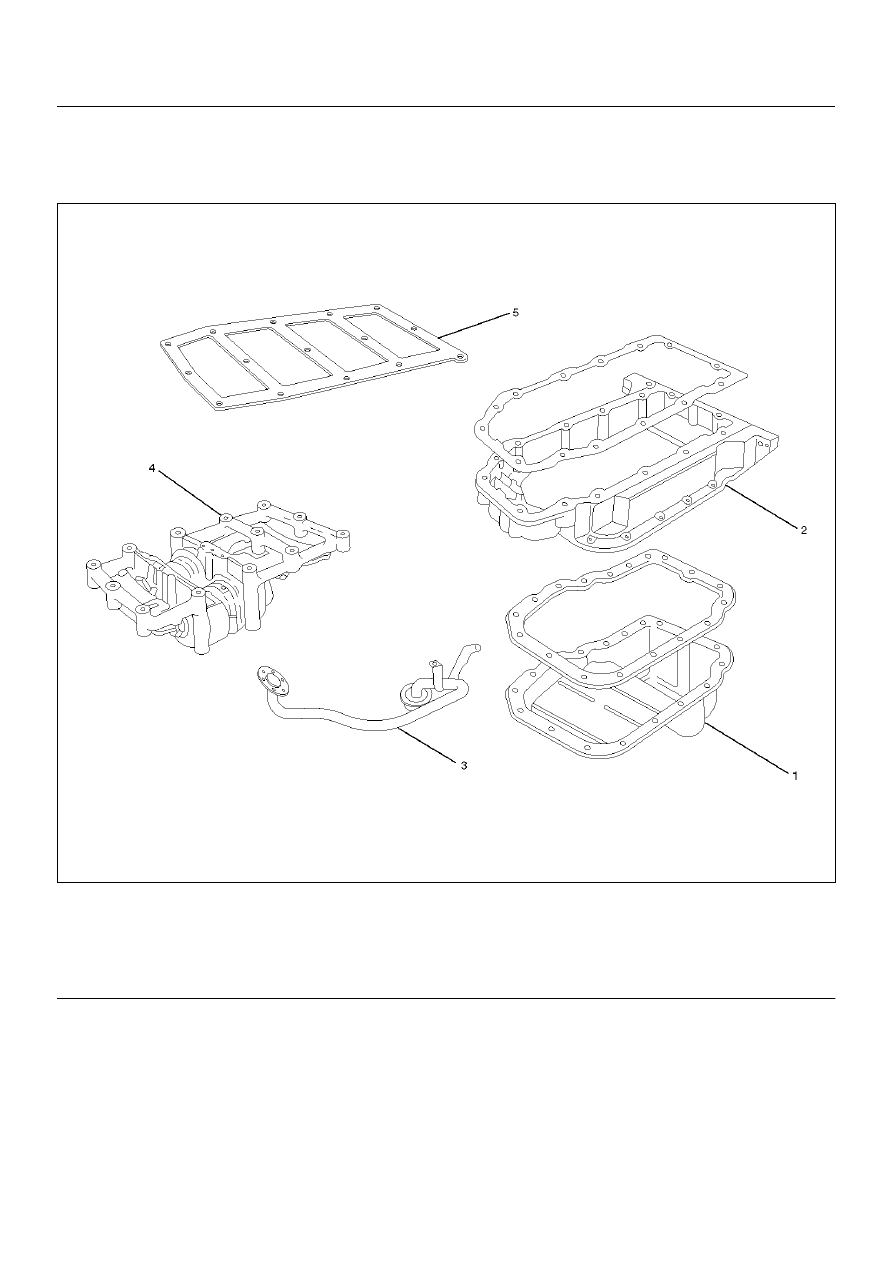

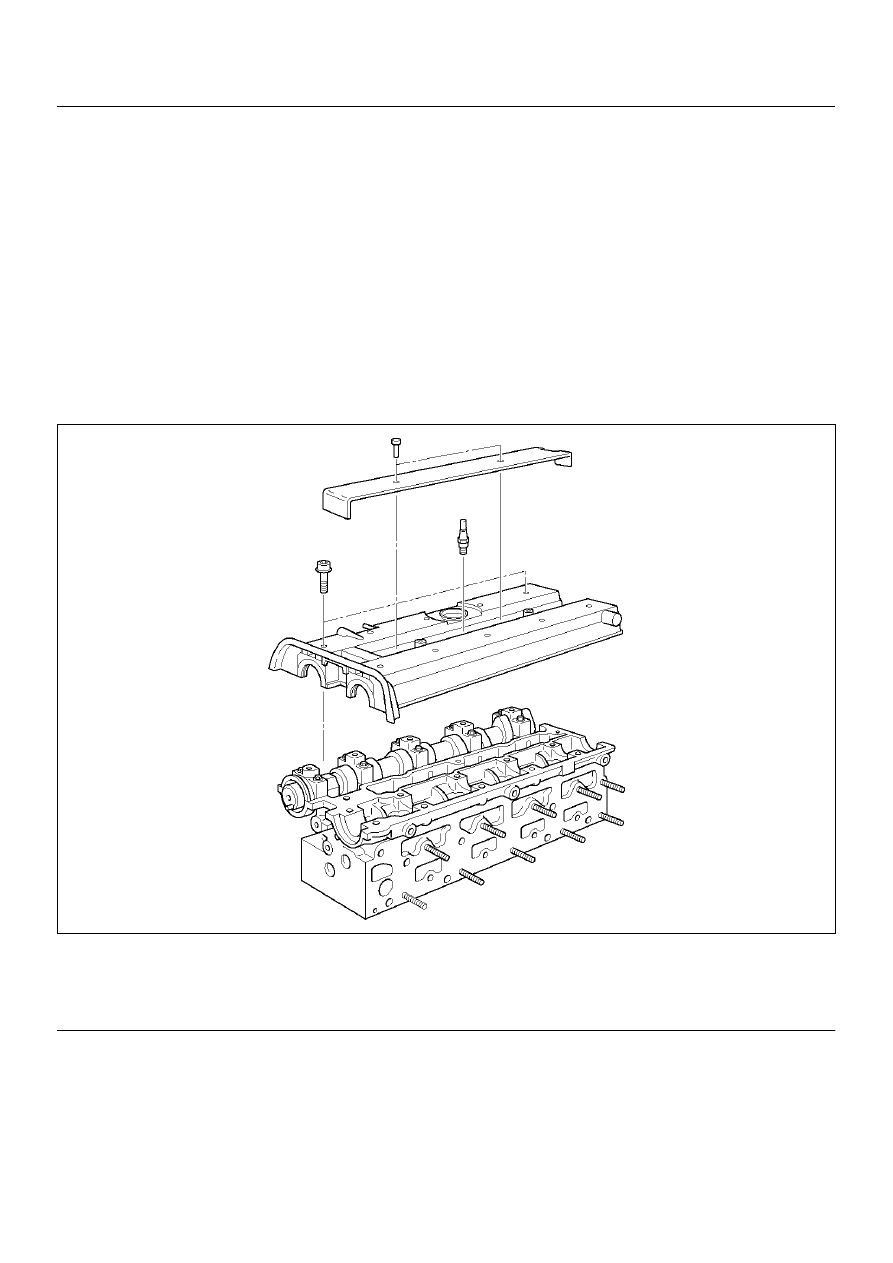

6A–64 ENGINE MECHANICAL (X22SE 2.2L) 9. Install oil pan support. 10. Install oil pan assembly. 1. Completely remove all residual sealant, lubricant and moisture from the sealing 2. Apply a correct width bead of sealant (TB– 1207C or its equivalent) to the contact surfaces 3. The oil pan must be installed within 5 minutes after sealant application. 4. Tighten the bolts and nuts to the specified torque in 2 steps: 1st step : 8 N·m (0.8Kg·m/5.8lbft) 2nd step : 30 °°°° 11. Install cylinder head gasket. 12. Install cylinder head assembly, refer to “Cylinder Head" in this manual. Cylinder Head Cover Cylinder Head Cover and Associated parts 010RW004 Legend EndOFCallout (1) Ignition Cable Cover (3) Cylinder Head Cover |
