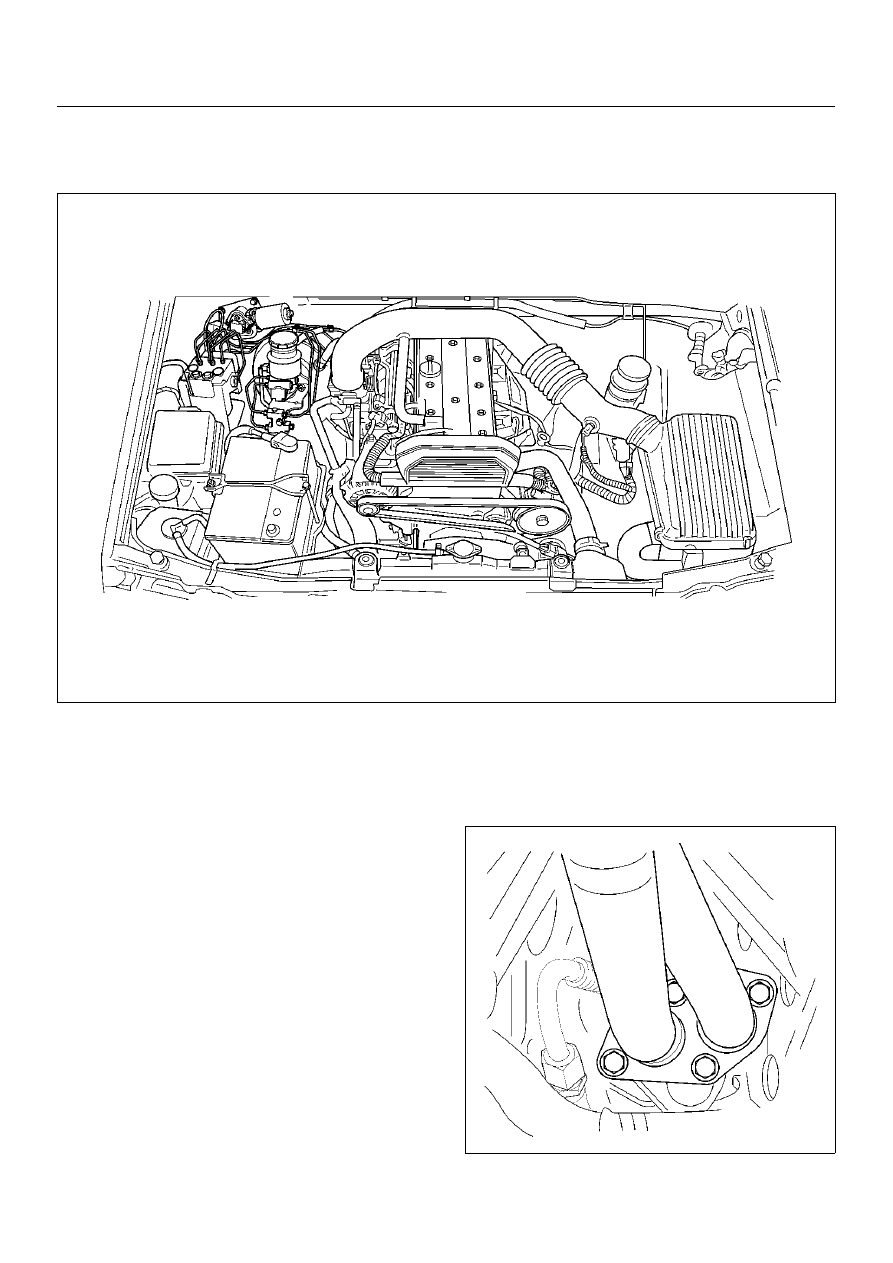

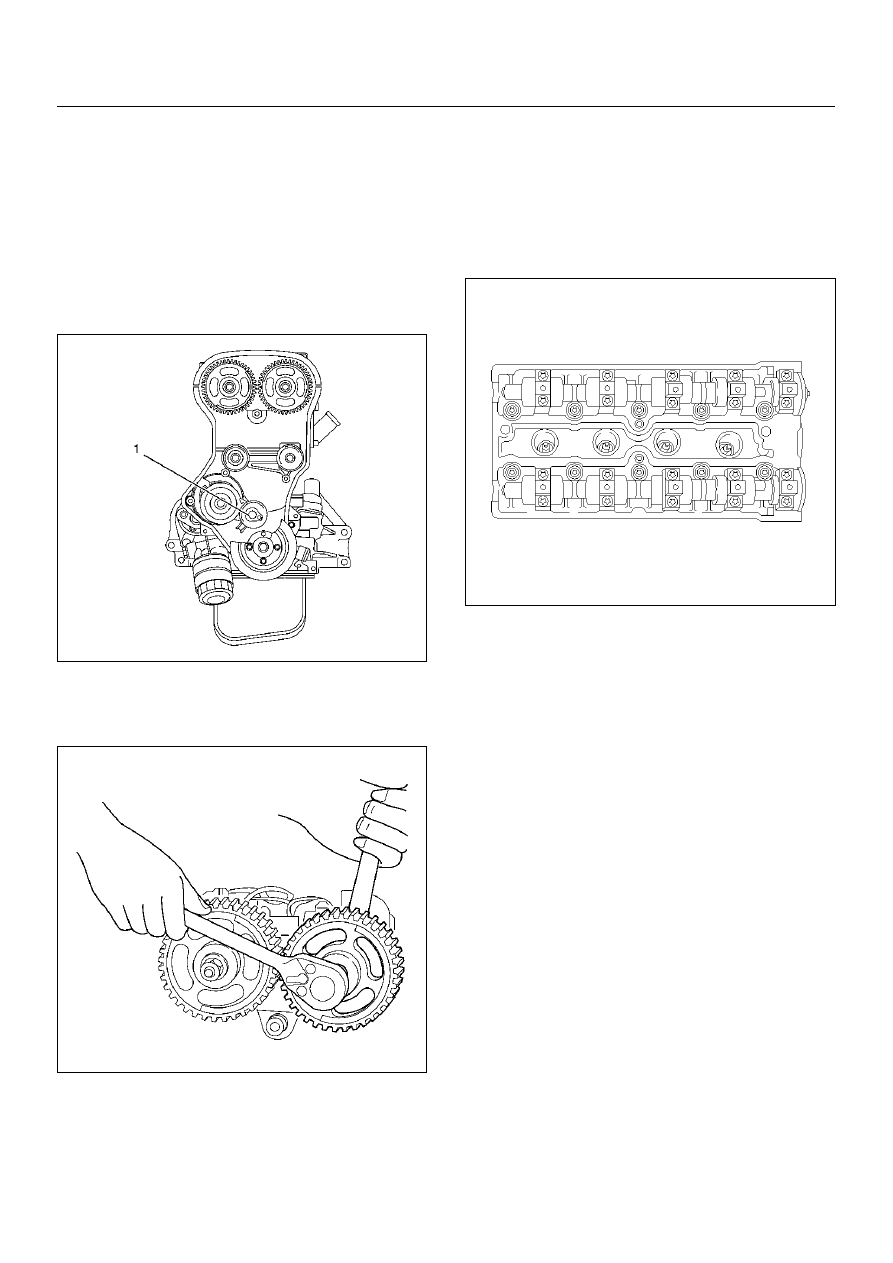

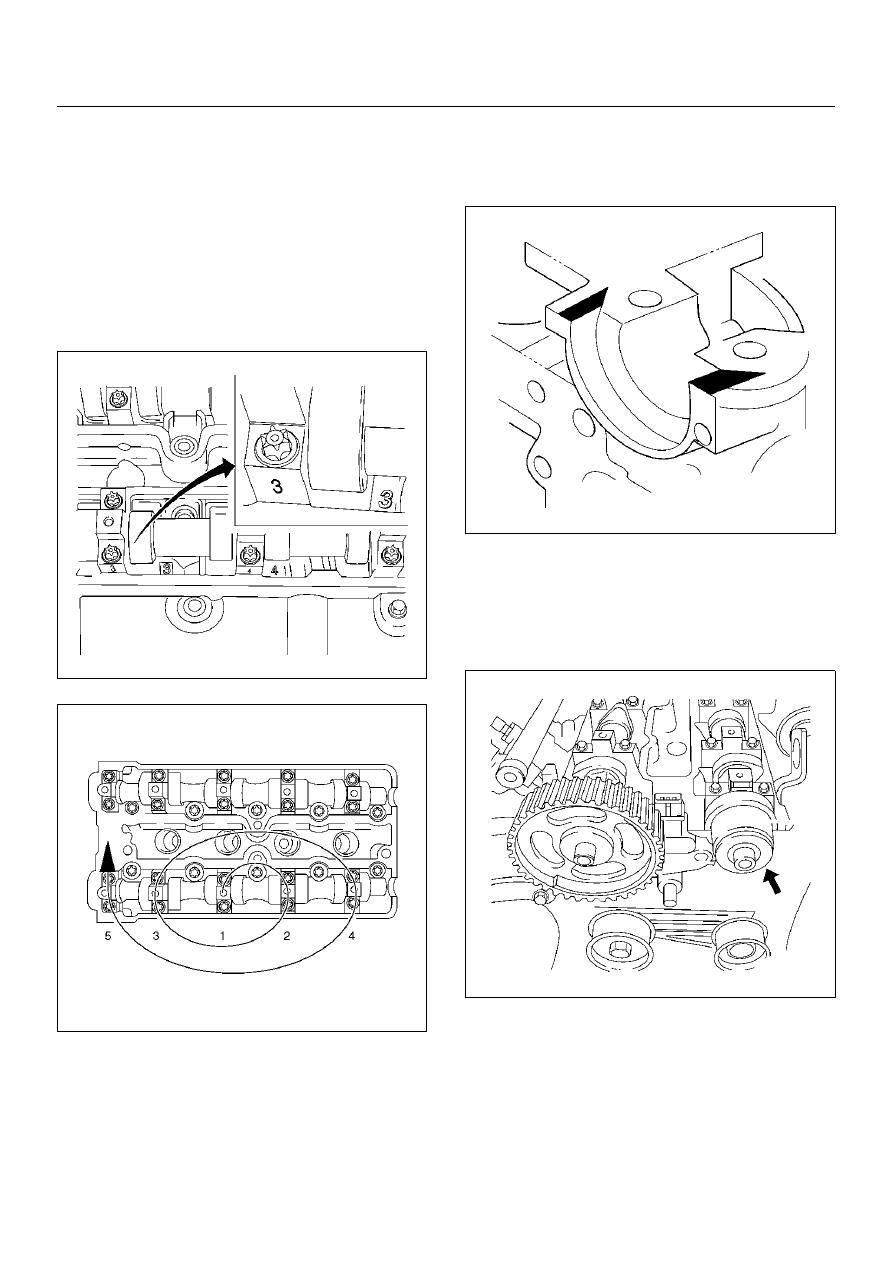

6A–36 ENGINE MECHANICAL (X22SE 2.2L) Camshaft Removal 1. Disconnect battery ground cable. 2. Remove cylinder head cover. Refer to removal procedure for Cylinder Head Cover 3. Remove timing belt tensioner and remove timing belt. 020RW010 4. Use adjustable wrench to hexagonal portion of camshaft, and remove fixing bolt from front end of 014RW074 5. Remove camshaft drive gear from intake and exhaust camshaft. 6. Remove twenty fixing bolts from intake and exhaust camshaft bracket on the cylinder head, then remove 011RW015 CAUTION: • Do not damage camshaft lobe and journal. • Do not damage hydraulic lash adjuster(HLA) and do not allow into foreign materials into cylinder 7. Remove oil seal from camshaft. |
