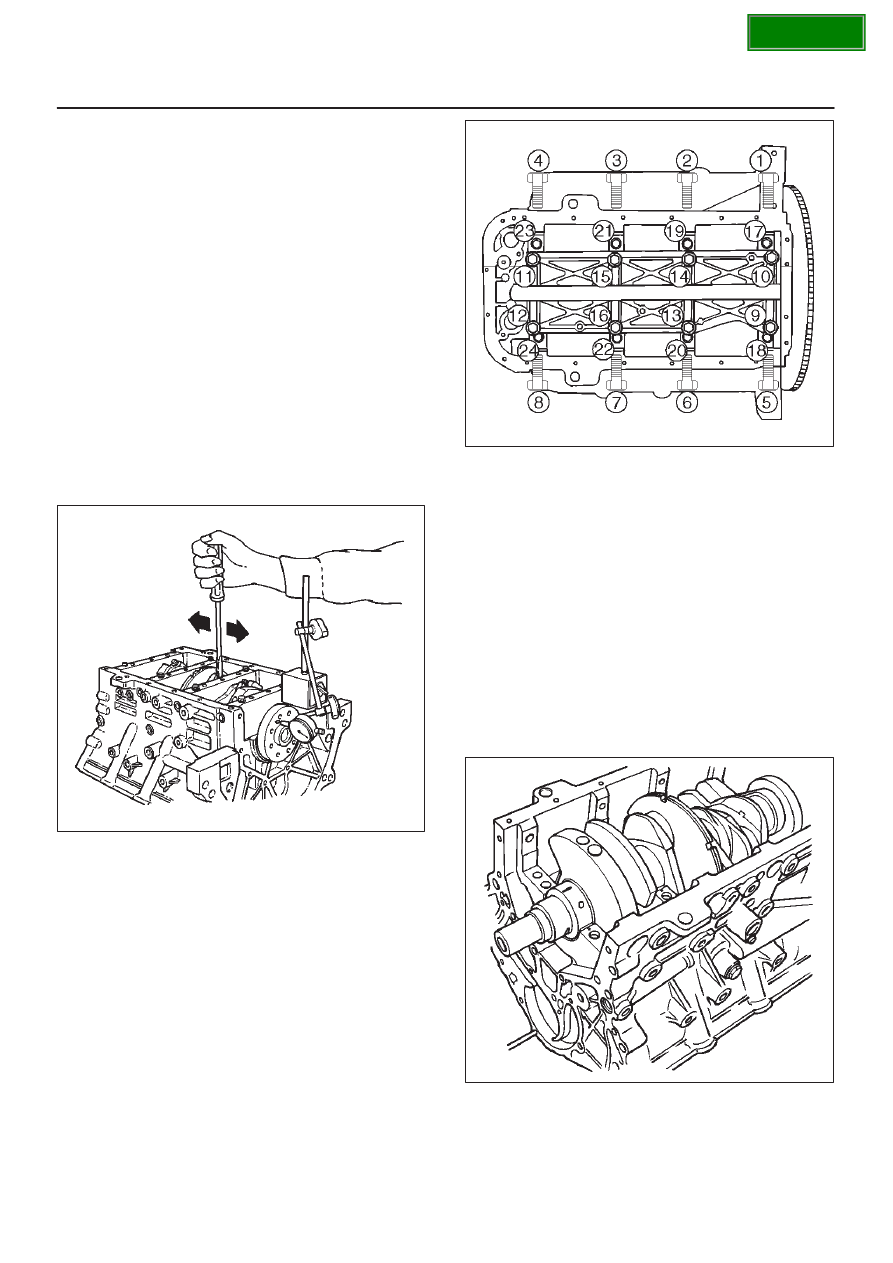

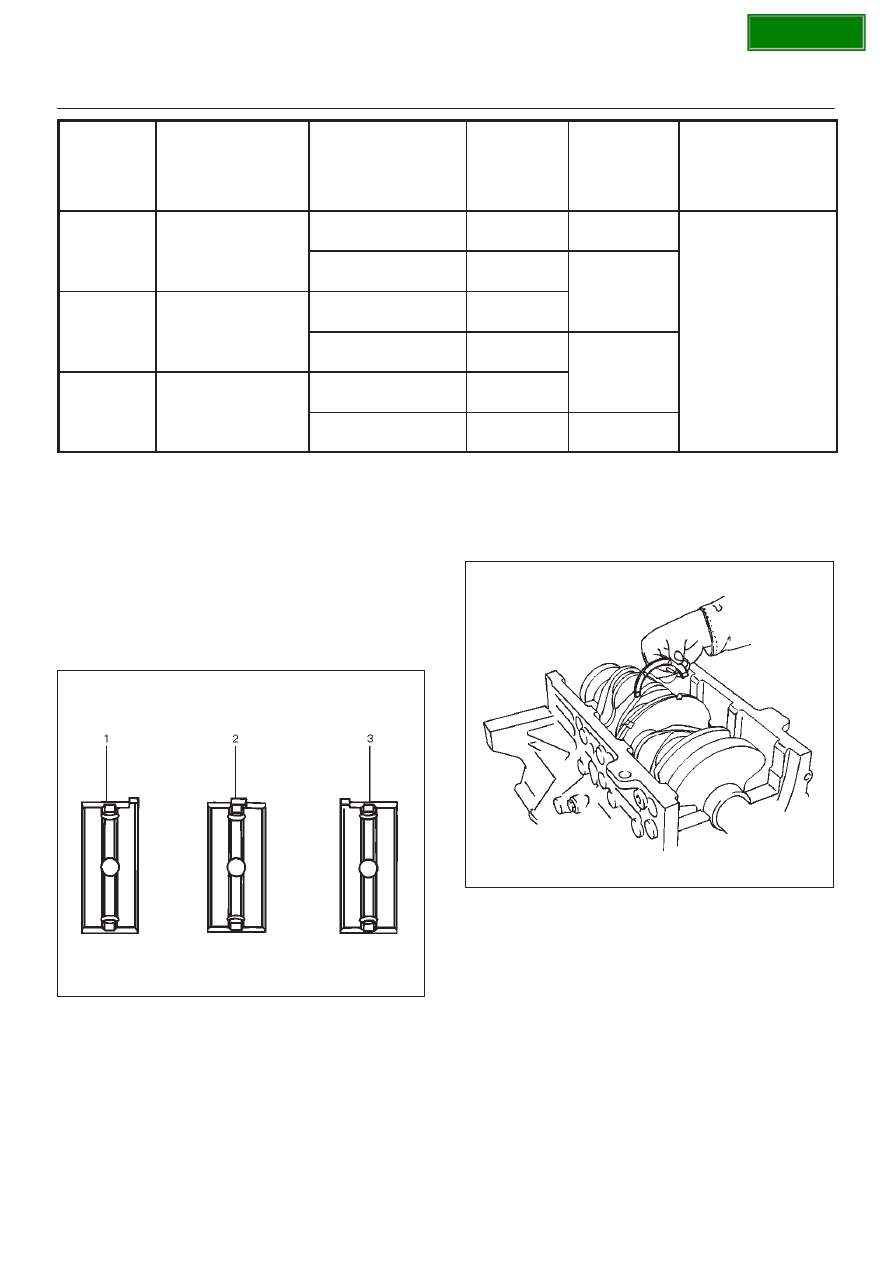

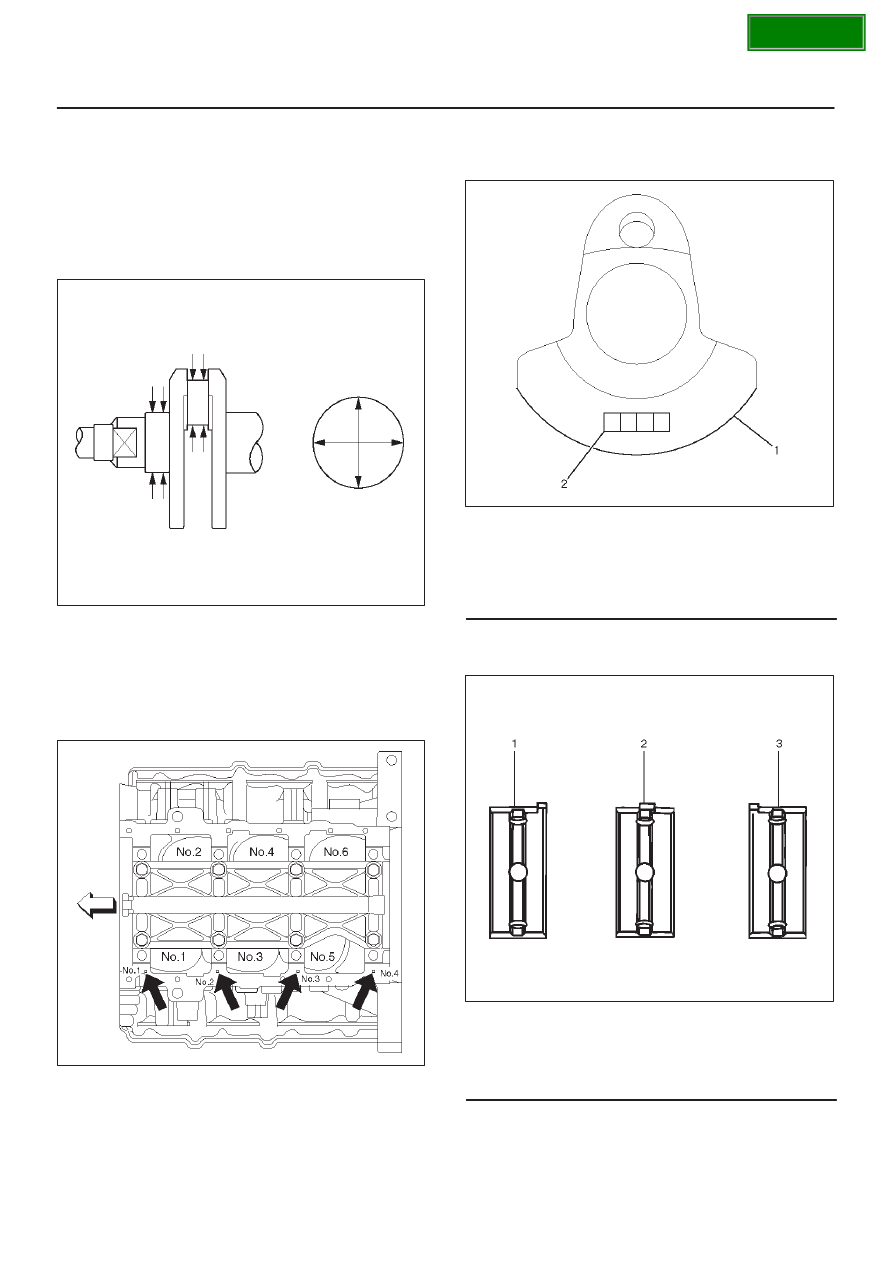

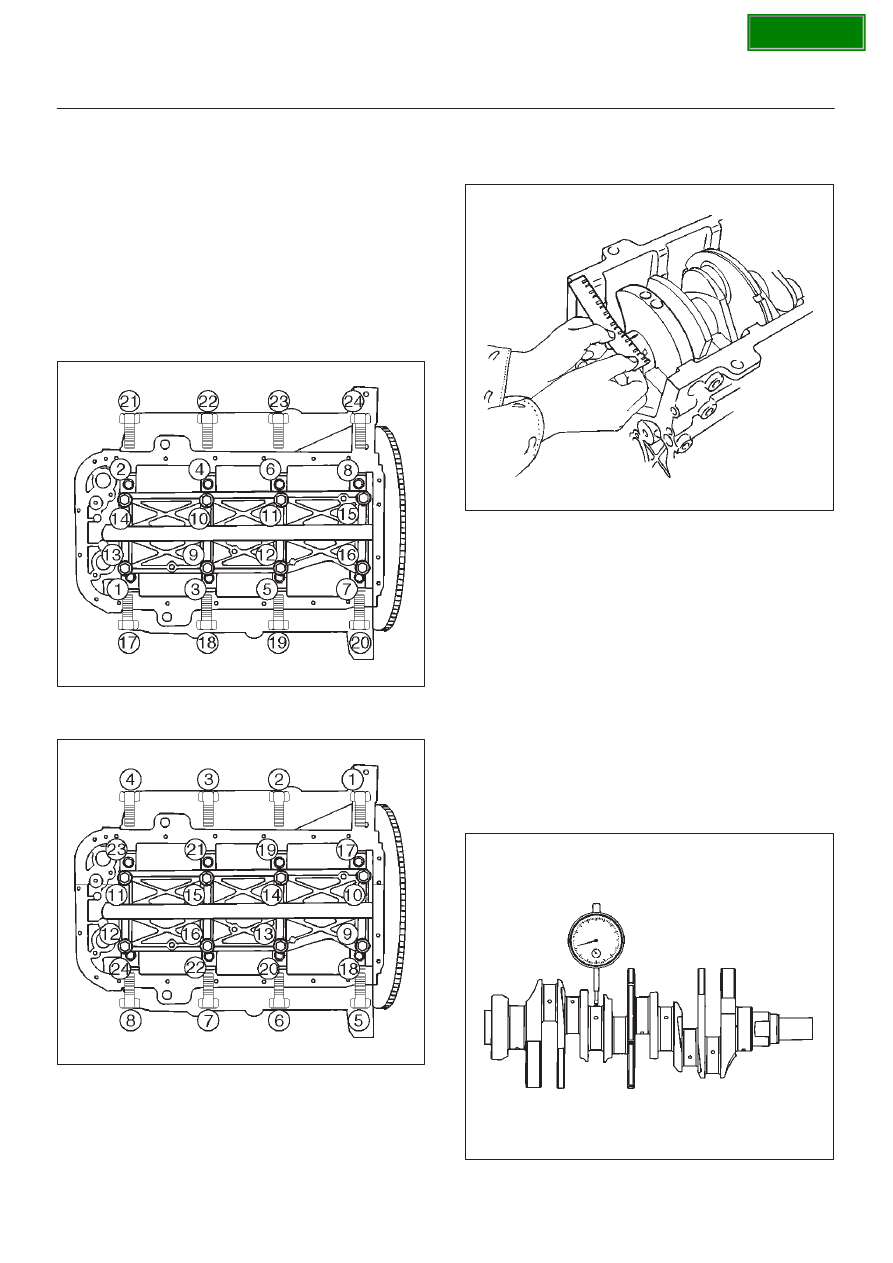

6A–73 ENGINE MECHANICAL (6VD1 3.2L) 7. Remove oil gallery (7). Refer to “Piston, Piston Ring and Connecting Rod” in 9. Remove flywheel (9). 10. Remove rear oil seal retainer (10). 11. Remove main bearing cap (11). 12. Remove crankshaft (12). Inspection and Repair 1. Crankshaft Set the dial indicator as shown in the illustration and Thrust Clearance (0.0024 in–0.0094 in) Limit : 0.30 mm (0.0118 in) 015RS003 Main Bearing Clearance 1. Remove the bearing caps and measure the oil clearance. 2. Remove the main bearing cap fixing bolts in the sequence shown in the illustration. 015RS004 3. Remove the crankshaft. Remove the main bearings. 4. Clean the upper and lower bearings as well as the crankshaft main journal. 5. Check the bearings for damage or excessive wear. The bearings must be replaced as a set if damage or 6. Set the upper bearings and the thrust washers to their original positions. 7. Set the lower bearings to the bearing cap original position. 8. Apply plastigage to the crankshaft journal unit as shown in the illustration. NOTE: Do not set the plastigage on the oil hole. 015RS005 9. Install main bearing caps, oil gallery and crank case bolts in the order shown, and tighten each bolt to the |
