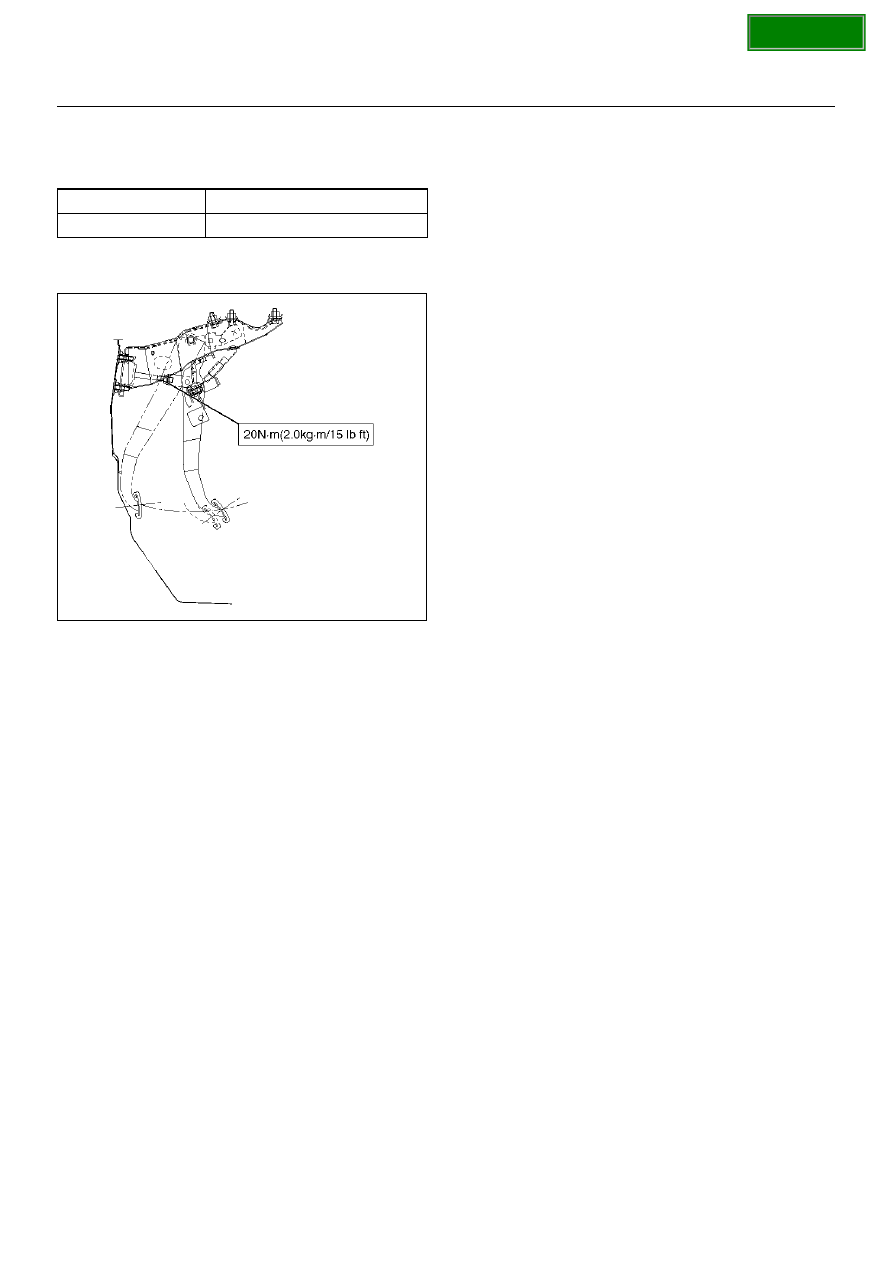

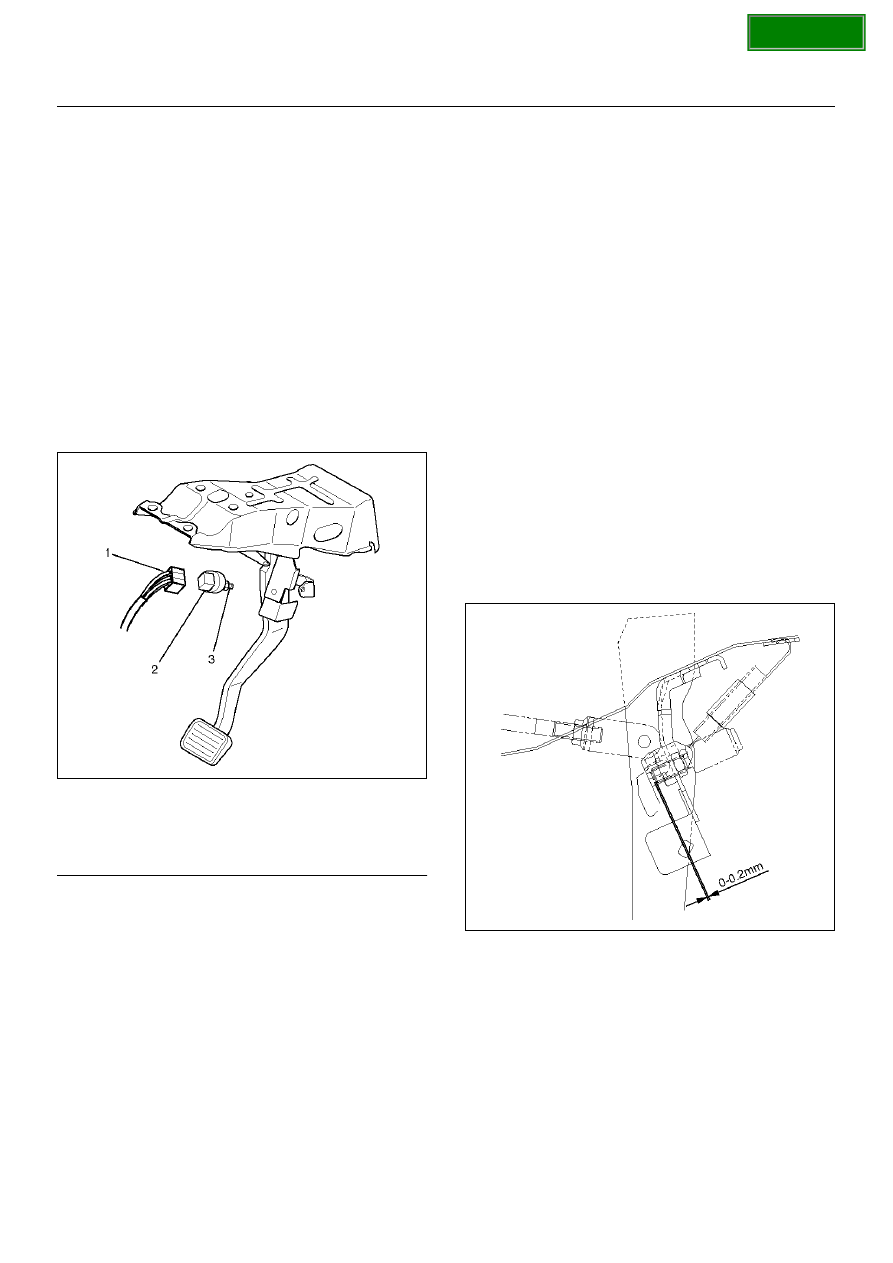

5C–18 POWER-ASSISTED BRAKE SYSTEM 5. Adjust pedal free travel. Refer to Brake Pedal Adjustment in this section. 6. Tighten the steering column fixing bolt (9) (dash panel) to the specified torque. Torque: 20 N·m (2.0 kg·m/14 lbft) 7. Tighten the steering column fixing nut (9) (Cross Beam) to the specified torque. Torque: 17 N·m (1.7 kg·m/12 lbft) 8. Apply grease to the entire circumference of the Push rod pin (7). 9. Install push rod pin (7). 10. Install snap pin (4). 11. Connect the anti-theft control module connector. Refer to Body and Accessories section . 12. Connect the stop light switch connector (3). 13. Install driver knee bolster (10) and lower cover (8). 14. Install the engine hood opening lever. 15. Connect the yellow 3 way SRS connector located under the steering column. 16. Connect the battery “–" terminal cable. Stoplight Switch Parts Location 310RW024 Legend EndOFCallout Removal 1. Disconnect connector (1) 2. Remove lock nut (3). 3. Remove switch (2). Installation 1. Adjust the stop light switch to the specified clearance (between switch housing and brake Clearance : 0-0.2 mm (0-0.008 in) NOTE: Do not attempt to force the push rod into 310RW022 2. Connect connector (1). 3. Install lock nut (3). (1) Connector |
