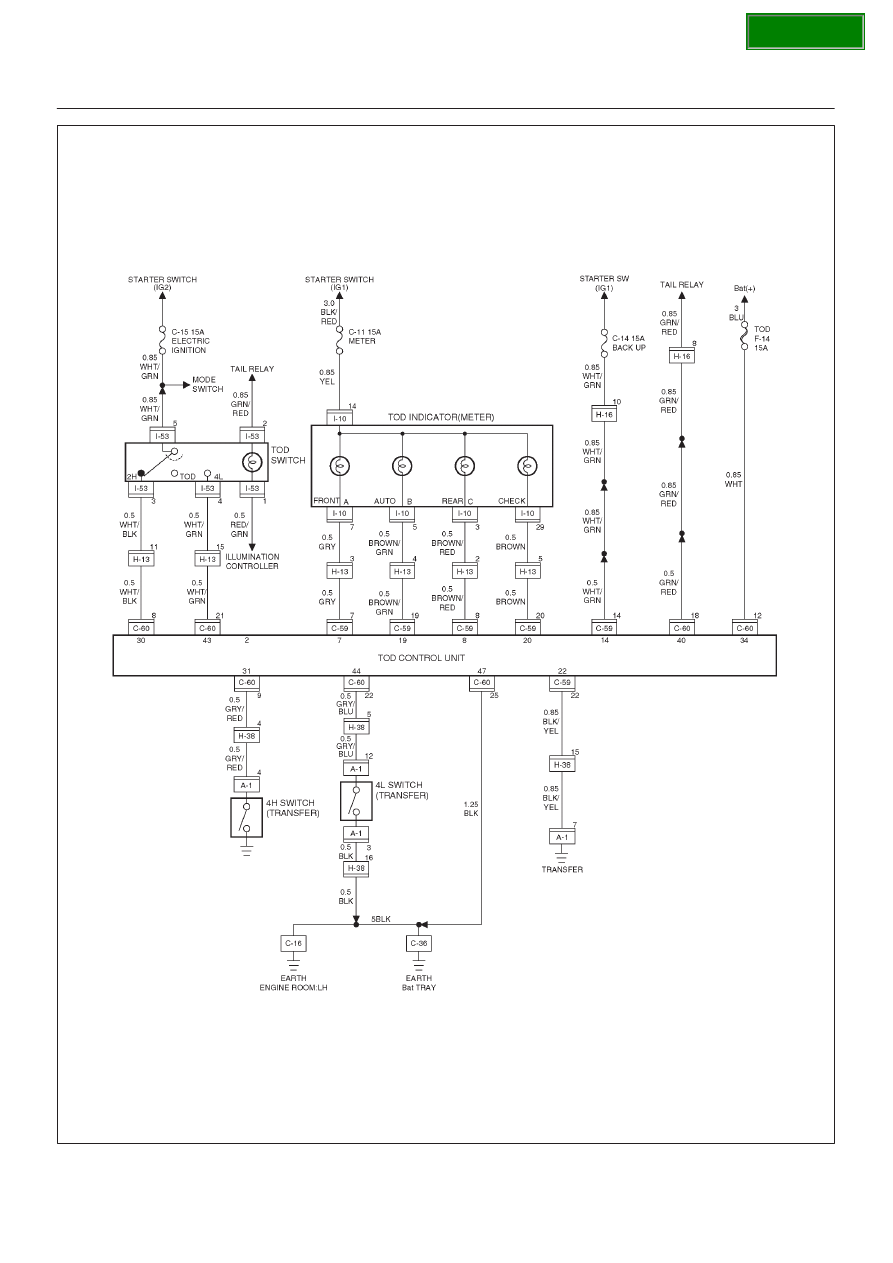

DRIVE LINE CONTROL SYSTEM (TOD) 4B2–72 Step Action Yes No 1 1. Turn on the starter switch. When the TOD switch is selected to the TOD position, is 0V Go to Step 2 Repair the TOD switch circuit. Go to Step 4 2 When the TOD switch is selected to the 2H position, is 12 V Go to Step 3 Repair the TOD switch circuit. Go to Step 4 3 When the TOD switch is selected to the 4L position, is 0V The phenomenon is not reproduced. Refer to “Trouble intermittently observed”. Repair the TOD switch circuit. Go to Step 4 4 Check that all the parts are mounted. Is this step complete? Verify the repair. Return to Step 4 Table: Indicator Voltage Unit: V TOD switch Terminals measured switch mode Front 7 and 47 AUTO 19 and 47 Rear 8 and 47 2H 8.0 ∼ 14.5 8.0 ∼ 14.5 0 TOD 0 0 0 4L 0 8.5 ∼ 14.5 0 |
