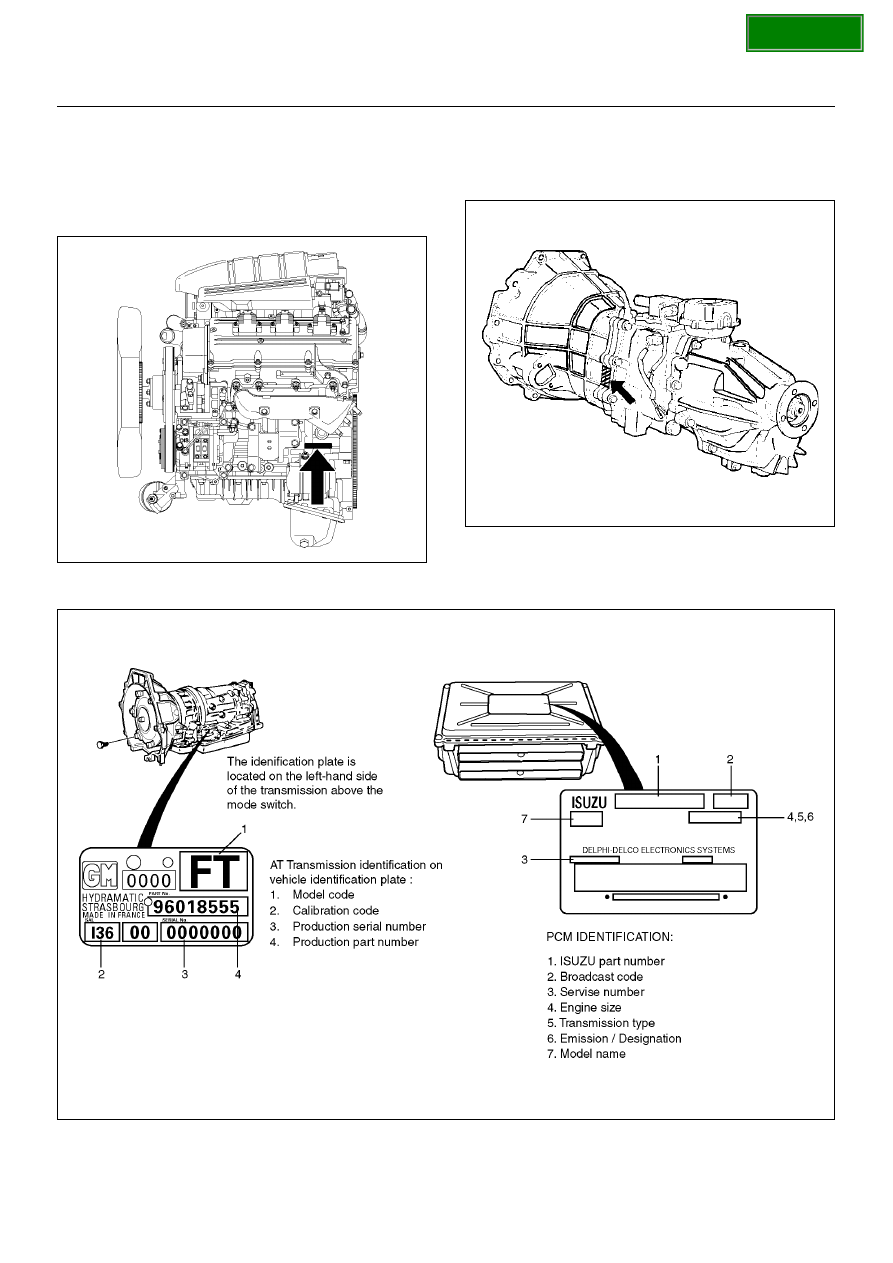

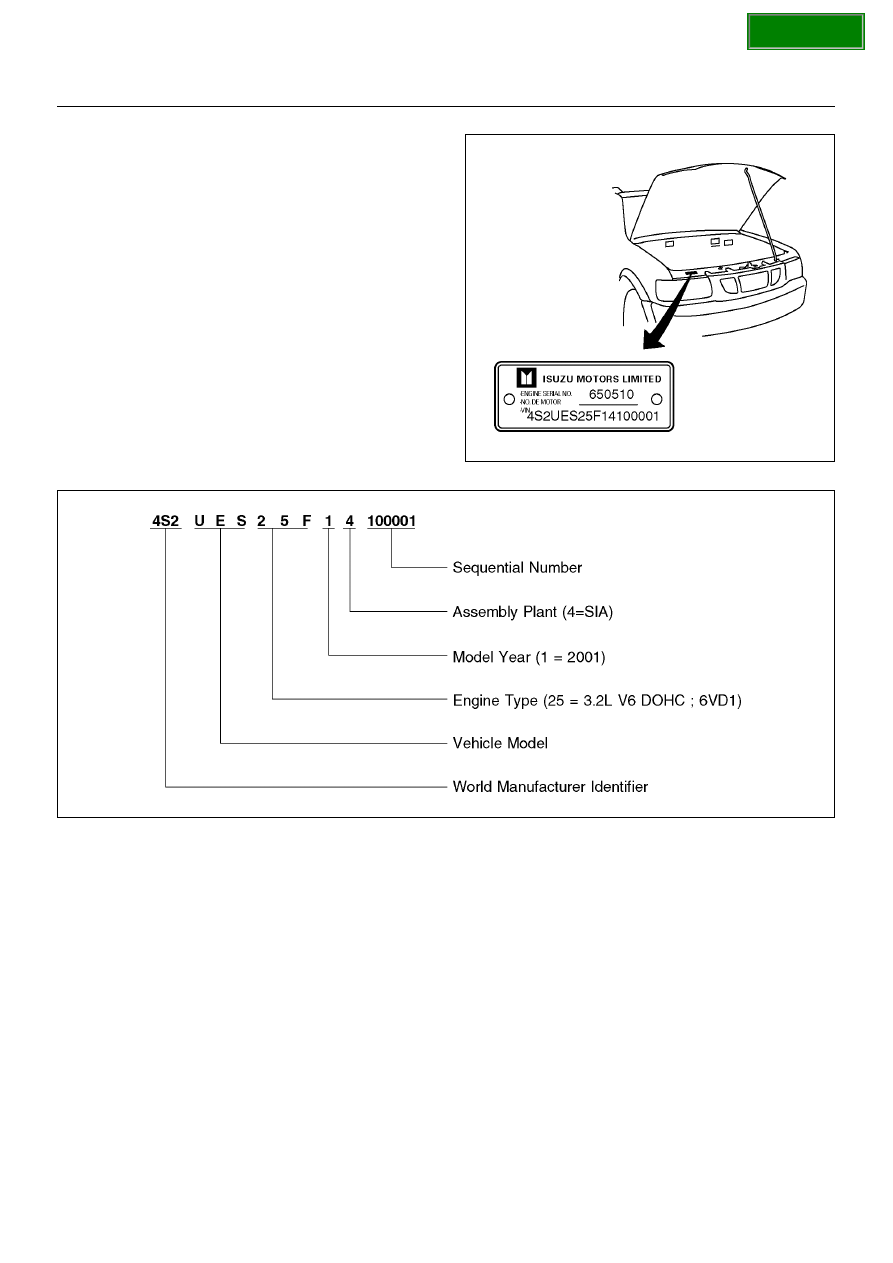

GENERAL INFORMATION 0A–1 FRONTERA GENERAL INFORMATION CONTENTS General Information ....................................... 0A - 1 GENERAL INFORMATION CONTENTS General Repair Instruction. . . . . . . . . . . . . . . 0A–1 Illustration Arrows . . . . . . . . . . . . . . . . . . . . . 0A–2 Identification. . . . . . . . . . . . . . . . . . . . . . . . . . 0A–3 Lifting Instructions . . . . . . . . . . . . . . . . . . . . . 0A–5 Standard Bolts Torque Specifications . . . . . . 0A–7 Abbreviations Charts . . . . . . . . . . . . . . . . . . . 0A–8 Service Parts Identification Plate . . . . . . . . . . 0A–10 General Repair Instruction 1. If a floor jack is used, the following precautions are recommended. 2. Before performing service operations, disconnect ground cable from the battery to reduce the chance 3. Use a cover on body, seats and floor to protect them against damage and contamination. 4. Brake fluid and anti–freeze solution must be handled with reasonable care, as they can cause 5. The use of proper tools and recommended essential and available tools, where specified, is important for 6. Use genuine Isuzu parts. 7. Used cotter pins, plastic clips, gaskets, O–rings, oil seals, lock washers and self–locking nuts should be 8. To facilitate proper and smooth reassembly operation, keep disassembled parts neatly in 9. Clean the parts before inspection or reassembly. Also clean oil ports, etc. using compressed air, and 10. Lubricate rotating and sliding faces of the parts with oil or grease before installation. 11. When necessary, use a sealer on gaskets to prevent leakage. 12. Carefully observe all specifications for bolt and nut torques. 13. When removing or replacing parts that require refrigerant to be discharged from the air 14. When a service operation is completed, make a final check to be sure the service has been done 15. SUPPLEMENTAL RESTRAINT SYSTEM The vehicle is equipped with a Supplemental 1. “AIR BAG" warning light on the instrument cluster. 2. A Code “J" for fifth digit of Vehicle Identification Number. |
