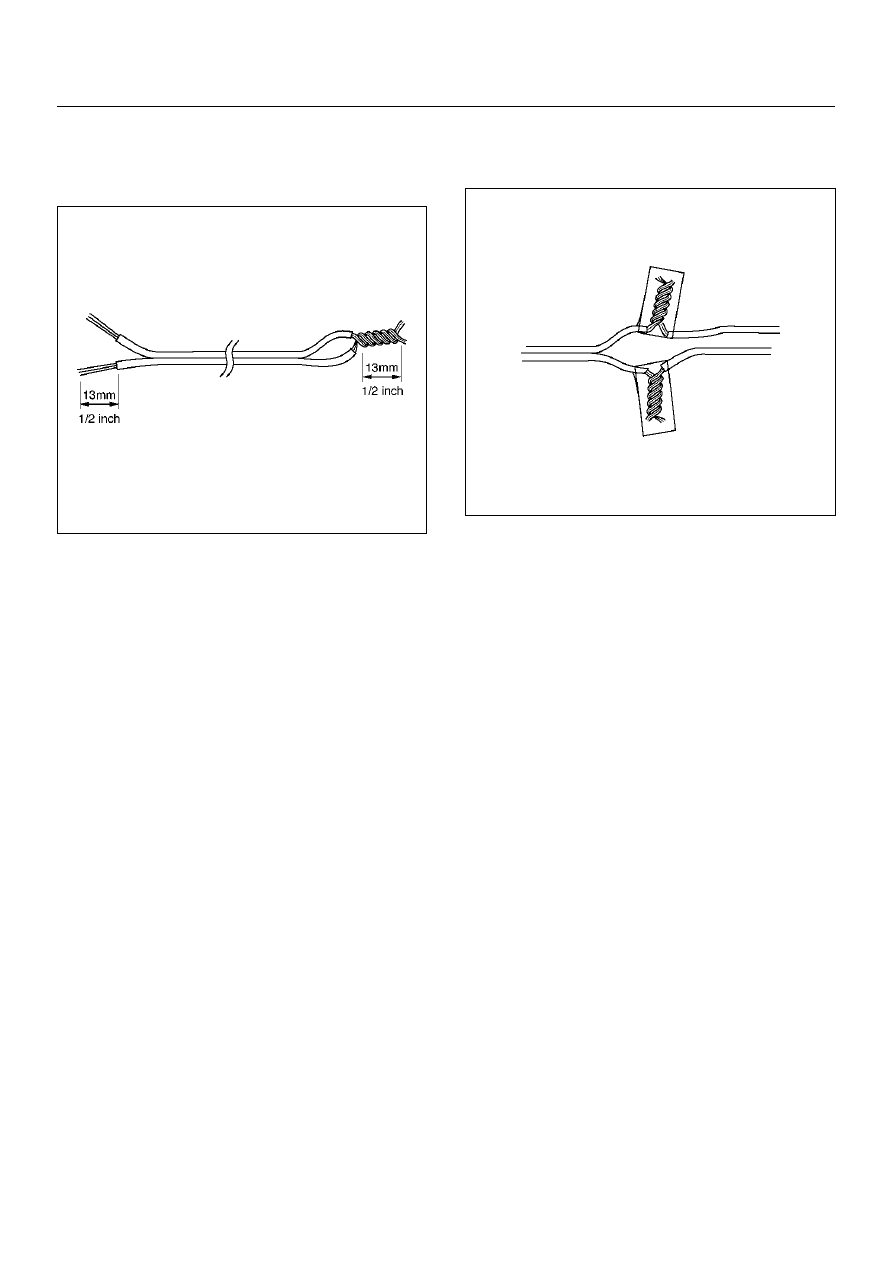

SUPPLEMENTAL RESTRAINT SYSTEM 9J–23 4. Short the wires by twisting together one end from each. Deployment wires shall remain shorted and F09RX001 WARNING: FAILURE TO FOLLOW PROCEDURES IN 22. Twist together one connector wire lead to one deployment wire. The connection should be 5. Bend twisted connection made in the previous step flat and wrap tightly with electrical tape to insulate F09HV009 23. Twist together, bend and tape the remaining connector wire lead to the remaining deployment 24. Connect the deployment harness to the driver air bag assembly, yellow 2–pin connector at the base of WARNING: DEPLOYMENT WIRES SHALL REMAIN 25. Disconnect passenger air bag assembly, yellow 2– pin connector located behind glove box assembly. 26. Cut the passenger air bag assembly harness connector from the vehicle leaving at least 16 cm 27. Strip 13 mm (1/2 inch) of insulation from yellow– green and yellow–red wire lead of the connector. 28. Cut two 900 cm (30 feet) deployment wires from 0.8 mm 2 (18 gauge) or thicker multi–strand wire. These wires will be used to fabricate the passenger 29. Strip 13 mm (1/2 inch) of insulation from both ends of the wires cut in the previous step. |
