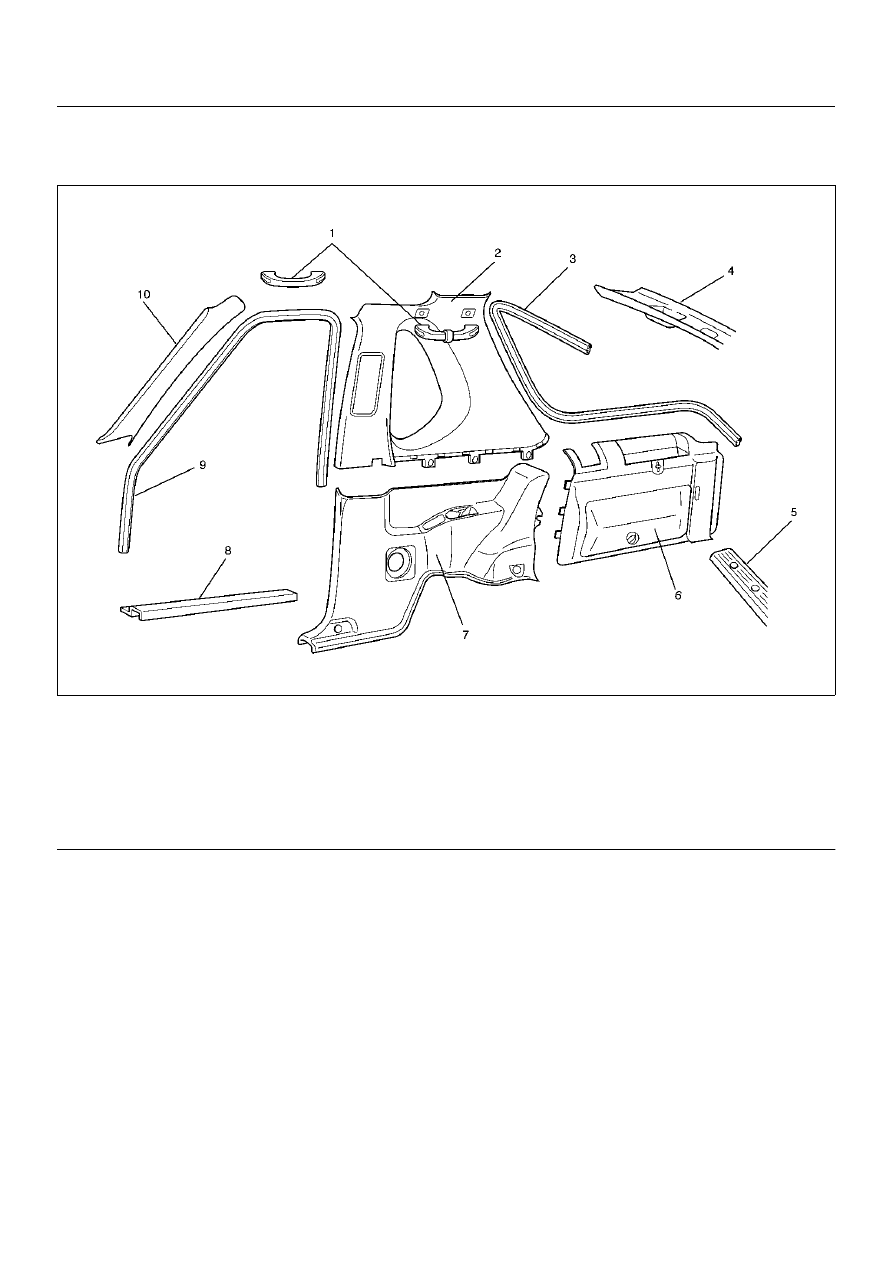

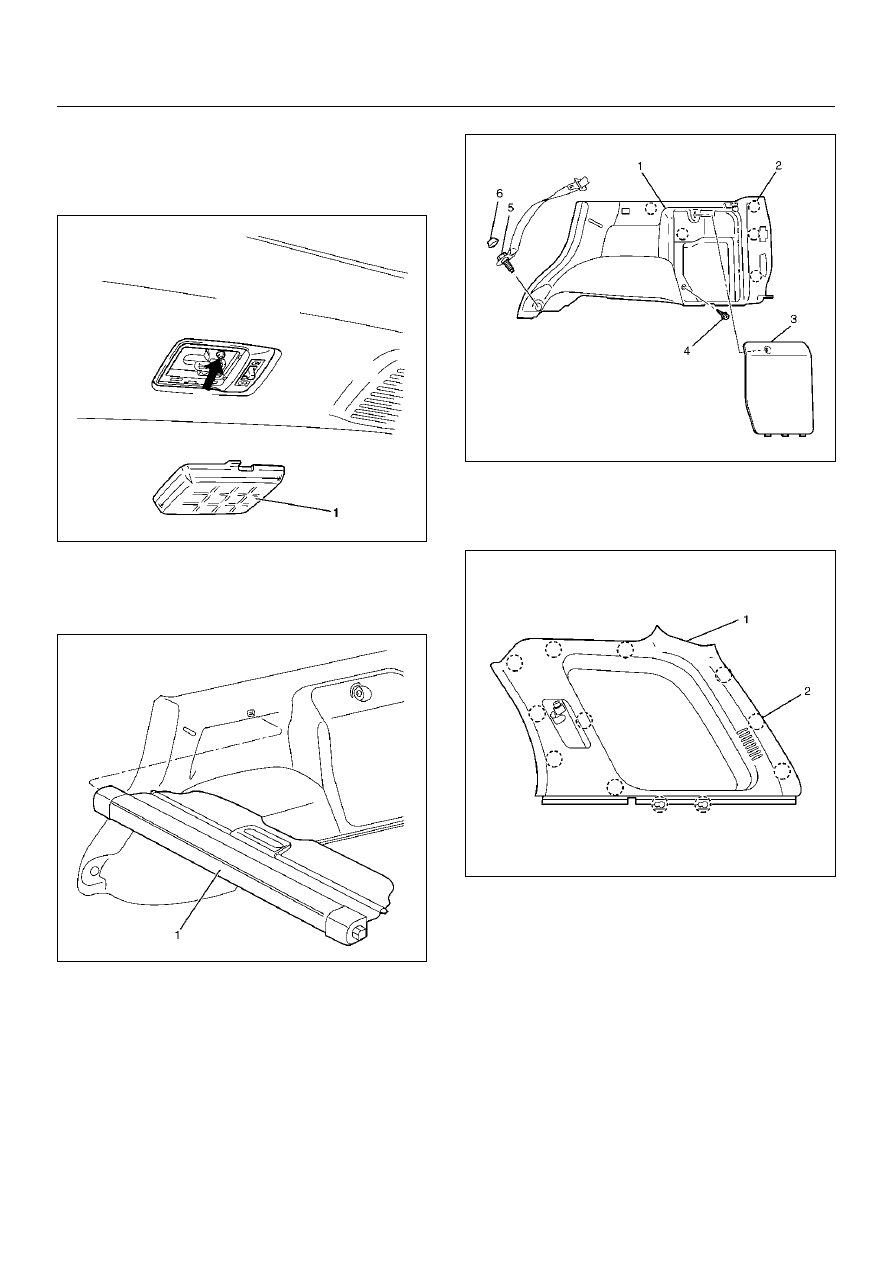

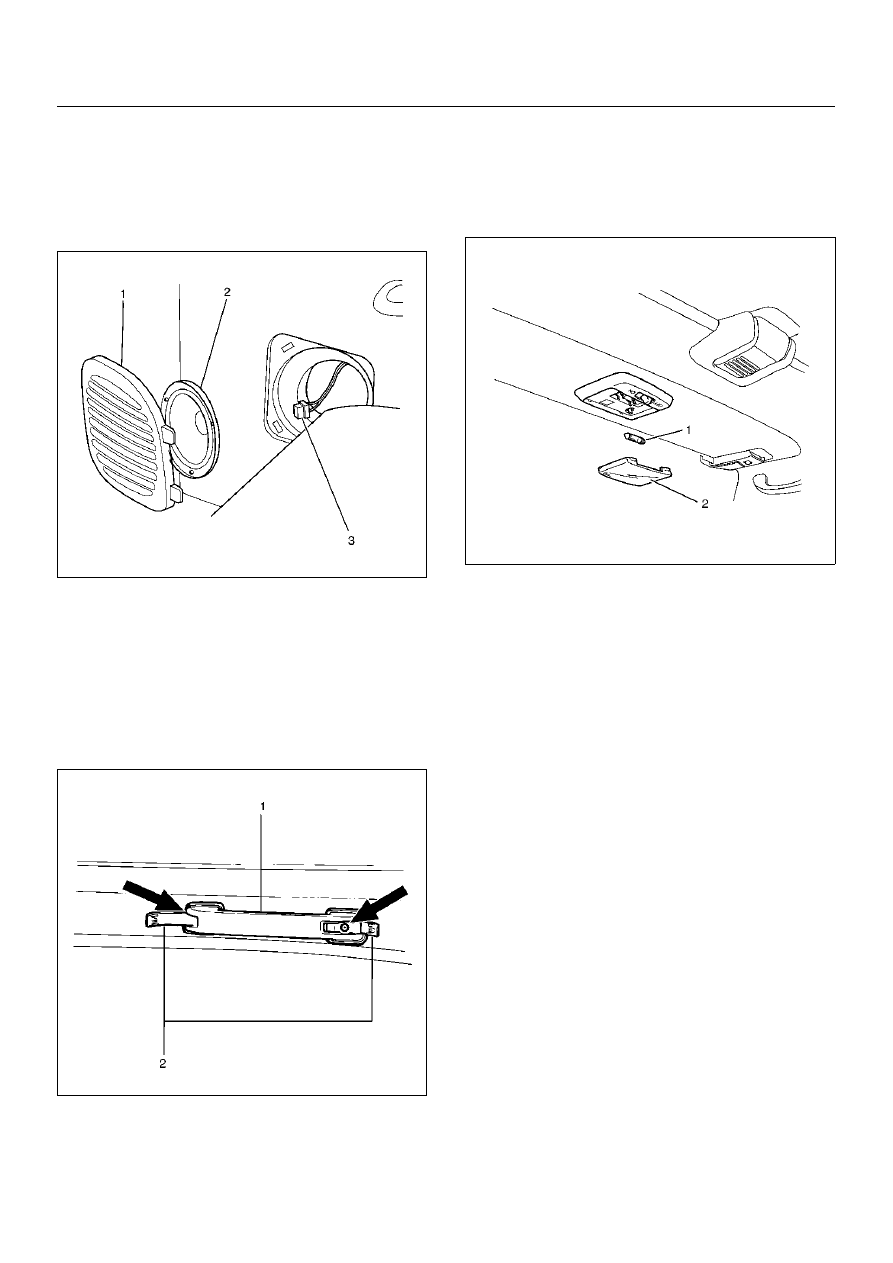

EXTERIOR/INTERIOR TRIM 8J–11 10. Remove the luggage room light. • Remove the luggage room light lens (1) and the fixing screw. • Disconnect the luggage room light connector. 825RW100 11. Remove the rear roof trim cover. • Pry the trim cover clips free from the body panel. 12. Remove the tonneau cover assembly (1). 643RY00002 13. Remove the lower anchor bolt cap (6) and the lower anchor bolt (5) from the rear seat belt. 14. Remove the lower quarter trim cover (1). • Remove the tool box lid (3) and fixing screw (4). Pry the five (RH) or six (LH) clip positions (2) free • Disconnect the accessory socket connector (LH side). 643RY00003 15. Remove the upper quarter trim cover (1). • Pry the twelve clip positions (2) free from the body panel. 643RY00004 |
