WIRING SYSTEM

All the Doors Do Not Not Lock and Unlock by Door Lock Key SW

Step

Action

Value(s)

Yes

No

1

Is B–8 grounded securely?

—

Go to Step 2

Ground it

securely

2

Disconnect the door lock key SW connector D–6.

Is there continuity between harness side connector
D–6 terminal 2 and the ground?

—

Go to Step 4

Go to Step 3

3

Repair an open circuit between connector D–6 terminal
2 and the ground B–8.

Is the action complete?

—

Verify repair

—

4

Is there continuity between the switch side connector
terminal 1 and 2 when the switch is turned to lock
position, and terminal 2 and 3 when the switch is turned
to unlock position?

—

Go to Step 5

Repair or

replace the

switch

5

Repair an open circuit between the door lock key SW
and FRT power window & door lock SW–RH.

Is the action complete?

—

Verify repair

—

8D–136

WIRING SYSTEM

Power Window

General Description

The power window system consists of power window
switches, power window motors and power window relay.
With the starter switch in “ON” position, the battery
voltage is supplied through power window relay to the
power window switches Selection of up or down switch
changes over the motor rotating direction to open or close
the window.
When the lock switch on the switch panel on the driver
side is pressed, the power window switch is in open state.
As a result, the power source to the other switches are cut
off, and the power window motors do not run.

8D–137

WIRING SYSTEM

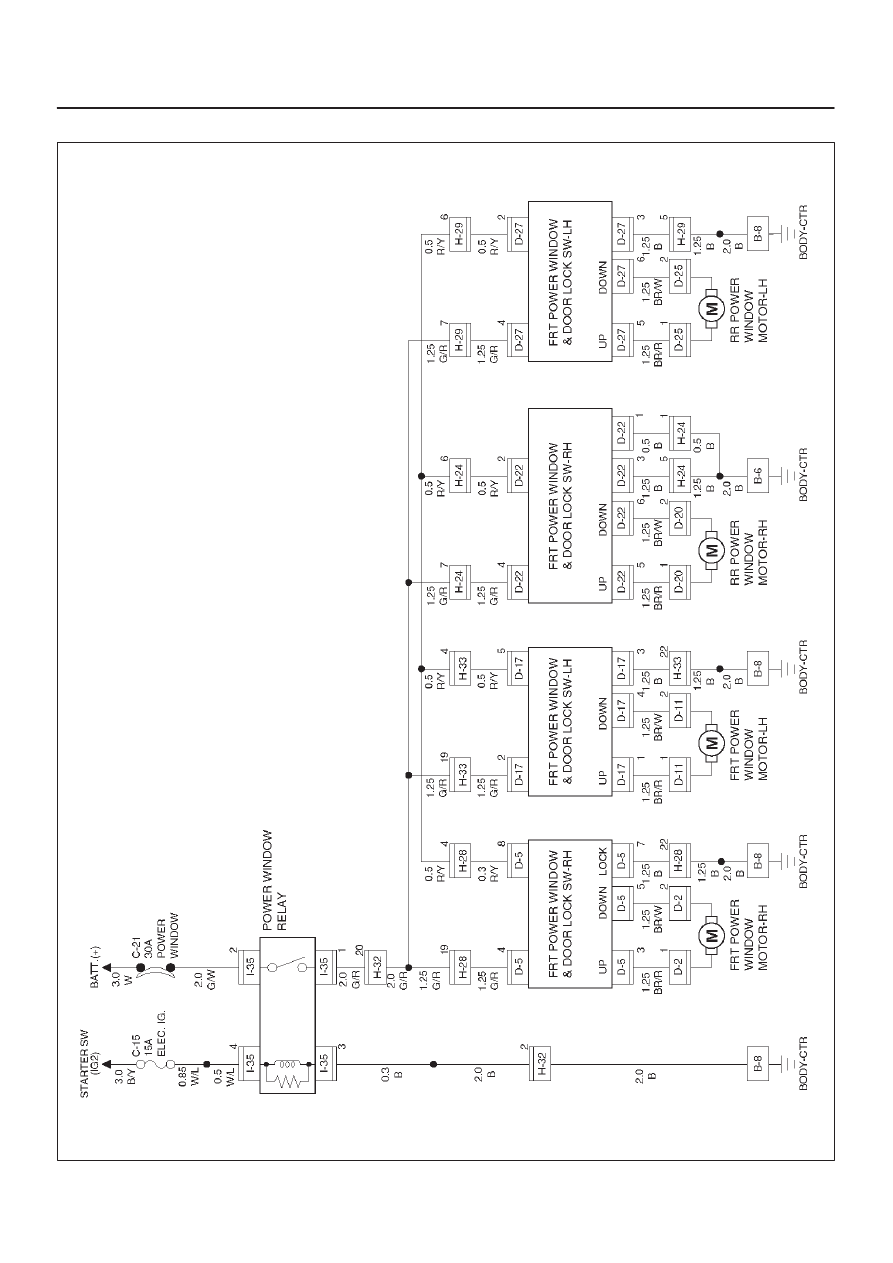

Circuit Diagram–1

D08RX213

8D–138

WIRING SYSTEM

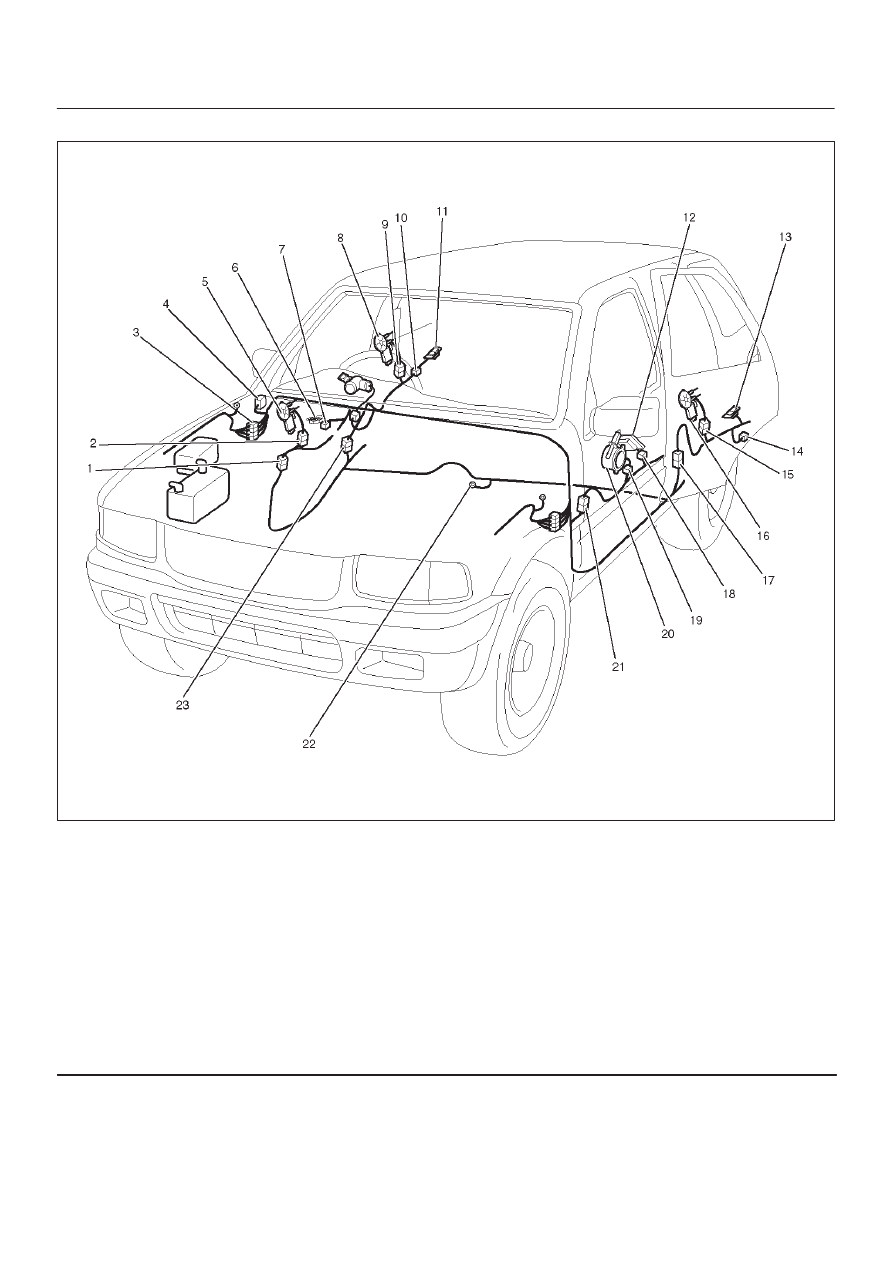

Parts Location

D08RWD14

Legend

(1) H–28
(2) D–2
(3) H–32
(4) Relay & Fuse Box
(5) Power Window Motor (FRT RH)
(6) Power Window SW (FRT RH)
(7) D–5
(8) Power Window Motor (RR RH)
(9) D–20

(10) D–22

(11) Power Window SW (RR RH)

(12) Power Window SW (FRT LH)
(13) Power Window SW (RR LH)
(14) D–27
(15) D–25
(16) Power Window Motor (RR LH)
(17) H–29
(18) D–17
(19) D–11
(20) Power Window Motor (FRT LH)
(21) H–33
(22) B–8
(23) H–24
