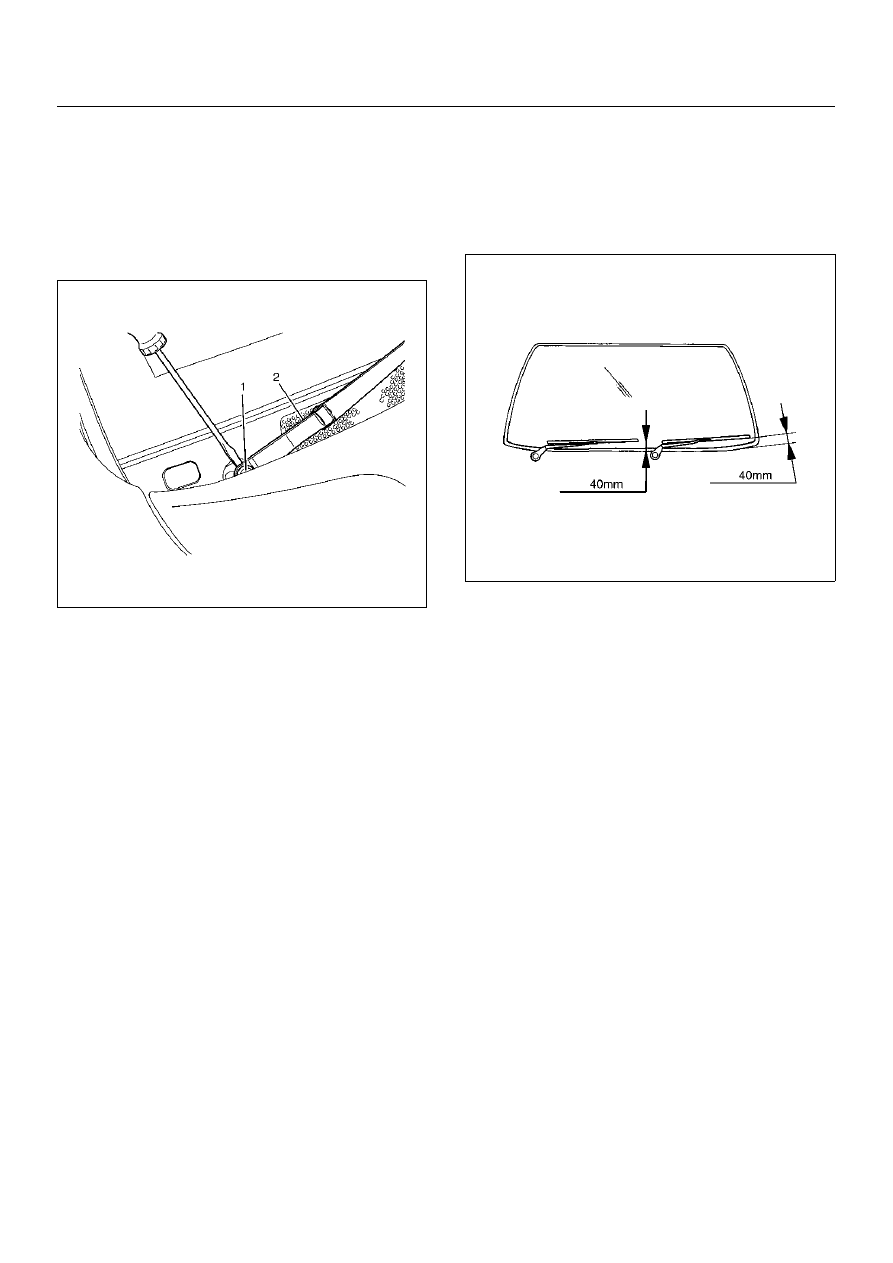

8B–6 WIPER/WASHER SYSTEM Windshield Wiper Arm/Blade Removal 1. Dry the cap(2) off with the tip of a screwdriver. 2. Remove the nut. 3. Remove the wiper arm/blade(1). 880RW023 Installation To install, follow the removal steps in the reverse order, 880RW027 1. Before installing the wiper arm/blade to the shaft, confirm that the motor stops at the autostop 2. Set the wiper arm/blade so that the tips of both blades are positioned about 40mm (1.57in) from 3. Tighten the nuts to the specified torque. Torque: 23N·m (2.3kg·m/17lbft) |
