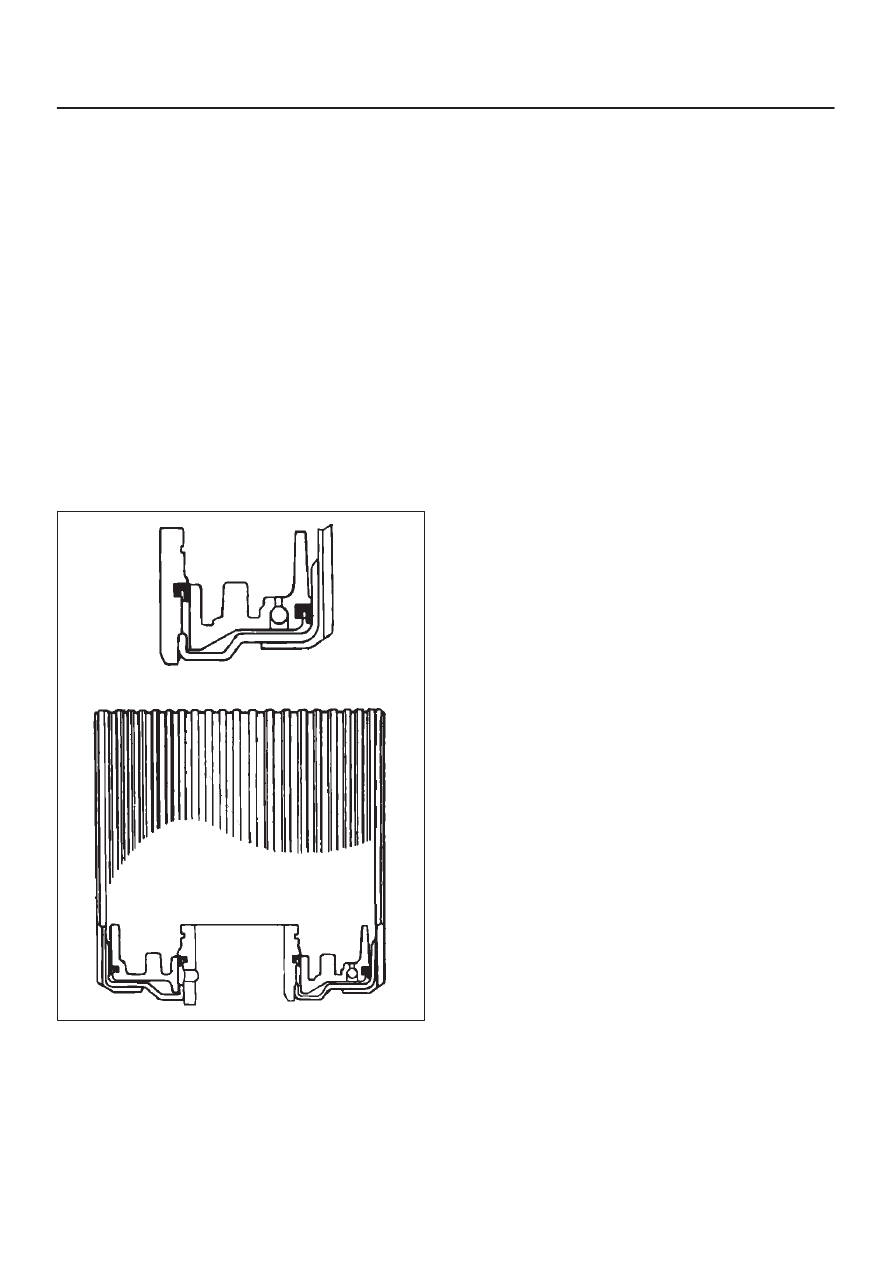

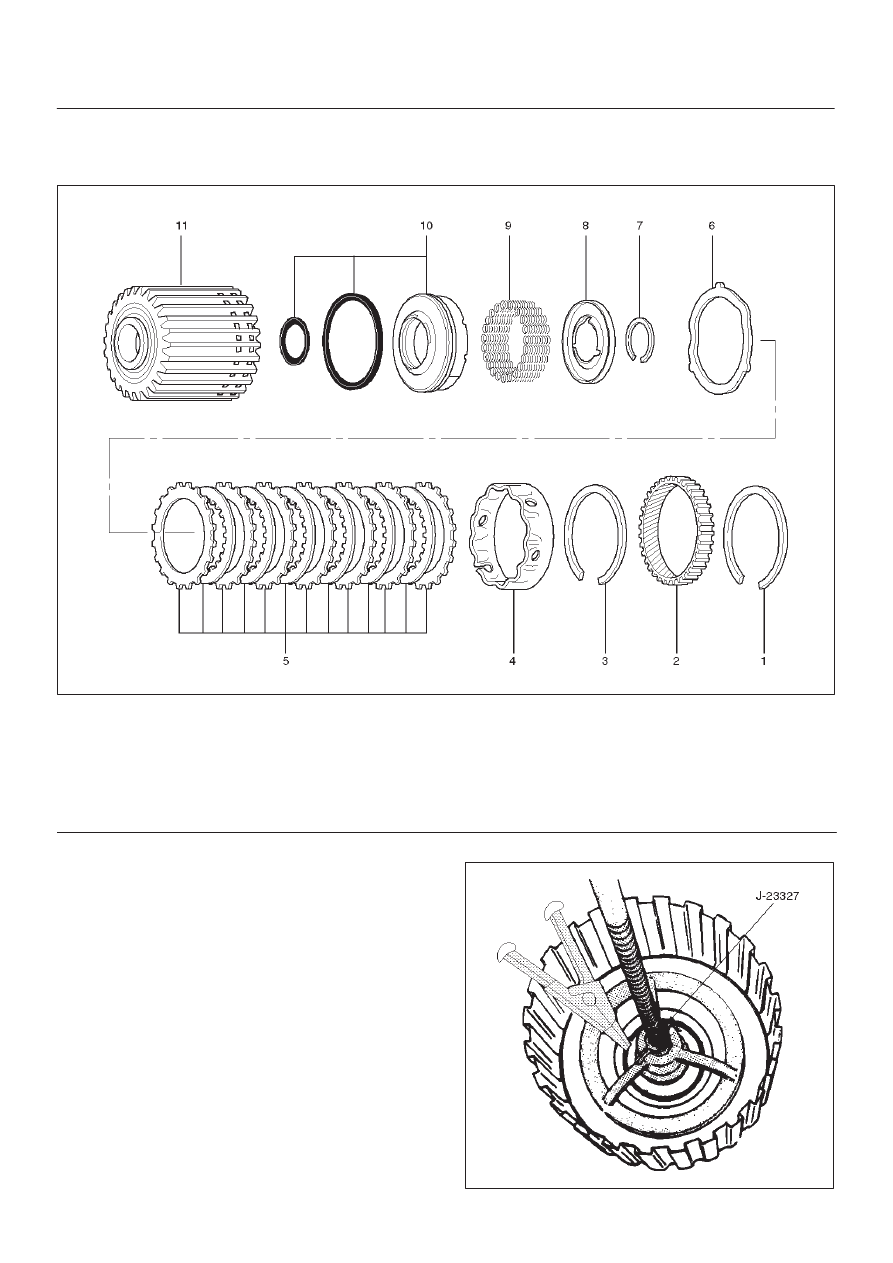

7A–76 AUTOMATIC TRANSMISSION (4L30–E) Second Clutch Disassembled View 247RW001 Legend (1) Retaining Ring (6) Waved Washer (10) Piston Assembly (11) Second Clutch Drum Disassembly 1. Remove retaining ring (1) from second clutch drum (11). 2. Remove ring gear (2), retaining ring (3), and spacer (4). 3. Remove clutch plates (5) and waved washer (6). to compress the spring seat (8). 5. Remove spring seat (8), springs (9) and piston assembly (10) from second clutch drum (11). 247RS006 |
