DIFFERENTIAL (REAR)
4A2–13

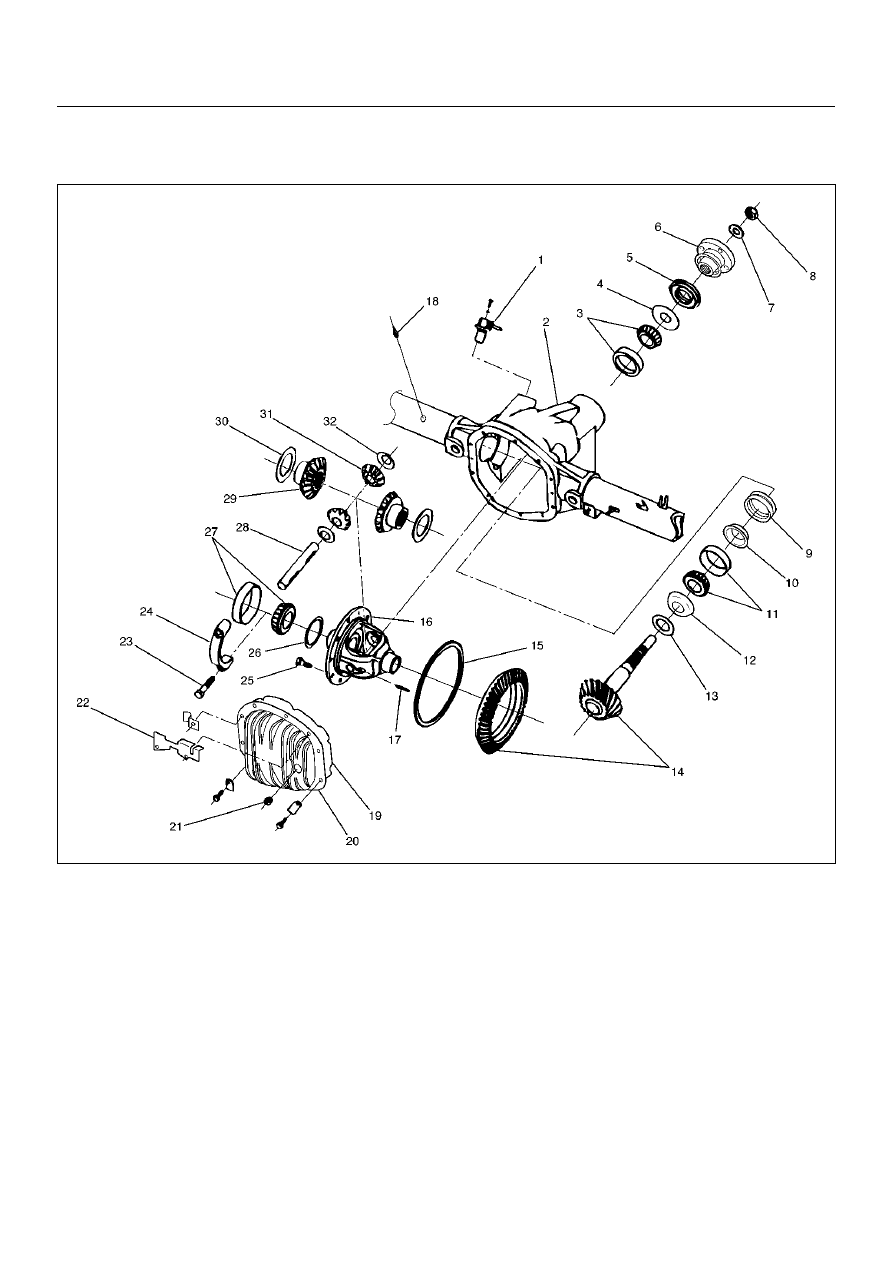

Differential Assembly
Disassembled View
420RW018
Legend
(1) ABS Speed Sensor
(2) Housing
(3) Outer Pinion Bearing (Cup and Cone)
(4) Outer Oil Slinger
(5) Oil Seal
(6) Companion Flange Assembly
(7) Pinion Nut Washer

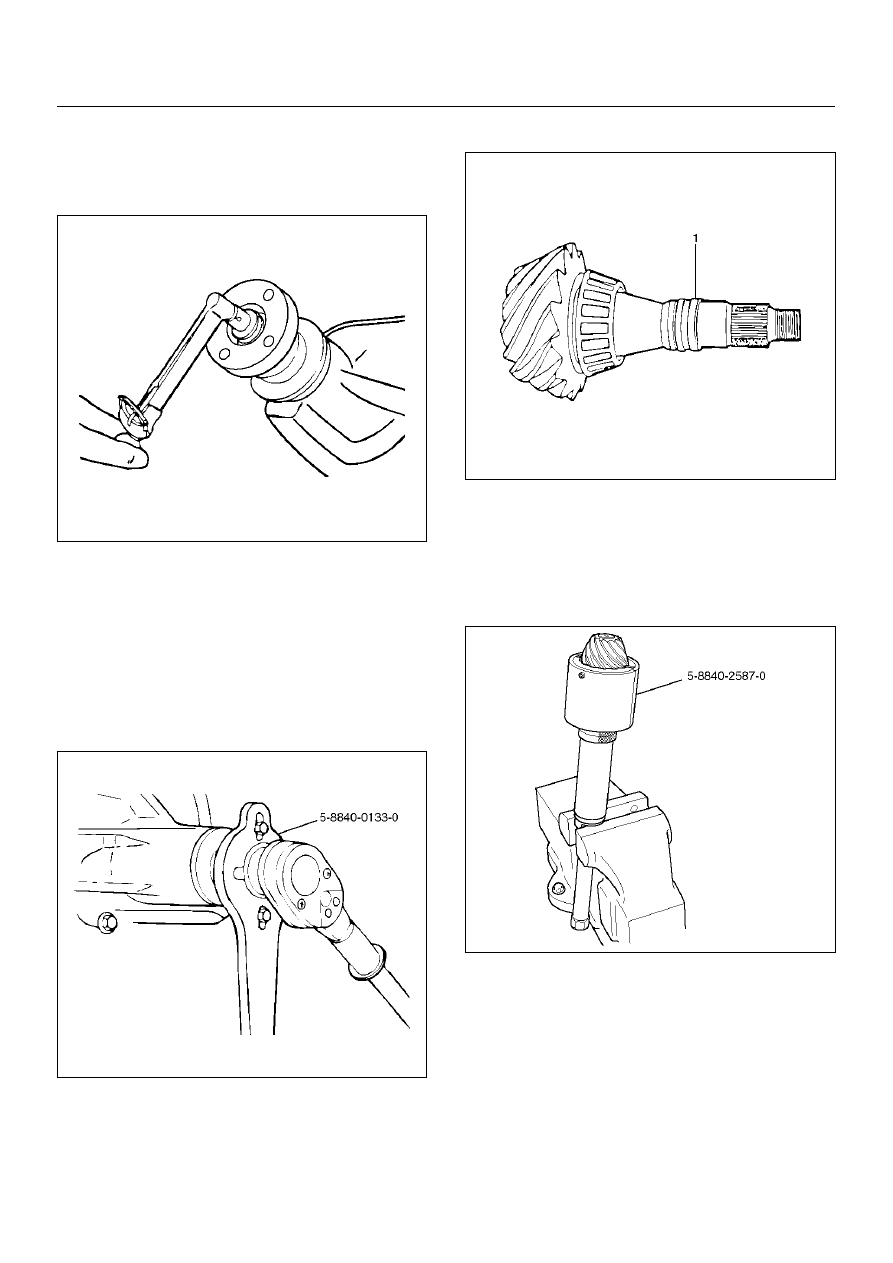

(8) Pinion Nut
(9) Collapsible Spacer
(10) Baffle Plate
(11) Inner Pinion Bearing (Cup and Cone)
(12) Inner Oil Slinger
(13) Pinion gear adj. Shim-Selective (Position)
(14) Ring gear and Pinion Gear Assembly
(15) Exciter Ring
(16) Differential Case
(17) Lock Pin
(18) Axle Vent
(19) Gasket
(20) Cover and Clip Assembly
(21) Fill Plug (with Magnet)
(22) Mounting Bracket
(23) Side Bearing Cap Bolt

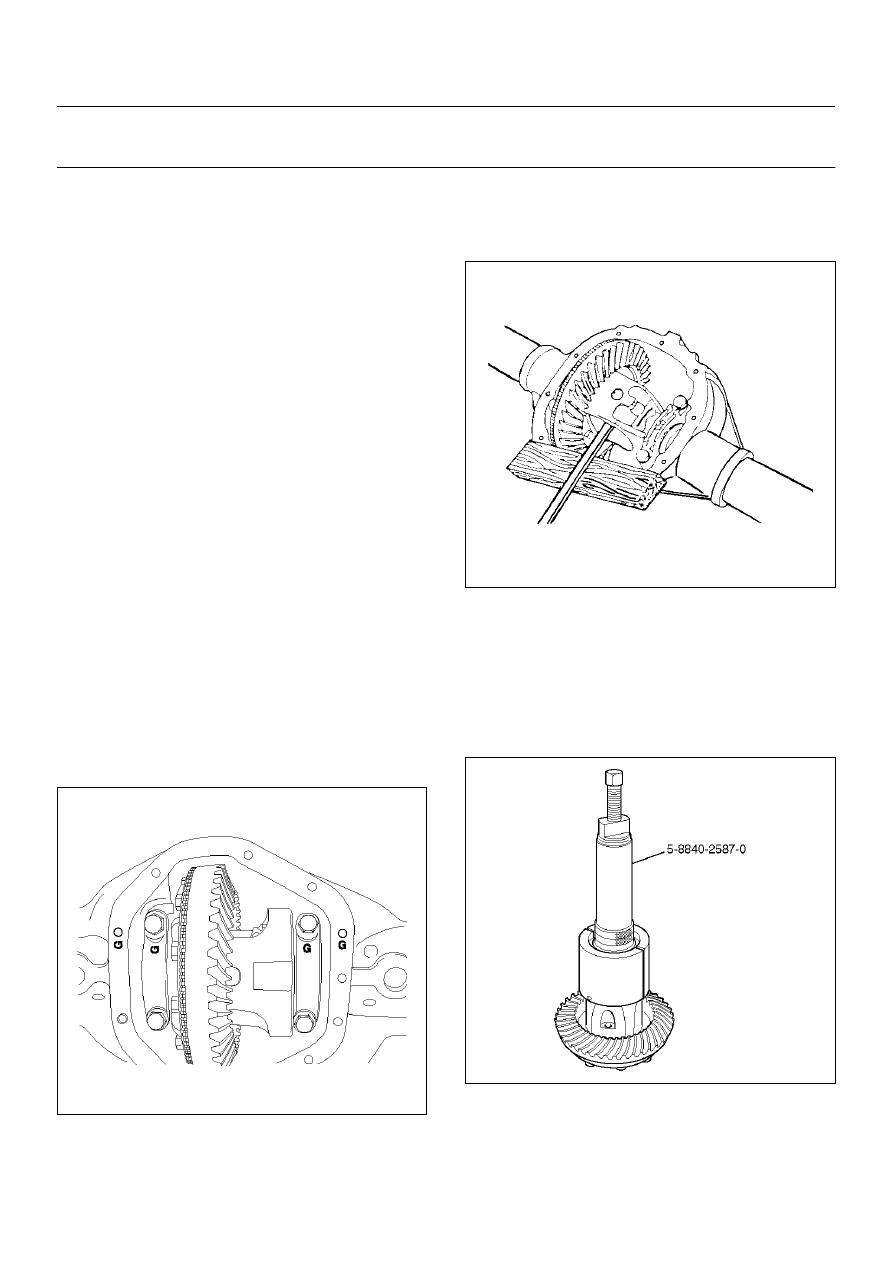

(24) Side Bearing Cap

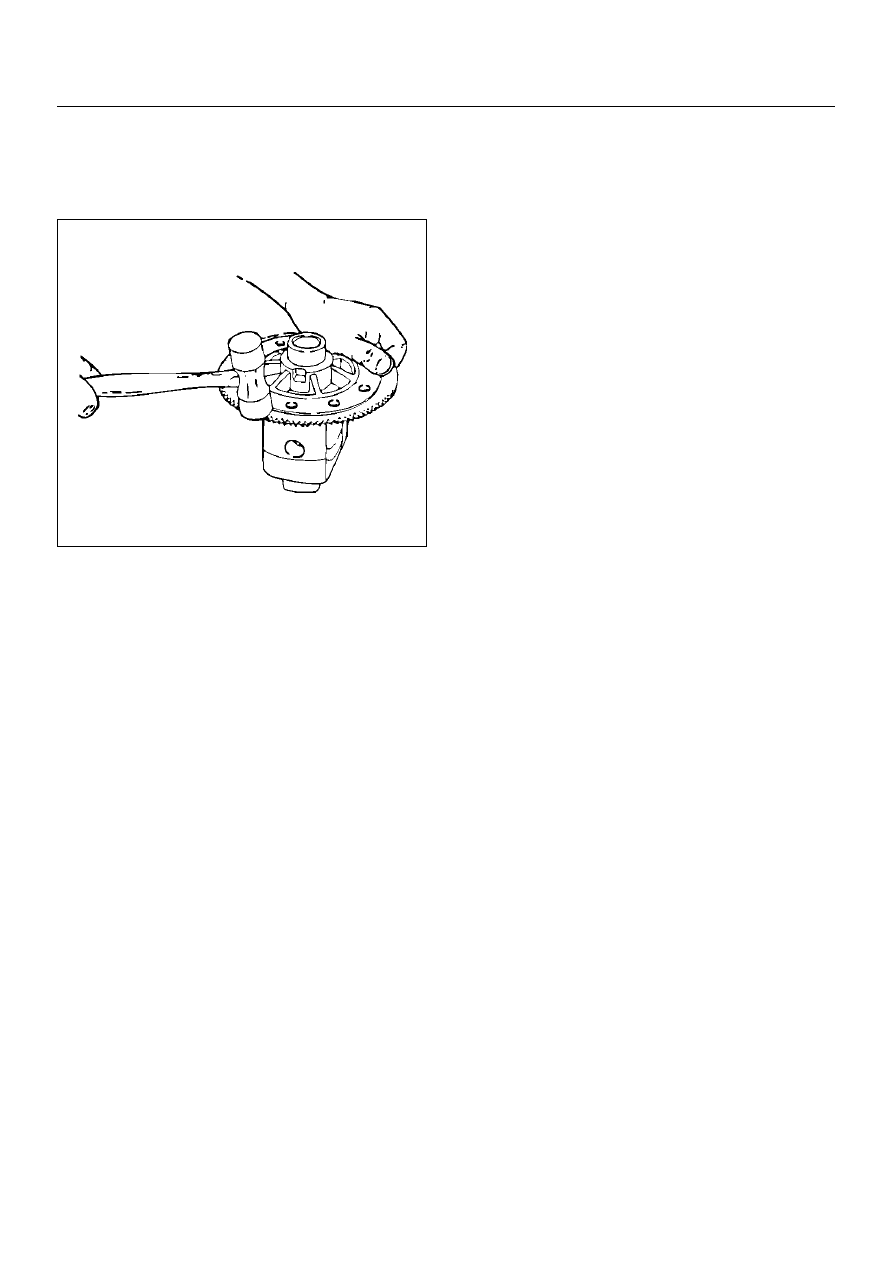

(25) Drive Gear Bolts
(26) Differential Adjustment Shims (Side Bearing
Preload and Ring Gear/Pinion Backlash)
(27) Side Bearing (Cup and Cone)
(28) Differential Shaft
(29) Differential Side Gears
