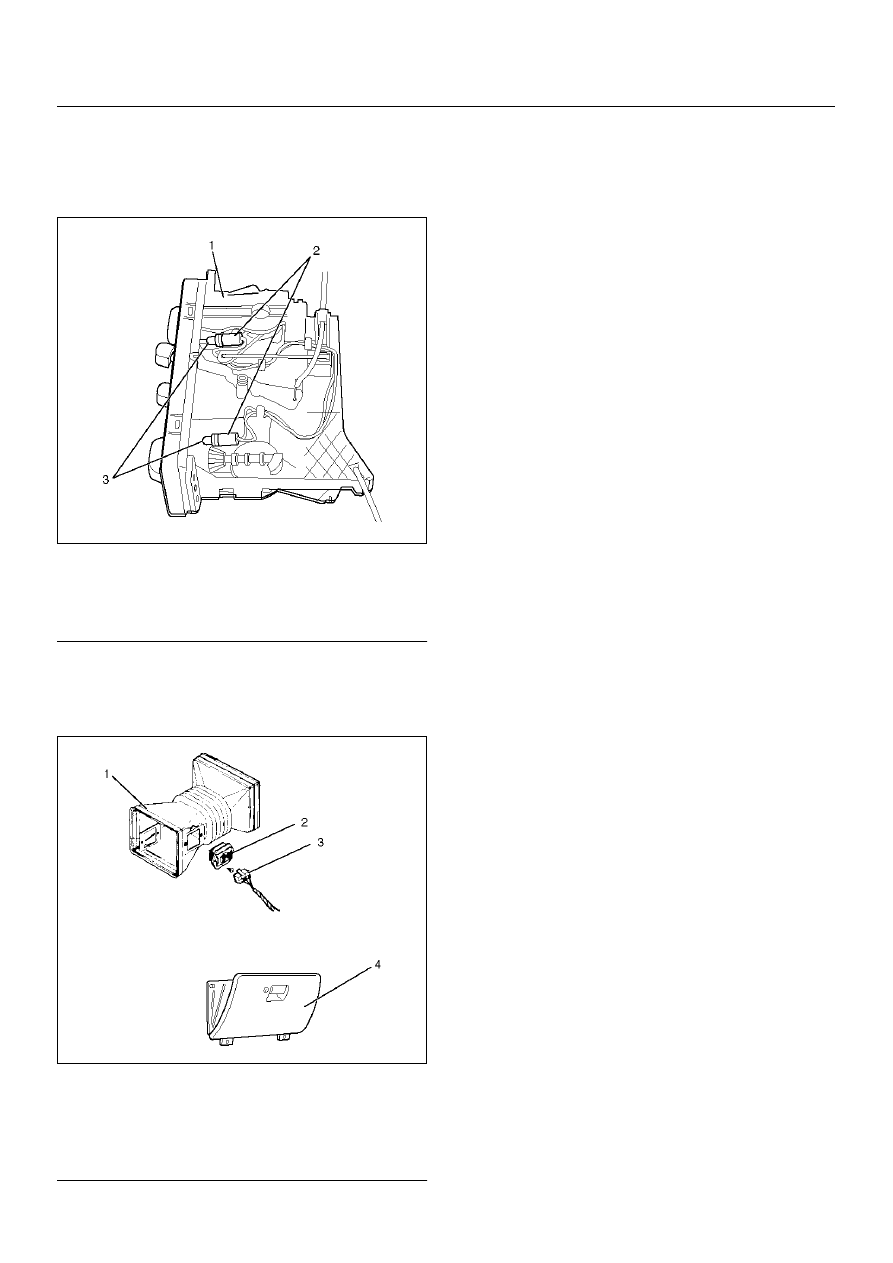

1A–28 HEATING, VENTILATION AND AIR CONDITIONING (HVAC) Control Panel Illumination Bulb Control Panel Illumination Bulb and 865RX011 EndOFCallout Removal 1. Disconnect the battery ground cable. 2. Remove control lever assembly. • Refer to Control Lever Assembly in this section. 3. Pull out the bulb socket from the panel by turning it counterclockwise. 4. Pull the illumination bulb from the socket. Installation To install, follow the removal steps in the reverse order. Resistor Resistor and Associated Parts 840RX016 EndOFCallout Removal 1. Disconnect the battery ground cable. 2. Remove glove box. 3. Remove resistor connector. 4. Remove duct (heater only). 5. Remove resistor. Installation To install, follow the removal steps in the reverse order. Legend (1) Control Lever Assembly Legend (1) Duct (Heater only) |
